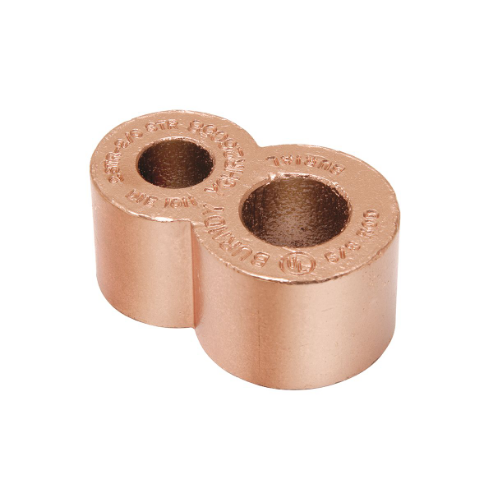

BURNDY YGHR29C58 Compression Connector, 4/0 AWG
Get it by Friday, Aug 28
€86.24 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Compression Connector |
| Application | For Direct Burial In Earth Or Concrete |
| Certification-csa Approved | Yes |
| Certification-culus | No |
| Certification-etl | No |
| Certification-ul Listed Direct Burial | Yes |
| Certification-ul Recognized | No |
| Conductor Copper Str Size | 4/0 AWG, 250 kcmil |
| Conductor Type | Cu C Str-Size A, Rod-Size B |
| Conductor-rod Size | 5/8" |
| Connector Type | Tap |
| Die Index | 998, 1012 |
| Dimension-b Length | 0.88" |
| Dimension-b Length Fraction | 22/25" |
| Dimension-ground Rod Size | 5/8" |
| Dimension-height Fraction | 2.14" |
| Dimension-height Inch | 2.14" |
| Dimension-l Length Overall Mm | 22 mm |
| Dimesion-b Length | 22/25" |
| Eu Rohs Indicator | Yes |
| Industry Standards | UL467, IEEE 837 |
| Material | Copper |
| No. Of Crimps Required | 1 |
| Oxide Inhibitor Type | Penetrox E |
| Plated | N |
| Plating Type | Unplated |
| Precrimp Die | Uprecrimp58 |
| Prefilled Oxide Inhibitor | Y |
| Product Datasheet | burndy-yghr29c58.pdf |
| Standards-rohs Compliance Status | CM |
| Trade Name | Hytail |
| Type | Taps |
| Ul Listed | Yes |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 5.44 |
| Ship length (cm) | 2.24 |
| Ship width (cm) | 3.2 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Type | Conductor-rod Size | Dimension-ground Rod Size | Dimension-height Fraction | Dimension-height Inch | Material | Dimension-b Length Fraction | Dimension-b Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| YGHR29C100 | YGHR-C | 1" | 1 | 2.45" | 2.45" | Copper | 22/25" | 0.88" | €108.12 | |
| YGHR29C34 | Taps | 3/4" | 3/4" | 2.1898" | 2.19" | Copper | 22/25" | 0.88" | €86.99 | |
| YGHR26C58 | Taps | 5/8" | 5/8" | 1.9696" | 1.97" | Copper | 22/25" | 0.88" | €78.77 | |
| YGHR26C34 | Taps | 3/4" | 3/4" | 2.1898" | 2.19" | Copper | 22/25" | 0.88" | €86.99 |
