BURNDY YC25L12 Compression Connector, C Shape, 2 AWG Run Conductor Size
3 AWG-12 AWG
Get it by Monday, Aug 17
€14.42 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Compression Connector |
| Application | Application |
| Body Material | TiN Bright Wrought High Conductivity Copper |
| Color | Orange |
| Color Code | Color Code , Orange |
| Comm Code Enhanced | 64120 |
| Conductor Type | Conductor Type |
| Connector Type | Connector Type |
| Dimension - B Length Inch | Dimension - B Length Inch |
| Family Series | Burndy Terminals, YC-L Series |
| Finish Type | Finish Type |
| Max. Temp. | 194°F |
| Min. Tap Conductor Size | 12 AWG Solid/Stranded |
| No. Of Taps | 1 |
| Plated | Plated |
| Product Datasheet | burndy-yc25l12.pdf |
| Series | YC-L Series |
| Shape | C |
| Strip Length | 1-13/16 |
| Terminal Type | C-Tap |
| Trade Name | Trade Name |
| Type | Type |
| Voltage Rating | 600V |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 1.57 |
| Ship length (cm) | 1.57 |
| Ship width (cm) | 1.07 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Height | Color | Max. Temp. | Series | Family Series | Die Index | Color Code | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

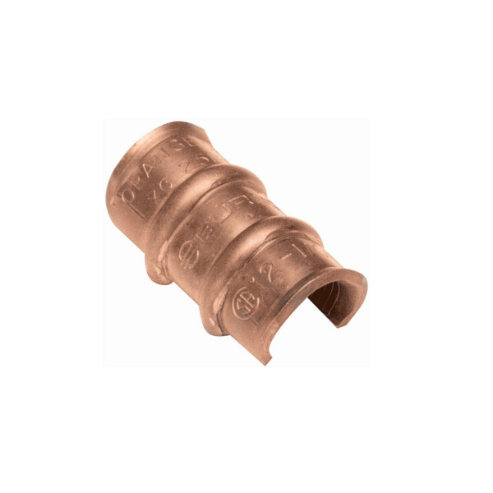

| YC2L12 | - | Pink | - | - | - | 12 | Pink | Yc L Series | €9.91 | |

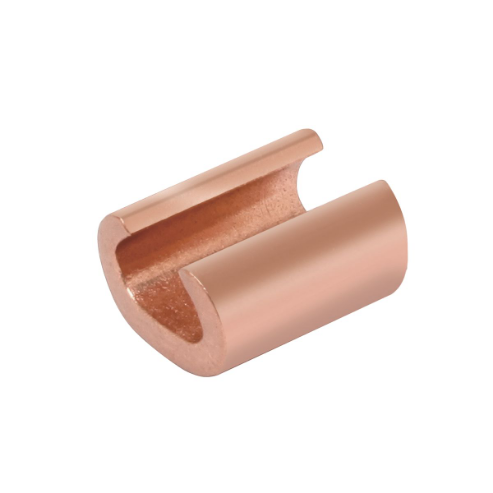

| YC28C28 | 15" | - | 221°F | YC-C Series | Burndy Terminals, YC-C Series | F, D3 | - | - | €52.09 | |
| YC28C2 | 16.93" | - | 221°F | YC-C Series | Burndy Terminals, YC-C Series | F, D3 | - | - | €52.09 | |
| YC26C26 | 8.66" | - | 194°F | YC-C Series | Burndy Terminals, YC-C Series | E, O | - | - | €39.13 | |
| YC26C2 | 8.27" | - | 194°F | YC-C Series | Burndy Terminals, YC-C Series | E, O | - | - | €39.13 | |
| YC2C2 | 6.7" | - | - | - | - | C | - | Yc C Series | €17.86 | |
| YC2C4 | 24 2/5" | - | 221°F | YC-C Series | Burndy Terminals, YC-C Series | - | - | - | €17.86 |
