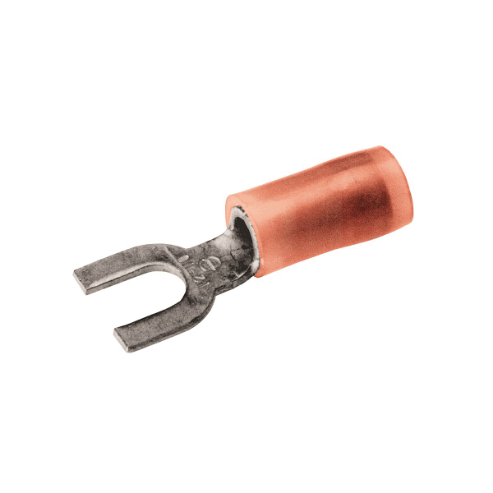

BURNDY TN188F Fork Terminal, 22 AWG Conductor Size, Red
€1.56 /unit
This product can only be shipped in multiples of 100Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fork Terminal |
| Application | Power Connector |
| Certification-csa Approved | Yes |
| Certification-culus | No |
| Certification-etl | No |
| Certification-ul Recognized | No |
| Color Code | Red |
| Conductor Copper Str Size | 20 AWG to 18 AWG , 20 AWG, 18 AWG |
| Conductor Range | 18 AWG to 22 AWG |
| Conductor Size | 22 AWG to 18 AWG |
| Conductor Type | Cu C Str-Size |
| Connector Type | Fork Terminal |
| Dimension-bolt Size Fraction | #6 to #8 |
| Dimension-l Length Overall Mm | 21 mm |
| Dimension-pad Width | 0.31" |
| Dimension-strip Length | 7/32" |
| Dimension-stud Size | #6", #8" |
| Dimensions-z | 0.26" |
| Eu Rohs Indicator | Yes |
| Feature-barrel Style | Shrouded |
| Industry Standards | UL486 |
| Insulation | Y |
| Insulation Type | Nylon |
| Material | Copper |
| Max. Cable Insulation Dia. | 0.12" |
| Max. Voltage | 600V |
| Overall Length | 0.84" , 21/25" |
| Pad Width | 0.31" |
| Plated | Y |
| Plating Type | Tin |
| Product Datasheet | burndy-tn188f.pdf |
| Standards - Industry Standards Met | UL486 |
| Standards-rohs Compliance Status | CM |
| Strip Length | 0.21875" |
| Tongue Type | Fork |
| Trade Name | Insulug |
| Type | Tn-F |
| Ul Listed | Yes |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 0.76 |
| Ship length (cm) | 2.13 |
| Ship width (cm) | 0.79 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Max. Voltage | Conductor Range | Dimension-l Length Overall Mm | Type | Dimension-bolt Size Fraction | Conductor Size | Plating Type | Connector Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

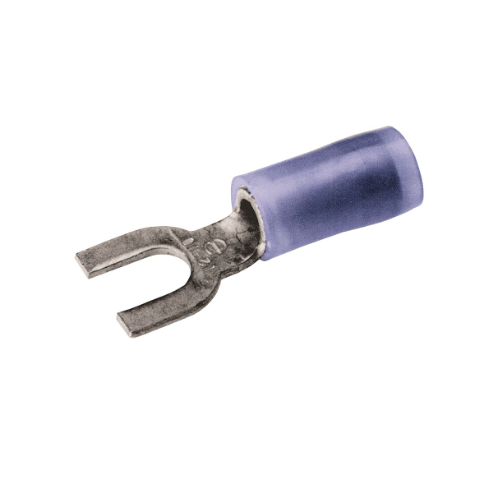

TN1414F | 600V | 14 AWG to 16 AWG | 26 mm | Tn-F | 1/4" | 16 AWG to 14 AWG | Tin | Fork Terminal | €1.83 | RFQ
|
 |

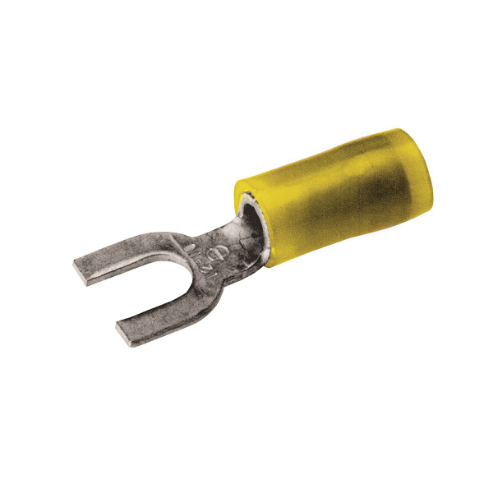

TN1014F | 600V | 12 AWG to 10 AWG | 31 mm | Tn-F | 1/4" | 12 AWG to 10 AWG | Tin Electro Plated | Fork Terminal | €1.89 | RFQ
|
|
TN206F | 300V | 20 AWG to 26 AWG | 20 mm | Tn-F | #4 to #6 | 26 AWG to 20 AWG | Tin | Fork Terminal | €1.77 | RFQ
|
|
TN186F | 600V | 18 AWG to 22 AWG | 20 mm | Tn-F | #4 to #6 | 22 AWG to 18 AWG | Tin | Fork Terminal | €1.56 | RFQ
|
|
TN1814F | 600V | 18 AWG to 22 AWG | 26 mm | Tn-F | 1/4" | 22 AWG to 18 AWG | Tin | Fork Terminal | €1.83 | RFQ
|
|
TN1810F | 600V | 18 AWG to 22 AWG | 21 mm | Tn-F | #8 to #10 | 22 AWG to 18 AWG | Tin | Fork Terminal | €1.56 | RFQ
|
 |
TN148LF | - | 14 AWG to 16 AWG | 24 mm | TN | #6 to #8 | 16 AWG to 14 AWG | Unplated | Locking Fork Terminal | €1.48 | RFQ
|
