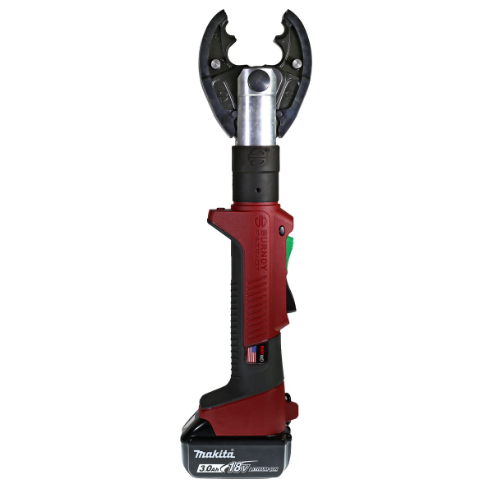

BURNDY PATMD6LW Scissor Head Cordless Crimping Tool, Straight Grip, W, W-Vt And x Style Die
Item: CH6RBHModel: PATMD6LWCross Ref: 450W95
7 In Stock
Ships within 2 days via
10.00% off
€3,470.35 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Crimping Tool |
| Auto-cycle | No |
| Battery Capacity | 3 Ah |
| Battery Platform | Makita 18V LXT |
| Battery Type | Lithium Ion |
| Capacity | 8 AWG to 350 kcmil |
| Compatible Battery Manufacturer Part Number | BAT18V5AHLI, BAT18VLI |
| Compatible Charger Manufacturer Part No. | PATCHGRLI, PATCHGRLIDC |
| Compatible Connector Type | Aluminum Lug, Copper Lug, Splices, Terminal |
| Compatible Die Type | W, X |
| Compatible Maximum Wire/cable Diameter | 500 kcmil |
| Compatible Minimum Wire/cable Diameter | 14 AWG |
| Compatible Wire/cable Type | AAC, ACSR, Copper Cable, Copper Flex |
| Cordless Tool Kit Contents | (2) Batteries, Bare Tool, Charger |
| Crimp Head Type | Die |
| Crimping Capacities | 10 AWG to 2/0 AWG Copper Taps, 14 AWG to 4/0 AWG Acsr Taps, 14 AWG to 4/0 AWG Aluminum Taps, 2 AWG to 4/0 AWG, 6 AWG to 4/0 AWG, 6 AWG to 4/0 AWG Stirrups, 8 AWG to 350 Kcmil Aluminum, 8 AWG to 350 Kcmil Copper Flex Terminals And Splices, 8 AWG to 500 Kcmil Copper Terminals And Splices, Acsr 10 AWG to 4/0 AWG Full-Tension Sleeves |
| Crimping Force | 6 ton. |
| Cycle Time | 4 sec |
| Cycle Time | 4 sec. |
| Features | Clearly Engraved Cut Jaw Markings For Identification, Interchangeable Scissor Action Crimping And Cutting Jaws, Led Work Light, Lightweight, Compact And Ergonomic Design, Proprietary Locking Jaw Tabs, Safety Trigger Lock |
| Grip Style | Ergonomic |
| Handle Type | Inline |
| Head Rotation | 180° |
| Head Style | Scissor |
| Included Battery Part Number | BAT18V5AHLI, BAT18VLI |
| Included Charger Part No. | PATCHGRLI, PATCHGRLIDC |
| Includes | Utility Tool Bag |
| Includes Batteries | Yes |
| Includes Charger | Yes |
| Includes Dies | Yes |
| Manufacturer Warranty Length | 3 yrs. Battery, 3 yrs. Charger, 5 yrs. Limited, Lifetime Warranty On Infinity Drive |
| Max. Aluminum Lug Capacity | 350 kcmil |
| Max. Copper Lug Capacity | 350 kcmil |
| Max. Crimping Force | 6 ton. |
| Max. Crimping Force | 6 ton |
| Min. Aluminum Lug Capacity | 8 AWG |
| Min. Copper Lug Capacity | 8 AWG |
| No. Of Dies Included | 0 |
| Number Of Batteries Included | 2 |
| Overall Height | 2 3/4" |
| Overall Length | 18.73" |
| Overall Width | 4.38" |
| Power Source | Cordless |
| Tool Series | PATRIOT MD-LW Series |
| Tool Weight | 5.55 lbs. |
| Ul 486a-b Connection Capability | Burndy |
| Voltage | 18V |
| Wireless Tool Tracking | No |
Shipping Info:
| Ship weight (kg) | 2.5 |
| Ship height (cm) | 11.13 |
| Ship length (cm) | 47.57 |
| Ship width (cm) | 6.99 |
| Country of Origin | US |
