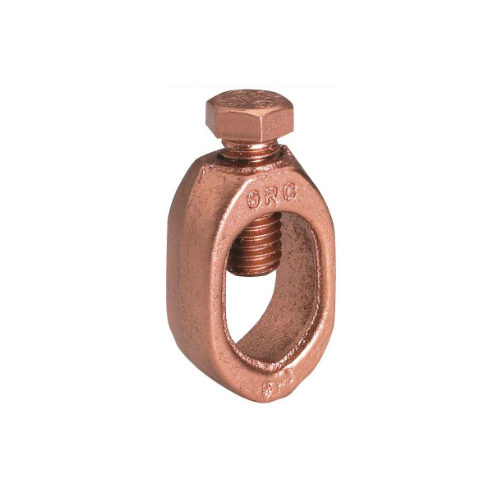

BURNDY GRC34 Ground Rod Clamp 8awg 2.47in
Item: AB6QVGModel: GRC34Cross Ref: 22A959
7 In Stock
Ships within 2 days via
5.00% off
€96.45 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ground Rod Clamp |
| Accessory Type | Ground Clamp |
| Body Material | Copper Alloy |
| Bolt Size | 3/8" |
| Conductor Size | 8 AWG to 1/0 AWG |
| For Max. Ground Conductor Wire Size | 1/0 AWG Str |
| For Min. Ground Conductor Wire Size | 8 AWG Sol |
| For Rod Dia. | 3/4" |
| For Use With | Copper Conductors, Ground Rods |
| Grounding Wire Size | 8 AWG, 8 AWG to 1/0 AWG |
| Grounding Wires Connected To | 3/4" Rod |
| Length | 2.47" |
| Material | Copper |
| Min. Conductor Size | 8 AWG |
| No. Of Grounding Wires | 1 |
| No. Of Wires | 1 |
| Overall Height | 2 13/32" |
| Overall Length | 21/32" |
| Overall Width | 1 3/32" |
| Product Datasheet | burndy-grc34.pdf |
| Rod Dia. | 3/4" |
| Terminal Material | Copper Alloy |
| Type | Commercial |
| Type-grounding Connector | Mechanical |
| Width | 1.09" |
Shipping Info:
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 4.05 |
| Ship length (cm) | 1.67 |
| Ship width (cm) | 2.3 |
| HS code | 8535908060 |
| Country of Origin | MX |
Product Details:
- Blackburn G6, T&B G6
Documentation:
Product Variants
| Product | Model | Min. Conductor Size | Overall Width | Conductor Size | Overall Height | For Max. Ground Conductor Wire Size | For Min. Ground Conductor Wire Size | For Rod Dia. | Rod Dia. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GRC58 | 10 AWG | 15/16" | 1 AWG to 10 AWG | 2 3/16" | 1 AWG Str | 10 AWG Sol | 5/8" | 5/8" | 5 | €78.37 | |
|
GRC12 | 10 AWG | 7/8" | 2 AWG to 10 AWG | 2 1/16" | 2 AWG Str | 10 AWG Sol | 1/2" | 1/2" | 5 | €51.20 |
