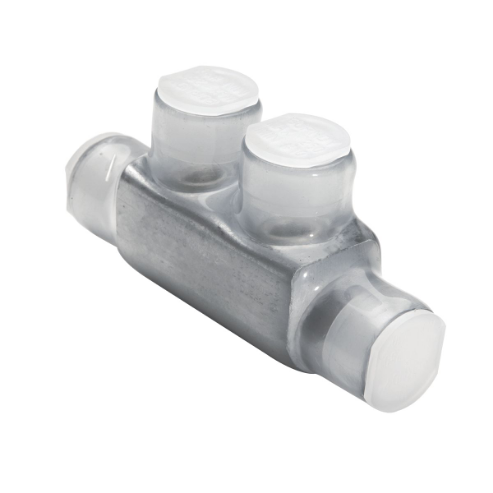

BURNDY BISR2 Inline Splice/reducer 14awg 2.38in
Item: AB6RFMModel: BISR2Cross Ref: 22C250
7 In Stock
Ships within 2 days via
5.00% off
€34.47 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Multi Tap Connector |
| Amps | 115A |
| Body Finish | Plastisol |
| Body Material | Aluminum |
| Color | Clear |
| Compatible With Product Type | Code Conductor |
| Connector Type | Double Sided Entry |
| Direct Burial Rated | No |
| Finish | Unplated |
| For Conductor Material | Aluminum, Copper |
| For Stranded Copper Wire Size | 2 AWG |
| Head Style | Hex |
| Head Type | Hex |
| Hex Size | 5/32" |
| Insulation | Insulated |
| Insulation Material | Plastisol |
| Length | 2.38" |
| Length (straight Wireway) | 2.38" |
| Max. Conductor Size | 2 AWG |
| Max. For Stranded Copper Wire Size | 2 AWG |
| Max. Operating Temp. | 194°F |
| Max. Voltage | 600V |
| Min. Conductor Size | 14 AWG |
| Min. For Stranded Copper Wire Size | 14 AWG |
| Mounting Hole Size | Not Applicable |
| No. Of Ports | 2 |
| Overall Length | 2.38" |
| Overall Width | 3/4" |
| Product Datasheet | burndy-bisr2.pdf |
| Rohs Compliant | Yes |
| Screw Material | Aluminum |
| Stud Size | 0.312" |
| Tap Shape | T |
| Terminal Material | Aluminium |
| Torque | 100 lbs.-in. |
| Width | 1.22" |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 3.1 |
| Ship length (cm) | 6.05 |
| Ship width (cm) | 1.91 |
| HS code | 8535908020 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Min. Conductor Size | Overall Width | Min. For Stranded Copper Wire Size | Max. For Stranded Copper Wire Size | Stud Size | Torque | Screw Material | Length (straight Wireway) | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| BISR1/0 | 14 AWG | 0.91" | 14 AWG | 1/0 AWG | 0.188" | 50 lbs.-in. | Aluminium | 2.91" | €46.74 | |
| BISR500 | 6 AWG | 1.62" | 6 AWG | 500 kcmil | 3/8" | 275 lbs.-in. | Aluminum | 5" | €129.67 | |
| BISR250 | 10 AWG | 1.19" | 10 AWG | 250 kcmil | 0.188" | 275 lbs.-in. | Aluminium | 4.01" | €70.04 | |
| BISR350 | - | - | - | - | - | - | - | - | €63.44 |
