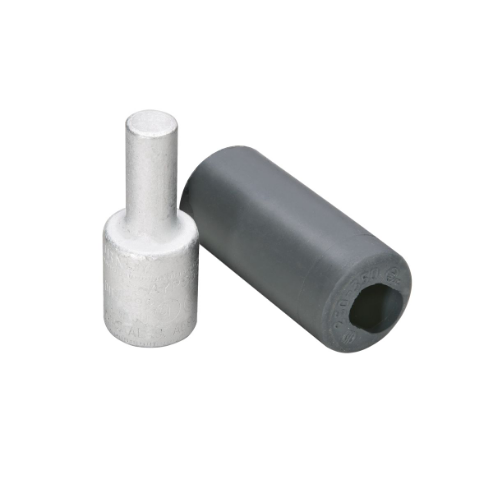

BURNDY AYP2 Aluminium Compression Adapter 2 Awg
Item: AB6XHNModel: AYP2Cross Ref: 22P113
7 In Stock
Ships within 2 days via
5.00% off
€34.71 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | AL Compression Adapter |
| Barrel Dia. | 3/5" |
| Barrel Length | 1" |
| Color Code | Tan |
| Compatible Installation Tool Model Number | Hytools Dieless Tools MY29-3, Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V |
| Connection Orientation | Straight |
| Connector Type | Pin Terminal |
| Contact Finish | Tin |
| Contact Material | Aluminum |
| Die Code | 296 |
| For Conductor Material | Aluminum, Copper |
| For Max. Stranded Copper Wire Size | 2 AWG |
| For Stranded Aluminum Wire Size-max. | 2 AWG |
| For Wire Size | 2 AWG |
| Height | 0.6" |
| Insulation Material | Rubber |
| Length | 1 17/20" |
| Length (straight Wireway) | 1.85" |
| Max. For Stranded Copper Wire Size | 2 AWG |
| Max. Voltage | 35 kV |
| Max. Wire Size | 2 AWG |
| Min. For Stranded Copper Wire Size | 2 AWG |
| Min. Wire Size | 6 AWG |
| No. Of Crimps | 1 |
| Overall Length | 1.85" |
| Pin Dia. | 0.234" |
| Pin Equivalent Wire Size | 4 AWG |
| Pin Length | 0.68" |
| Strip Length | 1 1/16" |
| Type | Al/Cu Conductors |
| Width | 3/5" |
| Wire Material | Al Str-Size, Cu Str-Size |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 0.58 |
| Ship length (cm) | 4.7 |
| Ship width (cm) | 1.52 |
| HS code | 8535908020 |
| Country of Origin | US |
Product Details:
- Special Features: Tin-electro Plated,Rubber Insulation
- Blackburn PA02, T&B 61920A
Product Variants
| Model | Strip Length | Barrel Dia. | Color Code | Barrel Length | Type | Wire Size | Wire Material | For Conductor Material | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AYPO3/0 | 1 1/16" | 0.86" | White | 1.11" | Al/Cu Cable | - | Al Str-Size, Cu Str-Size | Aluminum, Copper | 1 | €66.55 | |
| AYPO750 | 1 3/4" | 1.46" | Yellow | 1.59" | Al/Cu Cable | - | Al Str-Size, Cu Str-Size | Aluminum, Copper | 1 | €152.64 | |
| AYPO4/0 | 1 1/16" | 0.86" | White | 1.11" | Al/Cu Cable | - | Al Str-Size, Cu Str-Size | Aluminum, Copper | 1 | €72.34 | |
| AYPO600 | 1 3/4" | 1.46" | Yellow | 1.59" | Al/Cu Cable | - | Al Str-Size, Cu Str-Size | Aluminum, Copper | 1 | €153.68 | |
| AYP500 | 1 1/8" | 1.46" | Pink | 1.07" | Al/Cu Cable | - | Al Str-Size, Cu Str-Size | Aluminum, Copper | 1 | €139.39 | |
| AYPO500 | 1 1/16" | 1.31" | Pink | 1.07" | Al/Cu Cable | - | Al Str-Size, Cu Str-Size | Aluminum, Copper | 1 | €119.98 | |
| AYPO250 | 1 1/16" | 1.11" | Brown | 1.07" | Al/Cu Cable | 250 kcmil | Al Str-Size, Cu Str-Size | Aluminum, Copper | 5 | €486.94 |
