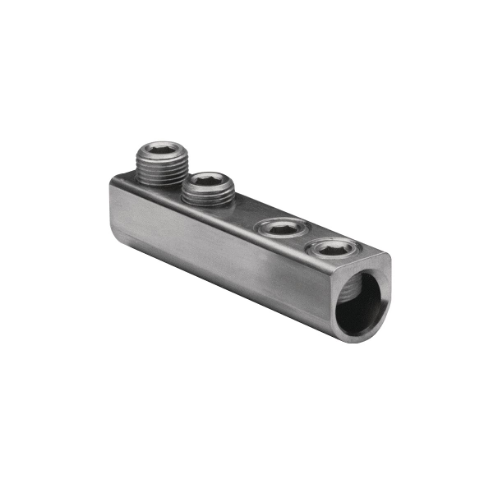

BURNDY AMS750 Dual Rated Splice/Reducer 250 kcmil
Item: AB6REWModel: AMS750Cross Ref: 22C216
7 In Stock
Ships within 2 days via
10.00% off
€133.29 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Dual Rated Splice/Reducer |
| Body Material | Aluminium |
| Color | Bare |
| Color Code | Bare |
| Compatible With Product Type | Aluminum Cable, Copper Cable |
| Connection Orientation | Dual Rated Splice/Reducer |
| Connector Type | Splice/Reducer |
| Contact Finish | Tin |
| Finish | Tin Coated |
| For Conductor Material | Aluminum, Copper |
| For Stranded Copper Wire Size | 750 kcmil |
| For Stranded Copper Wire Size - Maximum | 750 kcmil |
| For Stranded Copper Wire Size - Minimum | 250 kcmil |
| For Stud Size | 15/16" |
| Head Style | Hex |
| Head Type | Hex |
| Hole Dia. | Not Applicable |
| Hole Spacing | Not Applicable |
| Length | 6.06" |
| Length (straight Wireway) | 6.06" |
| Material | Aluminium |
| Max. Conductor Size | 750 kcmil |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 600V |
| Min. Conductor Size | 250 kcmil |
| No. Of Conductors | 4 |
| Number Of Conductors | 4 |
| Number Of Terminations | 4 |
| Overall Depth | 1 7/16" |
| Overall Length | 6.06" |
| Overall Width | 1.63" |
| Special Features | Connectors Feature Rounded Bottoms, Large Cable Ranges, Large Screw Diameters, Prevents Contact Of Dissimilar Metals, Provide Low Contact Resistance And Prevents Galvanic Corrosion |
| Standards | Ansi, Csa Certified, Ul Listed |
| Stud Size | 15/16" |
| Terminal Material | Aluminium |
| Torque | 500 lbs.-in. |
| Type | Commercial |
| Width | 1.63" |
Shipping Info:
| Ship weight (kg) | 0.52 |
| Ship height (cm) | 4.13 |
| Ship length (cm) | 15.39 |
| Ship width (cm) | 3.66 |
| HS code | 8535908020 |
| Country of Origin | US |
Product Variants
| Model | Stud Size | Head Style | Min. Conductor Size | Head Type | Number Of Conductors | Overall Length | Max. Conductor Size | Body Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| AMS2 | - | - | 14 AWG | Slotted | 2 | - | 2 AWG | Aluminium | €21.20 | |
| AMS4/0 | 9/16" | Slotted | 6 AWG | Slotted | 2 | 2.31" | - | Aluminium | €54.95 | |

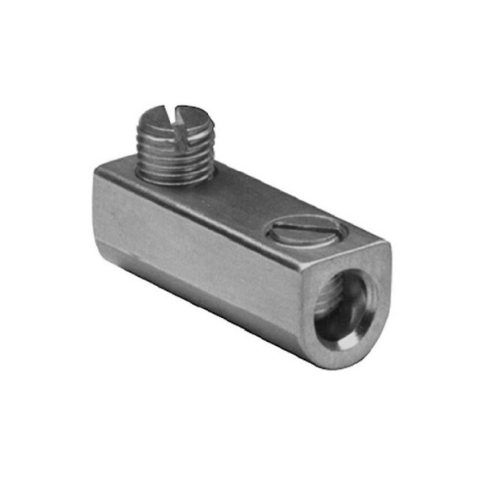

| AMS0 | 7/16" | Slotted | 14 AWG | Slotted | 2 | 1.91" | - | Aluminium | €24.02 | |
| AMS250 | 5/8" | Hex | 6 AWG | Hex | 2 | 4.09" | 250 kcmil | Aluminium | €59.40 | |
| AMS350 | 11/16" | Hex | 6 AWG | Hex | 2 | 4.34" | 350 kcmil | Aluminium | €66.09 | |
| AMS500 | 13/16" | Hex | 3/0 AWG | Hex | 2 | 4.78" | 500 kcmil | Aluminium | €98.83 |
