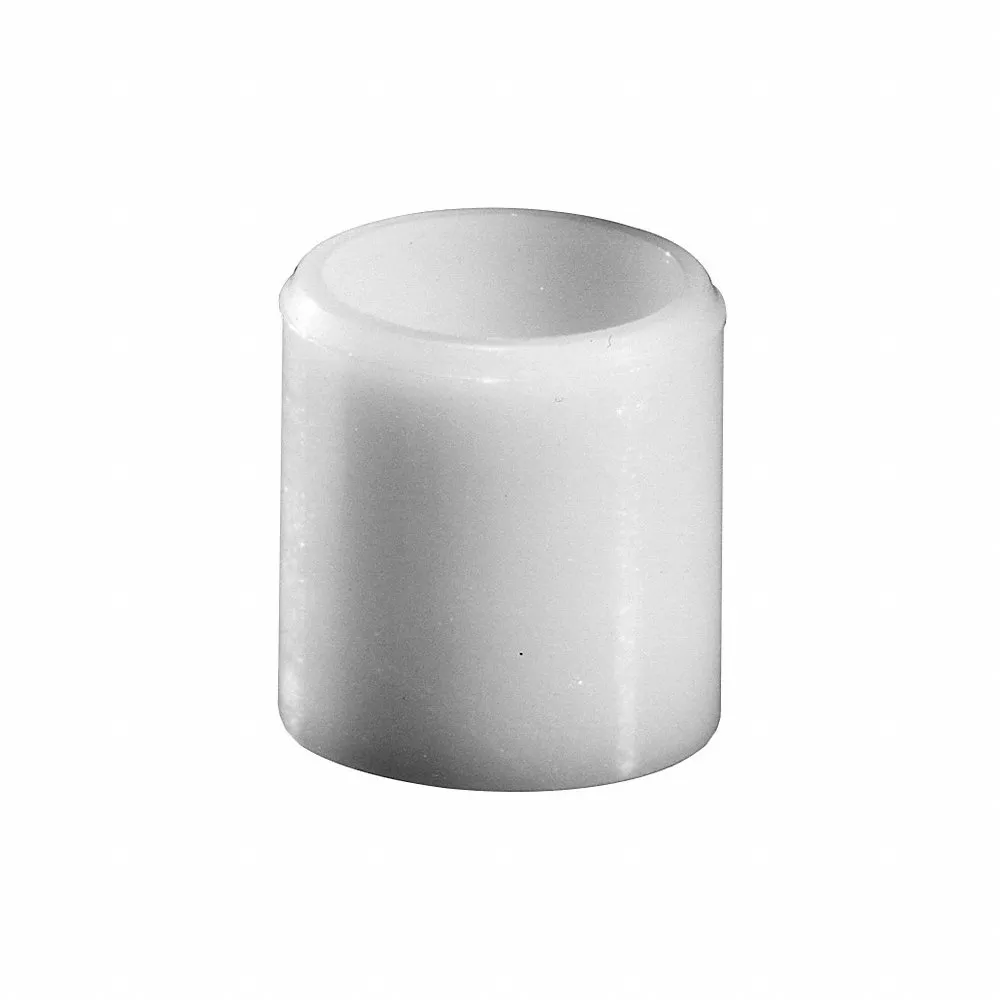

BUNTING BEARINGS NN050710 Sleeve Bearing, Size 5/16 x 7/16 x 5/8 Inch, Nylon
Item: CD4XWTModel: NN050710Cross Ref: 246R22
7 In Stock
5/16"
7/16"
5/8"
Ships within 2 days via
13.00% off
€40.77 /pkg. of 20
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Sleeve Bearing |
| Bore Dia. | 5/16" |
| Color | Off White |
| Length Tolerance | -0.015" to +0.015" |
| Max. Pv | 3000 lbs.-ft./sq. in-min. |
| Max. Temp. | 250°F |
| Min. Temp. | -20°F |
| Outside Dia. | 7/16" |
| Overall Length | 5/8" |
| Plain Bearing Material | Nylon |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 1.13 |
| Ship length (cm) | 1.59 |
| Ship width (cm) | 1.13 |
| Country of Origin | US |
Product Details:
- The FDA approved and non-toxic molded nylon 101 bearings possesses good electrical properties and have a proper blend of toughness and strengh. These plastic bearings are a cost-effective option to be used in place of metal bearings where high-strength is not required.
Product Variants
| Model | Bore Dia. | Outside Dia. | Overall Length | Length Tolerance | Max. Temp. | Min. Temp. | Max. Pv | Plain Bearing Material | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| NN030508 | 3/16" | 5/16" | 1/2" | -0.015" to +0.015" | 250°F | -20°F | 3000 lbs.-ft./sq. in-min. | Nylon | 20 | €46.86 | |
| NN040604 | 1/4" | 3/8" | 1/4" | -0.015" to +0.015" | 250°F | -20°F | 3000 lbs.-ft./sq. in-min. | Nylon | 25 | €55.00 | |
| NN040606 | 1/4" | 3/8" | 3/8" | -0.015" to +0.015" | 250°F | -20°F | 3000 lbs.-ft./sq. in-min. | Nylon | 35 | €79.70 | |
| NN040608 | 1/4" | 3/8" | 1/2" | -0.015" to +0.015" | 250°F | -20°F | 3000 lbs.-ft./sq. in-min. | Nylon | 25 | €58.58 | |
| NN050707 | 5/16" | 7/16" | 7/16" | - | 250°F | -20°F | 3000 lbs.-ft./sq. in-min. | - | 25 | €58.58 | |
| NN050804 | 5/16" | 1/2" | 1/4" | -0.015" to +0.015" | 250°F | -20°F | 3000 lbs.-ft./sq. in-min. | Nylon | 20 | €48.40 | |
| NN060806 | 3/8" | 1/2" | 3/8" | -0.015" to +0.015" | 250°F | -20°F | 3000 lbs.-ft./sq. in-min. | Nylon | 30 | €66.00 |
