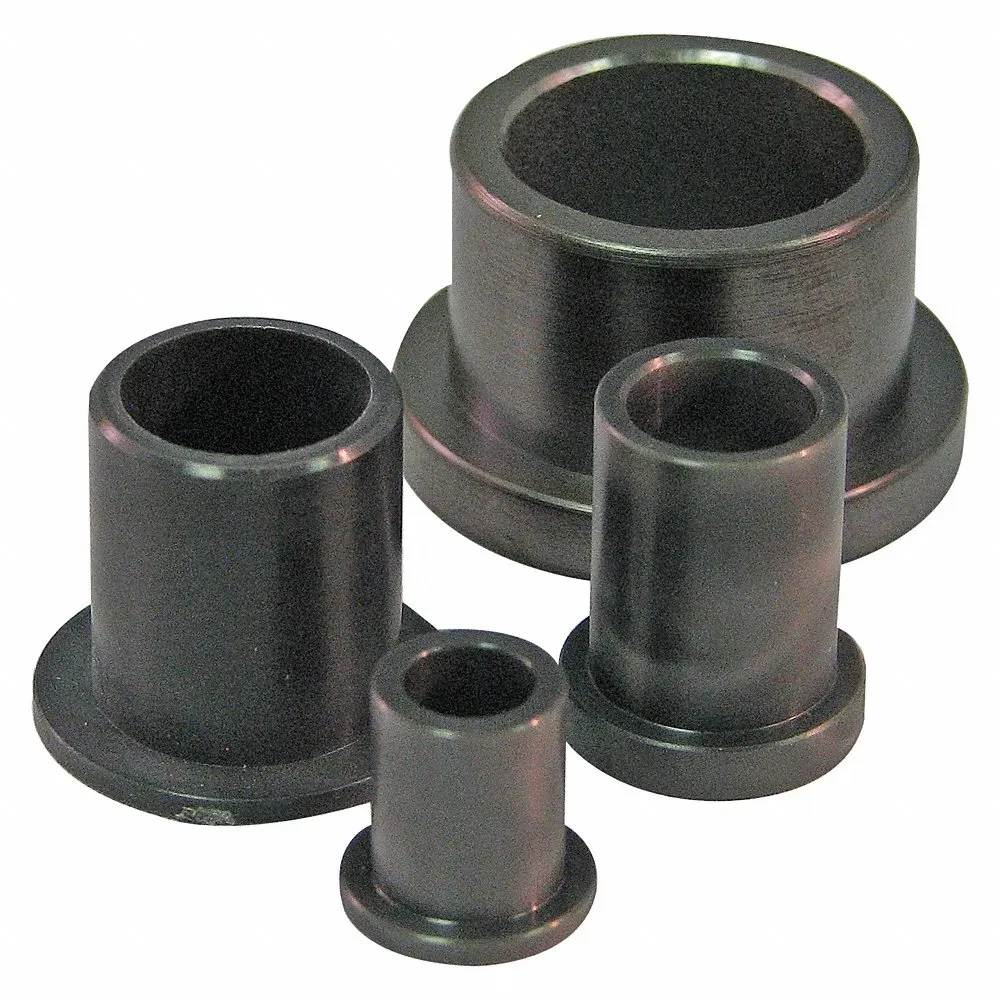

BUNTING BEARINGS EF050708 Flange Sleeve Bearing, 5/16 Inch I.D., 7/16 Inch O.D., 1/2 Inch Length, Bronze
Item: CD4WPCModel: EF050708Cross Ref: 12R654
7 In Stock
5/16"
7/16"
1/2"
Ships within 2 days via
13.00% off
€4.23 /pkg. of 3
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Sleeve Bearing |
| Bore Dia. | 5/16" |
| Bronze Material Type | Sintered Bronze |
| Color | Bronze |
| Flange Dia. | 0.562" |
| Flange Thickness | 0.062" |
| Flange Type | Flanged |
| For Environment | Vacuum |
| Inside Dia. | 5/16" |
| Length Tolerance | -0.005" to +0.005" |
| Lubricant Material | SAE 30 Oil |
| Lubrication Method | Embedded |
| Lubrication Type | Self Lubricating |
| Material | Metal |
| Material Grade | Grade Sae 841 |
| Max. Pv | 50000 lbs.-ft./sq. in-min. |
| Max. Temp. | 220°F |
| Min. Temp. | 10°F |
| Outside Dia. | 7/16" |
| Overall Length | 1/2" |
| Plain Bearing Material | Bronze |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 1.12 |
| Ship length (cm) | 1.27 |
| Ship width (cm) | 1.12 |
| Country of Origin | US |
Product Details:
- The ASTM compliant SAE 841 sintered bronze stock bearings are vacuum impregnated with SAE 30 oil after passing through forming, sintering and sizing to enhance lubrication and reduce friction. These off-the-shelf bronze bearings can effectively operate at temperatures ranging between 10 to 220 degrees Fahrenheit.
Product Variants
| Model | Bore Dia. | Flange Thickness | Length Tolerance | Flange Dia. | Lubrication Type | Bearing Material | Flange Outside Dia. | Flange Outside Dia. Tolerance | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| EF030504 | 3/16" | 0.062" | -0.005" to +0.005" | 0.437" | Self Lubricating | - | - | - | 3 | €4.53 | |
| EF030506 | 3/16" | 0.062" | -0.005" to +0.005" | 0.437" | Self Lubricating | - | - | - | 3 | €4.15 | |
| EF030508 | 3/16" | 0.062" | -0.005" to +0.005" | 0.437" | Self Lubricating | - | - | - | 3 | €3.72 | |
| EF040603 | 1/4" | 1/16" | - | - | - | Sintered Bronze | 1/2" | - | 1 | €0.84 | |
| EF040604 | 1/4" | 0.062" | -0.005" to +0.005" | 1/2" | Self Lubricating | - | - | - | 3 | €2.80 | |
| EF040606 | 1/4" | 0.062" | -0.005" to +0.005" | 1/2" | Self Lubricating | - | - | - | 3 | €3.31 | |
| EF040607 | 0.252" | 0.063" | - | - | - | - | 1/2" | - | 1 | €0.97 |
