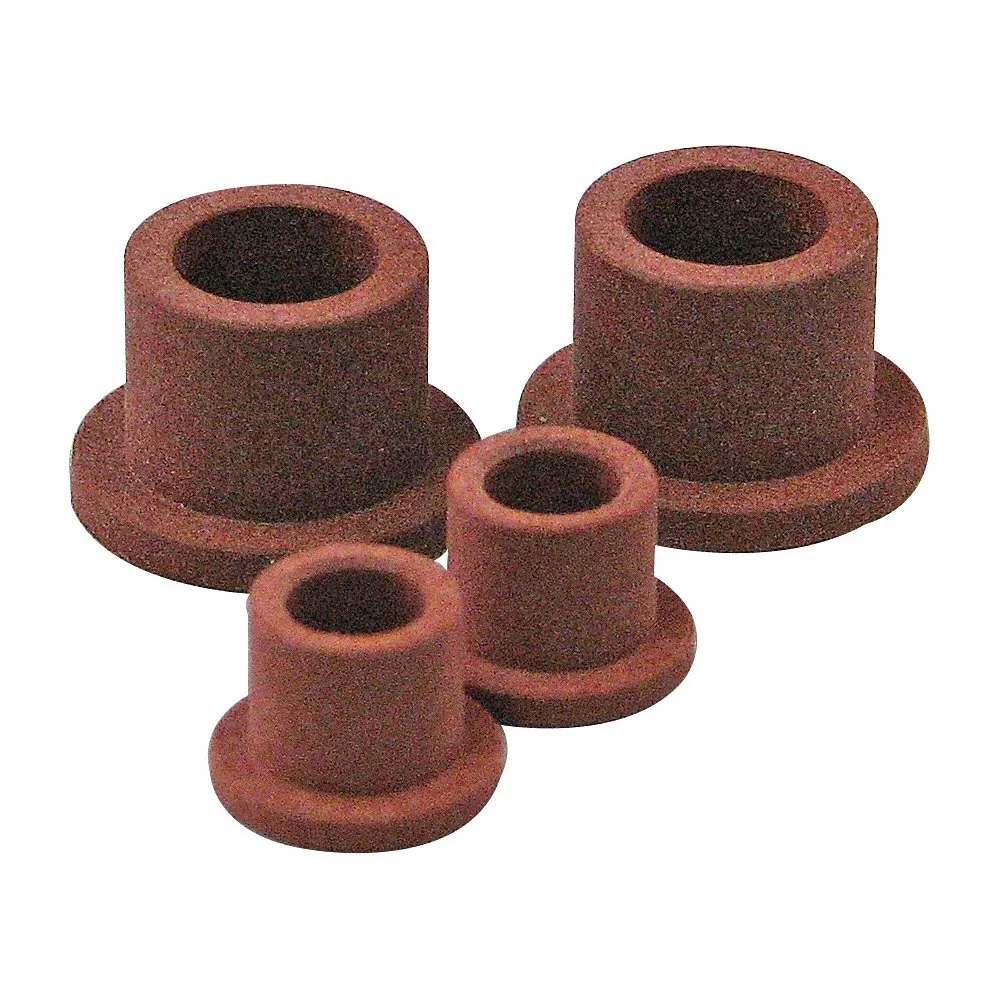

BUNTING BEARINGS BJ4F162012 Flange Bearing, Size 1 x 1-1/4 x 1-1/2 x 1-1/2 x 1/8 Inch, PTFE
Item: CD4VPTModel: BJ4F162012Cross Ref: 246N60
7 In Stock
1"
1 1/4"
1 1/2"
Ships within 2 days via
13.00% off
€32.48 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flange Mount Bearing |
| Bore Dia. | 1" |
| Color | Red |
| Flange Dia. | 1 1/2" |
| Flange Thickness | 1/8" |
| Length Tolerance | -0.005" to +0.005" |
| Material Grade | Grade J-4200 |
| Max. Pv | 30000 lbs.-ft./sq. in-min. |
| Max. Temp. | 550°F |
| Min. Temp. | -250°F |
| Outside Dia. | 1 1/4" |
| Overall Length | 1 1/2" |
| Plain Bearing Material | PTFE |
| Resistance Properties | Wear Resistant |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 3.81 |
| Ship width (cm) | 3.18 |
| Country of Origin | US |
Product Details:
- BJ4 material is suitable for use with rotary and linear bearings as it does not require lubrication and is compatible with most acids. It operates at a PV value of up to 30000, and has operating temperature ranging from -250 to 550 degrees Fahrenheit.
Product Variants
| Model | Bore Dia. | Flange Thickness | Flange Dia. | Min. Inside Dia. | Flange Outside Dia. | Nominal Size Outside Dia. | Min. Outside Dia. | Nominal Size Inside Dia. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BJ4F030502 | 3/16" | 0.062" | 0.437" | - | - | - | - | - | 5 | €27.81 | |
| BJ4F030504 | 3/16" | 0.062" | 0.437" | - | - | - | - | - | 3 | €22.73 | |
| BJ4F040603 | 1/4" | 0.062" | 1/2" | - | - | - | - | - | 5 | €47.26 | |
| BJ4F040604 | 1/4" | 0.062" | 1/2" | - | - | - | - | - | 3 | €27.28 | |
| BJ4F061004 | 3/8" | 1/8" | 7/8" | - | - | - | - | - | 3 | €37.04 | |
| BJ4F061006 | 3/8" | - | 7/8" | - | - | - | - | - | 1 | €18.26 | |
| BJ4F081204 | 1/2" | 1/8" | 1" | - | - | - | - | - | 3 | €28.85 |
