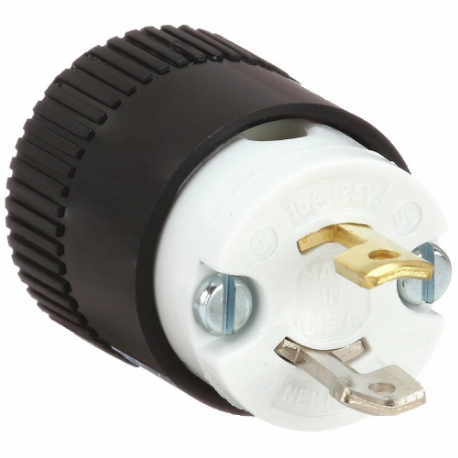

BRYANT 7465N Midget Locking Plug, ML1-15P, 125V AC, 15 A, 2 Poles, Black/White, Screw Terminals
Item: CQ2FYNModel: 7465NCross Ref: 49YX69
7 In Stock
Ships within 2 days via
10.00% off
€22.69 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Plug |
| Amps | 15A |
| Body Length | 1 1/4" |
| Body Material | Composite |
| Connection Orientation | Straight |
| Current Rating | 15A |
| Face Dia. | 1 3/25" |
| Face Diameter | 1.12" |
| For Environment | Dry |
| For Location | Indoor |
| For Maximum Cable Diameter | 0.425" |
| For Minimum Cable Diameter | 0.22" |
| Grounding | Non Grounded |
| Housing Color | Black, White |
| Housing Material | Composite |
| Ip Rating | IP20 |
| Length | 1 1/4" |
| Market | Industrial |
| Max. Wire Size | 12 AWG |
| Maximum Wire Size | 12 AWG |
| Midget Locking | Yes |
| Minimum Wire Size | 18 AWG |
| Nema Plug Configuration | ML1-15P |
| Number Of Blades | 2 |
| Number Of Poles | 2 |
| Outside Dia. | 1 1/4" |
| Outside Diameter | 1 1/4" |
| Overall Length | 1.25" |
| Phase | Single |
| Polarized | Yes |
| Resistance Properties | Shatter And Crack Resistant |
| Shrouded | No |
| Standards | Nema Wd-1, Nema Wd-5, Ul 498 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Current Rating | Voltage Rating | Phase | Number Of Poles | Number Of Blades | Housing Color | Nema Plug Configuration | Housing Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
71420NP | 20A | 125/250V AC | Single | 3 | 4 | Black, White | L14-20P | Nylon | €44.62 | |
 |
71430NP | 30A | 125/250V AC | Single | 3 | 4 | Black, White | L14-30P | Composite | €58.93 | |
 |
71520NP | 20A | 250V AC | 3.0 | 3 | 4 | Black, White | L15-20P | Nylon | €44.41 | |
 |
BRY71620NP | 20A | 480V AC | 3.0 | 3 | 4 | Black, White | L16-20P | Nylon | €61.59 | |
 |
71630NP | 30A | 480V AC | 3.0 | 3 | 4 | Black, White | L16-30P | Composite | €64.15 | |
 |
72130NP | 30A | 120/208V AC | 3.0 | 4 | 5 | Black, White | L21-30P | Composite | €56.07 | |
 |
72320NP | 20A | 347/600V AC | 3.0 | 4 | 5 | Black, White | L23-20P | Nylon | €57.28 |
