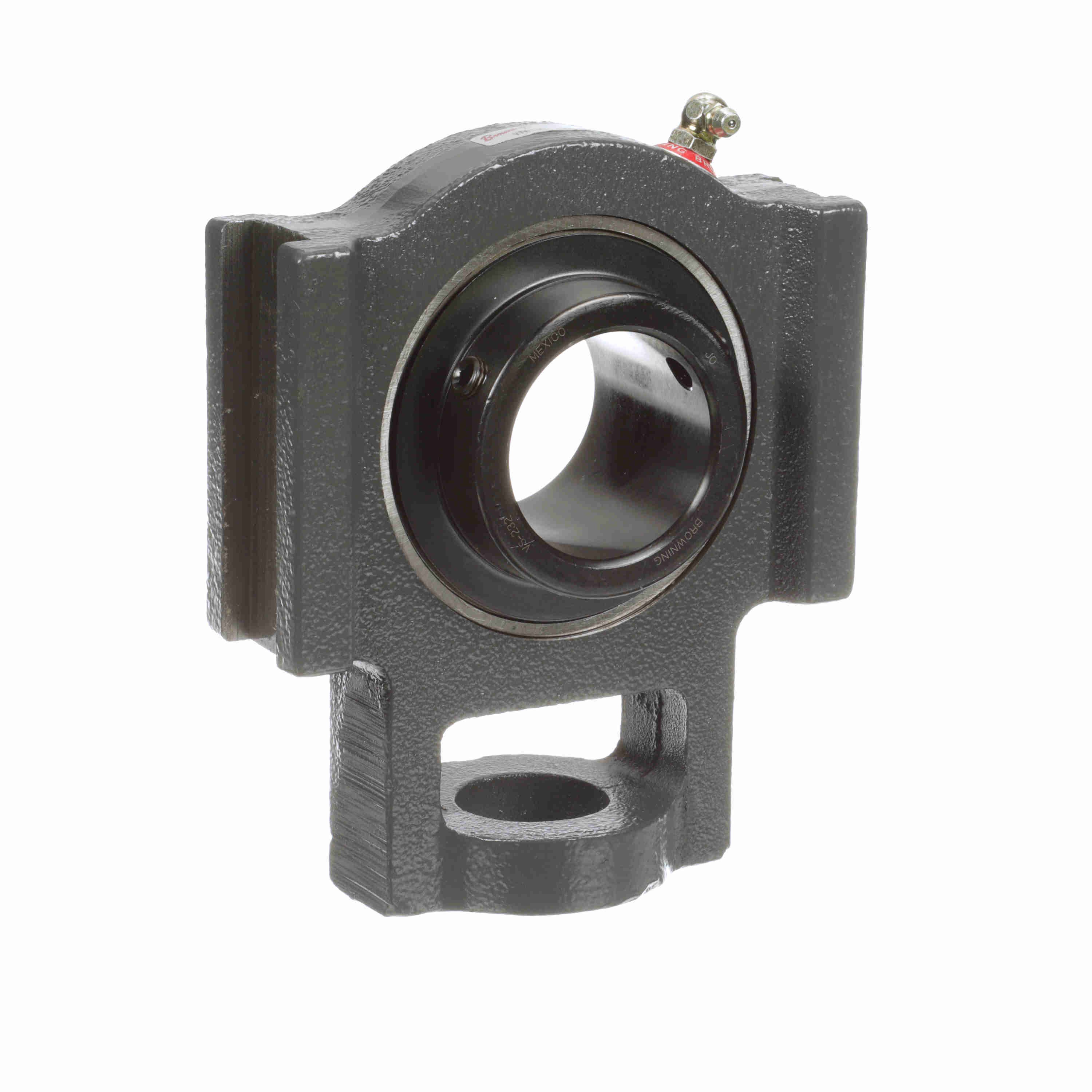

BROWNING VTWS-232 767426 Take Up Ball Bearing Only, 2 Inch Bore, 1-1/16 Inch Slot Width, 5-1/8 Inch Slot to Slot Distance, Set Screw Mount
Get it by Monday, Aug 24
€266.03 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Bearing |
| Bearing Insert Coating | Black Oxide Coated Inner Ring |
| Bearing Material | Black Oxided Bearing Steel |
| Bearing Type | Take Up |
| Bore Shape | Straight |
| Centerline To Front Face | 1.313" |
| Compatible Frame Number | 3SF31, 6SF31, 9SF3112SF31, 18SF31 |
| Dynamic Radial Load Capacity | 9752 lbs. |
| Expansion | No |
| Expansion Type | Non-Expansion |
| Family Series | Browning Bearings |
| Finish, Coating | Gray |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Width | 2 1/2" |
| Insert Material | Bearing Steel, Black Oxided Inner |
| Insert Material | 52100 Bearing Steel, Black Oxided Inner |
| Insert No. | VS-232 |
| Inside Ring Outside Dia. | 2.719" |
| Locking Device | Set Screw |
| Max. Operating Temp. | 200°F |
| Max. Speed | 2500 RPM |
| Misalignment Type | Static Only |
| Operating Temp. Range | -20°F to +200°F |
| Outer Ring Land Profile | Standard |
| Overall Length | 6.2188" |
| Overall Width | 2 3/16" |
| Replacement Bearing | VE-233 |
| Retainer Type | Ball Riding Retainer |
| Seal Type | Single Lip Contact With Flinger |
| Type Of Bearing | Ball Bearing |
Shipping Info:
| Ship weight (kg) | 3.74 |
| Ship height (cm) | 6.68 |
| Ship length (cm) | 19.05 |
| Ship width (cm) | 18.75 |
| Country of Origin | MX |
