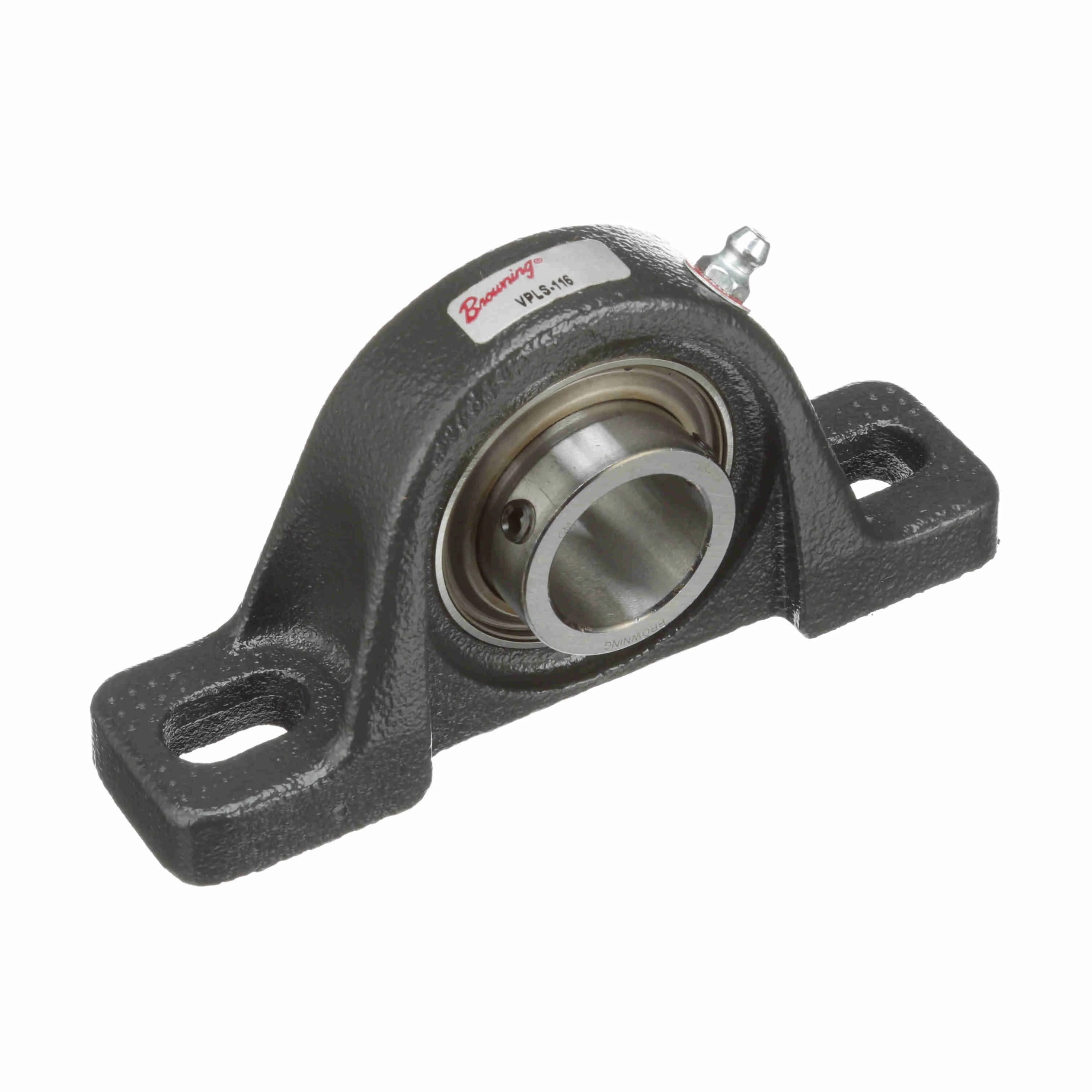

BROWNING VPLS-116 767739 Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing, Steel, Setscrew Lock
Get it by Friday, Aug 14
€68.23 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Bearing |
| Application | Browning Standard |
| Base To Bore Centerline | 1 5/16" |
| Base To Center Height | 1.313" |
| Base Width | 1.406" |
| Bearing Insert Coating | Uncoated |
| Bearing Type | Two Bolt Pillow Block |
| Bolt Size | 3/8" |
| Bore Shape | Straight |
| Bore Type | Round |
| Centerline To Front Face | 0.766" |
| Duty Series | Intermediate |
| Duty Type | Light Duty |
| Dynamic Radial Load Capacity | 2801 lbf. |
| Expansion | No |
| Expansion Type | Non-Expansion Bearing (Fixed) |
| Family Series | Browning Bearings |
| Finish, Coating | Gray Painted |
| Foot Height | 0.47" |
| Housing Base | Semi Solid |
| Housing Construction | One Piece |
| Inner Race Length | 1.109" |
| Insert Material | Bearing Steel |
| Insert Material | 52100 Bearing Steel |
| Inside Ring Outside Dia. | 1 3/8" |
| Length | 5 1/2" |
| Locking Device | Set Screw |
| Max. Bolt | 4.53" |
| Max. Bolt Center | 4.531" |
| Max. Speed | 5500 RPM |
| Min. Bolt Center | 3 18/25" |
| Misalignment Type | Static Only |
| Mounting Type | 2 Bolt Base |
| Outer Ring Land Profile | Standard |
| Overall Height | 2 11/16" , 2.688" |
| Product Datasheet | browning-vfbs-212-cty.pdf |
| Retainer Type | Ball Riding Retainer |
| Seal Type | Single Lip Contact |
| Series | VPLS Series |
| Static Radial Load Capacity | 1651 lbf. |
| Width | 3.7 |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 6.83 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 9.4 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Seal Type | Overall Height | Insert Material | Base Width | Duty Type | Application | Mounting Type | Expansion Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VPLS-222 | - | - | - | - | Standard Duty | Browning - Standard | - | - | €126.50 | |
 |
VPLS-226 | - | - | - | - | Standard Duty | Browning - Standard | - | - | €169.65 | |
 |
VPLS-231 | - | - | - | - | Standard Duty | Browning - Standard | - | - | €182.34 | |
 |
VPLS-223 | - | - | - | - | Standard Duty | Browning - Standard | - | - | €124.01 | |
 |
VPLS-239 | - | - | - | - | Standard Duty | Browning - Standard | - | - | €273.20 | |
|
VPLS-232 | - | - | - | - | Standard Duty | Browning - Standard | - | - | €225.23 | |
 |
VPLS-235 | - | - | - | - | Standard Duty | Browning - Standard | - | - | €229.72 |
