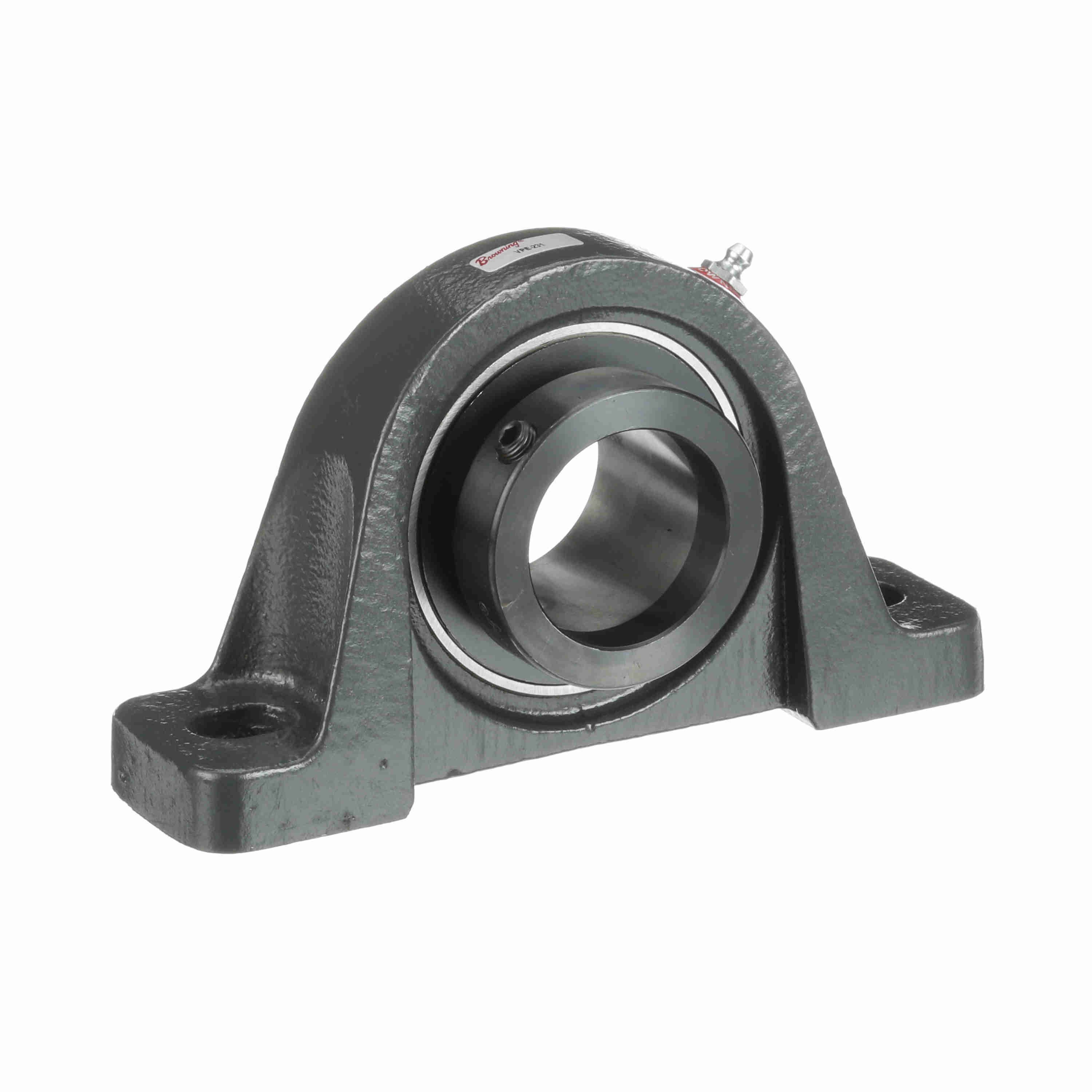

BROWNING VPE-231 767918 Mounted Cast Iron Two Bolt Pillow Block Ball Bearing
Get it by Friday, Aug 14
€182.34 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Bearing |
| Application | Browning Standard |
| Base To Bore Centerline | 2 1/4" |
| Base Width | 2.188" |
| Bearing Insert Coating | Black Oxide Coated Inner Ring |
| Bearing Type | Two Bolt Pillow Block |
| Bolt Size | 5/8" |
| Bore Dia. | 1 15/16" |
| Bore Shape | Straight |
| Bore Size - Inch | 1.938" |
| Bore Type | Round |
| Centerline To Front Face | 1 1/2" |
| Collar Outside Dia. | 2 3/4" |
| Duty Series | Normal |
| Duty Type | Standard Duty |
| Dynamic Radial Load Capacity | 7889 lbf. |
| Expansion | No |
| Expansion Type | Non-Expansion Bearing (Fixed) |
| Family Series | Browning Bearings |
| Finish, Coating | Gray Painted |
| Foot Height | 3/4" |
| Housing Base | Semi Solid |
| Housing Construction | One Piece |
| Inner Race Length | 2.469" |
| Insert Material | Bearing Steel, Black Oxided Inner |
| Insert Material | 52100 Bearing Steel, Black Oxided Inner |
| Locking Device | Eccentric |
| Max. Bolt | 6.66" |
| Max. Bolt Center | 6.656" |
| Max. Speed | 3000 RPM |
| Min. Bolt Center | 5.719" |
| Misalignment Type | Static Only |
| Mounting Type | 2 Bolt Base |
| Outer Ring Land Profile | Standard |
| Overall Height | 4 9/16" , 4.563" |
| Product Datasheet | browning-vfbs-212-cty.pdf |
| Retainer Type | Ball Riding Retainer |
| Seal Type | Single Lip Contact With Flinger |
| Series | VPE Series |
| Static Radial Load Capacity | 5216 lbf. |
Shipping Info:
| Ship weight (kg) | 3.06 |
| Ship height (cm) | 7.87 |
| Ship length (cm) | 25.91 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Bolt Size | Base Width | Bore Dia. | Overall Height | Static Radial Load Capacity | Dynamic Radial Load Capacity | Foot Height | Inner Race Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VPE-227 | 1/2" | 2" | 1 11/16" | - | 5139 lbf. | 7901 lbf. | 3/4" | 2.219" | €163.37 | |
 |
VPE-224 | 1/2" | 1.938" | 1 1/2" | - | 4467 lbf. | 7340 lbf. | 0.813" | 2.219" | €141.83 | |
 |
VPE-222 | 1/2" | 1 3/4" | - | 3 11/16" | 3493 lbs. | 5782 lbs. | 0.719" | 2.016" | €141.73 | |
 |
VPE-232 | 5/8" | 2.313" | - | - | 6601 lbs. | 9752 lbs. | 22/25" | 2.813" | €225.23 | |
 |
VPE-116 | 3/8" | 1.406" | - | 2 13/16" | 1651 lbf. | 2801 lbf. | 0.59" | 1.266" | €68.23 | |
 |
VPE-135 | 5/8" | 2.313" | - | - | 6601 lbf. | 9752 lbf. | 7/8" | 1.984" | €190.95 |
