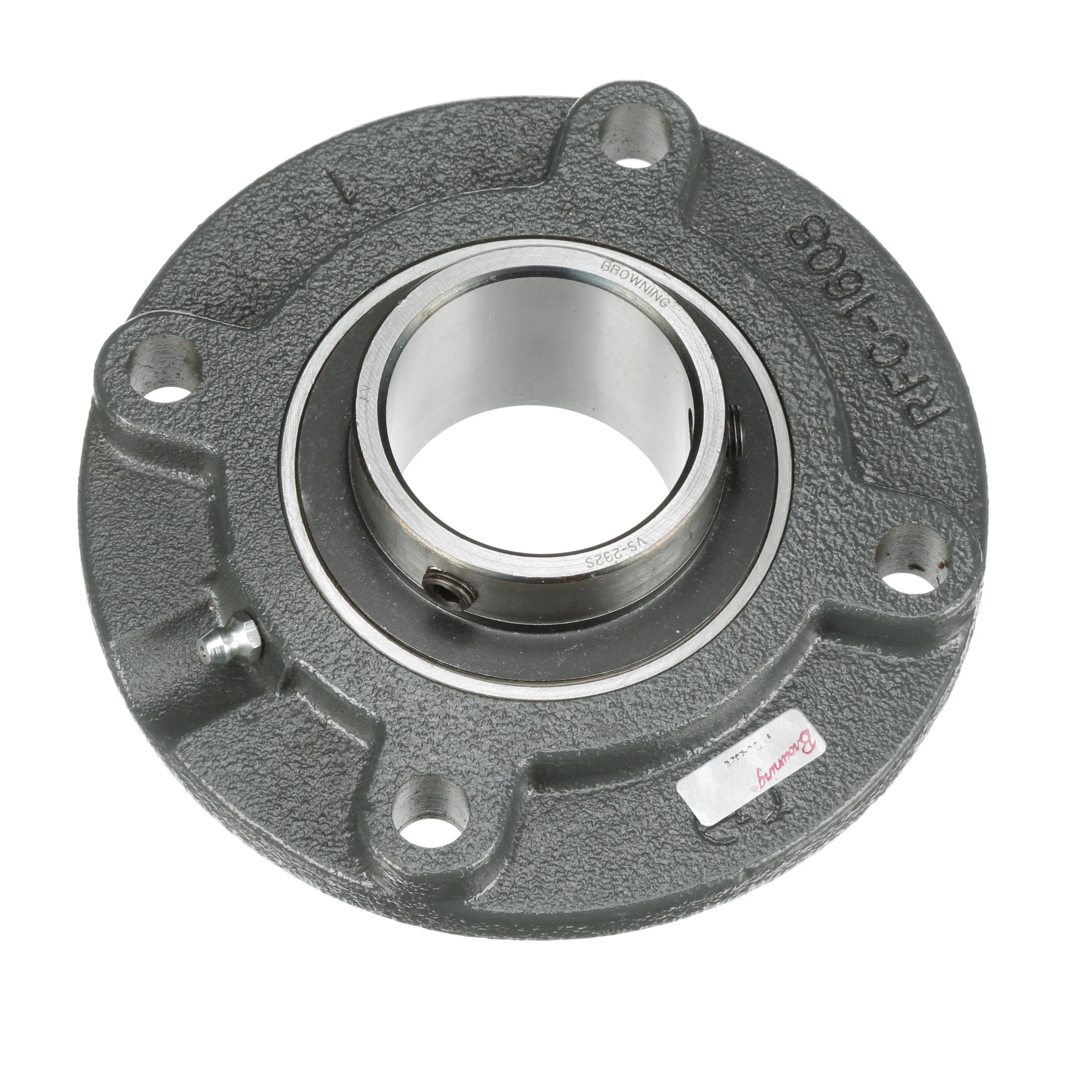

BROWNING VFCS-227 767157 Flange Block Bearing, 4 Bolt, 1-11/16 in Bore, 5.1 in Bolt Dia, 3.6 in Spacing, 1 Piece Solid, Set Screw, CI
Get it by Tuesday, Aug 18
€171.25 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flange Block Bearing |
| Bearing Design | Non Expansion |
| Bearing Insert Coating | Black Oxide Coated Inner Ring |
| Bearing Type | Ball Bearing |
| Bolt Size | 7/16" |
| Bore Shape | Straight |
| Bore Size - Inch | 1.688" |
| Centerline To Front Face | 1.188" |
| Duty Cycle | Standard Duty |
| Duty Series | Normal |
| Dynamic Radial Load Capacity | 7901 lbs. |
| Expansion | No |
| Family Series | Browning Bearings |
| Foot Height | 0.406" |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Type | Flange, Piloted |
| Inner Race Length | 1.938" |
| Insert Material | Bearing Steel, Black Oxided Inner |
| Insert Material | 52100 Bearing Steel, Black Oxided Inner |
| Insert No. | VS-227 |
| Inside Ring Outside Dia. | 2.297" |
| Locking Device | Setscrew Locking |
| Max. Operating Temp. | 200°F |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 1 15/16" |
| Overall Width | 6 1/8" |
| Pilot Configuration | No Pilot |
| Pilot Dia. | 4 1/4" |
| Retainer Type | Ball Riding Retainer |
| Seal Type | Single Lip Contact With Flinger |
| Static Radial Load Capacity | 5139 lbs. |
Shipping Info:
| Ship weight (kg) | 2.34 |
| Ship height (cm) | 4.92 |
| Ship length (cm) | 15.56 |
