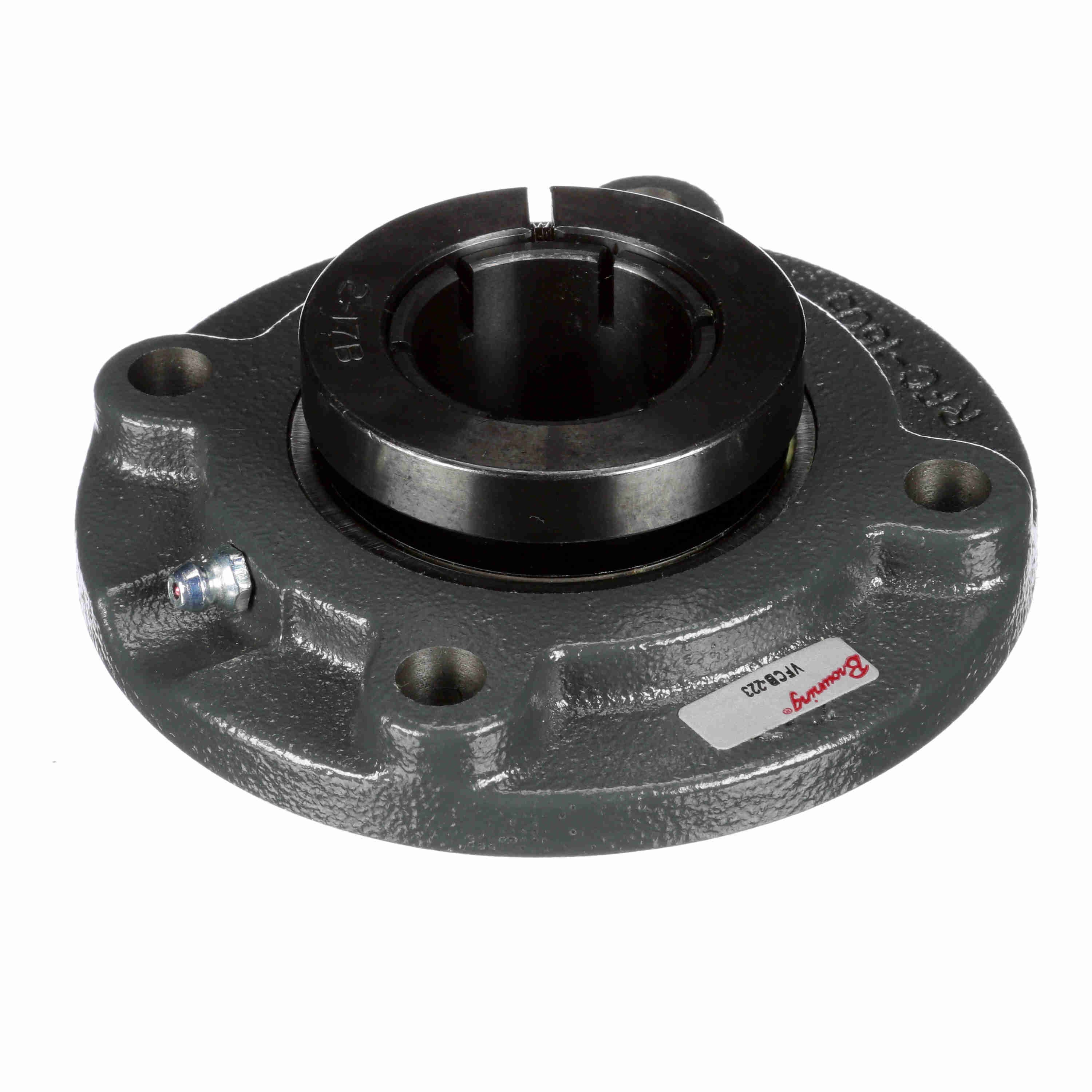

BROWNING VFCB-223 766985 Ball Bearing Unit, 5 in OAL/Dia, 1-7/16 in Bore Dia, 4-Bolt, 4000 rpm Max Speed, Non-Expansion Normal Duty Round/Straight Bore, BOA Concentric
Get it by Monday, Aug 17
€205.54 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Bearing |
| Bearing Type | Flange Cartridge |
| Bolt Circle Dia. | 4 1/8" |
| Bore Dia. | 1 7/16" |
| Duty Type | Standard Duty |
| Family Series | Browning Bearings |
| Housing Material | Cast Iron |
| Housing Width | 1 1/16" |
| Inner Ring Width | 1 3/4" |
| Insert Material | Steel |
| Insert Material | 52100 Steel |
| Locking Device | Boa Concentric |
| Max. Operating Temp. | 200°F |
| Max. Speed | 4000 RPM |
| Operating Temp. Range | -20°F to +200°F |
| Pilot Dia. | 3 3/8" |
| Replacement Bearing | VB-223 |
| Seal Type | Single Lip Contact Seal With Flinger |
| Shaft Dia. | 1 7/16" |
| Static Radial Load Capacity | 3493 lbf. |
| Type Of Bearing | Ball |
Shipping Info:
| Ship weight (kg) | 1.49 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 5.08 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Static Radial Load Capacity | Pilot Dia. | Duty Type | Bearing Type | Locking Device | Shaft Dia. | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VFCB-235 | 2 3/16" | 6601 lbf. | 4 1/2" | Standard Duty | Flange Cartridge | Boa Concentric | 2 3/16" | 2.5626" | €340.34 | |
|
VFCB-232 | 2" | 5216 lbf. | 4 1/2" | Standard Duty | - | - | - | 2.2656" | €340.34 | |
 |
VFCB-222 | 1 3/8" | 3493 lbs. | 3 3/8" | Standard Duty | Ball Bearing | Concentric Clamp Collar | - | - | €205.54 | |
 |
VFCB-320 | 1 1/4" | 3493 lbf. | 3 3/8" | Medium Duty | Flange Cartridge | Boa Concentric | 1 1/4" | - | €205.54 | |
 |
VFCB-332 | - | 6601 lbf. | 4 1/2" | Medium Duty | Flange Cartridge | Boa Concentric | - | 2.2656" | €309.39 | |
 |
VFCB-220 | 1 1/4" | 3493 lbf. | 3 3/8" | Standard Duty | Flange Cartridge | Boa Concentric | 1 1/4" | - | €205.54 | |
|
VFCB-239 | 2 7/16" | 8150 lbf. | 5" | Standard Duty | Flange Cartridge | Boa Concentric | 2 7/16" | 2 15/16" | €349.31 |
