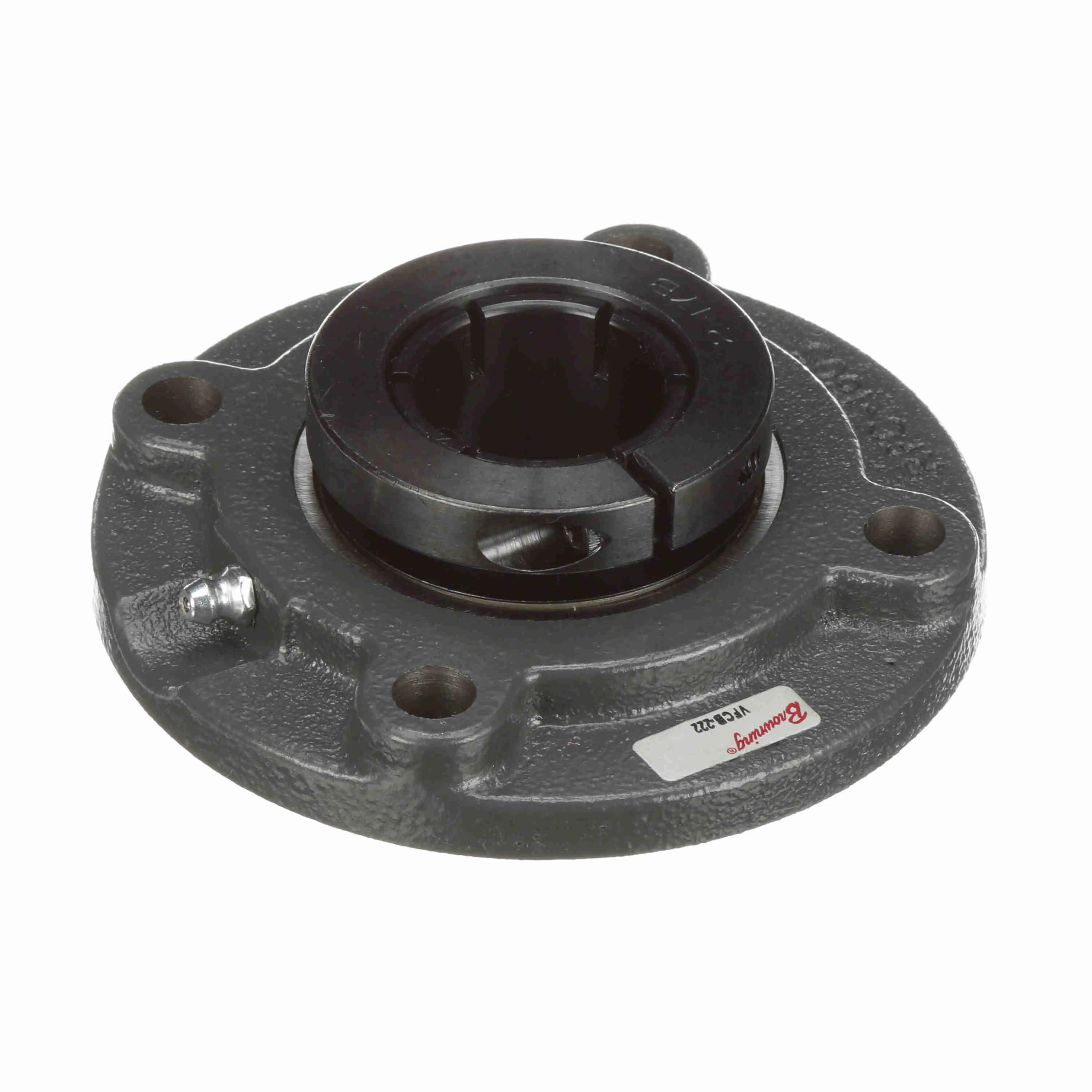

BROWNING VFCB-222 766984 Ball Bearing Unit, 1-3/8 Inch Bore, 4-Bolt Piloted Flange Mount, Concentric Collar Locking
Get it by Tuesday, Aug 18
€205.54 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Bearing |
| Bearing Design | Non Expansion |
| Bearing Insert Coating | Black Oxide Coated Inner Ring |
| Bearing Material | Black Oxided Bearing Steel |
| Bearing Type | Ball Bearing |
| Bolt Size | 3/8" |
| Bore Dia. | 1 3/8" |
| Bore Shape | Straight |
| Centerline To Front Face | 1.063" |
| Collar Outside Dia. | 2.563" |
| Duty Series | Normal |
| Duty Type | Standard Duty |
| Dynamic Radial Load Capacity | 5782 lbs. |
| Expansion | No |
| Family Series | Browning Bearings |
| Foot Height | 0.406" |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Type | Flange, Piloted |
| Housing Width | 1 1/16" |
| Insert Material | Bearing Steel, Black Oxided Inner |
| Insert Material | 52100 Bearing Steel, Black Oxided Inner |
| Locking Device | Concentric Clamp Collar |
| Max. Speed | 4000 RPM |
| Misalignment Type | Static Only |
| Operating Temp. Range | -20°F to +200°F |
| Outer Ring Land Profile | Standard |
| Pilot Configuration | No Pilot |
| Pilot Dia. | 3 3/8" |
| Retainer Type | Ball Riding Retainer |
| Seal Type | Single Lip Contact With Flinger |
| Static Radial Load Capacity | 3493 lbs. |
| Type Of Bearing | Ball |
Shipping Info:
| Ship weight (kg) | 1.58 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 12.7 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Static Radial Load Capacity | Pilot Dia. | Duty Type | Bearing Type | Locking Device | Shaft Dia. | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VFCB-235 | 2 3/16" | 6601 lbf. | 4 1/2" | Standard Duty | Flange Cartridge | Boa Concentric | 2 3/16" | 2.5626" | €340.34 | |
|
VFCB-232 | 2" | 5216 lbf. | 4 1/2" | Standard Duty | - | - | - | 2.2656" | €340.34 | |
 |
VFCB-320 | 1 1/4" | 3493 lbf. | 3 3/8" | Medium Duty | Flange Cartridge | Boa Concentric | 1 1/4" | - | €205.54 | |
 |
VFCB-332 | - | 6601 lbf. | 4 1/2" | Medium Duty | Flange Cartridge | Boa Concentric | - | 2.2656" | €309.39 | |
 |
VFCB-223 | 1 7/16" | 3493 lbf. | 3 3/8" | Standard Duty | Flange Cartridge | Boa Concentric | 1 7/16" | - | €205.54 | |
 |
VFCB-220 | 1 1/4" | 3493 lbf. | 3 3/8" | Standard Duty | Flange Cartridge | Boa Concentric | 1 1/4" | - | €205.54 | |
|
VFCB-239 | 2 7/16" | 8150 lbf. | 5" | Standard Duty | Flange Cartridge | Boa Concentric | 2 7/16" | 2 15/16" | €349.31 |
