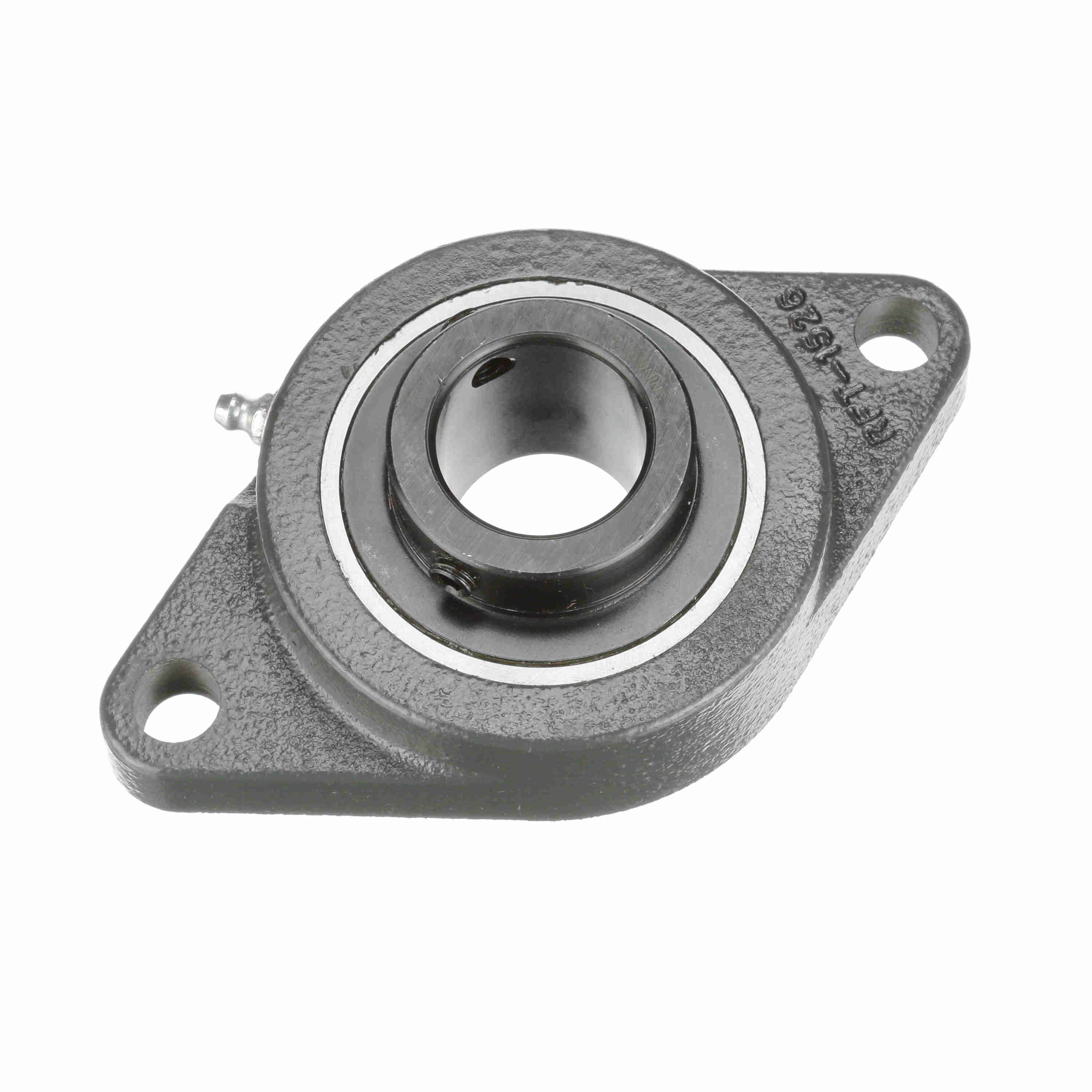

BROWNING VF2S-220 767456 Mounted Cast Iron Two Bolt Flange Ball Bearing
Get it by Tuesday, Aug 18
€124.01 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Bearing |
| Bearing Design | Non Expansion |
| Bearing Insert Coating | Black Oxide Coated Inner Ring |
| Bearing Type | Two Bolt Flange |
| Bolt Center To Center Length | 5 1/8" |
| Bolt Size | 1/2" |
| Bore Dia. | 1 1/4" |
| Centerline To Front Face | 1" |
| Duty Series | Normal |
| Dynamic Radial Load Capacity | 5782 lbs. |
| Expansion | No |
| Family Series | Browning Bearings |
| Flange Type | 2 Bolt Flange |
| Foot Height | 0.594" |
| Housing Base | Semi Solid |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Width | 1.1563" |
| Insert Material | 52100 Bearing Steel, Black Oxided Inner |
| Insert Material | Bearing Steel, Black Oxided Inner |
| Inside Ring Outside Dia. | 1.859" |
| Length Through Bore | 1.69" |
| Locking Device | Set Screw |
| Max. Speed | 4000 RPM |
| Misalignment Type | Static Only |
| Operating Temp. Range | -20°F to +200°F |
| Outer Ring Land Profile | Standard |
| Pilot Configuration | No Pilot |
| Retainer Type | Ball Riding Retainer |
| Seal Type | Single Lip Contact Seal With Flinger |
| Static Radial Load Capacity | 3493 lbs. |
| Type Of Bearing | Ball |
Shipping Info:
| Ship weight (kg) | 1.26 |
| Ship height (cm) | 4.57 |
| Ship length (cm) | 13.72 |
| Ship width (cm) | 12.7 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Static Radial Load Capacity | Housing Width | Dynamic Radial Load Capacity | Bolt Center To Center Length | Inside Ring Outside Dia. | Bolt Size | Foot Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VF2S-224 | 1 1/2" | 4467 lbs. | 1.3" | 7340 lbs. | 5.656" | 2.063" | 1/2" | 5/8" | €141.83 | |
 |
VF2S-116 | - | 1651 lbs. | 0.9531" | 2801 lbs. | 3.891" | 1 3/8" | 7/16" | 1/2" | €68.23 | |
 |
VF2S-223 | 1 7/16" | 3493 lbs. | 1.1563" | 5782 lbs. | 5 1/8" | 1.859" | 1/2" | 0.594" | €124.01 | |
 |
VF2S-235 | - | 6601 lbs. | 1.5156" | 9752 lbs. | 7 1/4" | 2.719" | 5/8" | 0.813" | €229.34 | |
 |
VF2S-323 | 1 7/16" | 4467 lbf. | 1.2969" | - | 5.656" | - | - | - | €155.57 | |
 |
VF2S-227 | - | 5139 lbs. | 1.33" | 7901 lbs. | 5.844" | 2.297" | 9/16" | 5/8" | €163.37 | |
 |
VF2S-236 | - | 8150 lbs. | 1.69" | 11789 lbs. | - | 2.984" | 0.63" | 0.81" | €293.02 |
