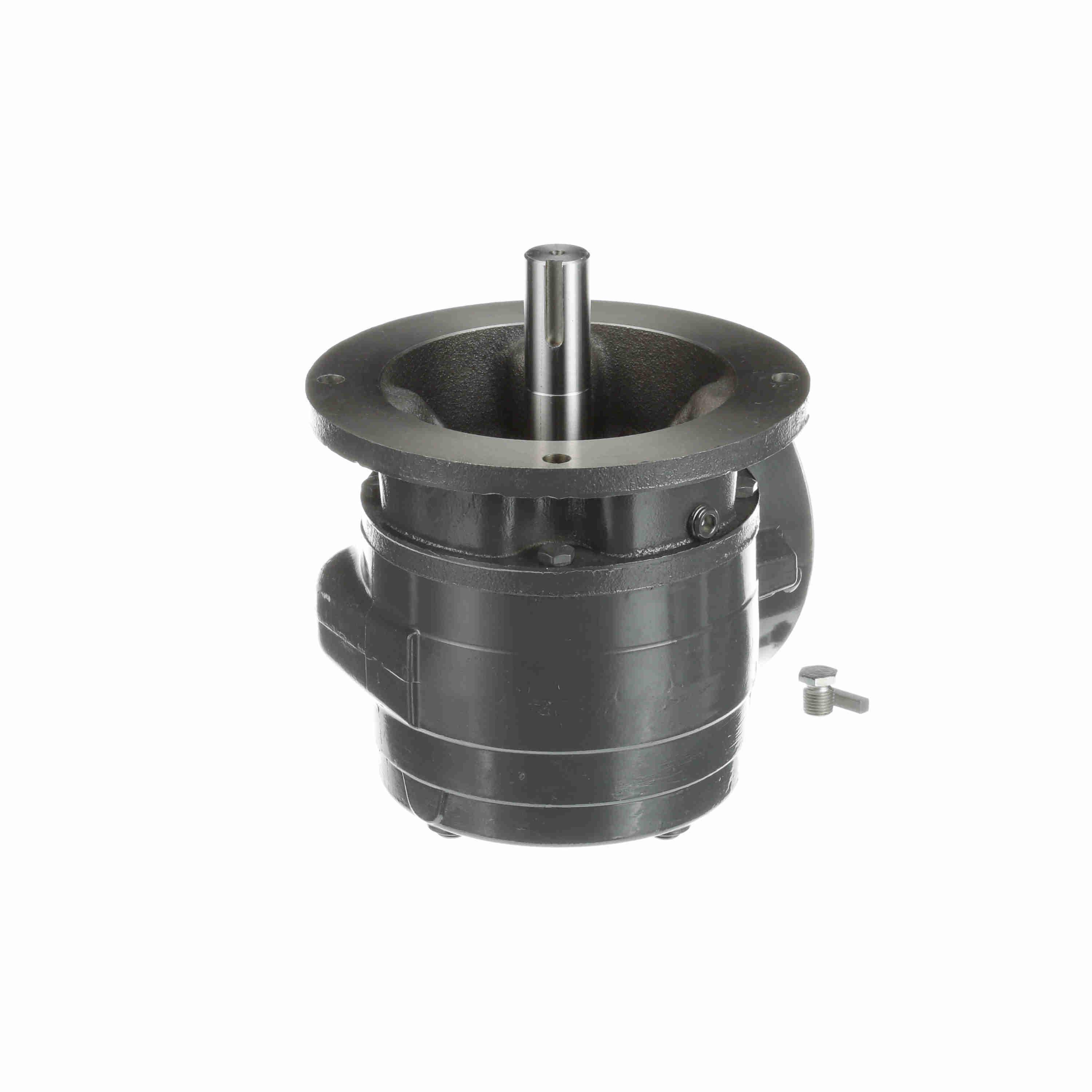

BROWNING E446 6GWVPW3 21 Worm Gear Reducer, Right Angle, Single-Reduction
Get it by Tuesday, Aug 18
€1,465.73 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Base Included | No |
| Base To Center Of Input Shaft | 6.376" |
| Base To Center Of Output Shaft | 3.813" |
| Bolt Hole Dia. | 0.406" |
| Center Distance | 2.563" |
| Fan Cooled | No |
| Gear Ratio | 2:1 |
| Gear Type | Worm |
| Height | 9.69" |
| Hp | 1 3/4 hp |
| Input Rating Value Plus Um | 1.77 hp |
| Input Speed | 1750/84 RPM |
| Input Style | C Face Quill |
| Length | 13 1/8" |
| Material | Cast Iron |
| Max. Nominal Input Rating | 1 3/4 hp |
| Max. Overhung Load Value And Um | 980 lbs. |
| Motor Included | No |
| Mounting Bolt Pattern Footprint | Square |
| Mounting Frame | 145TY |
| Mounting Method | Direct Mounted |
| Mounting Type | Direct, Flanged |
| Nominal Ratio | 21:1 |
| Output Dia. | 1" |
| Output Shaft Dia. | 1" |
| Output Shaft Length | 2" |
| Output Speed | 84 RPM |
| Output Type | Shaft |
| Overall Length | 13 1/8" |
| Overall Width | 9.281" |
| Product Series | GWV Series |
| Reducer Type | Right Angle |
| System Of Measurement | Imperial |
| Torque | 1083 lbs.-in. |
| Type | Single Reduction |
| Width | 9.281" |
Shipping Info:
| Ship weight (kg) | 8.1 |
| Ship height (cm) | 24.61 |
| Ship length (cm) | 33.34 |
| Ship width (cm) | 23.57 |
| Country of Origin | MX |
Product Variants
| Product | Model | Output Speed | Mounting Type | Torque | Output Type | Nominal Ratio | Max. Nominal Input Rating | Input Rating Value Plus Um | Max. Overhung Load Value And Um | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E442 | 190 RPM | Direct, Flanged | 996 lbs.-in. | Shaft | 9:1 | 3 hp | 3 21/50 hp | 738 lbs. | €1,669.54 | |
 |
E450 | 37 RPM | Other Mount Flange Mounted | 1041 lbs.-in. | Shaft | 47:1 | 3/4 hp | 47/50 hp | 980 lbs. | €1,669.54 | |
 |
E453 | - | Direct, Square | 726 lbs.-in. | Left Shaft | - | - | - | - | €1,669.54 | |
 |
E449 | 45 RPM | Other Mount Flange Mounted | 1067 lbs.-in. | Shaft | 39:1 | 1 hp | 1.09 hp | 980 lbs. | €1,465.73 | |
 |
E452 | 25 RPM | Other Mount Flange Mounted | 889 lbs.-in. | Shaft | 70:1 | 1/2 hp | 16/25 hp | 980 lbs. | €1,465.73 | |
 |
E445 | - | Direct, Flanged | 1056 lbs.-in. | Shaft | - | - | - | - | €1,465.73 | |
 |
E451 | 30 RPM | - | - | - | - | - | - | - | €1,465.73 |
