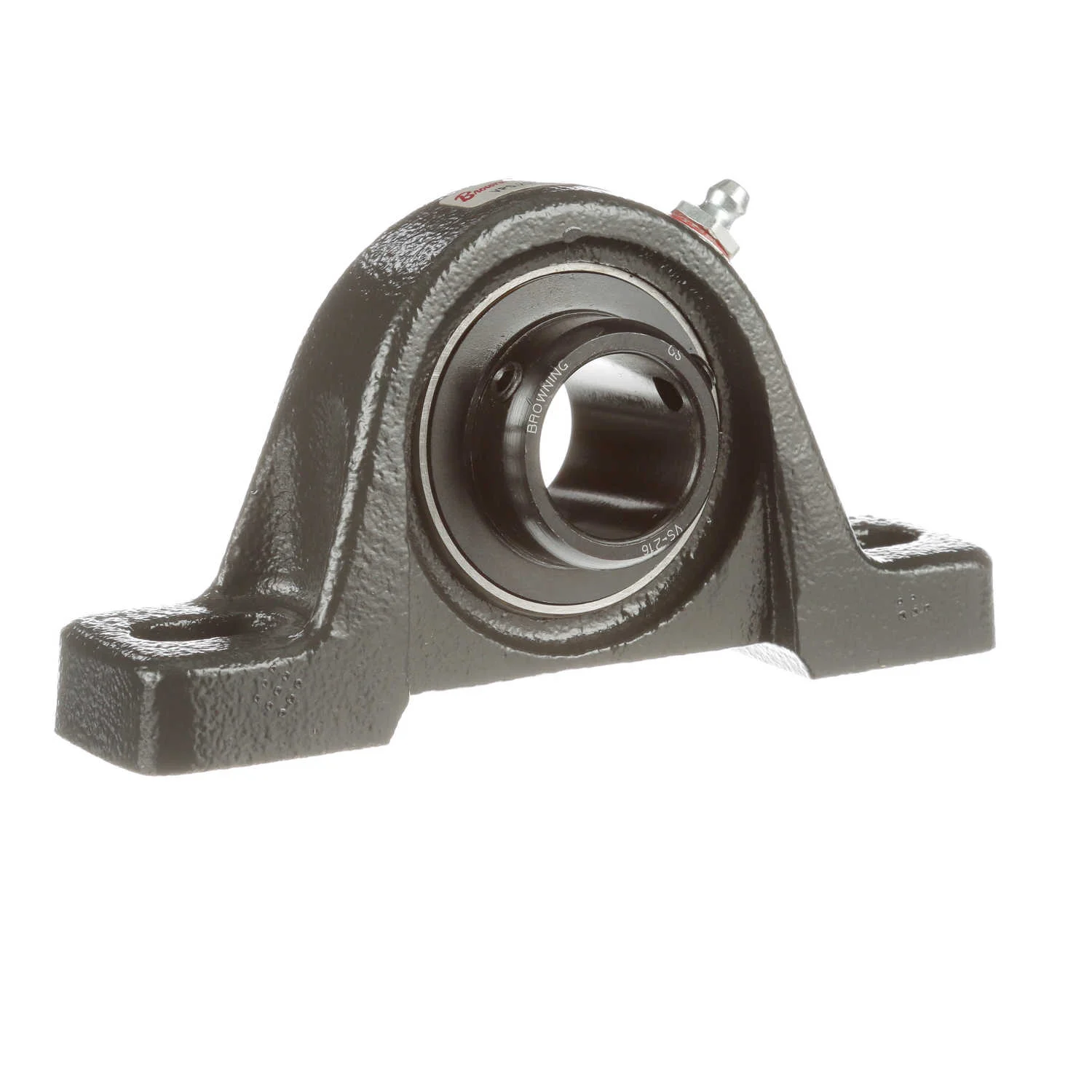

BROWNING 768428 VPS-216 S4661M Two Bolt Low Base Pillow Block Ball Bearing, Cast Iron, Black Oxided Inner, Setscrew Lock
Get it by Tuesday, Dec 23
€89.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Mounted Ball Bearing |
| Actual Bolt Center To Center | 4.1" |
| Base To Bore Centerline | 1 7/16" |
| Base To Center Height | 1.438" |
| Base Width | 1 13/32" |
| Bolt Center To Center Length | 3 11/16" to 4 9/16" |
| Bore Dia. | 1" |
| Bore Type | Round |
| Dynamic Load Capacity | 2801 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Uncoated |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | VS-216 |
| Length Through Bore | 1 3/8" |
| Locking Device | Set Screw |
| Material | Cast Iron |
| Max. Speed | 5500 RPM |
| Mounting Bolts | 3/8" |
| Mounting Method | Set Screw |
| Mounting Type | 2 Bolt High Base |
| No. Of Mounting Holes | 2 |
| Nominal Bolt Center To Center | 4" |
| Number Of Rows | 1 |
| Other Features | Special Design |
| Overall Height | 2 13/16" |
| Overall Length | 5 1/2" |
| Product Type | Standard Duty |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact |
| Series | VPS 200 Series |
| Static Load Capacity | 1651 lbs. |
| System Of Measurement | Imperial |
| Temp. Rating | +200°F to +250°F |
| Weight | 0.773 Kg |
Shipping Info:
| Ship weight (kg) | 0.77 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Bore Dia. | Overall Length | Overall Height | Max. Speed | Finish | Mounting Type | Base Width | Bolt Center To Center Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 764535 | - | - | - | - | - | - | - | - | €225.23 | |
| 766067 | 2 7/16" | 9 1/2" | 5 1/2" | 2500 RPM | Painted | 2 Bolt Low Base | 2 3/8" | 6 53/64" to 7 63/64" | €273.20 | |
| 768429 | 1" | - | - | - | - | - | - | - | €132.68 | |
| VPS-216 CTY | - | - | - | - | - | - | - | - | €89.00 | |
| 768441 | 1.188" | - | - | - | - | - | - | - | €115.77 |
