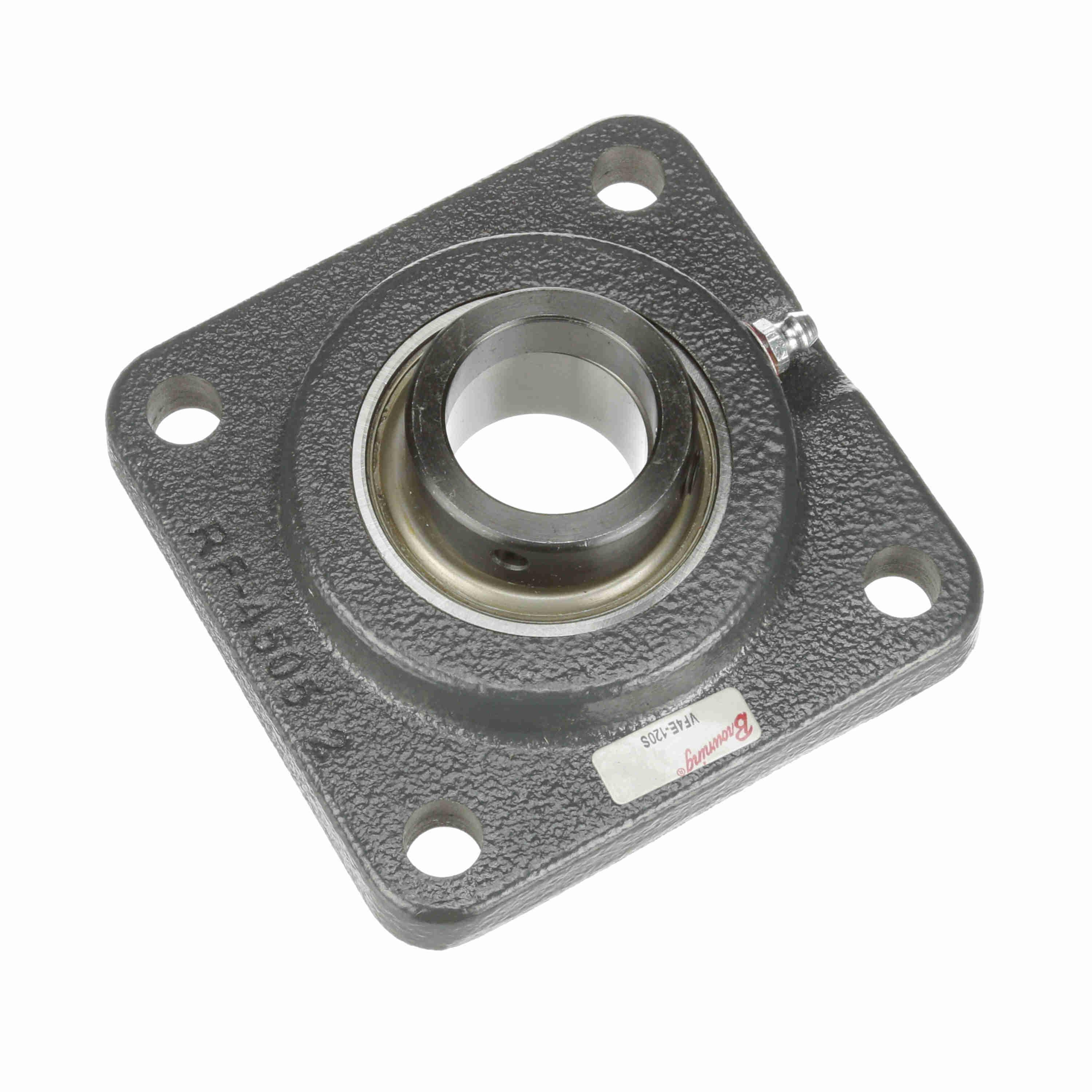

BROWNING 767791 VF4E-120S Four Bolt Flange Ball Bearing, Mounted, Cast Iron, Eccentric Lock
Item: BF3MUQModel: 767791Cross Ref: VF4E-120S
7 In Stock
Ships within 2 days via
€293.78 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Bolt Center To Center Length | 3 1/4" |
| Bolt Spacing | 3 1/4" |
| Bore Dia. | 1 1/4" |
| Color | Gray |
| Dynamic Load Capacity | 4381 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Painted |
| Flange Mounting Type | 4 Bolt |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Housing Style | 4 Bolt Square Flange Block |
| Insert Part Number | VE-120S |
| Inside Dia. | 1 1/4" |
| Length Through Bore | 1.422" |
| Locking Device | Eccentric Collar |
| Material | Steel |
| Max. Speed | 3000 RPM |
| Mounting | Yes |
| Mounting Bolts | 7/16" |
| No. Of Mounting Holes | 4 |
| Nominal Bolt Circle Dia | 4.7" |
| Number Of Rows | 1 |
| Other Features | Intermediate Duty |
| Overall Depth | 1 47/64" |
| Overall Dia. | 4 1/4" |
| Overall Height | 4 1/4" |
| Overall Length | 4 1/4" |
| Pilot Configuration | No Pilot |
| Product Type | Intermediate Duty Non-Expansion Round/Straight Bore |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Seal Material | Nitrile Rubber |
| Seal Type | Single Lip Contact |
| Series | VF4E 100 Series |
| Static Load Capacity | 2567 lbs. |
| System Of Measurement | Imperial |
| Temp. Range | -20°F to +200°F |
| Temp. Rating | -20°F to +200°F |
| Weight | 1.261 Kg |
Shipping Info:
| Ship weight (kg) | 1.22 |
| Ship height (cm) | 10.8 |
| Ship length (cm) | 10.8 |
| Ship width (cm) | 4.39 |
Product Variants
| Product | Model | Bore Dia. | Overall Length | Overall Height | Max. Speed | Locking Device | Bolt Center To Center Length | Inside Dia. | Housing Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
767328 | 2" | 6 3/8" | 6 3/8" | 1750 RPM | Eccentric Collar | 5 1/8" | 2" | Cast Iron | €311.92 | |
 |
767832 | - | 3" | 3" | 5000 RPM | Eccentric Collar | 2 1/8" | 5/8" | - | €71.81 | |
 |
767320 | 1 1/2" | 5 1/8" | 5 1/8" | 2500 RPM | Eccentric Collar | 4" | - | Cast Iron | €186.12 | |
 |
767331 | 2" | 5 5/8" | 5 5/8" | 2000 RPM | Eccentric | 4 3/8" | - | Cast Iron | €177.51 | |
 |
767308 | 1 1/4" | 4 5/8" | 4 5/8" | 3000 RPM | Eccentric Collar | 3 5/8" | 1 1/4" | Cast Iron | €150.40 | |
 |
767324 | 1 15/16" | 5 5/8" | 5 5/8" | 2000 RPM | Eccentric Collar | 4 3/8" | 1 15/16" | Cast Iron | €263.62 | |
 |
767875 | 1 3/4" | - | - | - | - | - | - | Cast Iron | €264.08 |
