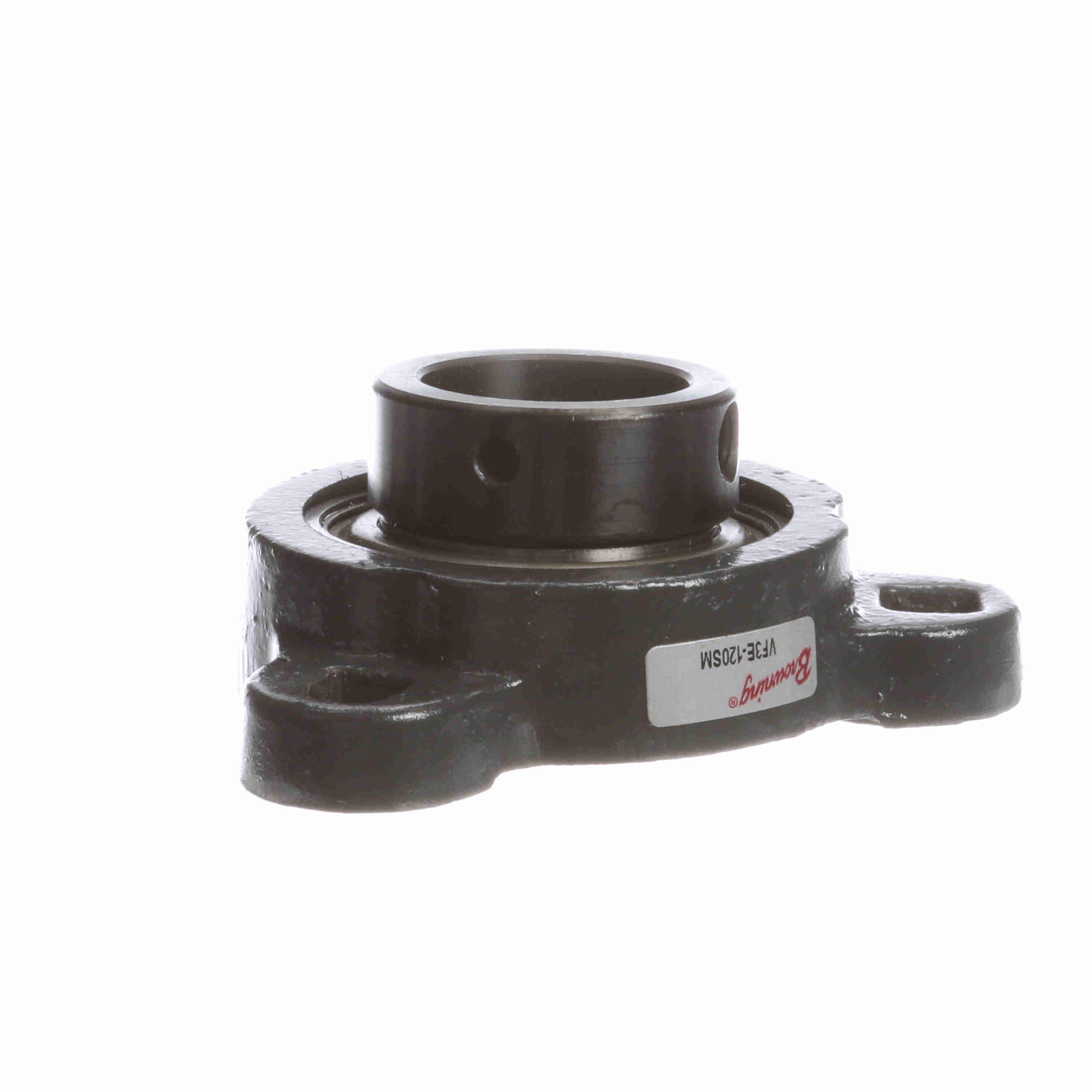

BROWNING 767789 VF3E-120SM Three Bolt Flange Ball Bearing, Mounted, Ductile Iron, Eccentric Lock
Item: BE4JUZModel: 767789Cross Ref: VF3E-120SM
7 In Stock
Ships within 2 days via
€116.03 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Bolt Center To Center Length | 3 9/16" |
| Bolt Spacing | 3.1" |
| Bore Dia. | 1 1/4" |
| Color | Gray |
| Dynamic Load Capacity | 4381 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Painted |
| Flange Mounting Type | 3 Bolt |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Housing Style | 3 Bolt Flange Block |
| Insert Part Number | VE-120S |
| Locking Device | Eccentric Collar |
| Material | Steel |
| Max. Speed | 3000 RPM |
| Mounting | Yes |
| Mounting Bolts | 27/64" |
| No. Of Mounting Holes | 3 |
| Nominal Bolt Circle Dia | 3 1/2" |
| Number Of Rows | 1 |
| Other Features | Intermediate Duty |
| Overall Depth | 1 35/64" |
| Pilot Configuration | No Pilot |
| Product Type | Intermediate Duty Non-Expansion Round/Straight Bore |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Seal Material | Nitrile Rubber |
| Seal Type | Single Lip Contact |
| Series | VF3E100M Series |
| Static Load Capacity | 2567 lbs. |
| System Of Measurement | Imperial |
| Temp. Range | -20°F to +200°F |
| Temp. Rating | -20°F to +200°F |
| Weight | 0.73 Kg |
Shipping Info:
| Ship weight (kg) | 0.64 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 3.94 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Bore Dia. | Overall Length | Max. Speed | Locking Device | Bolt Circle Dia. | Bolt Center To Center Length | Housing Material | Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
767828 | 1/2" | 3 3/16" | 5000 RPM | Eccentric | 2 1/2" | - | Cast Iron | Painted | €110.02 | |
 |
767795 | 1 3/8" | 4 13/16" | 2500 RPM | Eccentric | 3 15/16" | - | Cast Iron | Painted | €96.23 | |
|
767766 | 15/16" | 3 3/4" | 3500 RPM | Eccentric | 3" | - | Cast Iron | Painted | €74.90 | |
 |
767781 | 7/8" | 3 3/4" | 3500 RPM | Eccentric | 3" | - | - | Painted | €74.90 | |
 |
767776 | 1" | - | 3500 RPM | Eccentric Collar | - | 3" | Cast Iron | Painted | €89.71 |
