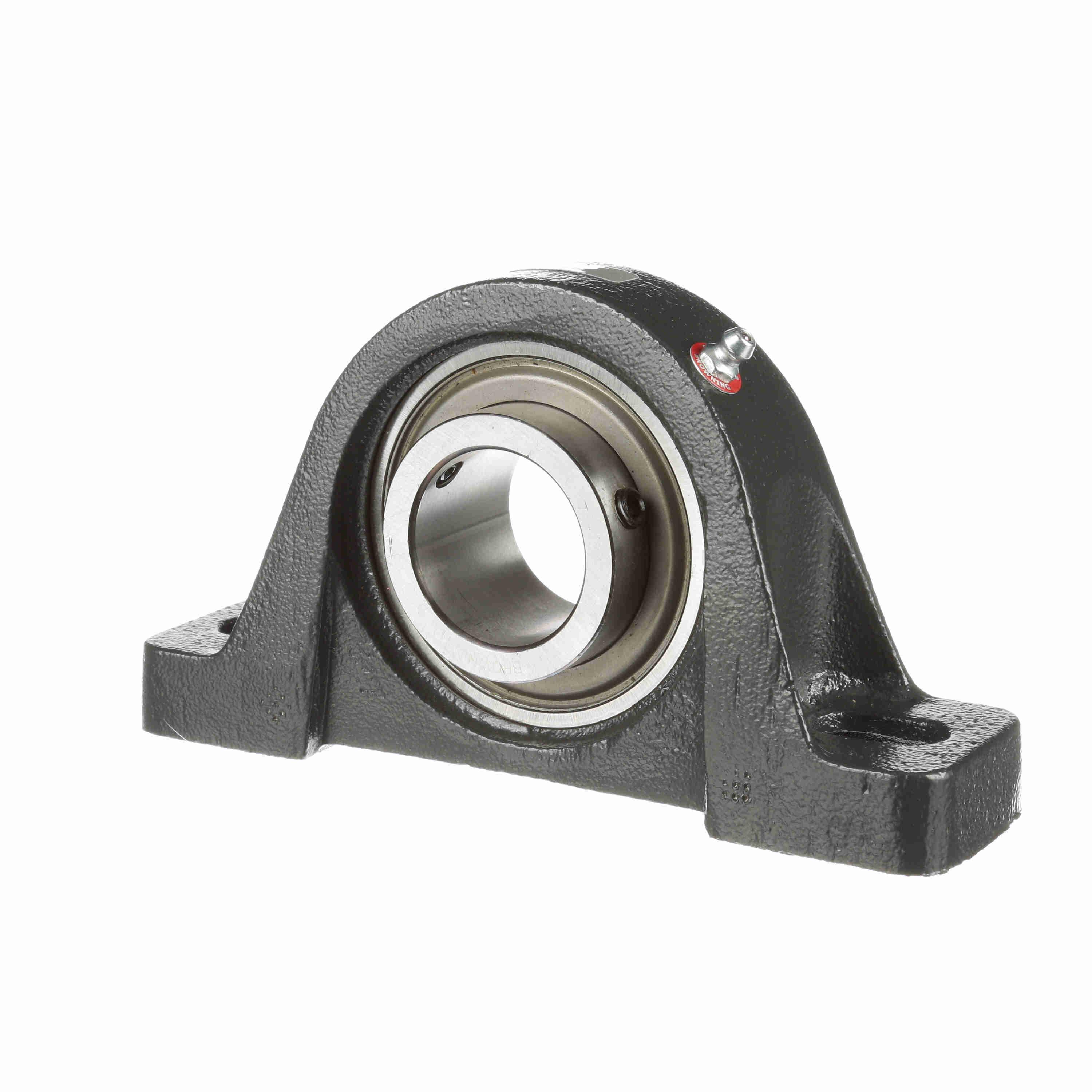

BROWNING 767745 VPLS-120S Two Bolt Low Base Pillow Block Ball Bearing, Mounted, Cast Iron, Setscrew Lock
Item: BE8BXPModel: 767745Cross Ref: VPLS-120S
7 In Stock
Ships within 2 days via
€132.28 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Actual Bolt Center To Center | 4 3/5" |
| Base To Bore Centerline | 1 9/16" |
| Base To Center Height | 1.563" |
| Base Width | 1 3/4" |
| Bolt Center To Center Length | 4 5/32" to 5 3/32" |
| Bore Dia. | 1 1/4" |
| Bore Type | Round |
| Color | Gray |
| Dynamic Load Capacity | 5782 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Painted |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | VS-120S |
| Inside Dia. | 1 1/4" |
| Length Through Bore | 1.156" |
| Locking Device | Set Screw |
| Material | Cast Iron |
| Max. Speed | 3000 RPM |
| Mounting | Yes |
| Mounting Bolts | 1/2" |
| Mounting Type | 2 Bolt Base |
| No. Of Mounting Holes | 2 |
| Nominal Bolt Center To Center | 4 3/5" |
| Number Of Rows | 1 |
| Other Features | Light Duty, Low Base |
| Overall Height | 3 5/32" |
| Overall Length | 6 3/16" |
| Product Type | Intermediate Duty |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact |
| Series | VPLS 100 Series |
| Static Load Capacity | 3493 lbs. |
| System Of Measurement | Imperial |
| Temp. Rating | -20°F to +200°F |
| Weight | 1.09 Kg |
Shipping Info:
| Ship weight (kg) | 1.14 |
| Ship height (cm) | 8.03 |
| Ship length (cm) | 15.72 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Bore Dia. | Overall Length | Overall Height | Max. Speed | Mounting Type | Base Width | Bolt Center To Center Length | Base To Bore Centerline | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
767891 | 1 1/4" | 6 3/16" | 3 5/32" | 4500 RPM | 2 Bolt Low Base | 1 3/4" | 4 5/32" to 5 3/32" | 1 9/16" | €151.34 | |
 |
767613 | 1 3/16" | 6 3/16" | 3 5/32" | 3000 RPM | 2 Bolt Base | 1 3/4" | 4 5/32" to 5 3/32" | 1 9/16" | €132.28 | |
 |
767624 | 1" | 5 1/2" | 2 11/16" | 5500 RPM | 2 Bolt Base | 1 13/32" | 3 23/32" to 4 17/32" | 1 5/16" | €130.63 | |
 |
767561 | 3/4" | 5" | 2 15/32" | 4000 RPM | 2 Bolt Low Base | 1 11/32" | 3 31/64" to 4 17/64" | 1 1/4" | €104.62 | |
 |
767836 | 5/8" | 4 7/8" | 2 3/32" | 7500 RPM | 2 Bolt Base | 1 7/32" | 3 3/16" to 4 1/16" | 1 1/16" | €138.13 | |
 |
767447 | 1 3/16" | 6 3/16" | 3 5/32" | 4500 RPM | 2 Bolt Base | 1 3/4" | 4 5/32" to 5 3/32" | 1 9/16" | €170.26 | |
 |
767402 | 5/8" | 4 7/8" | 2 3/32" | 7500 RPM | 2 Bolt Base | 1 7/32" | 3 3/16" to 4 1/16" | 1 1/16" | €76.53 |
