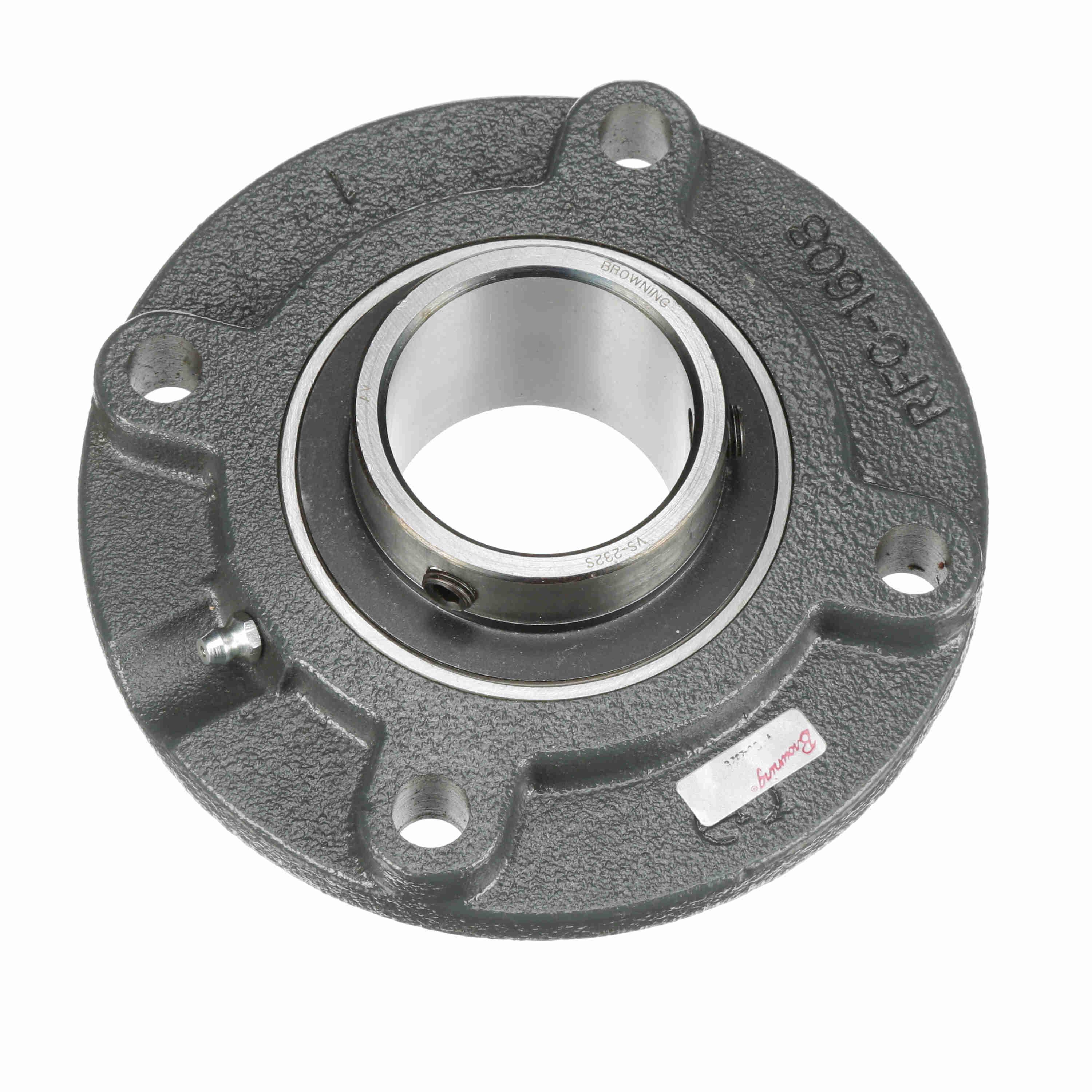

BROWNING 767160 VFCS-232S Flange Cartridge Ball Bearing, Mounted, Cast Iron, Black Oxided Inner, Setscrew Lock
Item: BE7RKGModel: 767160Cross Ref: VFCS-232S
7 In Stock
Ships within 2 days via
€245.30 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Bolt Circle Dia. | 5 1/8" |
| Bolt Spacing | 3 3/5" |
| Bore Dia. | 2" |
| Cartridge Pilot Depth | 0.469" |
| Cartridge Pilot Dia. | 4 1/4" |
| Dynamic Load Capacity | 7889 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Uncoated |
| Flange Mounting Type | 4 Bolt |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Insert Part Number | VS-232S |
| Length Through Bore | 2.031" |
| Locking Device | Set Screw |
| Material | Steel |
| Max. Speed | 3000 RPM |
| Mounting Bolts | 7/16" |
| Mounting Method | Set Screw |
| No. Of Mounting Holes | 4 |
| Nominal Bolt Circle Dia | 5.1" |
| Number Of Rows | 1 |
| Other Features | Normal Duty, Has Flinger |
| Overall Depth | 2 1/16" |
| Overall Dia. | 6 1/8" |
| Overall Length | 6 1/8" |
| Pilot Configuration | With Pilot |
| Product Type | Non-Expansion Normal Duty Round/Straight Bore |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Seal Material | Nitrile Rubber |
| Seal Type | Single Lip Contact |
| Series | VFCS 200 Series |
| Static Load Capacity | 5216 lbs. |
| System Of Measurement | Imperial |
| Temp. Range | -20°F to +200°F |
| Temp. Rating | 200°F |
| Weight | 2.279 Kg |
Shipping Info:
| Ship weight (kg) | 2.26 |
| Ship height (cm) | 5.23 |
| Ship length (cm) | 15.57 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Bore Dia. | Overall Length | Max. Speed | Bolt Circle Dia. | Finish | Inside Dia. | Housing Material | Seal Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
767559 | 1" | 4 3/8" | 4500 RPM | 3 5/8" | - | 1" | Cast Iron | Nitrile Rubber | €234.41 | |
 |
765083 | 2 3/16" | 7 1/8" | 2500 RPM | 6" | Uncoated | 2 3/16" | Cast Iron | Nitrile Rubber | €439.18 | |
 |
767504 | 1 15/16" | 6 3/8" | 2500 RPM | 5 3/8" | - | - | Cast Iron | Nitrile Rubber | €434.41 | |
 |
767151 | 1 1/4" | 4 3/8" | 4500 RPM | 3 5/8" | Uncoated | - | Cast Iron | Nitrile Rubber | €153.52 | |
 |
767859 | 1 3/4" | 6 1/8" | 3000 RPM | 5 1/8" | - | - | Cast Iron | Nitrile Rubber | €304.17 | |
 |
767149 | 1 1/8" | 4 3/8" | 4500 RPM | 3 5/8" | Uncoated | - | - | Nitrile Rubber | €156.84 | |
 |
767503 | 1 11/16" | 6 1/8" | 3000 RPM | 5 1/8" | Composite | - | Cast Iron | Nitrile Rubber | €324.47 |
