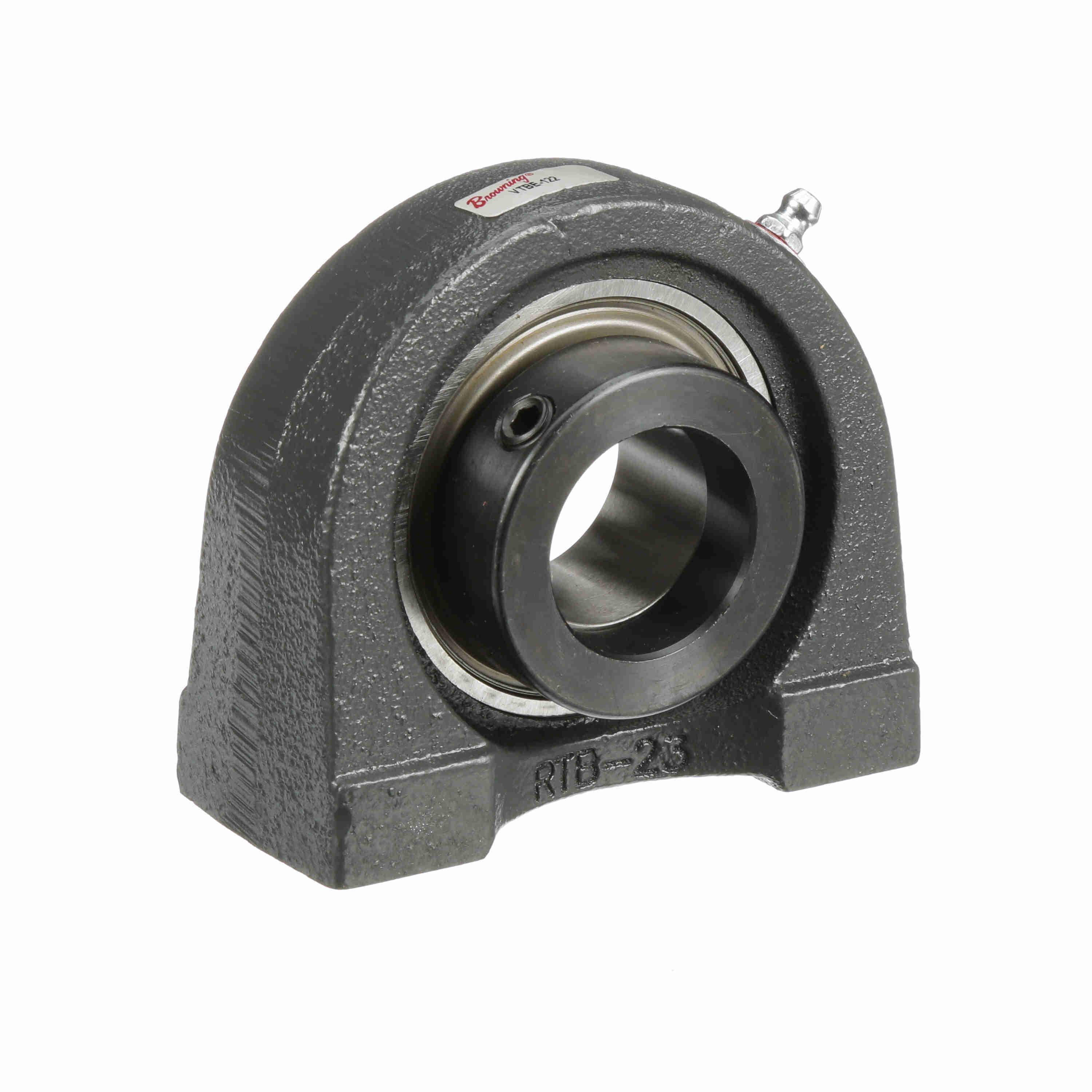

BROWNING 766825 VTBE-122 Ball Bearing, 1-3/8 in Bore Dia, Gray Painted, Cast Iron, Eccentric, Intermediate Duty
Item: BE8WQFModel: 766825Cross Ref: VTBE-122
7 In Stock
Ships within 2 days via
€226.17 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Actual Bolt Center To Center | 3.3" |
| Base To Bore Centerline | 1 7/8" |
| Base To Center Height | 1 7/8" |
| Base Width | 1 7/8" |
| Bolt Center To Center Length | 3 1/4" |
| Bore Dia. | 1 3/8" |
| Bore Type | Round |
| Color | Gray |
| Dynamic Load Capacity | 5782 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Painted |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Tap Base Pillow Block |
| Insert Part Number | VE-122 |
| Length Through Bore | 1.578" |
| Locking Device | Eccentric |
| Material | Cast Iron |
| Max. Speed | 2500 RPM |
| Mounting Bolts | 1/2" |
| Mounting Method | Eccentric Collar |
| Mounting Type | Tapped Base |
| No. Of Mounting Holes | 2 |
| Nominal Bolt Center To Center | 3 1/5" |
| Number Of Rows | 1 |
| Overall Height | 3 3/4" |
| Overall Length | 4 1/4" |
| Product Datasheet | browning-vfbs-212-cty.pdf |
| Product Type | Intermediate Duty |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact |
| Series | VTBE-100 Series |
| Static Load Capacity | 3493 lbs. |
| System Of Measurement | Imperial |
| Temp. Rating | +200°F to +250°F |
Shipping Info:
| Ship weight (kg) | 1.65 |
| Ship height (cm) | 9.53 |
| Ship length (cm) | 10.8 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Bore Dia. | Overall Length | Overall Height | Locking Device | Max. Speed | Base Width | Bolt Center To Center Length | Base To Bore Centerline | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
766822 | 1 3/16" | 4" | 3 3/8" | Eccentric | 3000 RPM | 1 1/2" | 3" | 1 11/16" | €280.35 | |
 |
VTBE-114 | - | - | - | - | - | - | - | - | €147.96 | |
 |
766830 | 1 3/4" | 5" | 4 1/4" | Eccentric | 2000 RPM | 2" | 3 3/4" | 2 1/8" | - | RFQ
|
|
766826 | 1 7/16" | 4 1/4" | 3 3/4" | Eccentric | 2500 RPM | 1 7/8" | 3 1/4" | 1 7/8" | €335.79 | |
 |
766827 | 1 1/2" | 4 5/8" | 3 15/16" | Eccentric | 2500 RPM | 1 7/8" | 3 1/2" | 1 15/16" | €262.47 | |
|
VTBE-118 | - | - | - | Eccentric Collar | - | - | - | - | €109.38 | |
 |
766832 | 2" | 5 1/2" | 4 5/8" | Eccentric | 2000 RPM | 2" | 4" | 2 1/4" | €188.93 | RFQ
|
