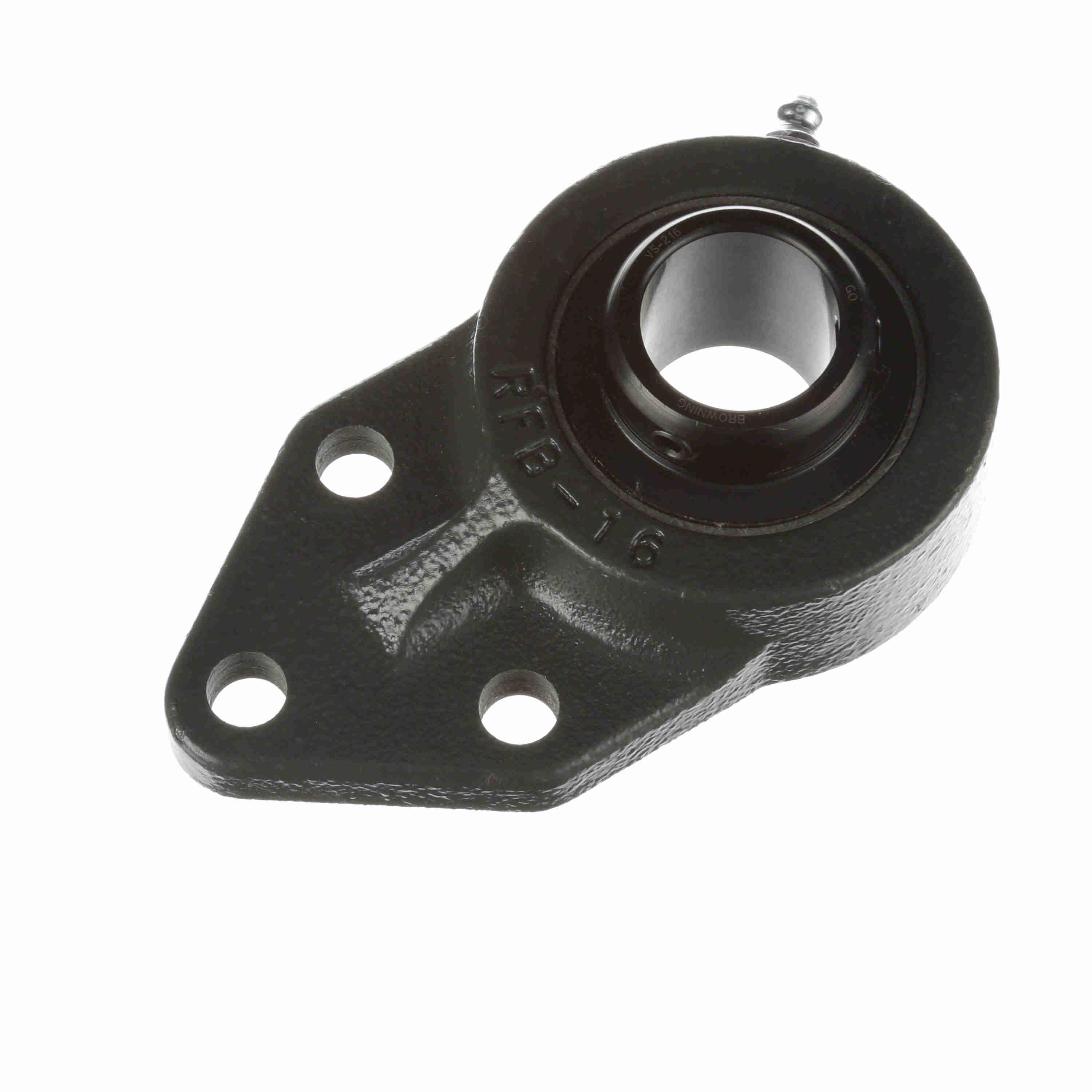

BROWNING 764425 VFBS-216 Three Bolt Flange Bracket Ball Bearing, Cast Iron, Black Oxided Inner, Setscrew Lock
Item: BE6AQTModel: 764425Cross Ref: VFBS-216
7 In Stock
Ships within 2 days via
€193.17 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Bolt Center To Center Length | 1 5/8" |
| Bolt Spacing | 1 1/8" |
| Bore Dia. | 1" |
| Color | Gray |
| Dynamic Load Capacity | 2801 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Painted |
| Flange Mounting Type | 3 Bolt |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Housing Style | 3 Bolt Flange Bracket |
| Insert Part Number | VS-216 |
| Length Through Bore | 1 3/8" |
| Locking Device | Set Screw |
| Material | Steel |
| Max. Speed | 5500 RPM |
| Mounting Bolts | 13/32" |
| Mounting Method | Set Screw |
| No. Of Mounting Holes | 3 |
| Number Of Rows | 1 |
| Other Features | Normal Duty, Has Flinger |
| Overall Depth | 1 1/2" |
| Overall Dia. | 2 3/4" |
| Overall Height | 4 3/4" |
| Overall Length | 2 3/4" |
| Pilot Configuration | No Pilot |
| Product Type | Non-Expansion Normal Duty Round/Straight Bore |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Seal Material | Nitrile Rubber |
| Seal Type | Single Lip Contact |
| Series | VFBS 200 Series |
| Static Load Capacity | 1651 lbs. |
| System Of Measurement | Imperial |
| Temp. Range | -20°F to +200°F |
| Temp. Rating | 200°F |
| Weight | 0.726 Kg |
Shipping Info:
| Ship weight (kg) | 0.72 |
| Ship height (cm) | 12.07 |
| Ship length (cm) | 6.99 |
| Ship width (cm) | 3.81 |
Product Variants
| Product | Model | Bore Dia. | Overall Length | Overall Height | Max. Speed | Bolt Center To Center Length | Housing Material | Finish | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

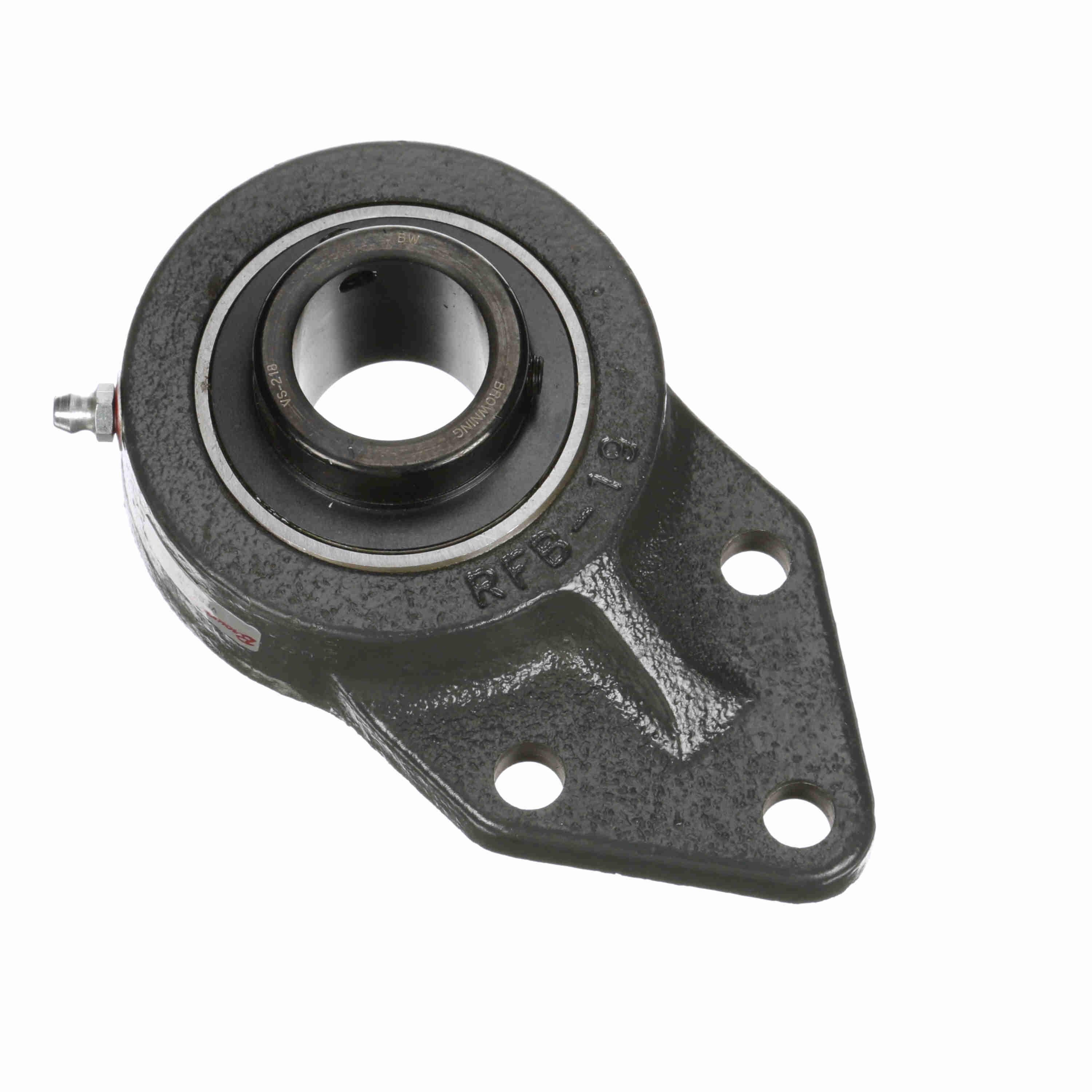

764426 | 1 1/8" | 3 7/32" | 5 23/64" | 4500 RPM | 1 7/8" | Cast Iron | Painted | Gray | €214.45 | |
 |

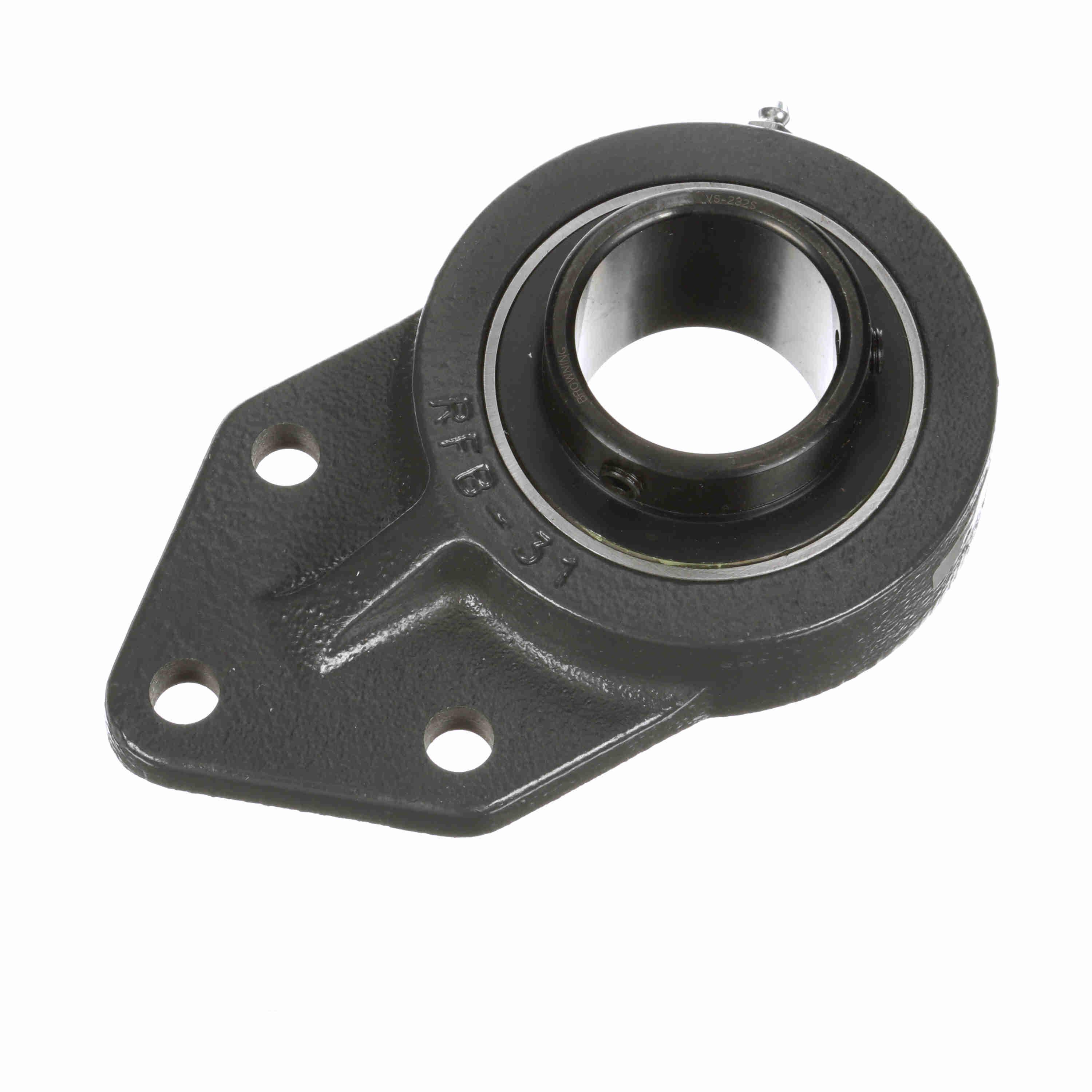

764433 | 2" | 4 9/16" | 7 15/32" | 3000 RPM | 2 3/4" | - | Painted | Gray | €283.46 | |
 |

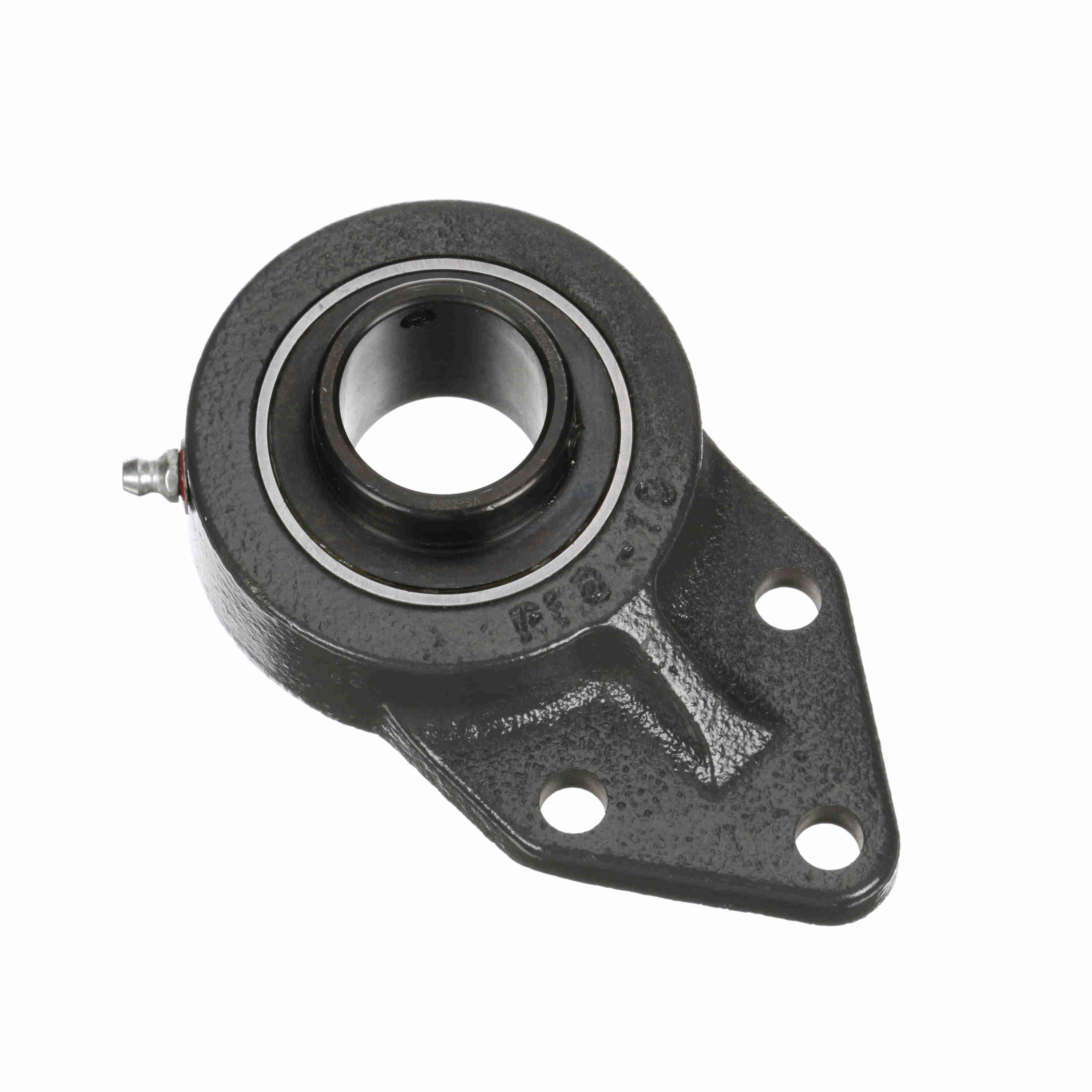

764428 | 1 1/4" | 3 7/32" | 5 23/64" | 4500 RPM | 1 7/8" | - | Painted | Gray | €135.69 | |
 |

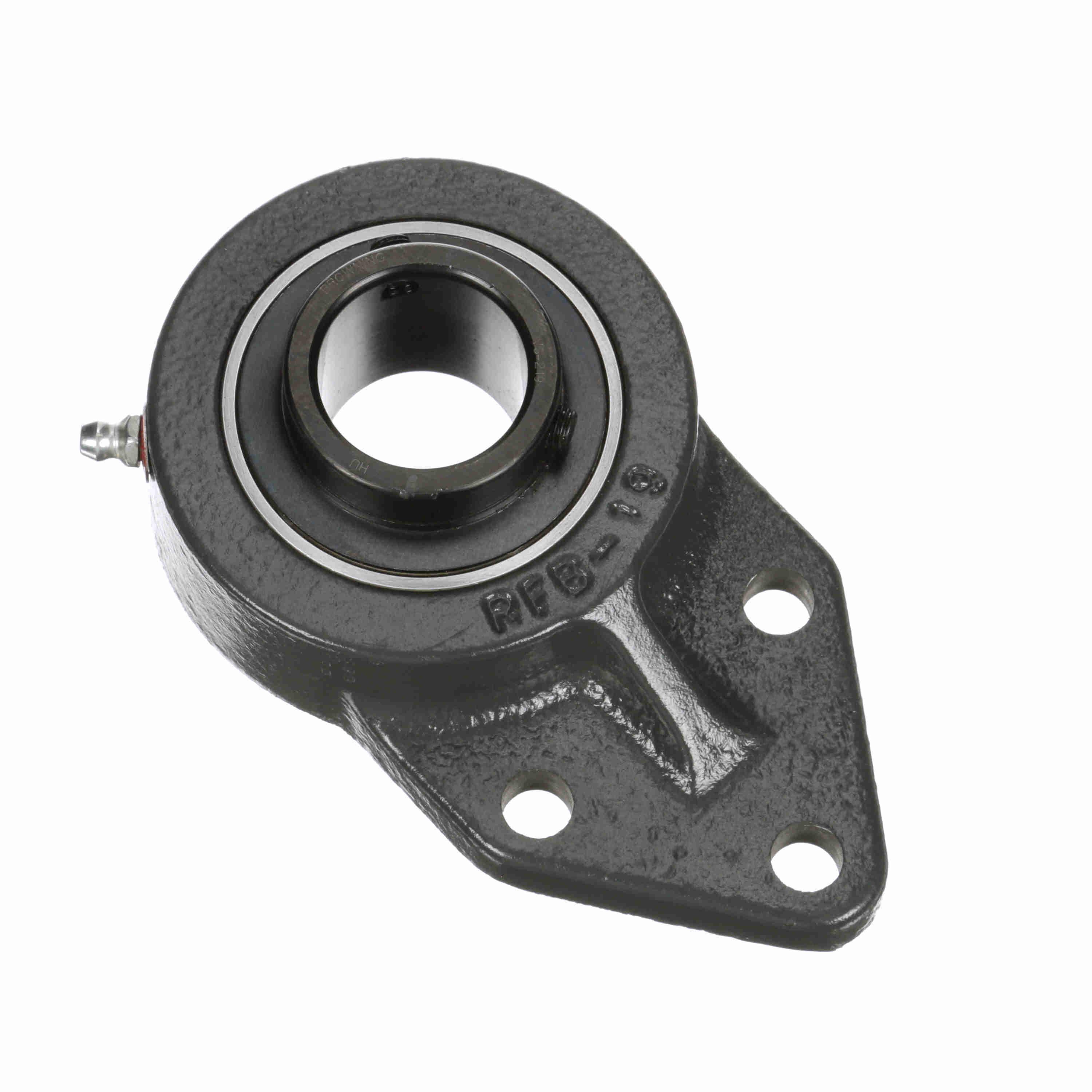

764427 | 1 3/16" | 3 7/32" | 5 23/64" | 4500 RPM | 1 7/8" | Cast Iron | Painted | Gray | €135.69 |
