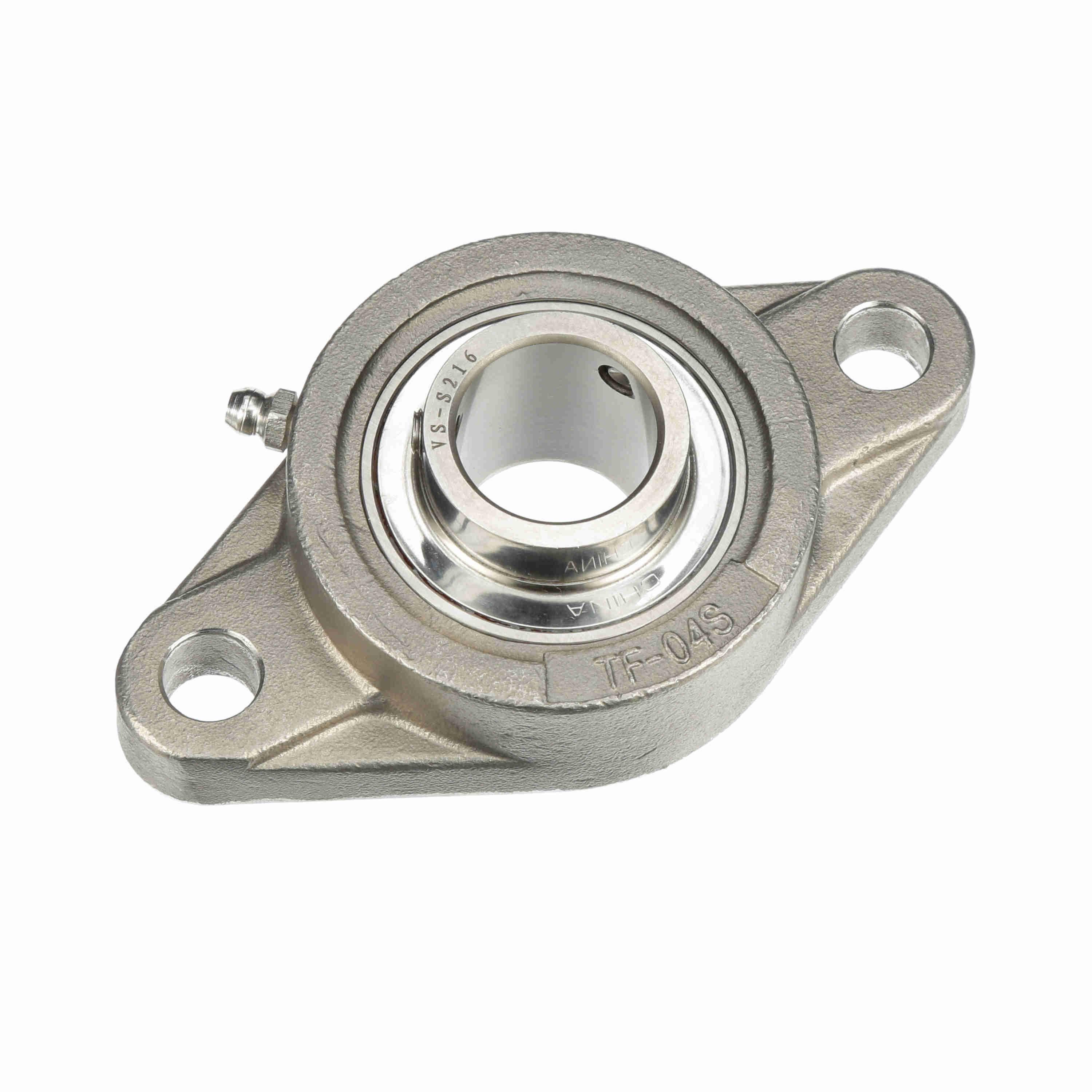

BROWNING 764100 SF2S-S216 Two Bolt Flange Mounted Stainless Steel Ball Bearing, Setscrew Lock, Corrosion Resistant
Item: BE7PLNModel: 764100Cross Ref: SF2S-S216
7 In Stock
Ships within 2 days via
€270.93 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Bolt Center To Center Length | 3 57/64" |
| Bolt Spacing | 3.891" |
| Bore Dia. | 1" |
| Color | Gray |
| Dynamic Load Capacity | 2801 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Painted |
| Flange Mounting Type | 2 Bolt |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Stainless Steel |
| Housing Style | 2 Bolt Flange Block |
| Insert Material | Stainless Steel |
| Insert Part Number | VS-S216 |
| Length Through Bore | 1.344" |
| Locking Device | Set Screw |
| Material | Stainless Steel |
| Max. Speed | 5500 RPM |
| Mounting Bolts | 3/8" |
| Mounting Method | Set Screw |
| No. Of Mounting Holes | 2 |
| Nominal Bolt Circle Dia | 3.9" |
| Number Of Rows | 1 |
| Other Features | Normal Duty |
| Overall Depth | 1 13/32" |
| Overall Dia. | 4 7/8" |
| Overall Height | 2 11/16" |
| Overall Length | 4 7/8" |
| Pilot Configuration | No Pilot |
| Product Type | Non-Expansion Normal Duty |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Seal Material | Nitrile Rubber |
| Seal Type | Single Lip Contact |
| Series | SF2S-S Series |
| Static Load Capacity | 1651 lbs. |
| System Of Measurement | Imperial |
| Temp. Rating | 200°F |
| Weight | 0.649 Kg |
Shipping Info:
| Ship weight (kg) | 0.66 |
| Ship height (cm) | 10.01 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 3.81 |
Product Variants
| Product | Model | Bore Dia. | Overall Length | Overall Height | Max. Speed | Bolt Center To Center Length | Housing Material | Finish | Seal Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
764101 | 1 3/16" | 5 5/8" | 3 9/64" | 4500 RPM | 4 19/32" | Stainless Steel | Painted | Single Lip Contact | €450.78 |
