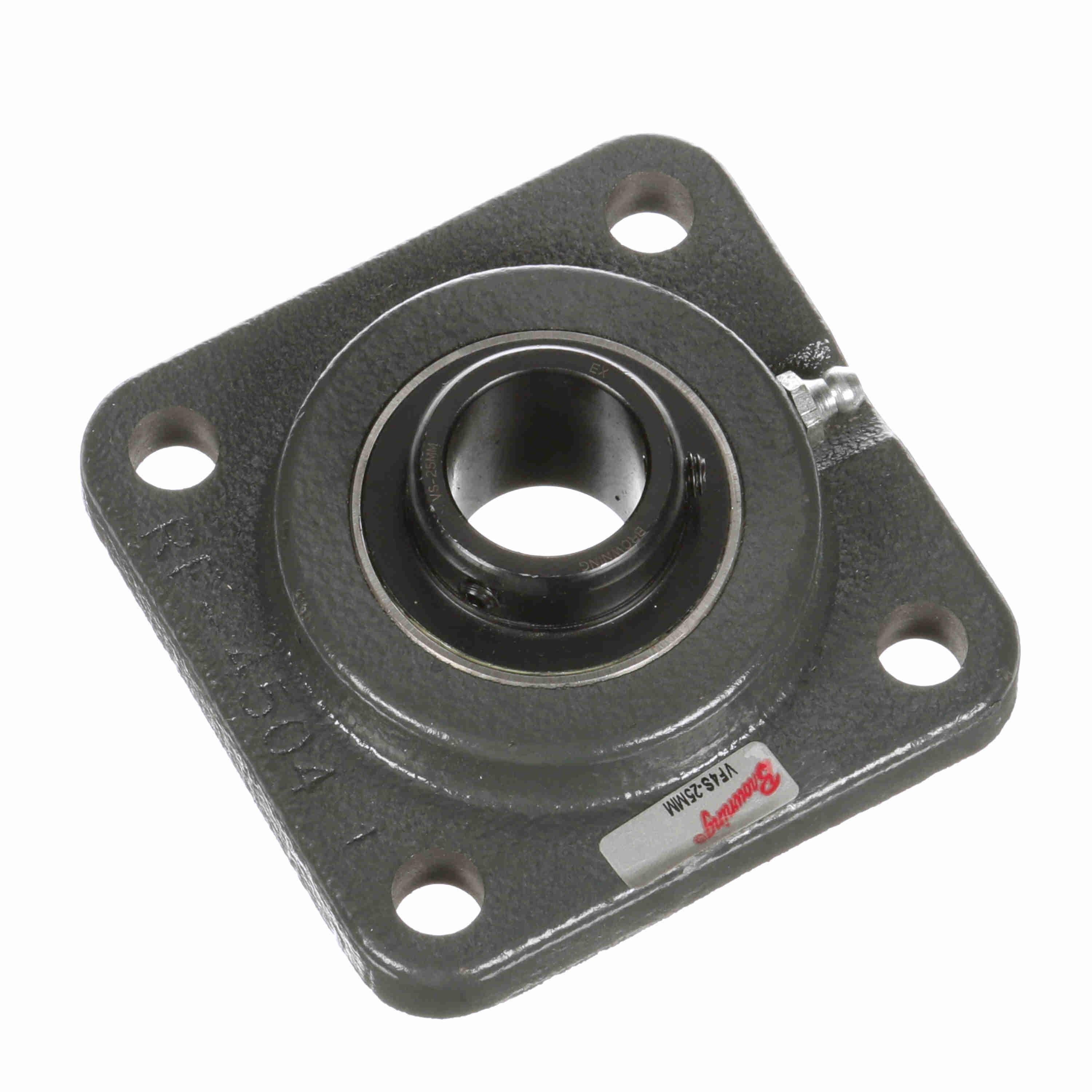

BROWNING 732674 VF4S-25MM Four Bolt Flange Ball Bearing, Mounted, Cast Iron, Black Oxided Inner, Setscrew Lock
25 mm
5500 RPM
Get it by Tuesday, Dec 23
€89.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Mounted Ball Bearing |
| Bolt Center To Center Length | 69.9 mm |
| Bore Dia. | 25 mm |
| Dynamic Load Capacity | 12459N |
| Flange Mounting Type | 4 Bolt |
| Locking Device | Set Screw |
| Material | Steel |
| Max. Speed | 5500 RPM |
| Overall Depth | 36.5 mm |
| Overall Dia. | 95.3 mm |
| Overall Height | 95.3 mm |
| Overall Length | 95.3 mm |
| Product Type | Non-Expansion Normal Duty Round/Straight Bore |
| Seal Material | Nitrile Rubber |
| Series | VF4S Series |
| Static Load Capacity | 7344N |
| Temp. Rating | 121°C |
Shipping Info:
| Ship weight (kg) | 0.86 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Bore Dia. | Overall Length | Overall Height | Max. Speed | Bolt Center To Center Length | Inside Dia. | Housing Material | Housing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
732679 | 50 mm | 142.9 mm | 142.9 mm | 3000 RPM | 111.1 mm | - | - | - | €365.79 | RFQ
|
 |
767838 | 5/8" | 3" | 3" | 5000 RPM | 2 1/8" | - | - | - | €114.56 | |
 |
767347 | 1 3/4" | 5 3/8" | 5 3/8" | 2000 RPM | 4 1/8" | 1 3/4" | Cast Iron | - | €217.93 | |
 |
767623 | 1" | 3 3/4" | 3 3/4" | 5500 RPM | 2 3/4" | - | Cast Iron | - | €120.40 | |
 |
767815 | 1 1/4" | 4 1/4" | 4 1/4" | 4500 RPM | 3 1/4" | 1 1/4" | Cast Iron | - | €142.38 | |
 |
767506 | 1 15/16" | 6 3/8" | 6 3/8" | 2500 RPM | 5 1/8" | - | Cast Iron | - | €348.53 | |
 |
765594 | 2" | 5 5/8" | 5 5/8" | 3000 RPM | 4 3/8" | 2" | Cast Iron | - | €254.08 |
