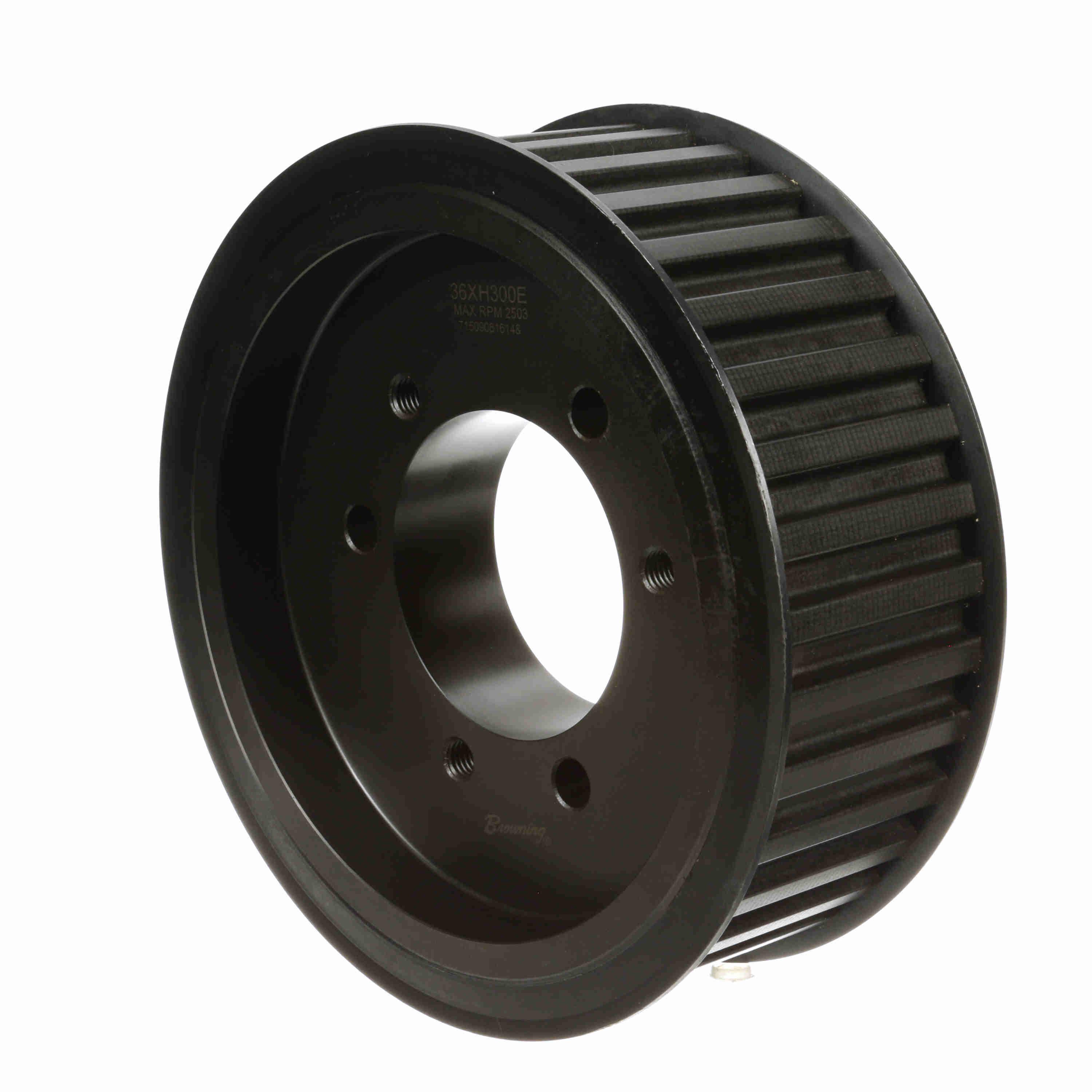

BROWNING 3514783 36XH300E Gearbelt Pulley, Bushed Bore, Steel
Get it by Tuesday, Dec 23
€2,387.84 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Gearbelt Pulley |
| Belt Pitch | 7/8" |
| Belt Style | XH |
| Bore Dia. | 7/8" to 3 1/2" |
| Bore Type | QD |
| Bushing Type | E |
| Face Width | 3 5/8" |
| Flange | Yes |
| Flange Dia. | 10 9/16" |
| For Belt Width | 3" |
| For Use With | 3 Inch Width Type XH300 Belt |
| Keyway | Yes |
| Material | Cast Iron |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| Number Of Teeth | 36 |
| Other Features | Extra Heavy, QD Bushing, Type D2F |
| Outside Dia. | 9.917" |
| Pitch Dia. | 10.027" |
| Style | Web Style |
| System Of Measurement | Imperial |
| Type | Type DF Web |
| Weight | 16.798 Kg |
Shipping Info:
| Ship weight (kg) | 16.65 |
| Ship height (cm) | 25.2 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 25.2 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Bore Dia. | Type | Flange Dia. | Bore Type | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3514726 | 26 | 7.241" | 7.131" | 1/2" to 2 15/16" | Solid Type AF | 7 3/4" | QD | - | €2,052.07 | |
 |

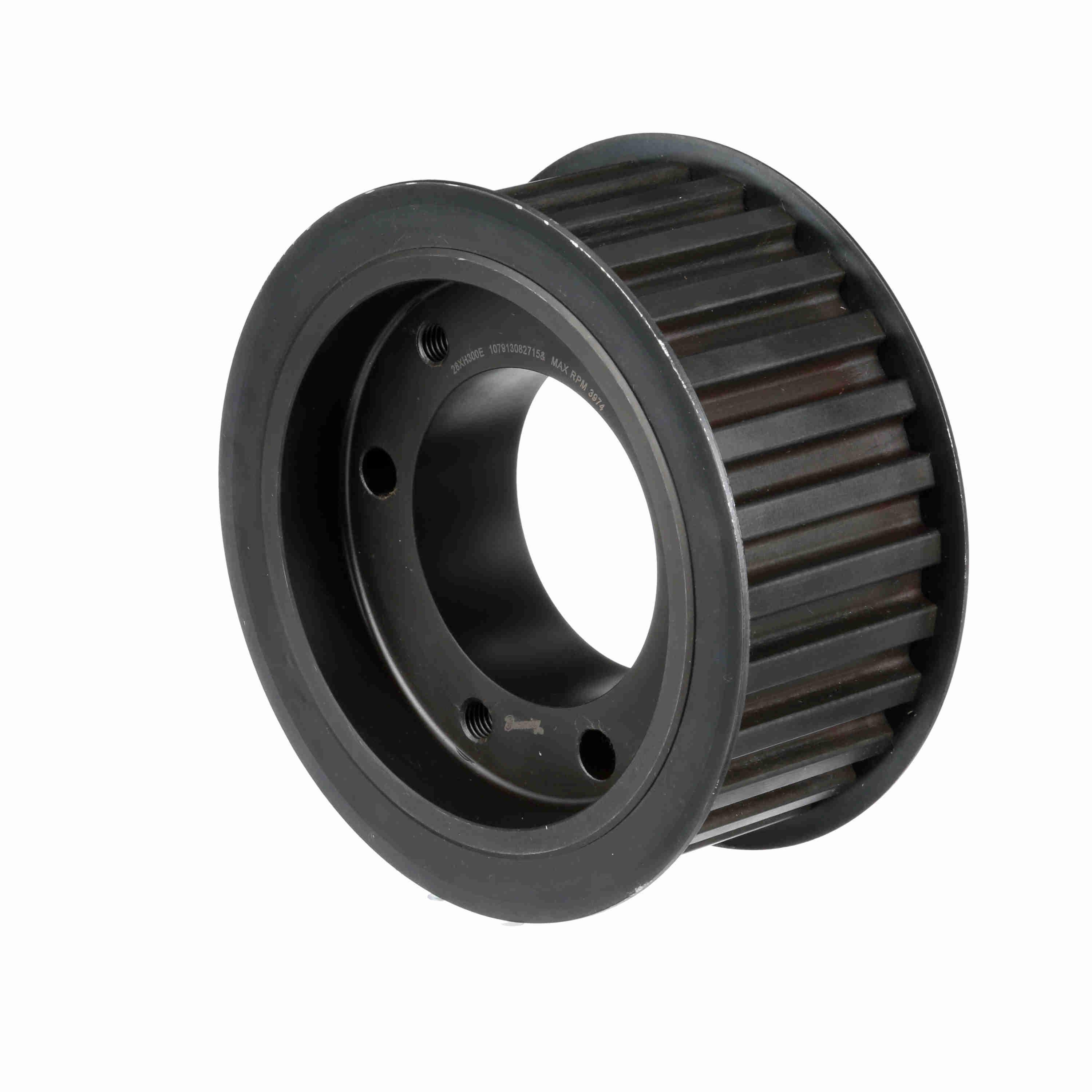

3514742 | 28 | 7.799" | 7.689" | 7/8" to 3 1/2" | Solid Type DF | 8 3/8" | QD | - | €1,695.97 | |
 |

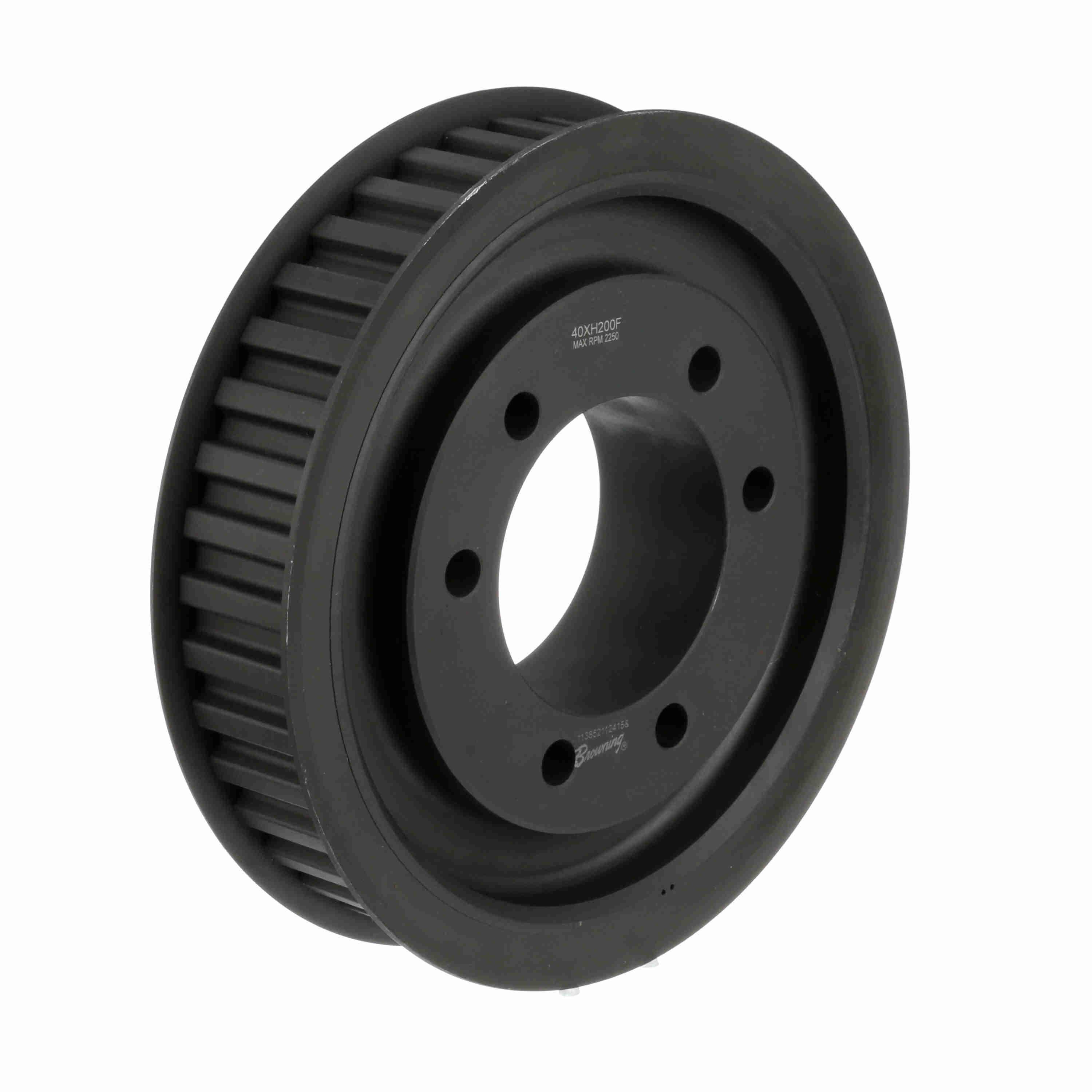

3514809 | 48 | 13.369" | 13.259" | 1" to 4" | Type D Web | - | QD | Cast Iron | €3,893.76 | |
 |

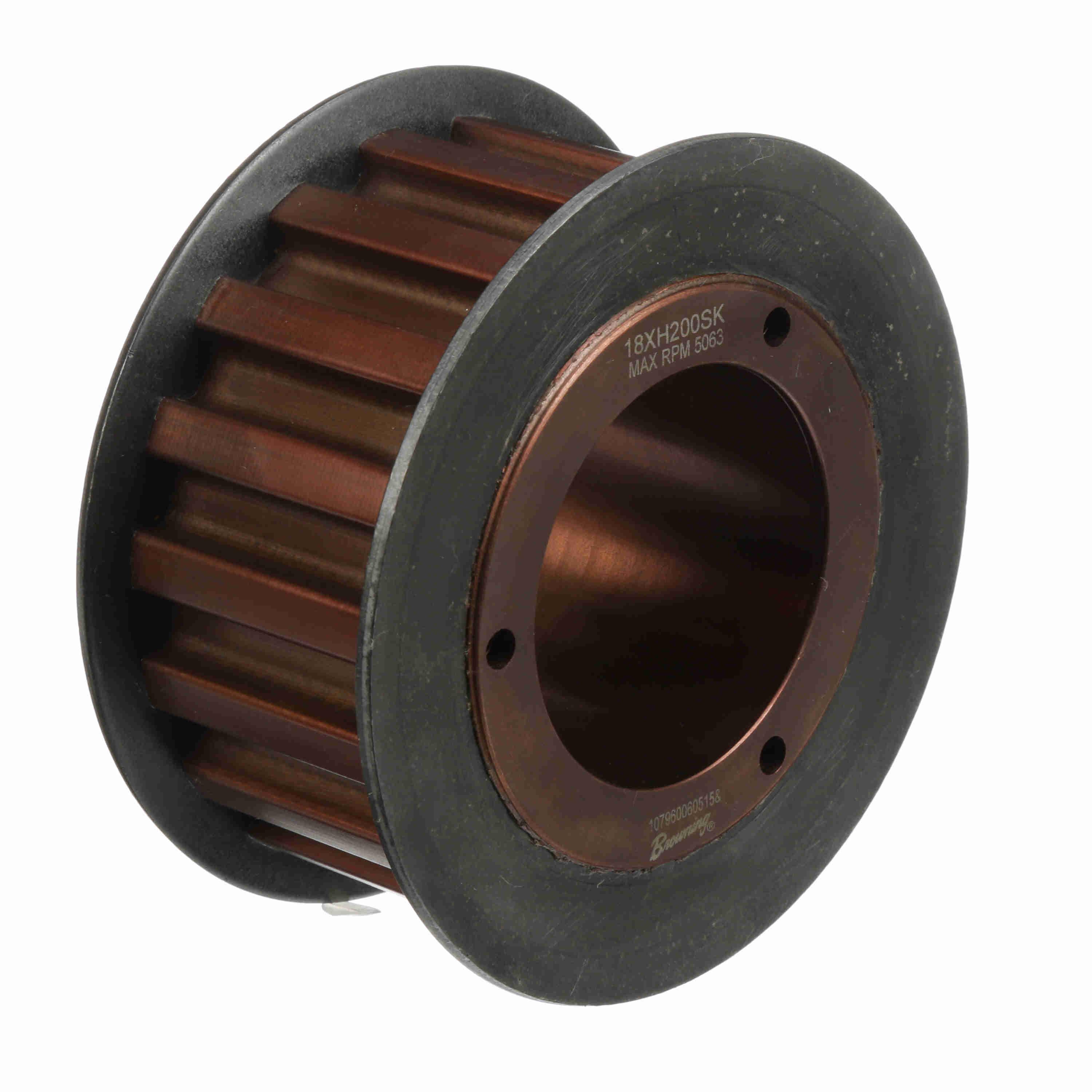

3514650 | 18 | 5.013" | 4.903" | 1/2" to 2 5/8" | Solid Type EF | 5 9/16" | QD | - | €900.58 | |
 |

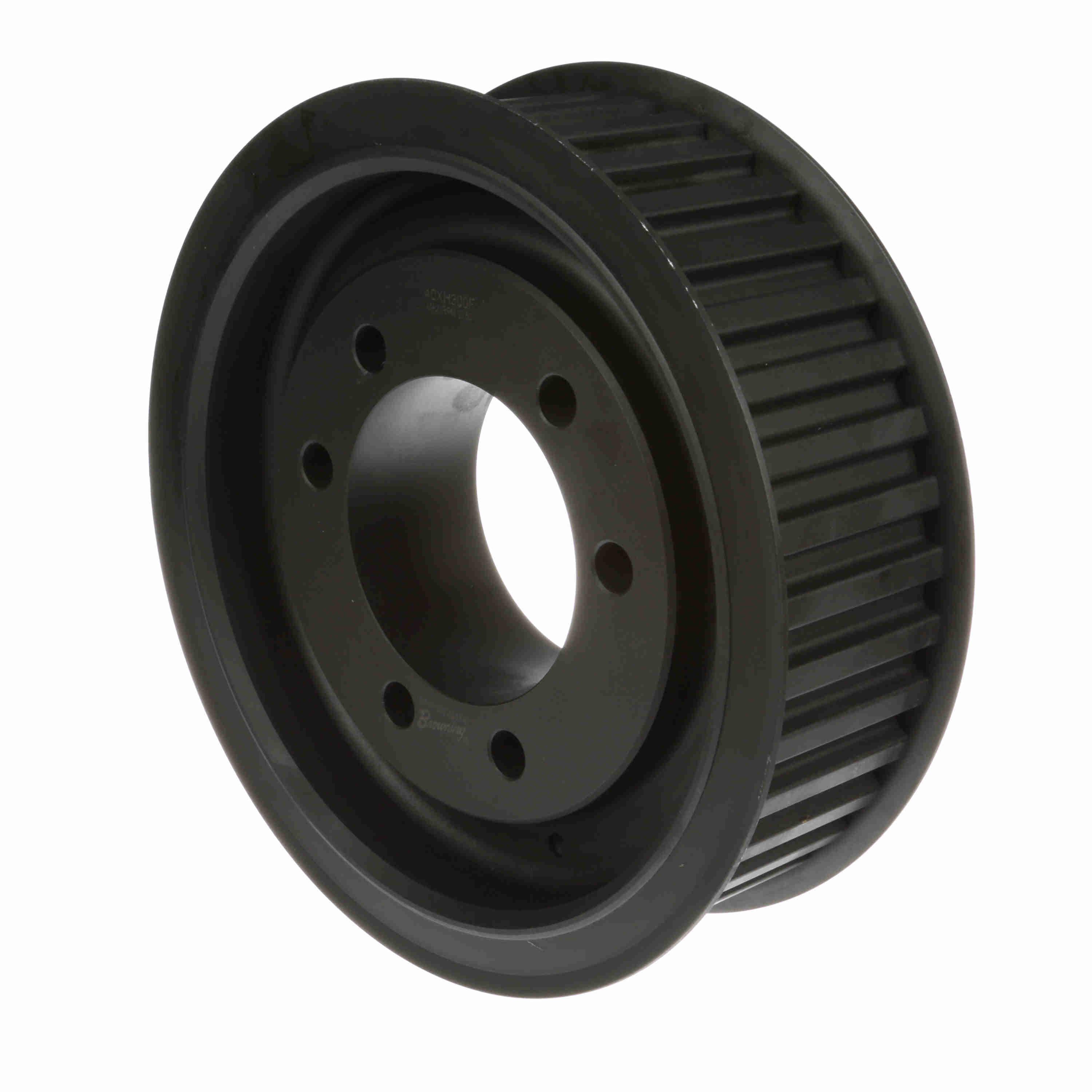

3514791 | 40 | 11.141" | 11.031" | 1" to 4" | Type DF Web | 11 11/16" | QD | - | €2,357.13 | |
 |

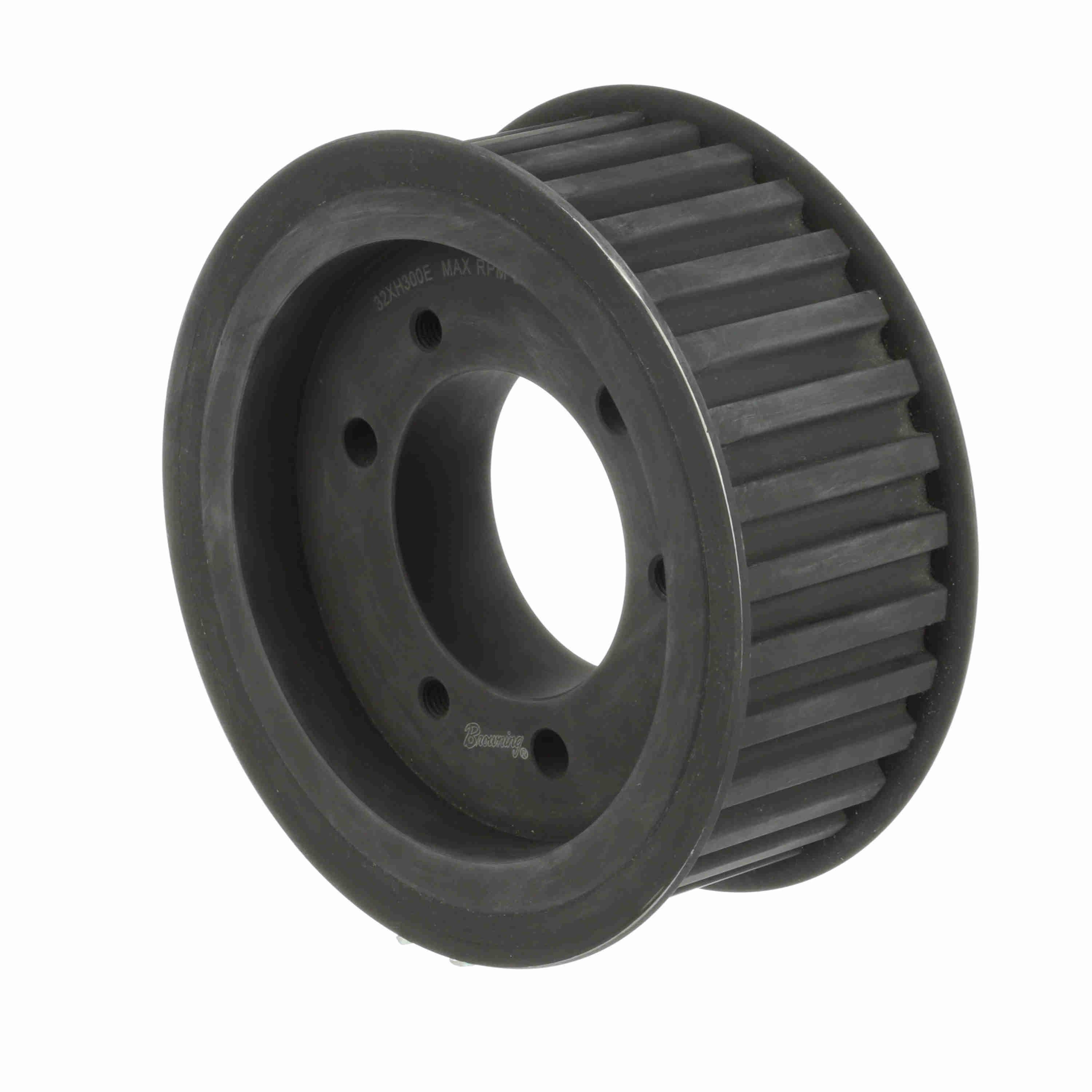

3514775 | 32 | 8.913" | 8.803" | 7/8" to 3 1/2" | Type DF Solid | 9 7/16" | QD | - | €1,318.62 | |
 |

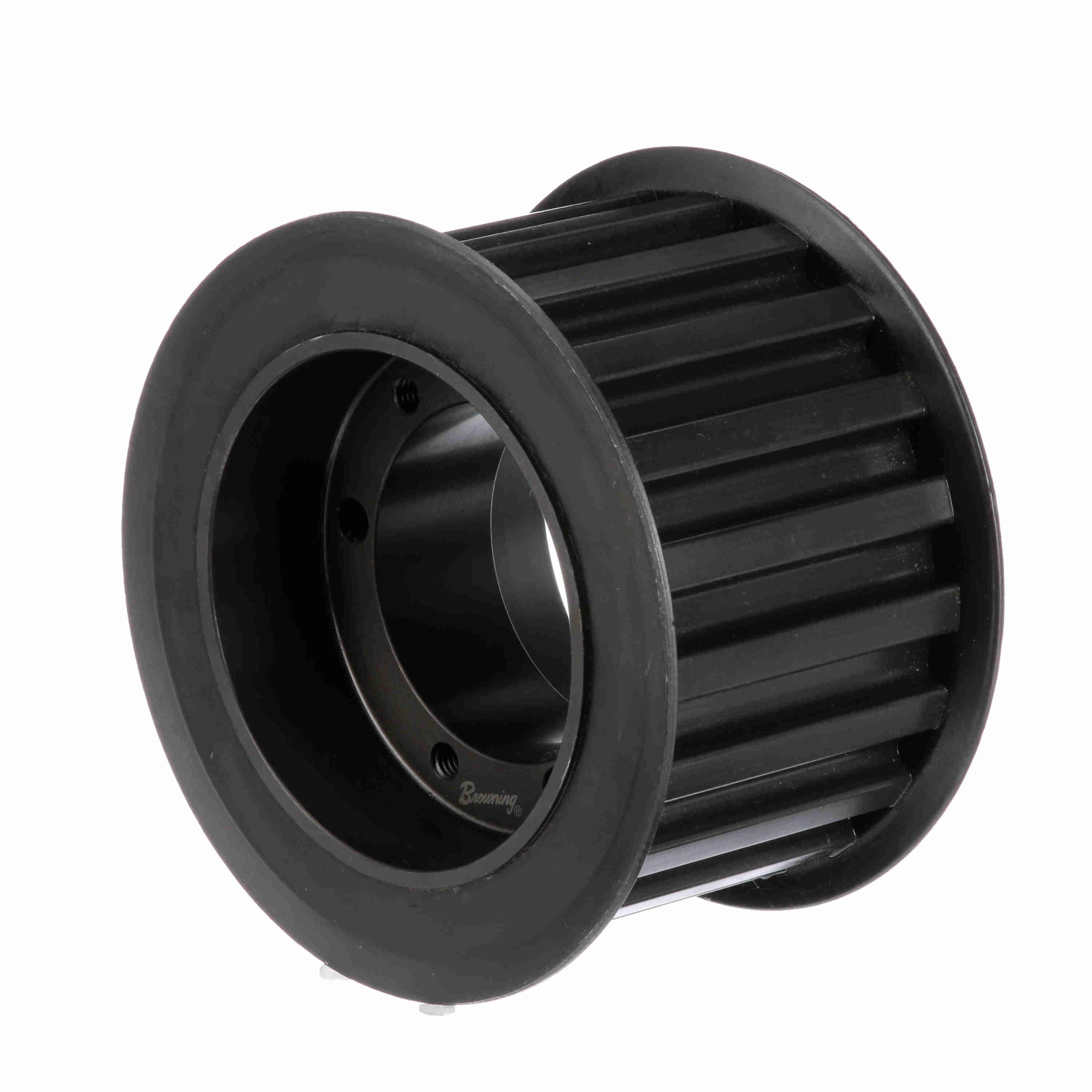

3514668 | 20 | 5.57" | 5.46" | 1/2" to 2 5/8" | Solid Type AF | 6 1/8" | QD | - | €1,276.40 |
