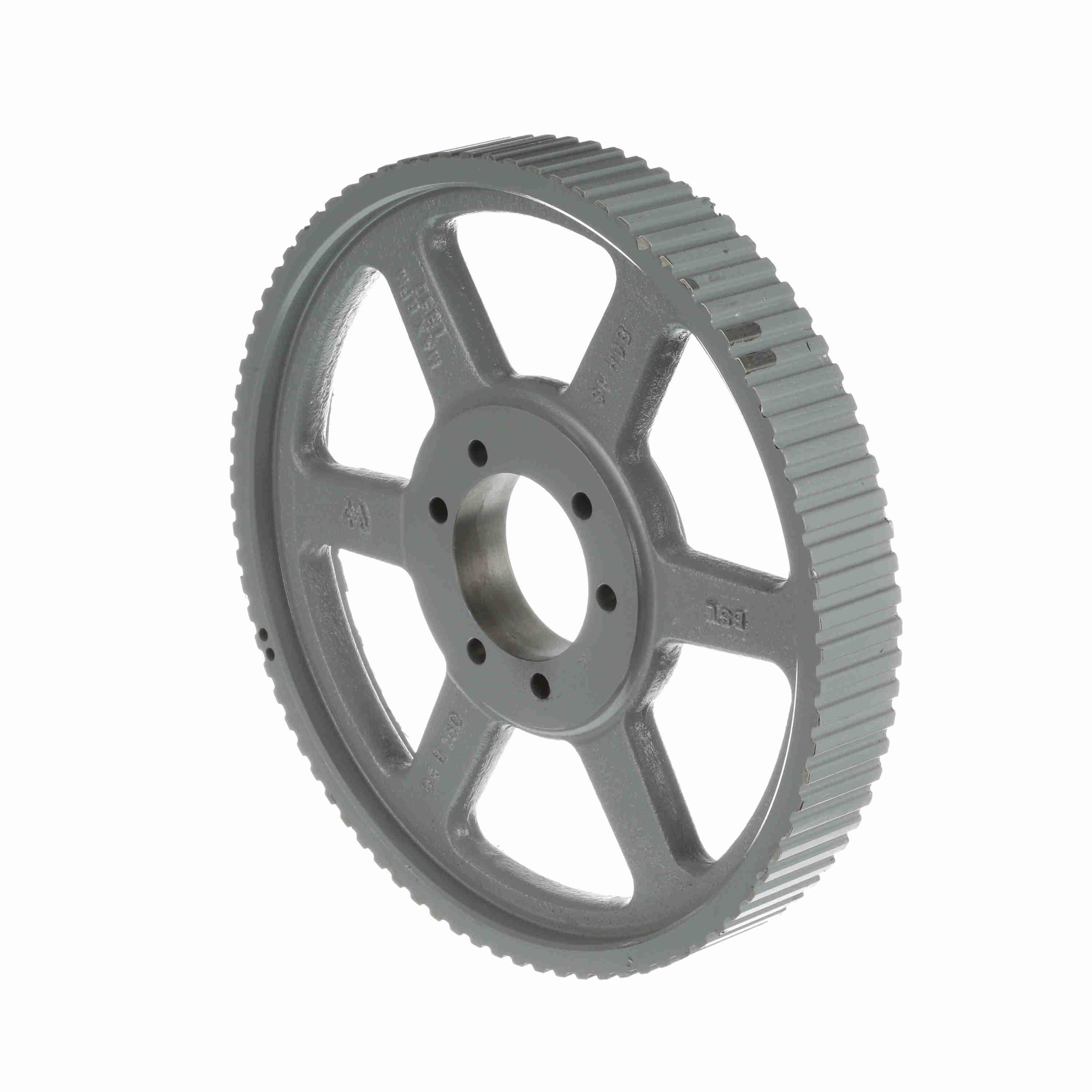

BROWNING 3514049 84H150SF Gearbelt Pulley, Bushed Bore, Steel, 13.315 in OD, 1/2 to 2-15/16 in Bore Dia, 13.369 in Pitch Dia, Type D Arm, SF Bushing Type, 1-13/16 in Face Width
Get it by Friday, Aug 14
€1,456.35 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Gearbelt Pulley |
| Belt Pitch | 1/2" |
| Belt Style | H |
| Bore Dia. | 1/2" to 2 15/16" |
| Bore Type | QD |
| Bushing Type | SF |
| Face Width | 1.813" |
| Flange | No |
| For Use With | 1-1/2 Inch Width Type H150 Belt |
| Keyway | Yes |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| No. Of Teeth | 84 |
| Outside Dia. | 13.315" |
| Pitch Dia. | 13.369" |
| Style | Arm Style |
| System Of Measurement | Imperial |
| Type | Type D Arm |
Shipping Info:
| Ship weight (kg) | 10.75 |
| Ship height (cm) | 33.83 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 33.83 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Face Width | Bore Dia. | Flange Dia. | No. Of Teeth | Bushing Type | Type | Flange | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3513934 | 3.82" | 1.813" | 1/2" to 2" | 4 1/16" | 24 | SD | Solid Type EF | Yes | €514.90 | |
 |

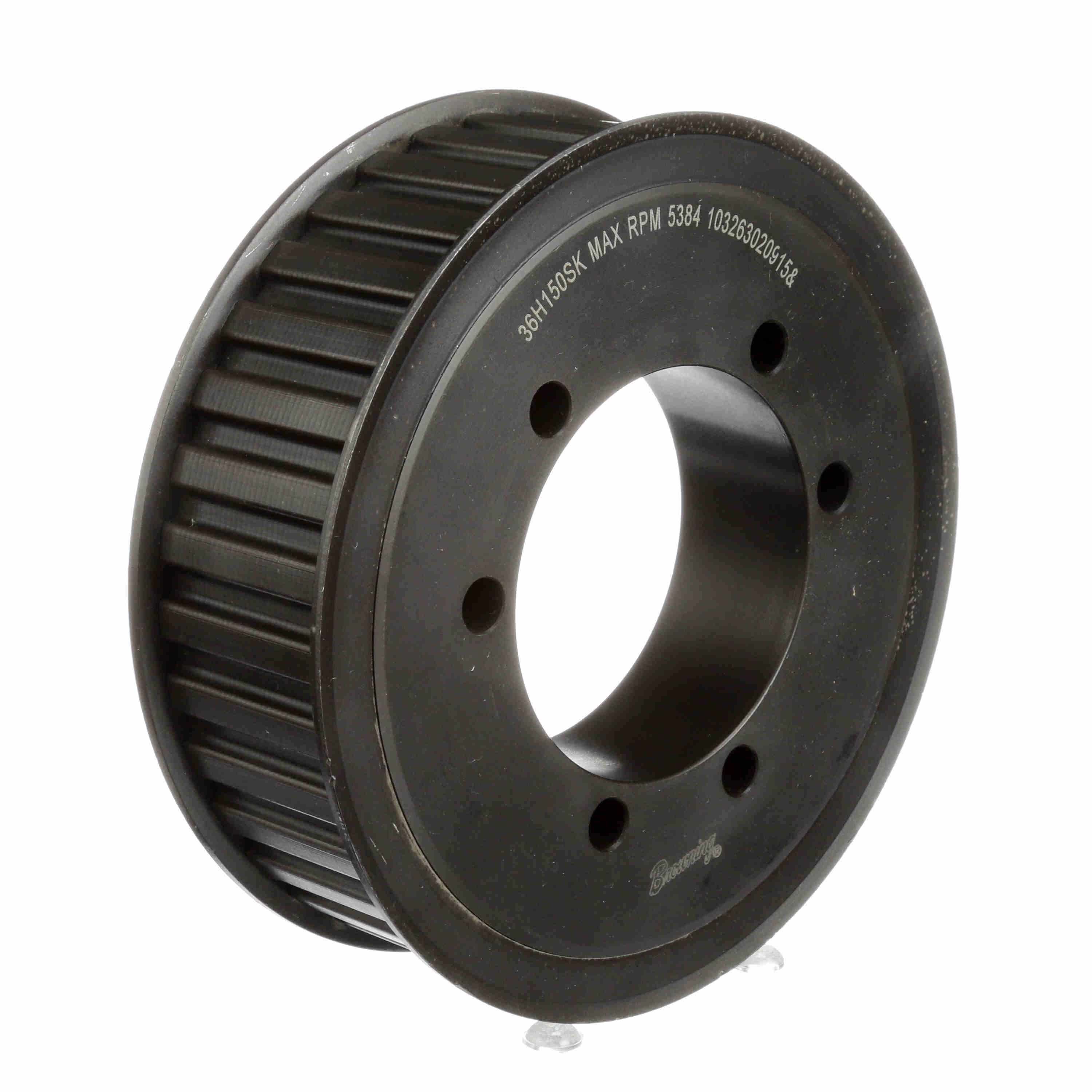

3513983 | 5.73" | 1.813" | 1/2" to 2 5/8" | 6" | 36 | SK | Type BF Solid | Yes | €802.84 | |
 |

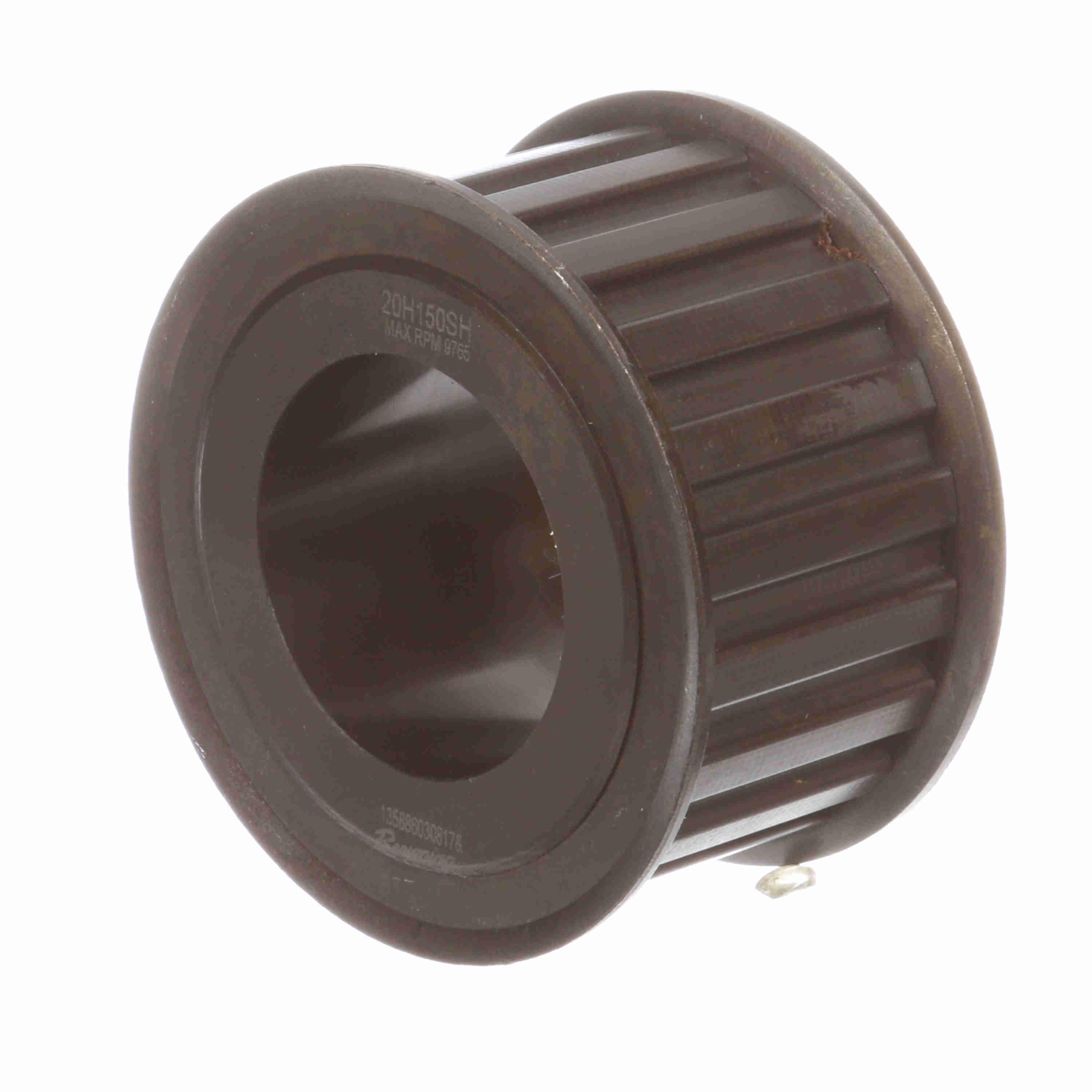

3513918 | 3.183" | 1.813" | 1/2" to 1 5/8" | 3 5/8" | 20 | SH | - | Yes | €437.91 | |
 |
3514015 | 7.639" | 1.813" | 1/2" to 2 5/8" | 7 7/8" | 48 | SK | Type BF Web | Yes | €909.84 | |
 |
3514064 | 19.099" | 1.813" | 1/2" to 2 15/16" | - | 120 | SF | Arm Type D | No | €2,529.98 | |
 |
3513975 | 5.093" | 1 13/16" | 1/2" to 2 5/8" | 5 5/16" | 32 | SK | Solid Type BF | - | €685.97 | |
 |
3513967 | 4.775" | 1.813" | 1/2" to 2" | 5" | 30 | SD | Solid Type BF | Yes | €666.70 |
