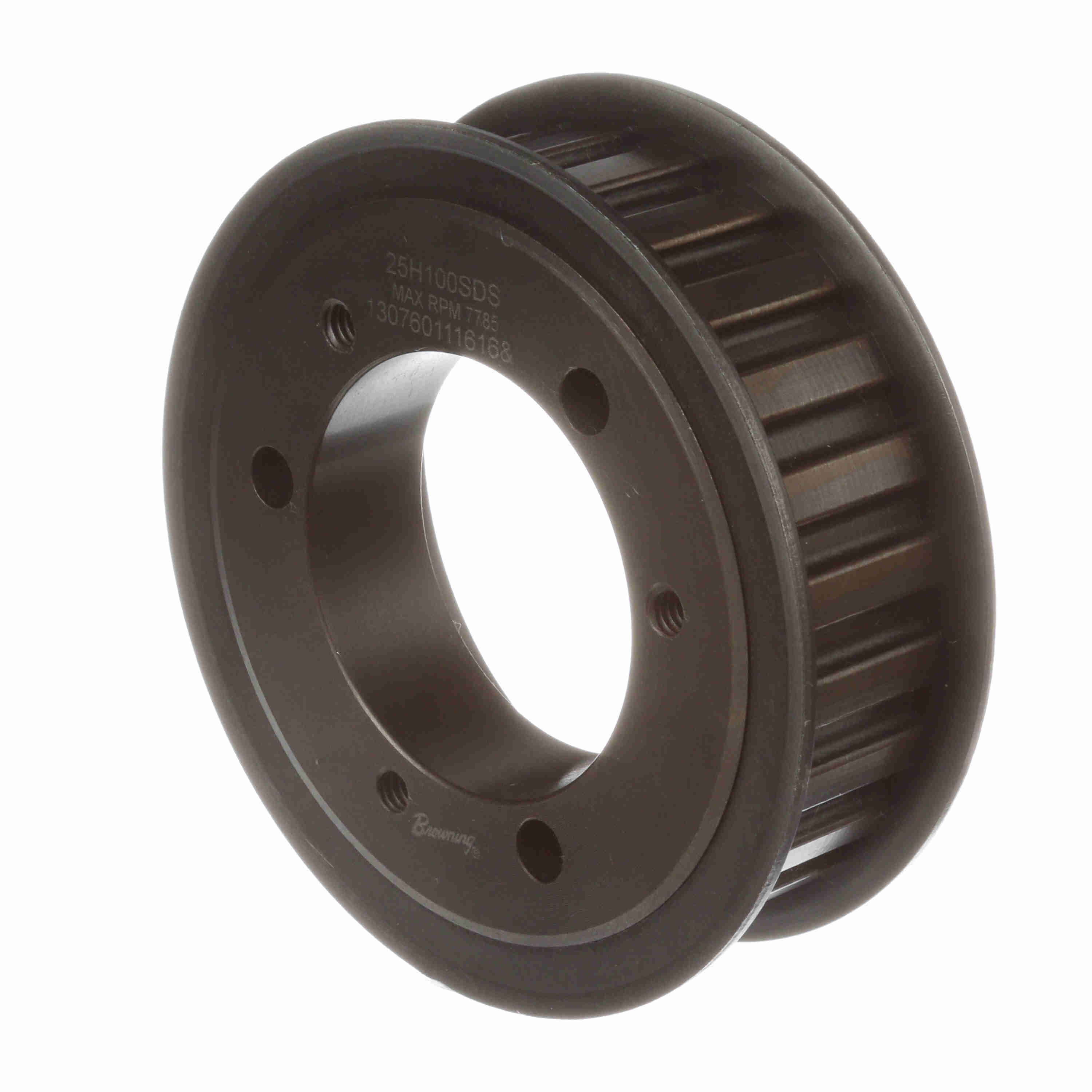

BROWNING 3513603 25H100SDS Gearbelt Pulley, Bushed Bore, Steel, 3.925 in OD, 1/2 to 2 in Bore Dia, 3.979 in Pitch Dia, Solid Type EF, SDS Bushing Type, 1-5/16 in Face Width
Item: AX4FPFModel: 3513603Cross Ref: 25H100SDS
7 In Stock
25
Ships within 2 days via
€412.12 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Gearbelt Pulley |
| Belt Pitch | 1/2" |
| Belt Style | H |
| Bore Dia. | 1/2" to 2" |
| Bore Type | QD |
| Bushing Type | SDS |
| Face Width | 1.313" |
| Flange | Yes |
| Flange Dia. | 4 3/16" |
| For Belt Width | 1" |
| For Use With | 1 Inch Width Type H100 Belt |
| Keyway | Yes |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| No. Of Teeth | 25 |
| Other Features | Heavy, QD Bushing, Type E1F |
| Outside Dia. | 3.925" |
| Overall Length | 2.04375" |
| Pitch Dia. | 3.979" |
| Product Datasheet | browning-1054840.pdf |
| Style | Solid Style |
| System Of Measurement | Imperial |
| Type | Solid Type EF |
Shipping Info:
| Ship weight (kg) | 1.1 |
| Ship height (cm) | 9.98 |
| Ship length (cm) | 5.18 |
| Ship width (cm) | 9.98 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Pitch Dia. | Outside Dia. | Bore Dia. | Type | Flange Dia. | Bore Type | Material | For Belt Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3513553 | 3.183" | 3.129" | 1/2" to 1 5/8" | Solid Type EF | 3 3/8" | QD | - | - | €298.42 | |
 |
3513678 | 5.093" | 5.039" | 1/2" to 2 5/8" | Type BF Solid | 5 5/16" | QD | - | 1" | €354.42 | |
 |

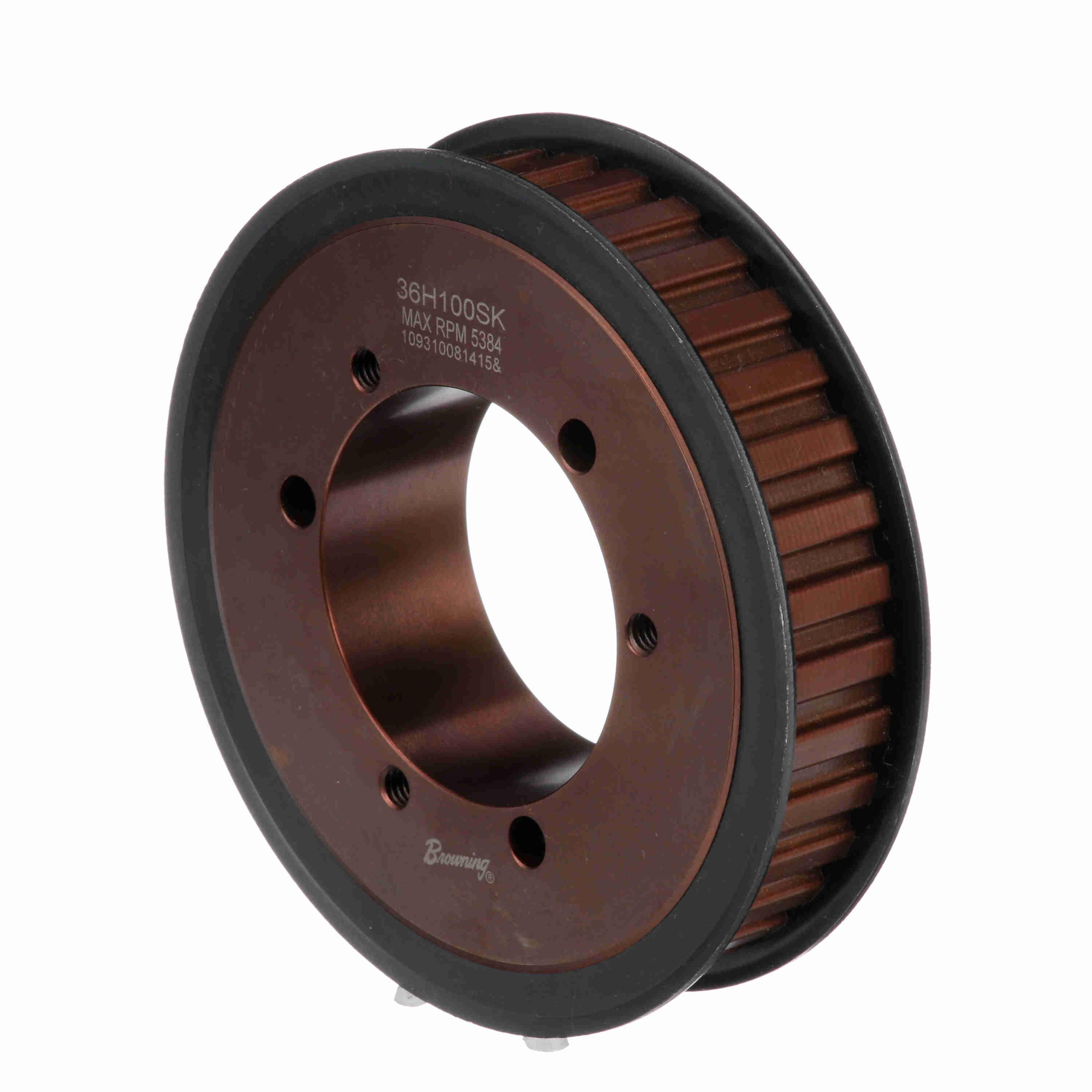

3513710 | 5.73" | 5.676" | 1/2" to 2 5/8" | Solid Type BF | 6" | QD | - | 1" | €606.52 | |
 |

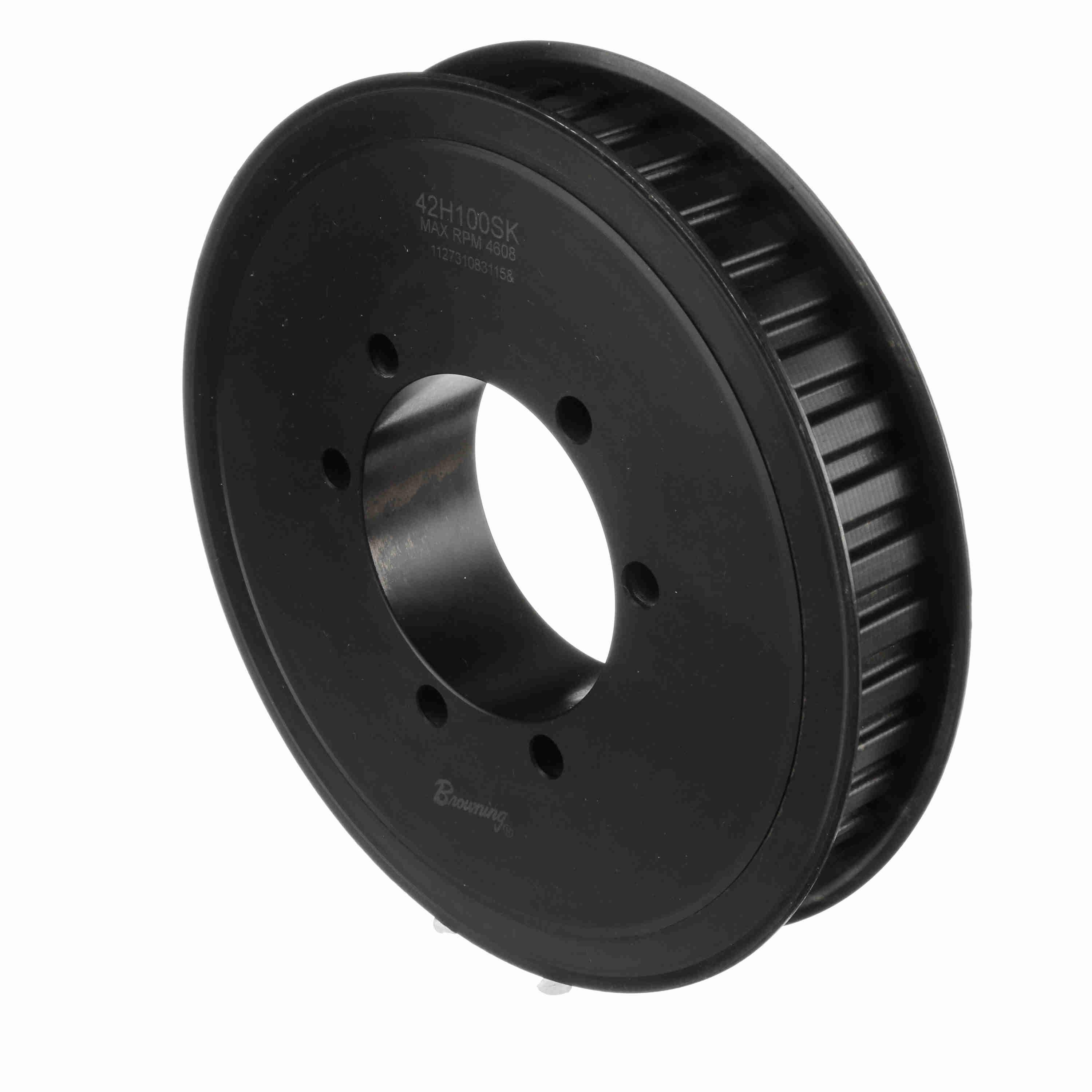

3513777 | 6.684" | 6.63" | 1/2" to 2 5/8" | Type BF Solid | 6 7/8" | QD | - | 1" | €545.32 | |
 |

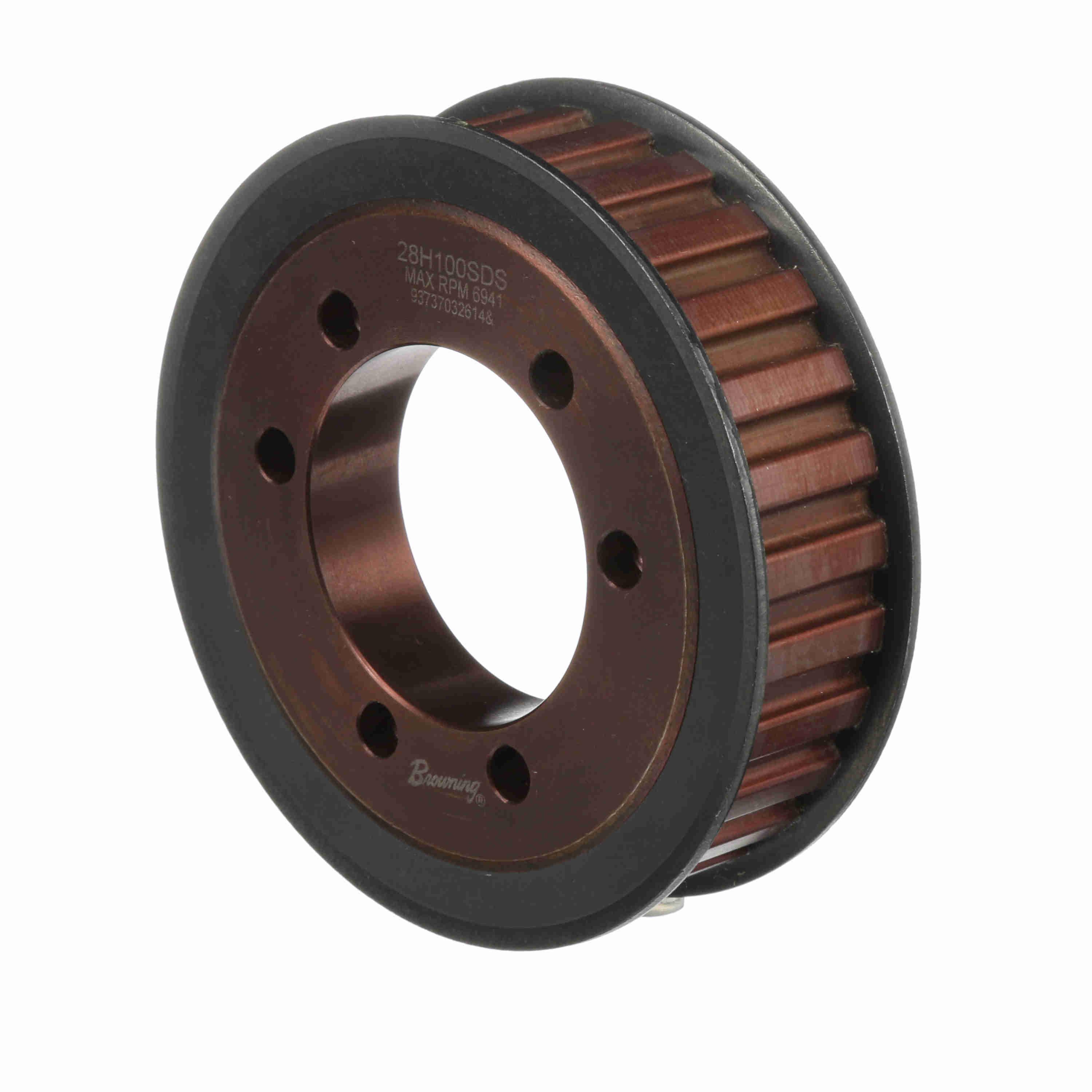

3513637 | 4.456" | 4.402" | 1/2" to 2" | Solid Type DF | 4 11/16" | QD | - | 1" | €686.52 | |
 |
3513694 | 5.411" | 5.357" | 1/2" to 2 5/8" | Type BF Solid | 5 5/8" | QD | - | 1" | €413.75 | |
 |
3513702 | 5.57" | 5.516" | 1/2" to 2 5/8" | Type BF Solid | 6" | QD | - | - | €421.72 |
