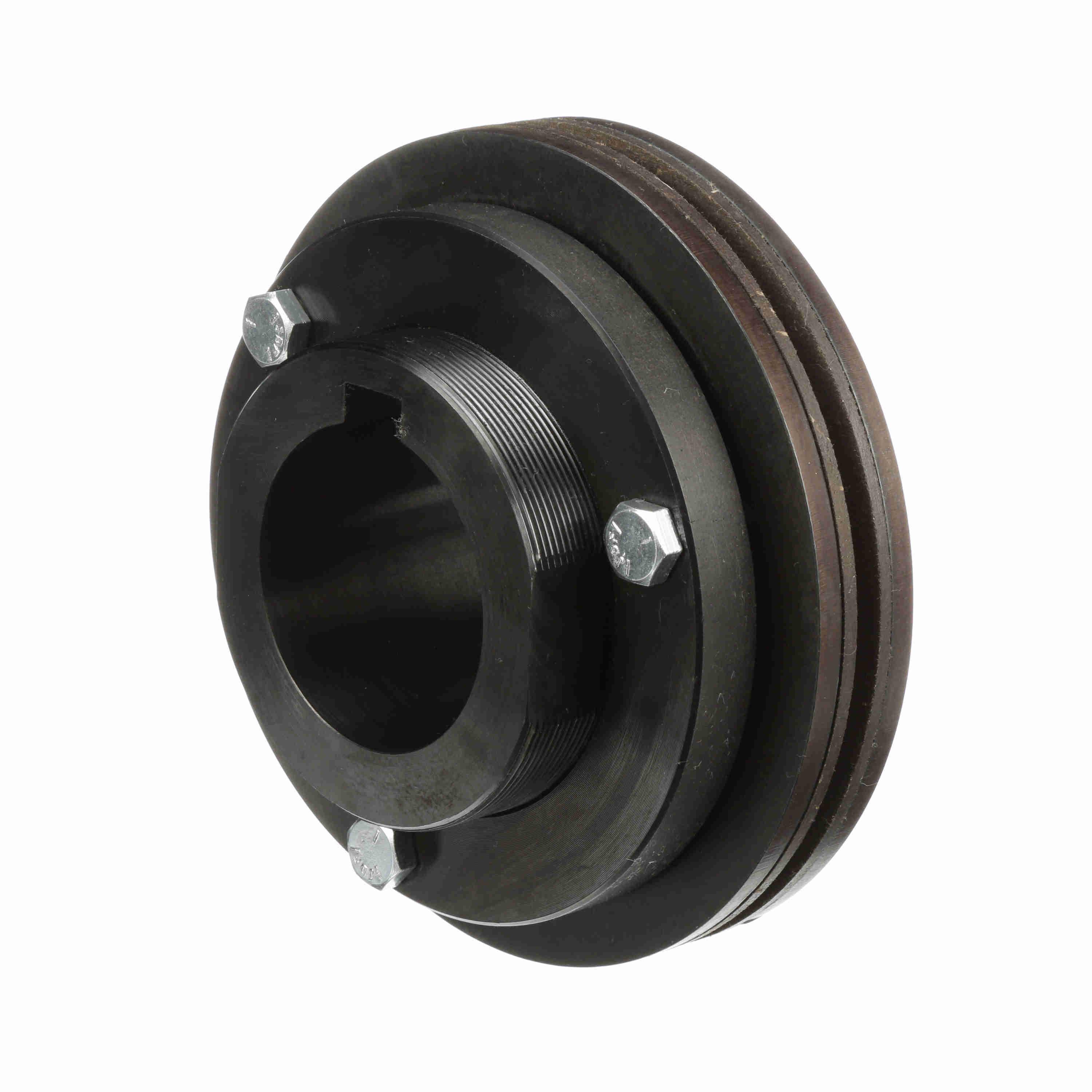

BROWNING 1296631 T65LX 2 1/2 Torque Limiter
Get it by Tuesday, Dec 23
€1,775.65 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Torque Limiter |
| Application | Primary Drives, Conveyors, Wrapping And Cartoning Equipment, Industrial, Agricultural |
| Bore Dia. | 2 1/2" |
| Bore Type | Straight Finished |
| Engagement | Automatic |
| For Use With | Sprocket |
| Manual Adjustment | Set Screw |
| Max. Speed | 1400 RPM |
| Max. Static Torque | 4800 lbs.-in. |
| Min. Sprocket Teeth | 32 (No. 60 Chain), 24 (No. 80 Chain) |
| Number Of Friction Discs | 1 |
| Number Of Springs | 1 |
| Other Features | Easy Set Adjustment, 2 Springs Can be Used |
| Outside Dia. | 6 1/2" |
| Overall Length | 3 5/8" |
| Reset Type | Automatic |
| Series | T65L Series |
| System Of Measurement | Imperial |
| Torque Rating | 4800 lbs.-in., 8800 lbs.-in. |
| Type | Automatic |
| Weight | 15.8 lbs. |
Shipping Info:
| Ship weight (kg) | 5.78 |
| Ship height (cm) | 16.51 |
| Ship length (cm) | 9.22 |
| Ship width (cm) | 16.51 |
Product Variants
| Product | Model | Type | Overall Length | For Use With | Price | |
|---|---|---|---|---|---|---|
 |

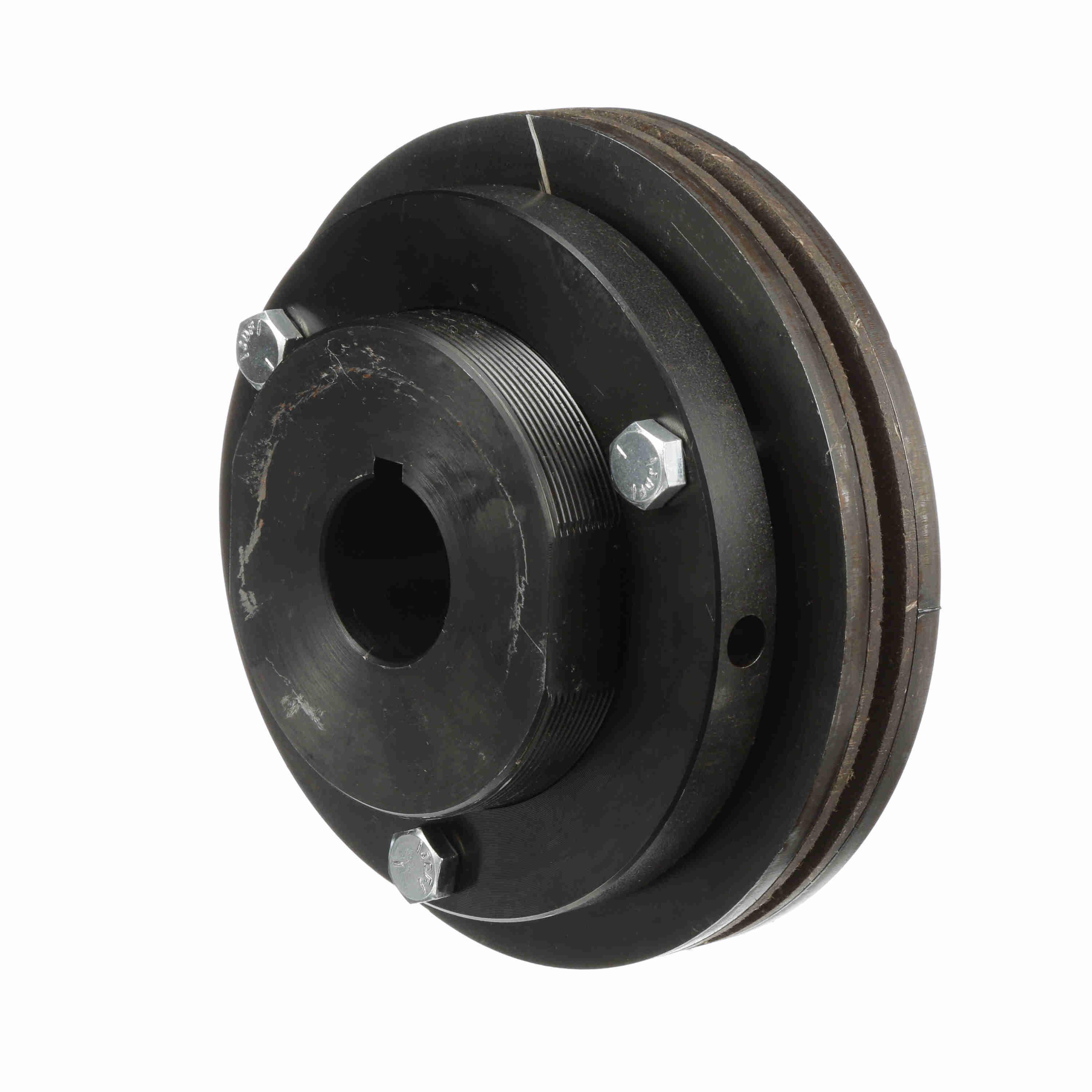

1296565 | Automatic | 3 5/8" | Sprocket | €1,688.15 | |
 |

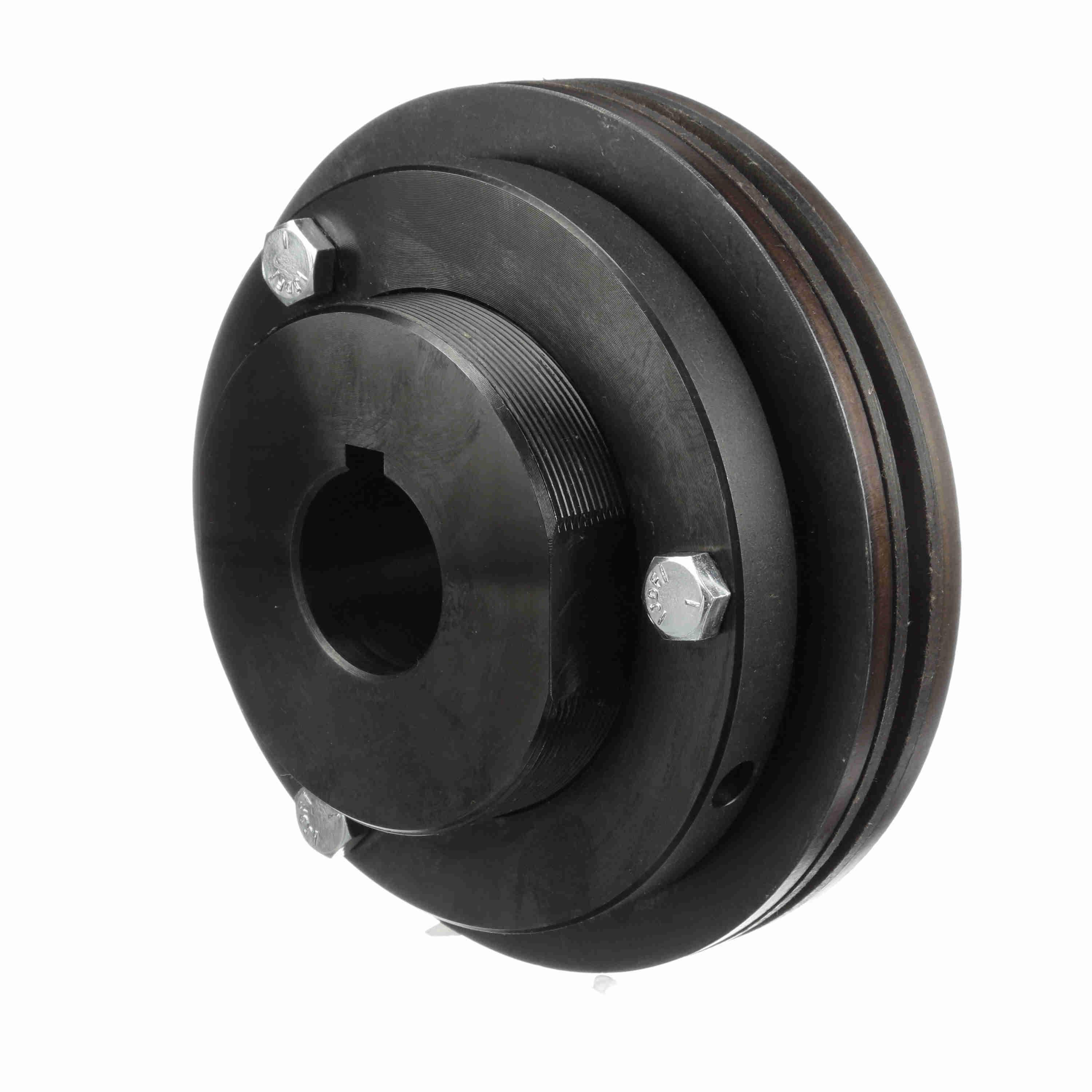

1296573 | Automatic | 3 5/8" | Sprocket | €1,750.03 | |
 |

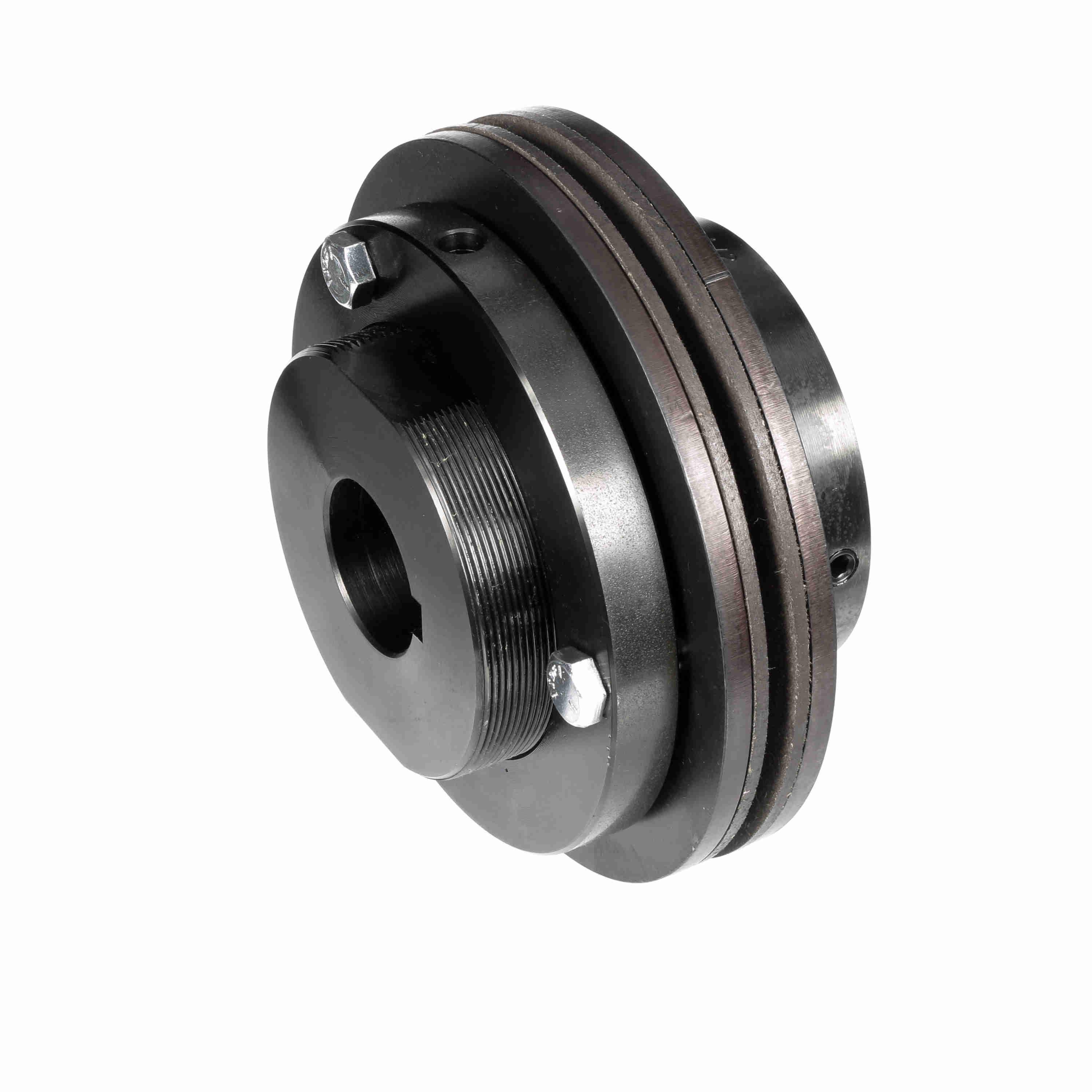

1296581 | Automatic | 3 5/8" | Sprocket | €1,750.03 | |
 |

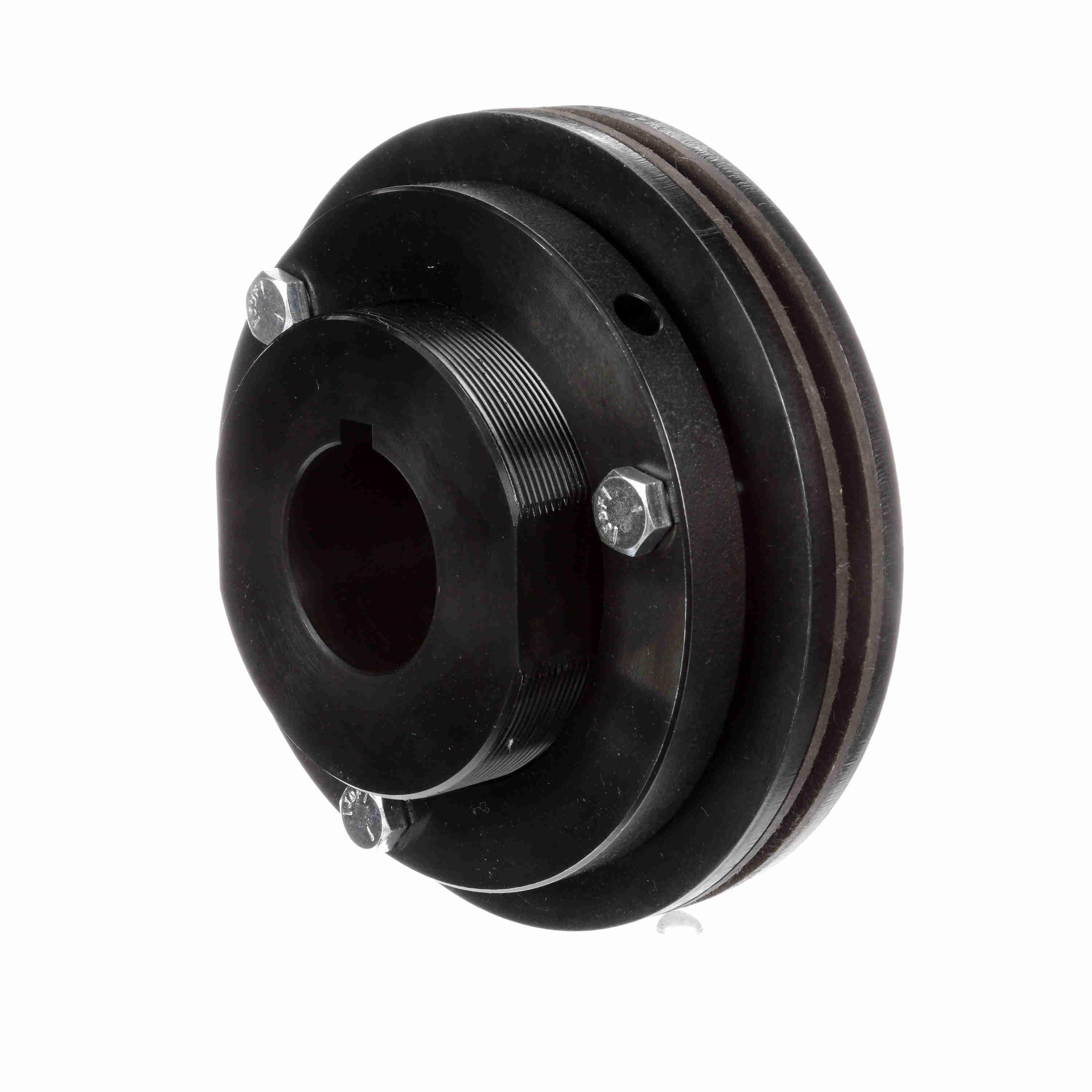

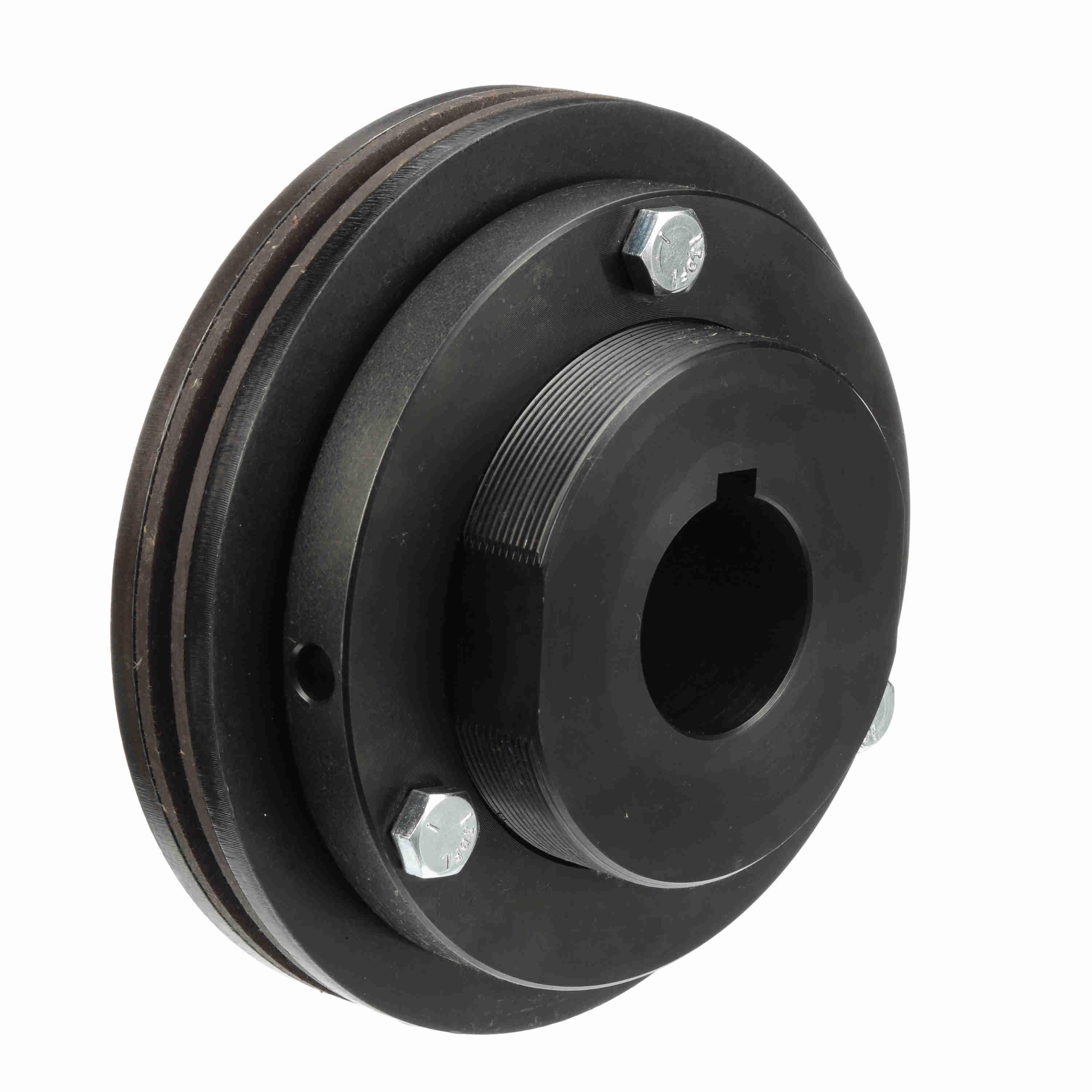

1296599 | Automatic | 3 5/8" | Sprocket | €1,775.65 | |
 |

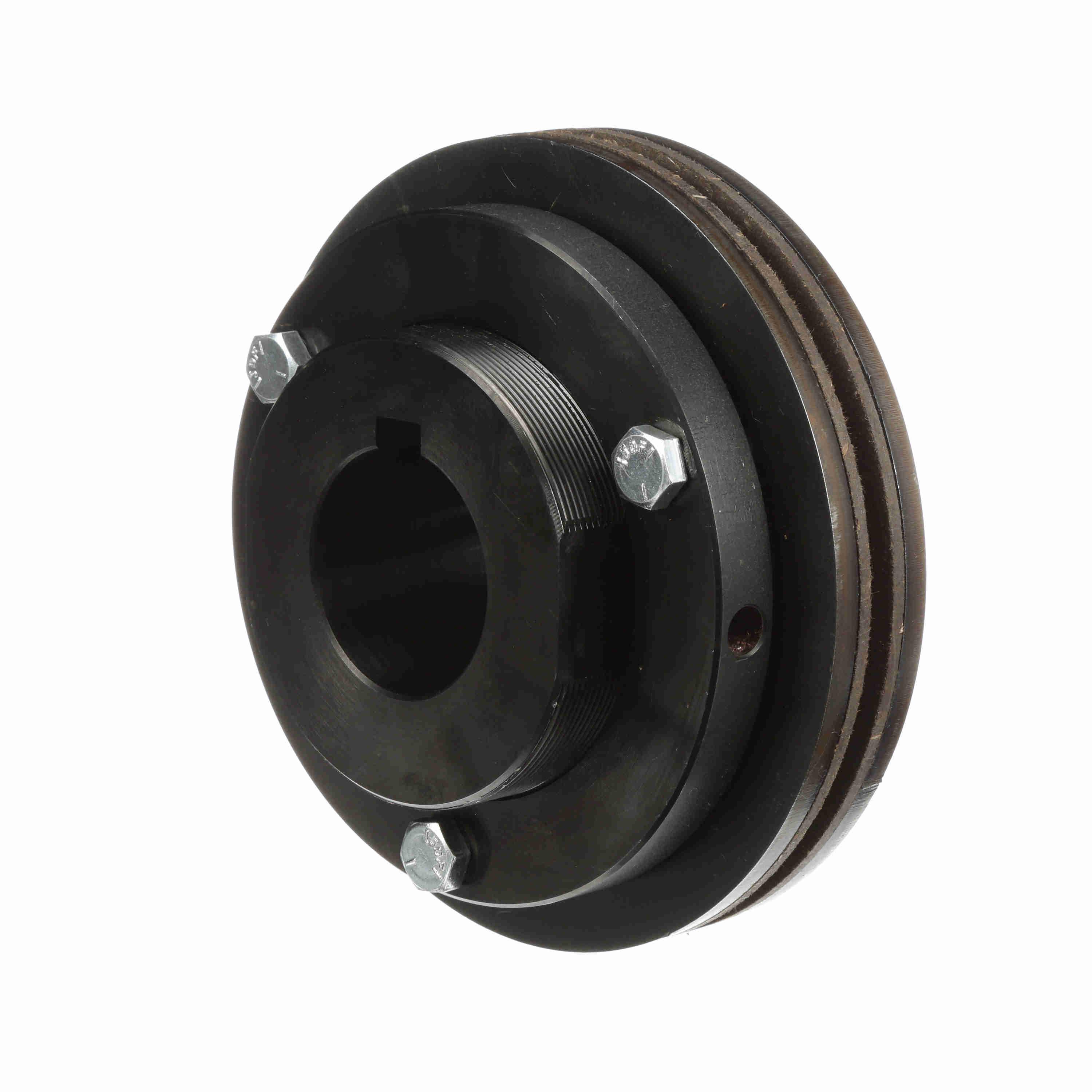

1296607 | Automatic | 3 5/8" | Sprocket | €1,492.46 | |
 |
1296615 | Automatic | 3 5/8" | Sprocket | €1,585.48 | |
 |

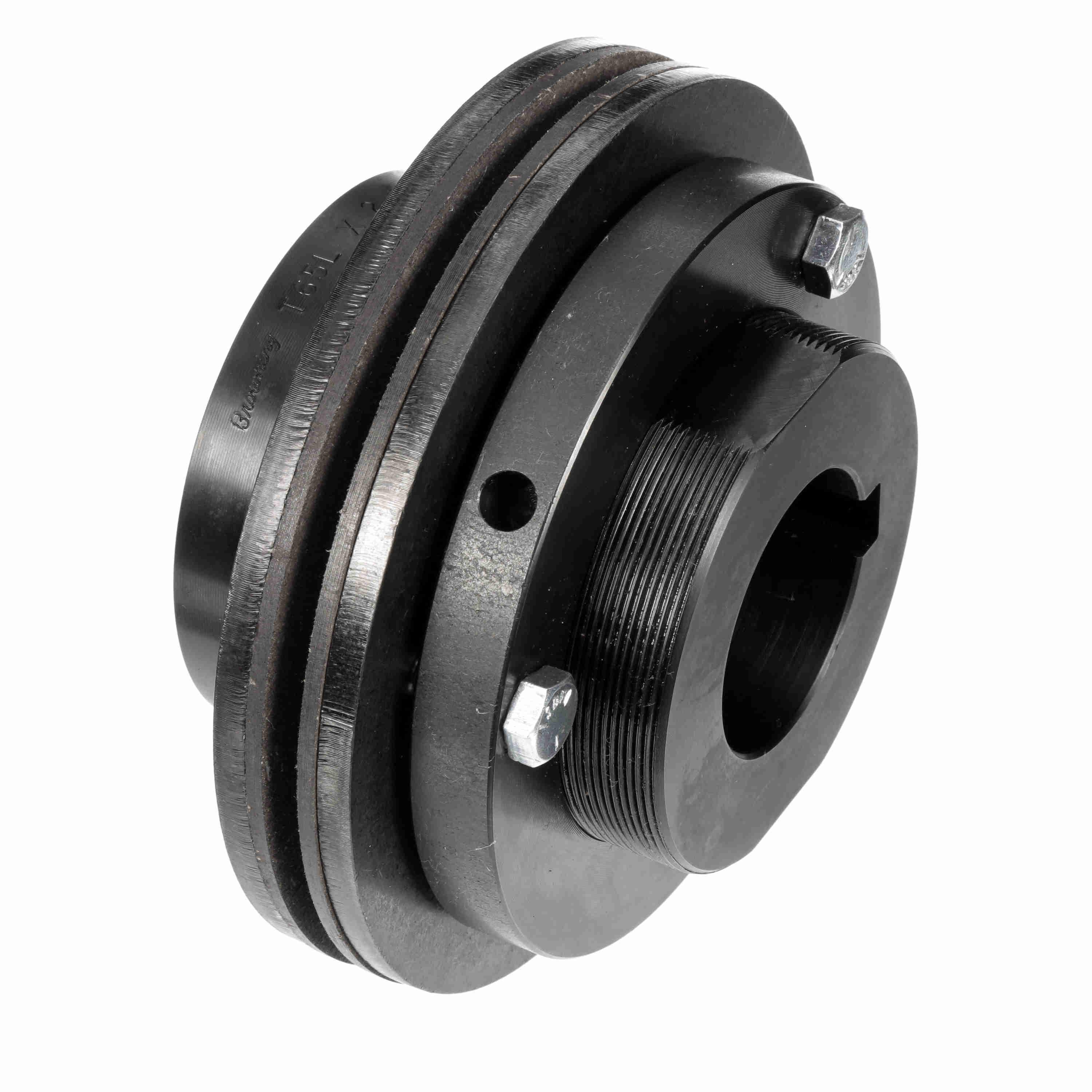

1296623 | Automatic | 3 5/8" | Sprocket | €1,297.80 |
