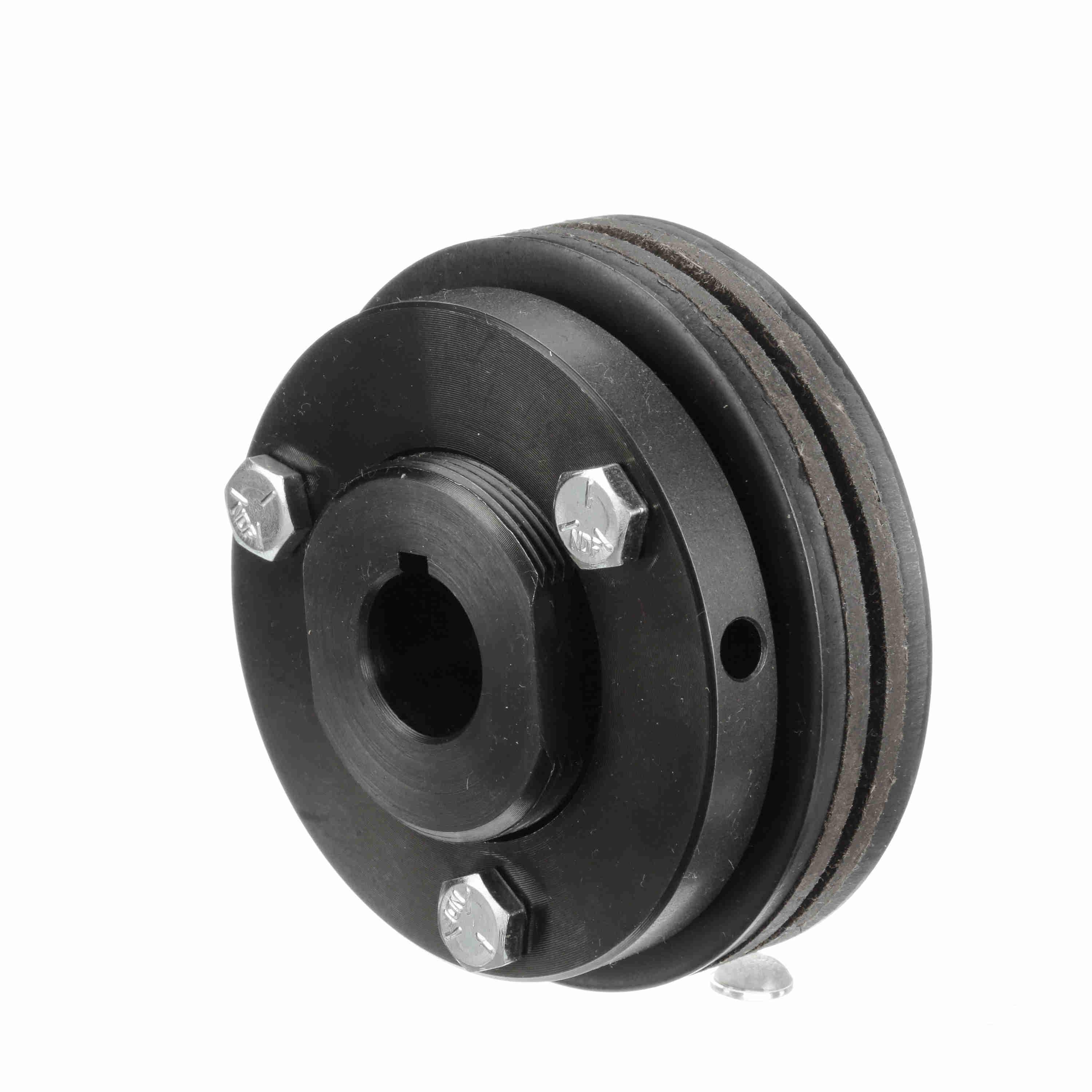

BROWNING 1296375 T35LX3/4 Torque Limiter, 3-1/2 in OD, 3/4 in Bore Dia, Automatic, 1800 in-lb 1 Spring/3000 in-lb 2 Spring Torque Rating
Item: AK7FFXModel: 1296375Cross Ref: T35LX3/4
7 In Stock
Ships within 2 days via
€853.09 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Torque Limiter |
| Application | Primary Drives, Conveyors, Wrapping And Cartoning Equipment, Industrial, Agricultural |
| Bore Dia. | 3/4" |
| Bore Type | Straight Finished |
| Engagement | Automatic |
| For Use With | Sprocket |
| Manual Adjustment | Set Screw |
| Max. Speed | 1000 RPM |
| Max. Static Torque | 1800 lbs.-in. |
| Min. Sprocket Teeth | 26 (No. 40 Chain), 26 (No. 41 Chain), 21 (No. 50 Chain) |
| No. Of Friction Discs | 1 |
| No. Of Springs | 1 |
| Outside Dia. | 3 1/2" |
| Overall Length | 2 1/4" |
| Product Datasheet | browning-40t25l20.pdf |
| Reset Type | Automatic |
| Series | T35L Series |
| System Of Measurement | Imperial |
| Torque | 1800 lbs.-in., 3000 lbs.-in. |
| Type | Automatic |
Shipping Info:
| Ship weight (kg) | 1.35 |
| Ship height (cm) | 7.11 |
| Ship length (cm) | 11.18 |
| Ship width (cm) | 11.43 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Bore Dia. | For Use With | Torque | Type | Min. Sprocket Teeth | Max. Static Torque | No. Of Friction Discs | No. Of Springs | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

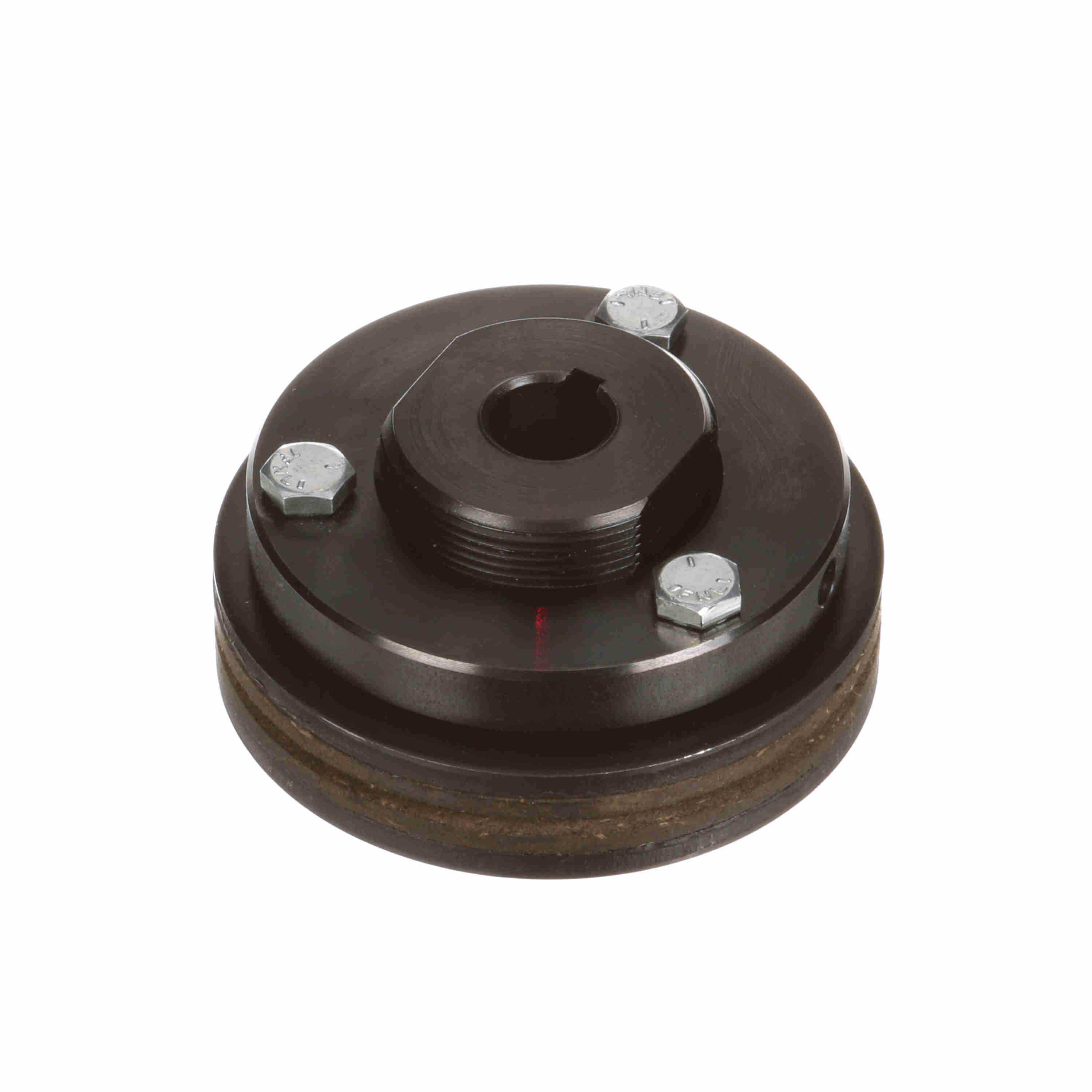

1296367 | 5/8" | Sprocket | 1800 lbs.-in., 3000 lbs.-in. | Automatic | 26 (No. 40 Chain), 26 (No. 41 Chain), 21 (No. 50 Chain) | 1800 lbs.-in. | 1 | 1 | €1,144.36 | |
 |

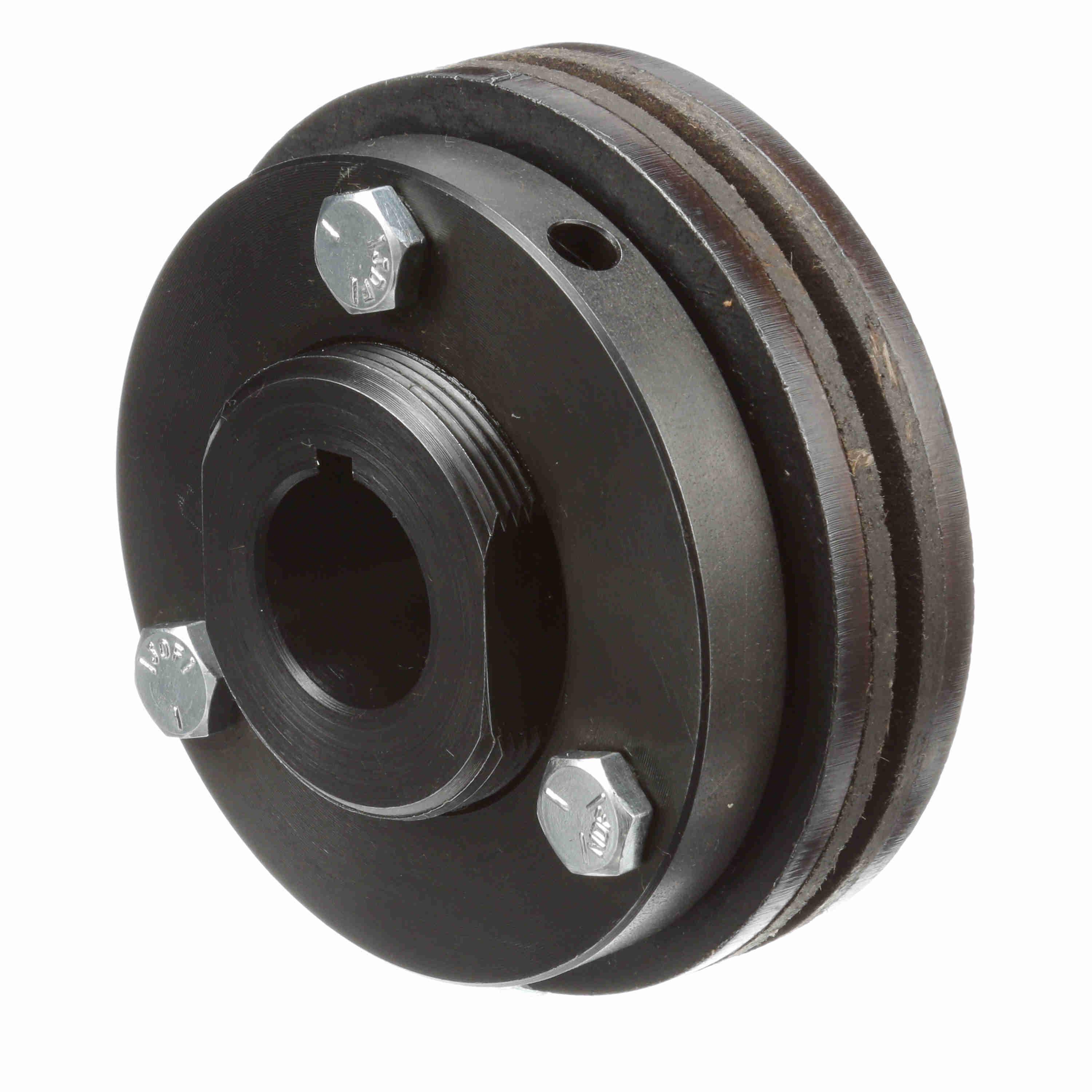

1296383 | 7/8" | Mechanical, Spring | 1800 lbs.-in., 3000 lbs.-in. | Automatic | 26 (No. 40 Chain), 26 (No. 41 Chain), 21 (No. 50 Chain) | 1800 lbs.-in. | 1 | 1 | €865.60 | |
 |

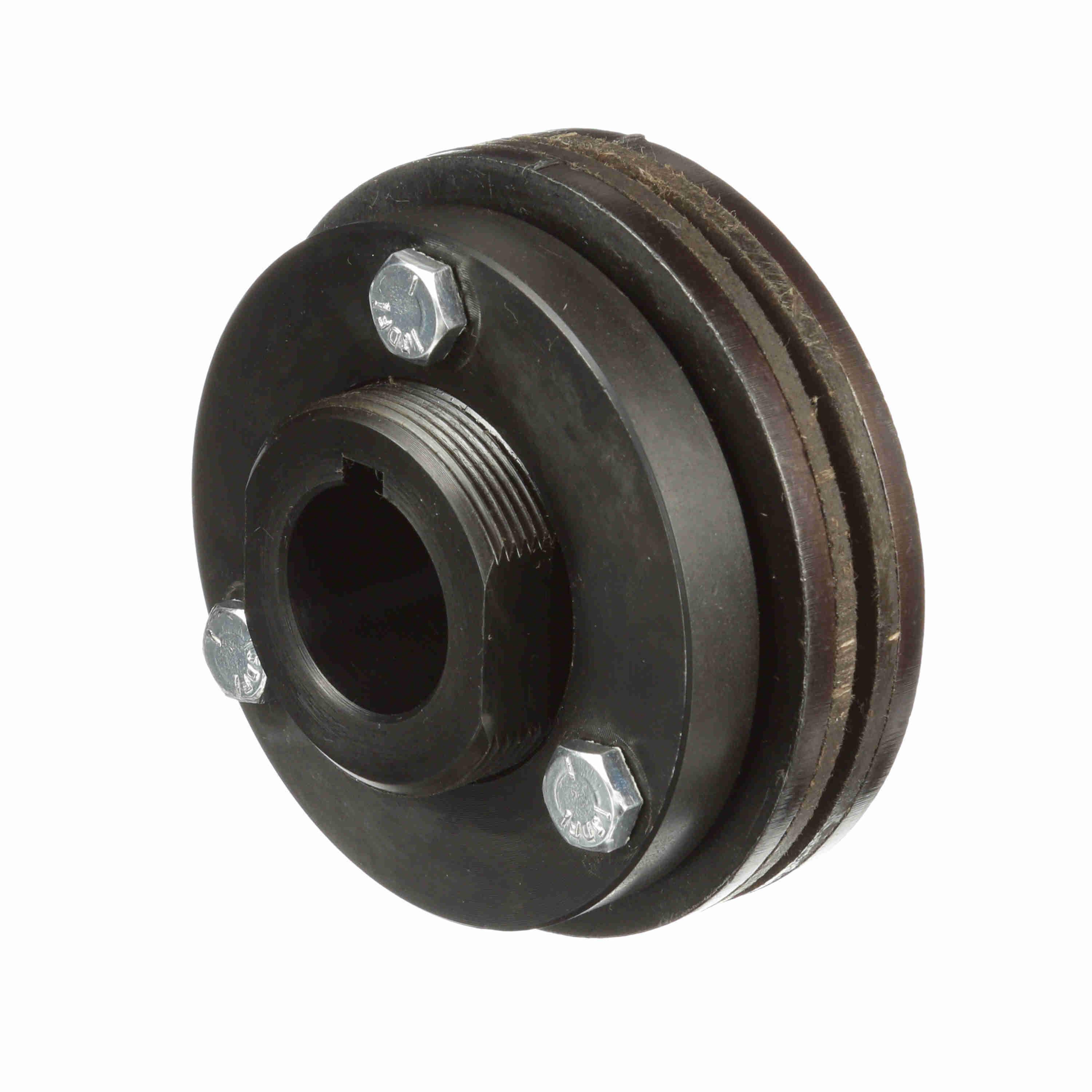

1296391 | 1" | Sprocket | 1800 lbs.-in., 3000 lbs.-in. | Automatic | 26 (No. 40 Chain), 26 (No. 41 Chain), 21 (No. 50 Chain) | 1800 lbs.-in. | 1 | 1 | €626.87 | |
 |

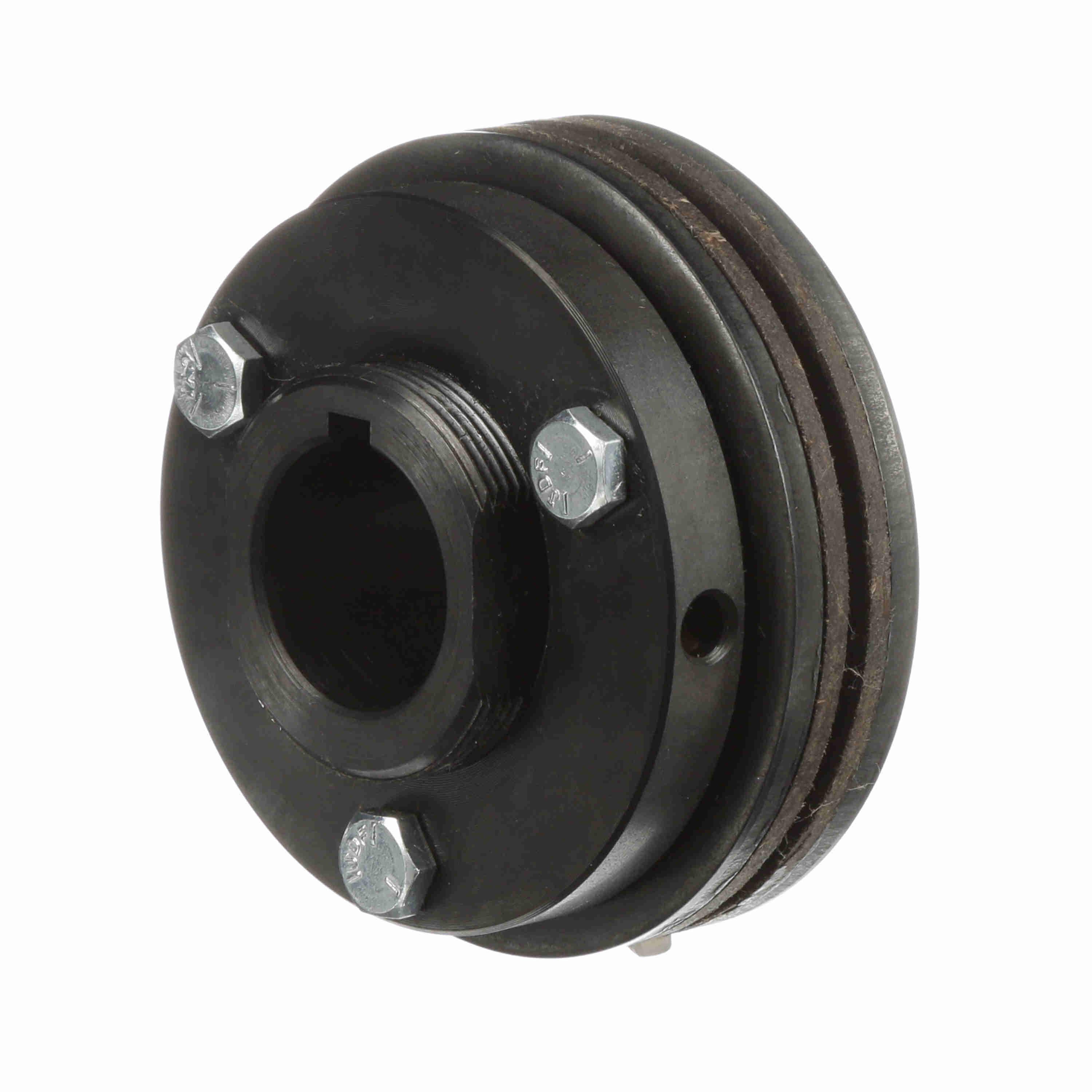

1296409 | 1 1/8" | Sprocket | 1800 lbs.-in., 3000 lbs.-in. | Automatic | 26 (No. 40 Chain), 26 (No. 41 Chain), 21 (No. 50 Chain) | 1800 lbs.-in. | 1 | 1 | €626.87 |
