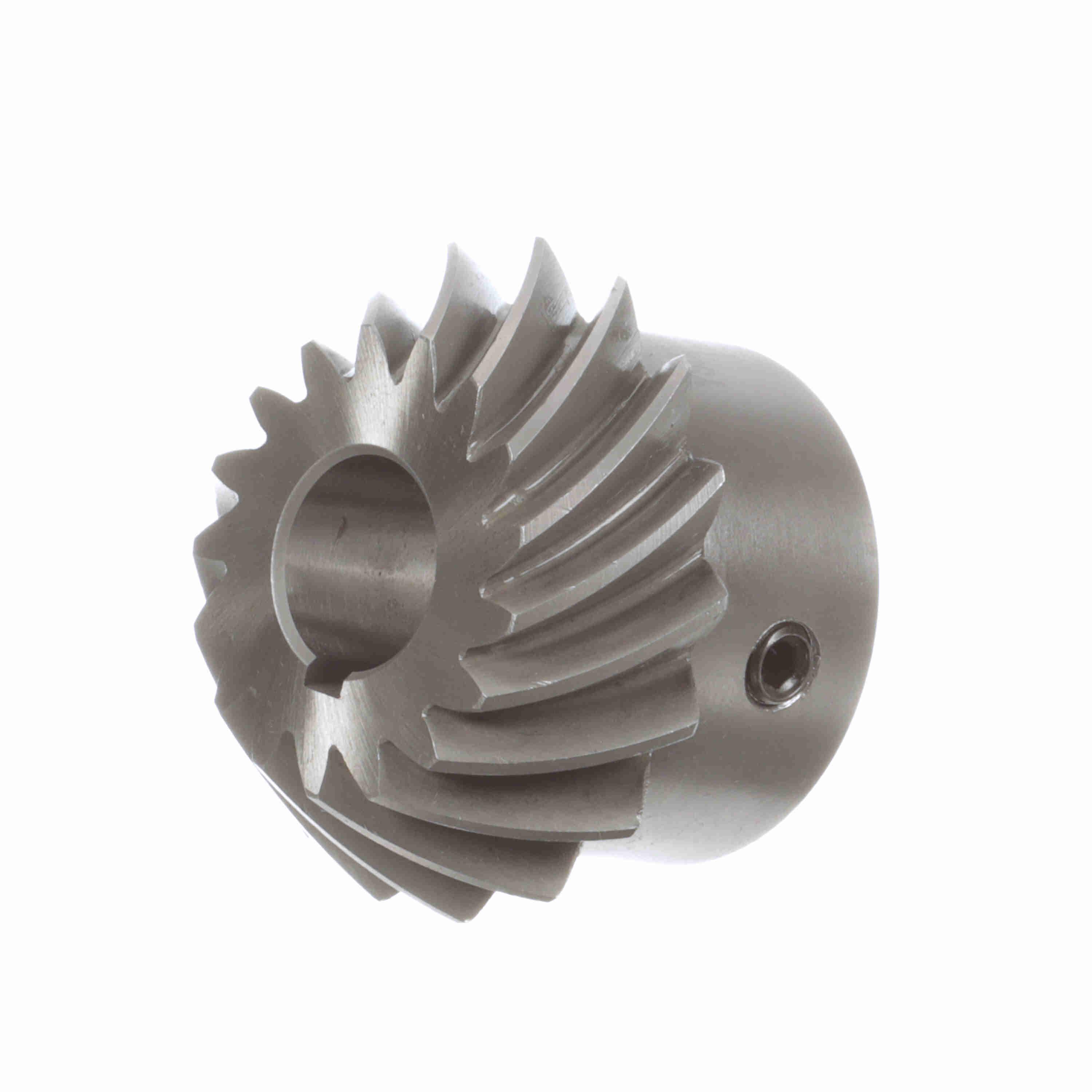

BROWNING 1228758 YSBS8F17LH-20X3/4 Bevel Gear, Bore Spiral, 20 Pressure Angle, 8 Pitch, Steel
Item: AK3DDAModel: 1228758Cross Ref: YSBS8F17LH-20X3/4
7 In Stock
Ships within 2 days via
€947.05 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bevel Gear |
| Bore Dia. | 3/4" |
| Bushing Size | No Bushing |
| Diametral Pitch | 8 DP |
| Direction Of Rotation | Left Hand |
| Face Width | 0.71" |
| Gear Ratio | 2:1 |
| Hardened Teeth | Yes |
| Hub Dia. | 1 7/8" |
| Hub Projection | 15/16" |
| Material | Steel |
| Minimum Plain Bore | No |
| Mounting Method | Finished Bore |
| Number Of Teeth | 17 |
| Other Features | Hardened Overall, Bevel Pinion With Keyway And Set Screw |
| Overall Length | 1 11/16" |
| Pitch Dia. | 2 1/8" |
| Pressure Angle | 20° |
| Spiral Angle | 35° |
| Style | Spiral Bevel Gear |
| System Of Measurement | Imperial |
| Tooth Profile | Spiral Tooth |
| Type | Finished Bore |
| Weight | 0.508 Kg |
Shipping Info:
| Ship weight (kg) | 0.5 |
| Ship height (cm) | 4.93 |
| Ship length (cm) | 6.5 |
| Ship width (cm) | 6.5 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Bore Dia. | Pitch Dia. | Hub Dia. | Hub Projection | Overall Length | Diametral Pitch | Pressure Angle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

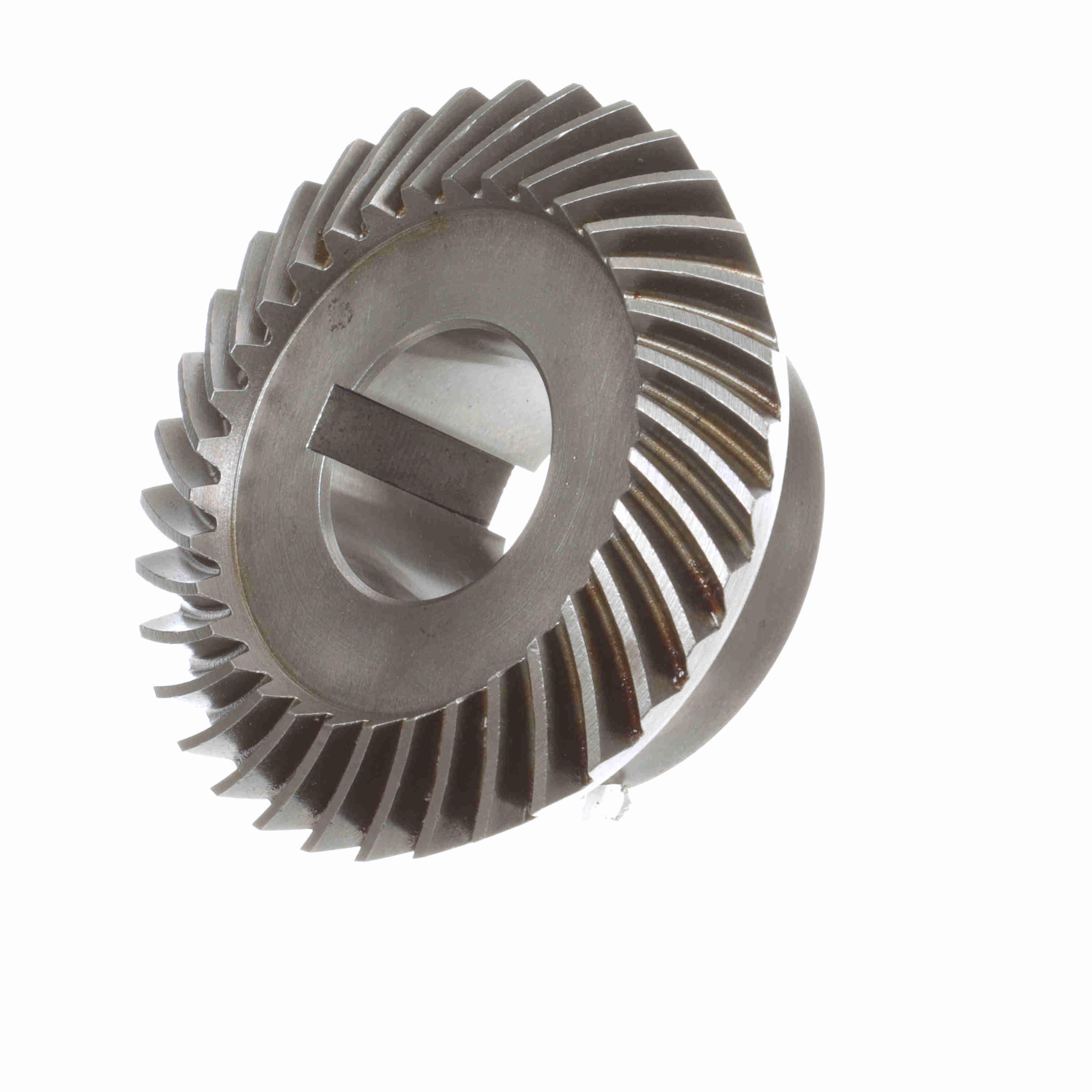

1228766 | 34 | 1 1/2" | 4 1/4" | 2 7/8" | 1 1/16" | 1 9/16" | 8 DP | 20° | €1,701.96 |
