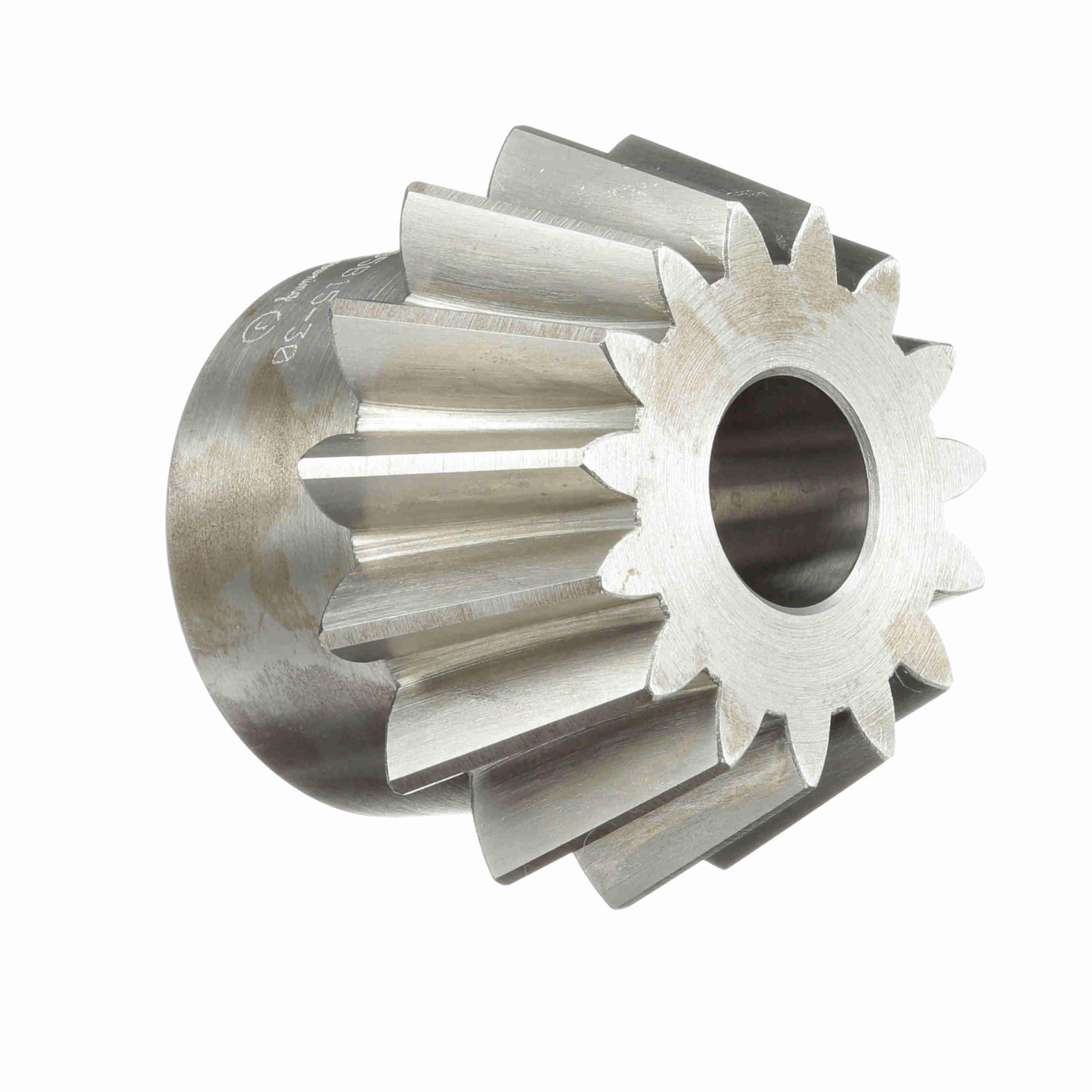

BROWNING 1228493 YSB5B15-40 Bevel Gear, Plain Bore, 20 Pressure Angle, 5 Pitch, Steel
Item: AK2ZKRModel: 1228493Cross Ref: YSB5B15-40
7 In Stock
Ships within 2 days via
€1,718.46 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bevel Gear |
| Bushing Size | No Bushing |
| Diametral Pitch | 5 DP |
| Face Width | 1.7" |
| Gear Ratio | 4:1 |
| Hardened Teeth | No |
| Hub Dia. | 3" |
| Hub Projection | 1 7/16" |
| Material | Steel |
| Max. Bore | 1.563" |
| Min. Bore Dia. | 1" |
| Minimum Plain Bore | Yes |
| Mounting Method | Rough Bore |
| Number Of Teeth | 15 |
| Other Features | Unhardened Overall, Bevel Pinion, Coniflex Tooth Form |
| Overall Length | 3 13/64" |
| Pitch Dia. | 3" |
| Pressure Angle | 20° |
| Style | Bevel Gear |
| System Of Measurement | Imperial |
| Tooth Profile | Straight Tooth |
| Type | MPB Straight Tooth |
| Weight | 2.341 Kg |
Shipping Info:
| Ship weight (kg) | 2.32 |
| Ship height (cm) | 8.1 |
| Ship length (cm) | 9.86 |
| Ship width (cm) | 9.86 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Face Width | Hub Dia. | Hub Projection | Overall Length | Gear Ratio | Diametral Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
1228451 | 15 | 3" | 1 1/25" | 2 5/8" | 1 9/32" | 2 25/64" | 2:1 | 5 DP | €1,465.03 | |
 |

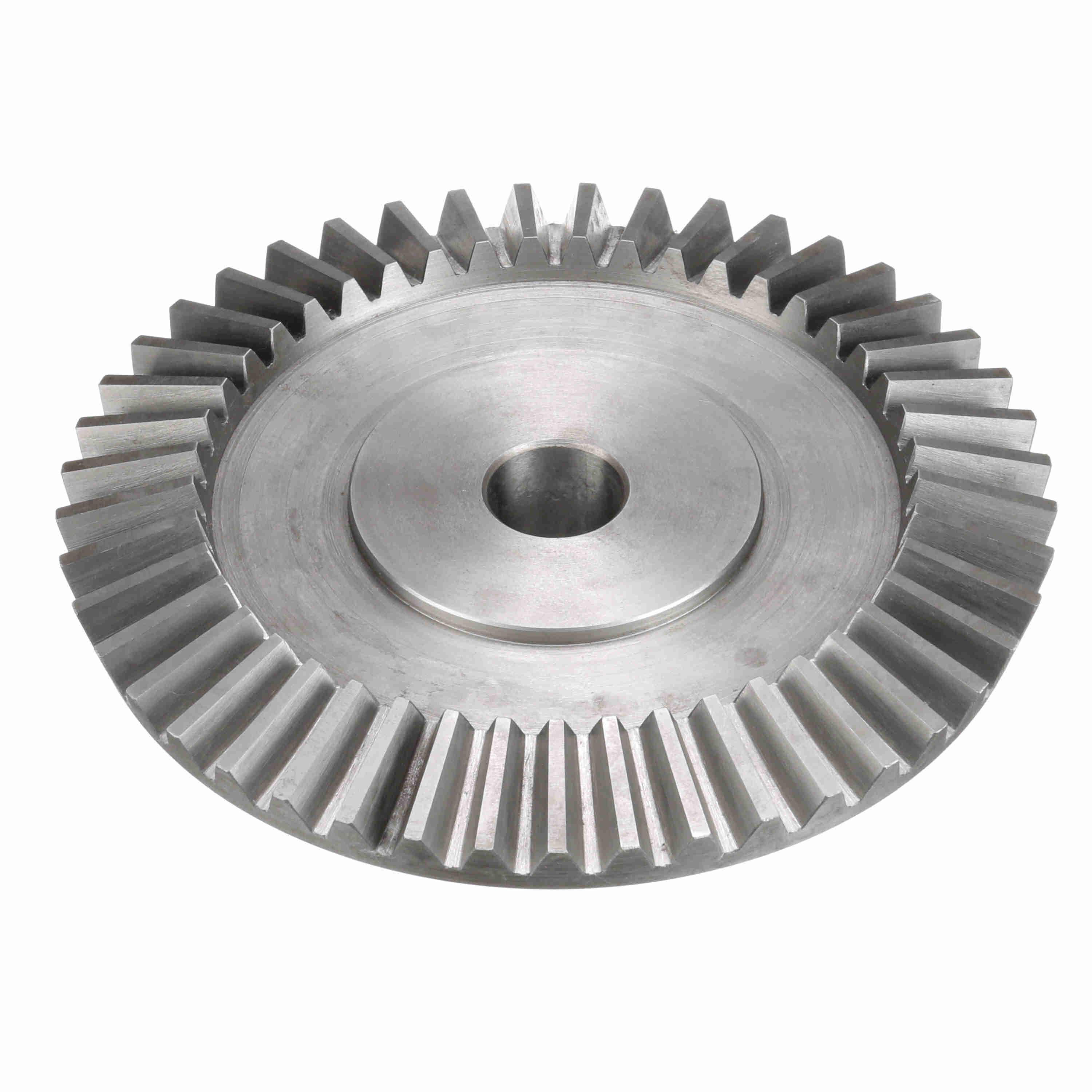

1228485 | 45 | 9" | 1.31" | 3 3/4" | 1 11/16" | 2 1/2" | 3:1 | 5 DP | €1,218.69 | |
 |

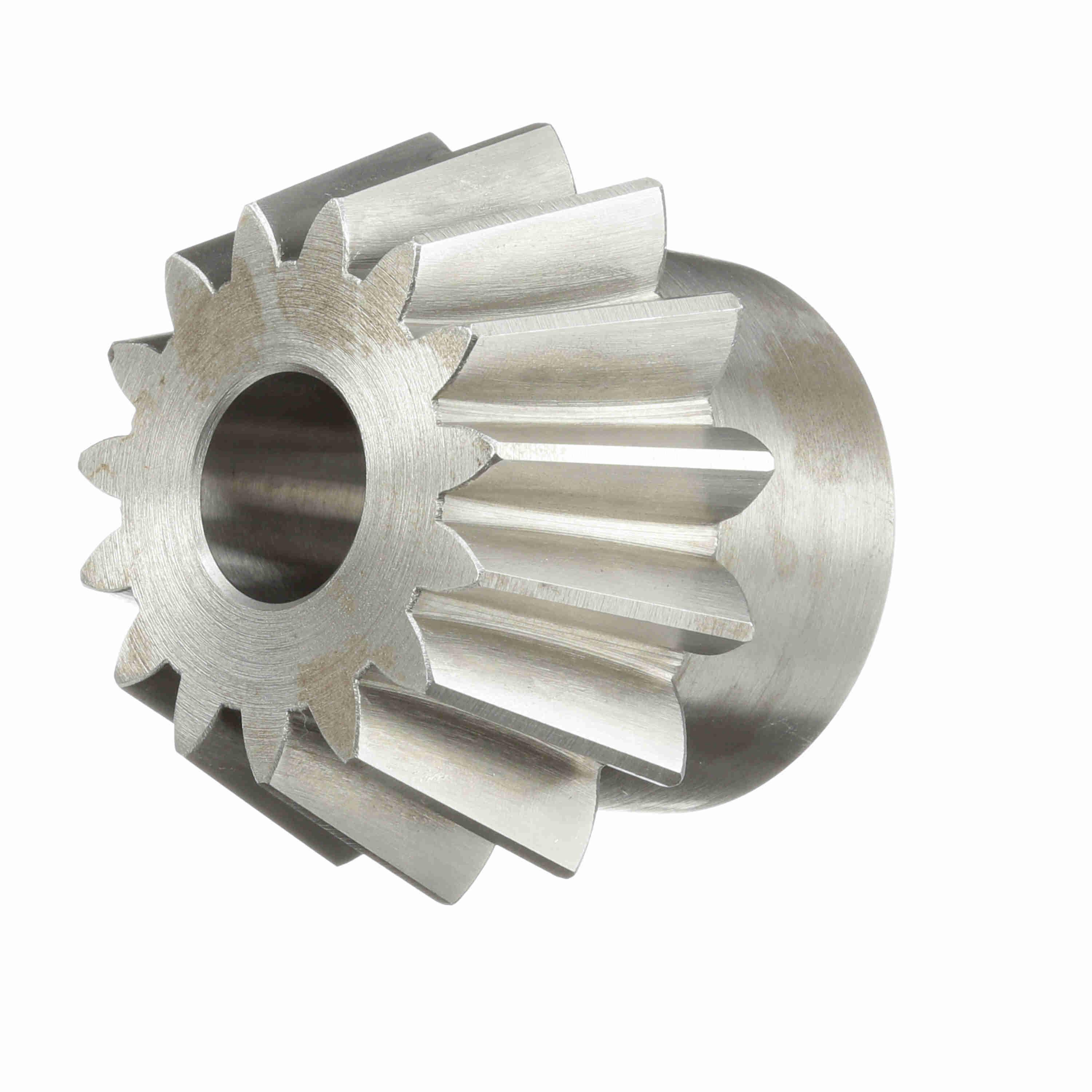

1228477 | 15 | 3" | 1.31" | 2 5/8" | 1 5/16" | 2 11/16" | 3:1 | 5 DP | €853.02 | |
 |

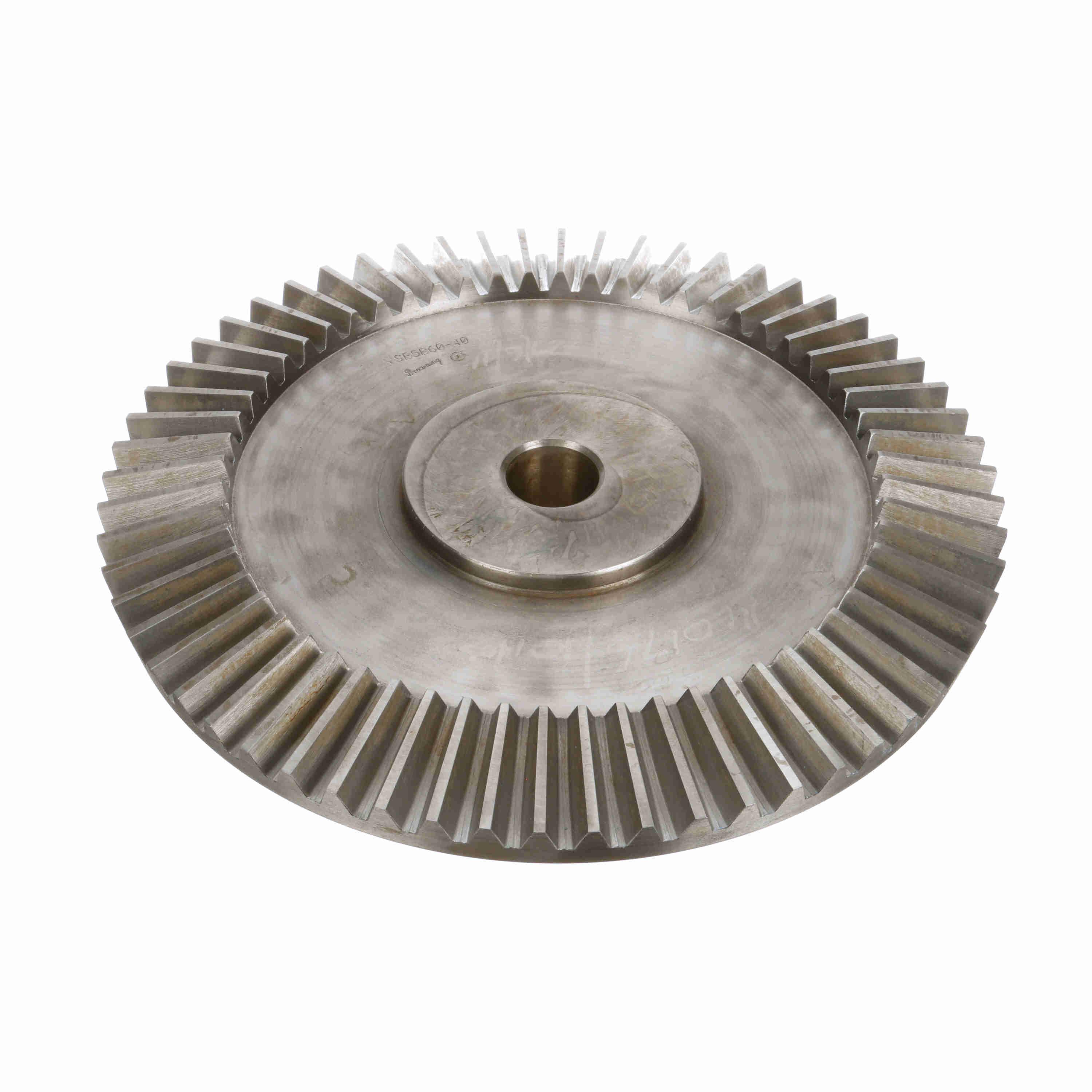

1228501 | 60 | 12" | 1.7" | 4" | 1 9/16" | 2 5/8" | 4:1 | 5 DP | €3,105.37 | |
 |

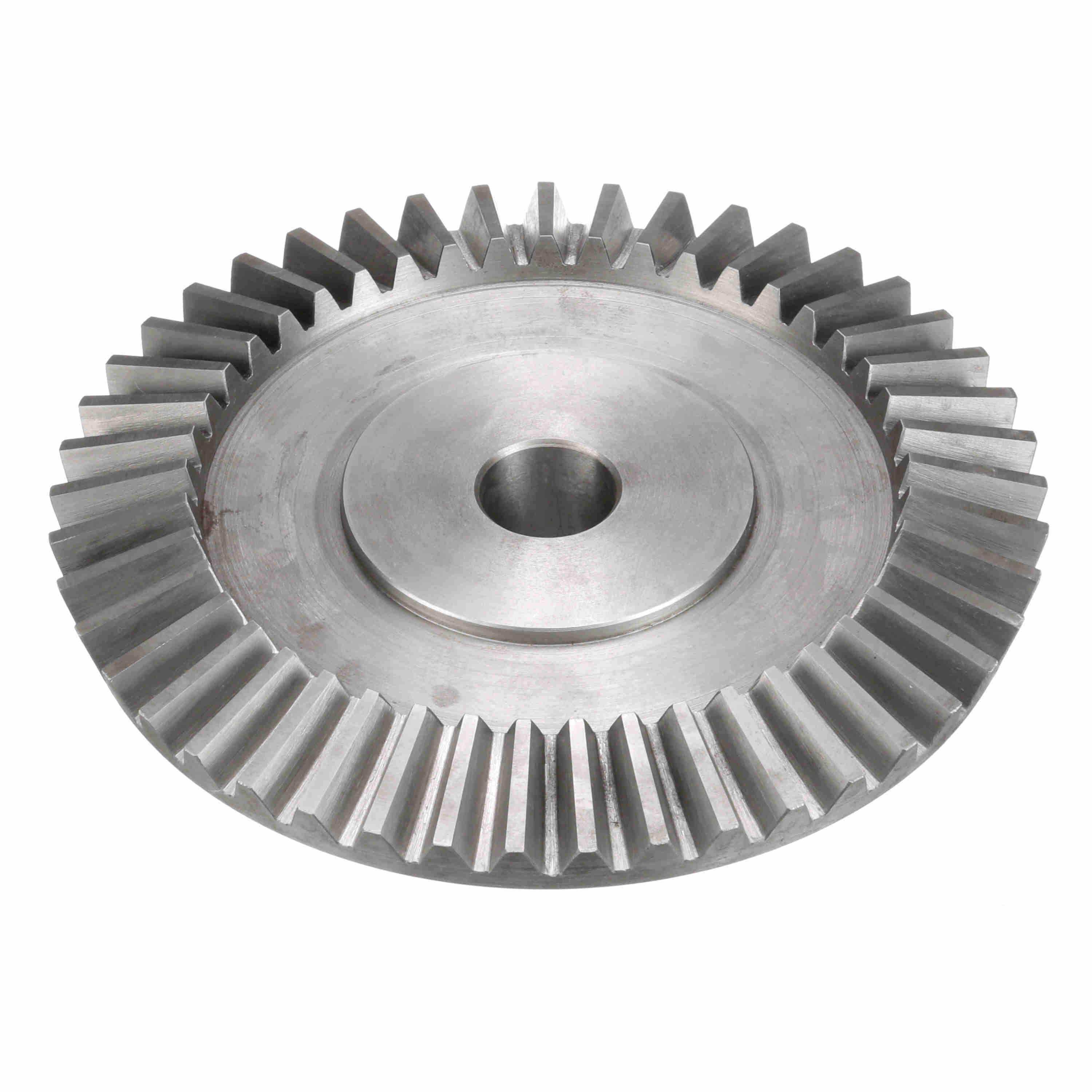

1228469 | 30 | 6" | 1 1/25" | 3 1/4" | 1 3/8" | 2 1/4" | 2:1 | 5 DP | €2,069.28 |
