BROWNING 1228311 YSB8B16-40 Bevel Gear, Plain Bore, 20 Pressure Angle, 8 Pitch, Steel
Item: AK2ZJVModel: 1228311Cross Ref: YSB8B16-40
7 In Stock
Ships within 2 days via
€652.95 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bevel Gear |
| Bushing Size | No Bushing |
| Diametral Pitch | 8 DP |
| Face Width | 21/25" |
| Gear Ratio | 4:1 |
| Hardened Teeth | No |
| Hub Dia. | 1 7/8" |
| Hub Projection | 1 7/32" |
| Material | Steel |
| Max. Bore | 1 1/8" |
| Min. Bore Dia. | 7/8" |
| Minimum Plain Bore | Yes |
| Mounting Method | Rough Bore |
| Number Of Teeth | 16 |
| Other Features | Unhardened Overall, Bevel Pinion, Coniflex Tooth Form |
| Overall Length | 2 3/32" |
| Pitch Dia. | 2" |
| Pressure Angle | 20° |
| Style | Bevel Gear |
| System Of Measurement | Imperial |
| Tooth Profile | Straight Tooth |
| Type | MPB Straight Tooth |
| Weight | 0.599 Kg |
Shipping Info:
| Ship weight (kg) | 0.59 |
| Ship height (cm) | 5.72 |
| Ship length (cm) | 9.04 |
| Ship width (cm) | 9.04 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Face Width | Hub Dia. | Hub Projection | Overall Length | Gear Ratio | Diametral Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

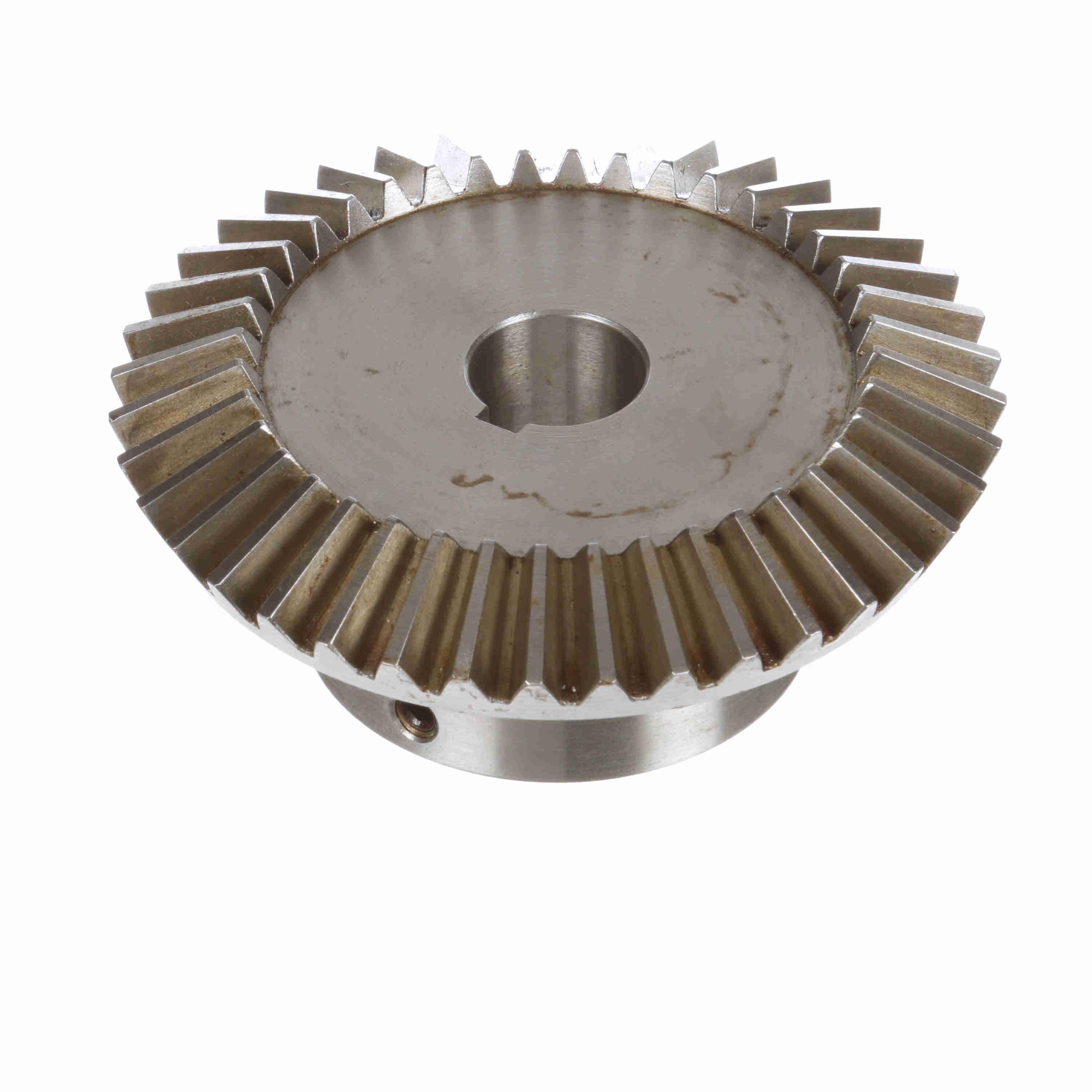

1228642 | 40 | 5" | 0.82" | 3" | 1 1/4" | 1 27/32" | 2:1 | 8 DP | €1,145.14 | |
 |

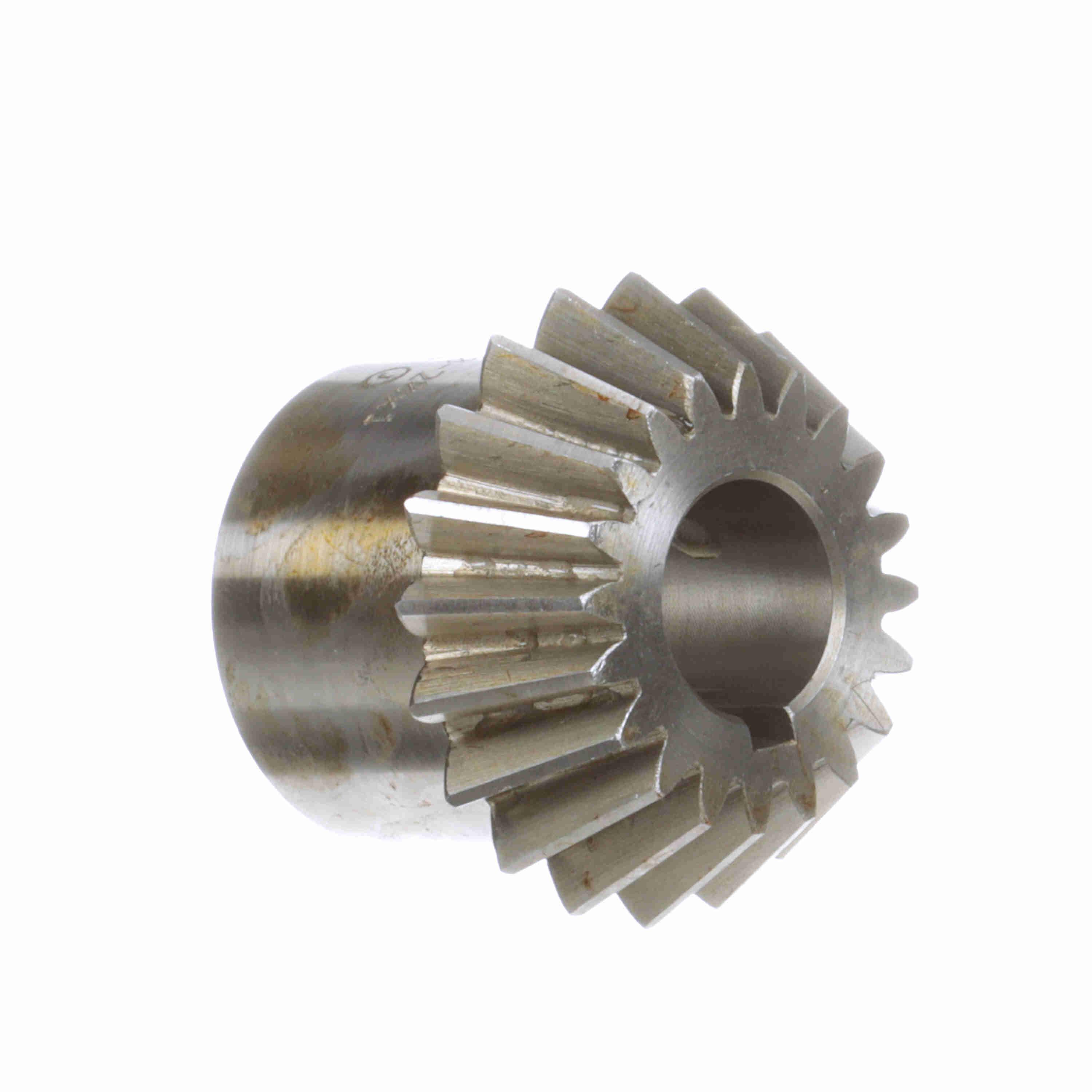

1228634 | 20 | 2 1/2" | 0.82" | 2 1/8" | 1 13/32" | 2 9/32" | 2:1 | 8 DP | €802.00 | |
 |

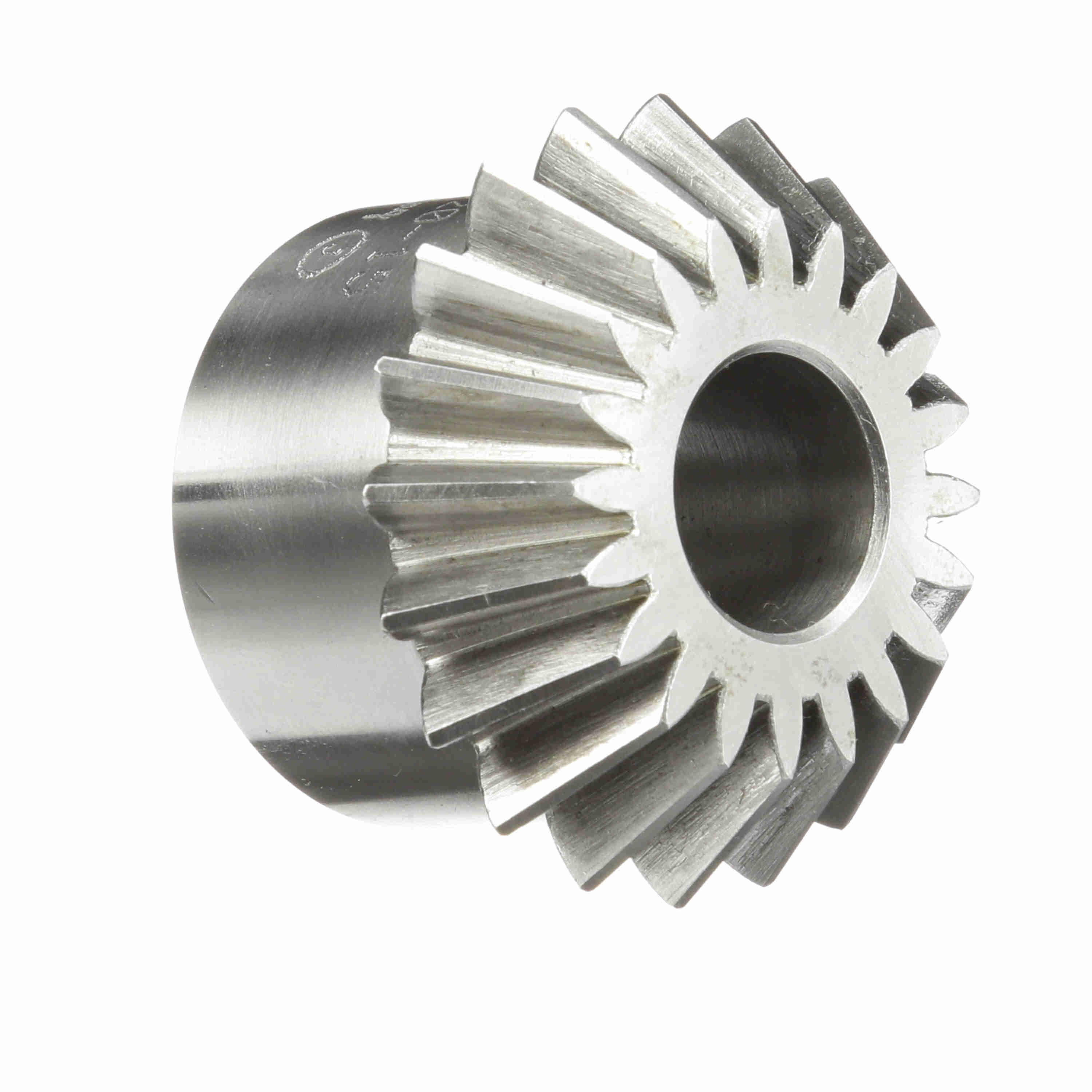

1228287 | 40 | 5" | 0.82" | 3" | 1 1/4" | 1 27/32" | 2:1 | 8 DP | €1,176.93 | |
|
1228279 | 20 | 2 1/2" | 0.82" | 2 1/8" | 1 13/32" | 2 9/32" | 2:1 | 8 DP | €362.79 | |
 |
1228303 | 48 | 6" | 21/25" | 2 3/4" | 1" | 1 5/8" | 3:1 | 8 DP | €1,678.34 | |
 |

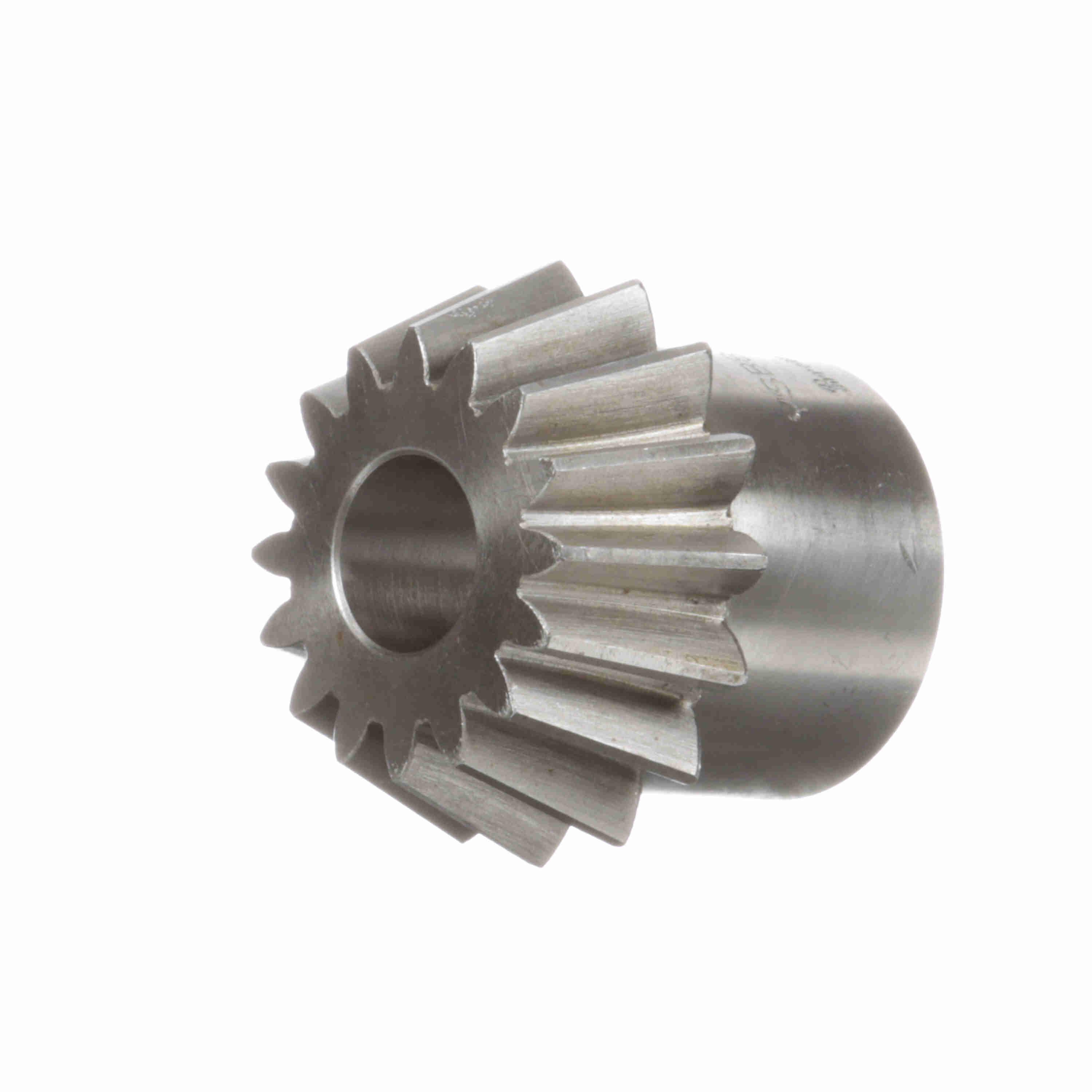

1228295 | 16 | 2" | 21/25" | 1 3/4" | 1 3/16" | 2 5/64" | 3:1 | 8 DP | €680.18 | |
 |

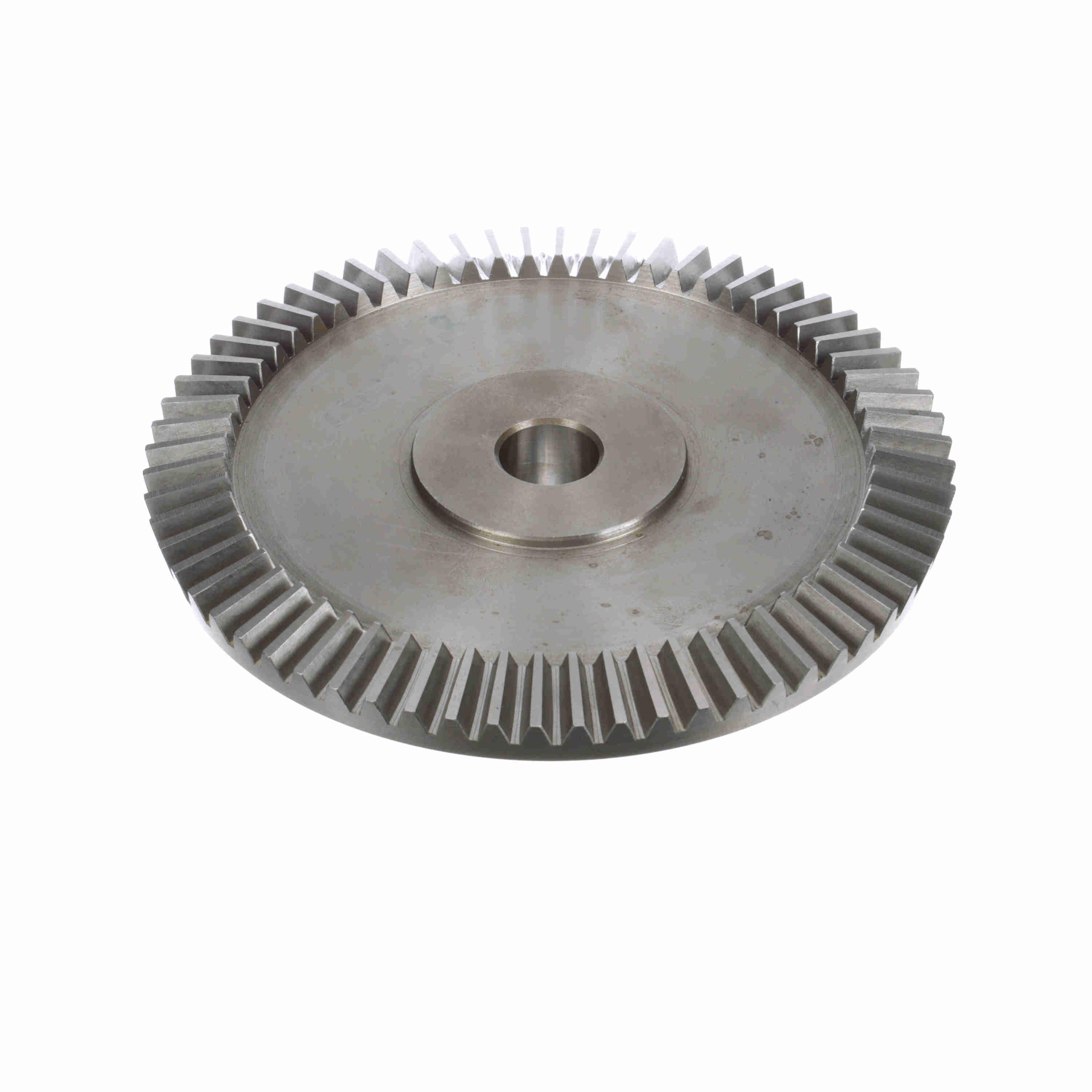

1228329 | 64 | 8" | 21/25" | 2 3/4" | 1 1/4" | 1 7/8" | 4:1 | 8 DP | €810.09 |
