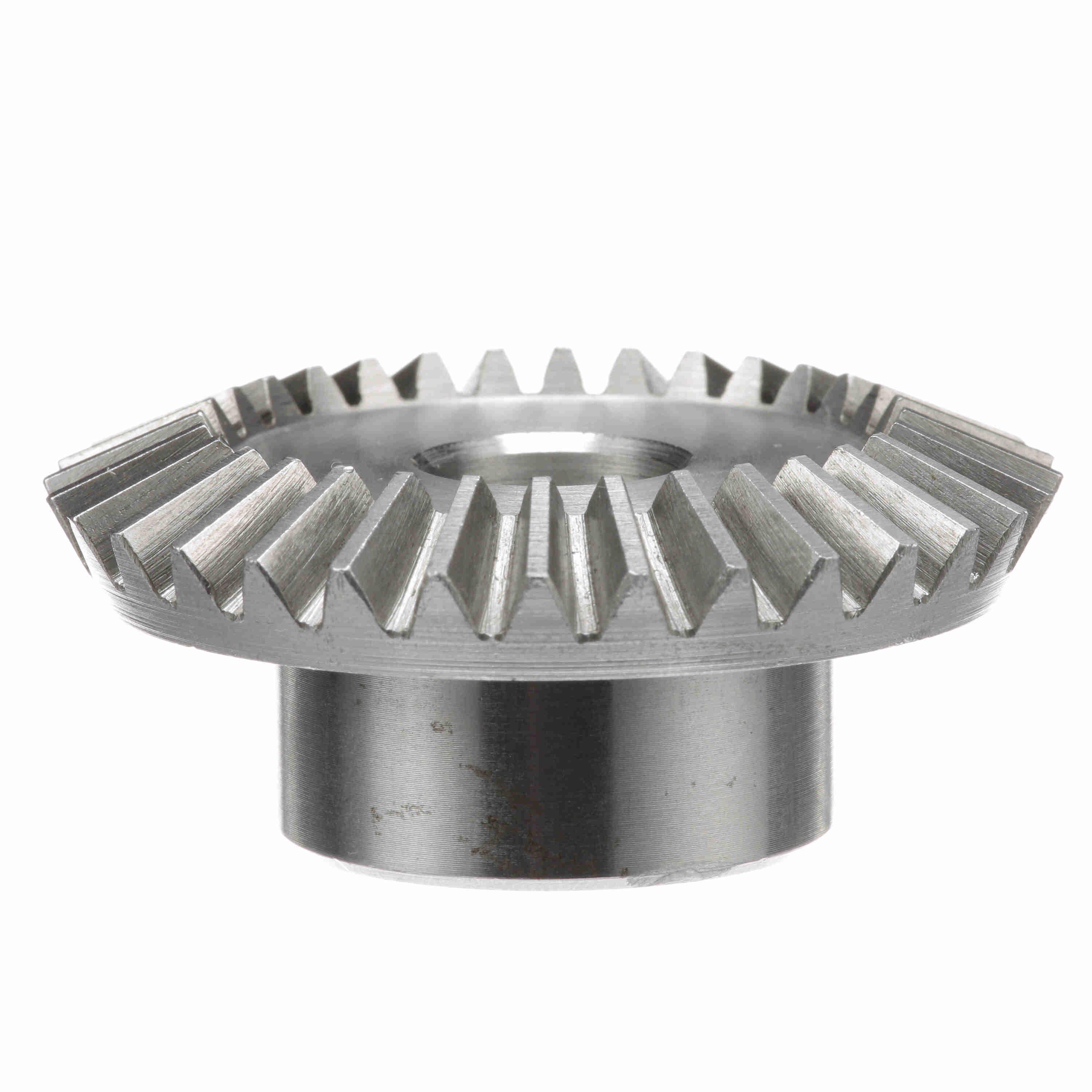

BROWNING 1227925 YSB16B32-20 Bevel Gear, Plain Bore, 20 Pressure Angle, 16 Pitch, Steel
Item: AK2YAQModel: 1227925Cross Ref: YSB16B32-20
7 In Stock
Ships within 2 days via
€234.14 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bevel Gear |
| Bushing Size | No Bushing |
| Diametral Pitch | 16 DP |
| Face Width | 0.35" |
| Gear Ratio | 2:1 |
| Gear Type | Bevel |
| Hardened Teeth | No |
| Hub Dia. | 1 1/8" |
| Hub Projection | 1/2" |
| Material | Steel |
| Max. Bore | 0.563" |
| Min. Bore Dia. | 1/2" |
| Minimum Plain Bore | Yes |
| Mounting Method | Rough Bore |
| Number Of Teeth | 32 |
| Other Features | Unhardened Overall, Coniflex Tooth Form |
| Outside Dia. | 2.037" |
| Overall Length | 49/64" |
| Pitch Dia. | 2" |
| Pressure Angle | 20° |
| Style | Bevel Gear |
| System Of Measurement | Imperial |
| Tooth Profile | Straight Tooth |
| Type | Minimum Plain Bore |
| Weight | 0.09 Kg |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 5.18 |
| Ship length (cm) | 1.96 |
| Ship width (cm) | 5.18 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Face Width | Hub Dia. | Hub Projection | Overall Length | Gear Ratio | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1227883 | 24 | 1 1/2" | 1/4" | 1 1/8" | 9/16" | 3/4" | 1.5:1 | MPB Straight Tooth | €292.72 | |
 |

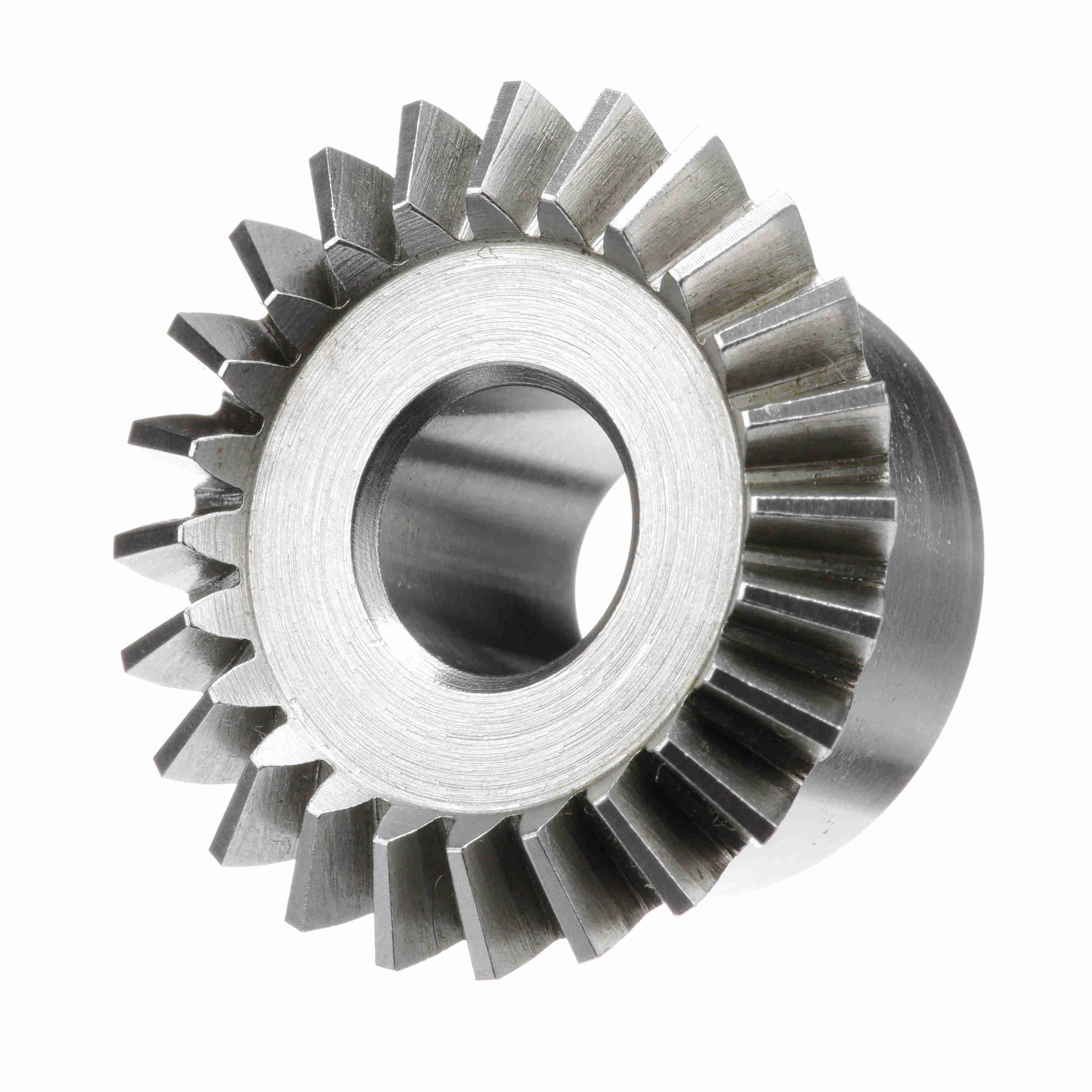

1227909 | 24 | 1 1/2" | 0.19" | 1" | 7/16" | 5/8" | 2:1 | MPB Straight Tooth | €361.35 | |
 |
1227941 | 48 | 3" | 0.42" | 1 1/2" | 9/16" | 7/8" | 3:1 | MPB Straight Tooth | €320.71 | |
 |

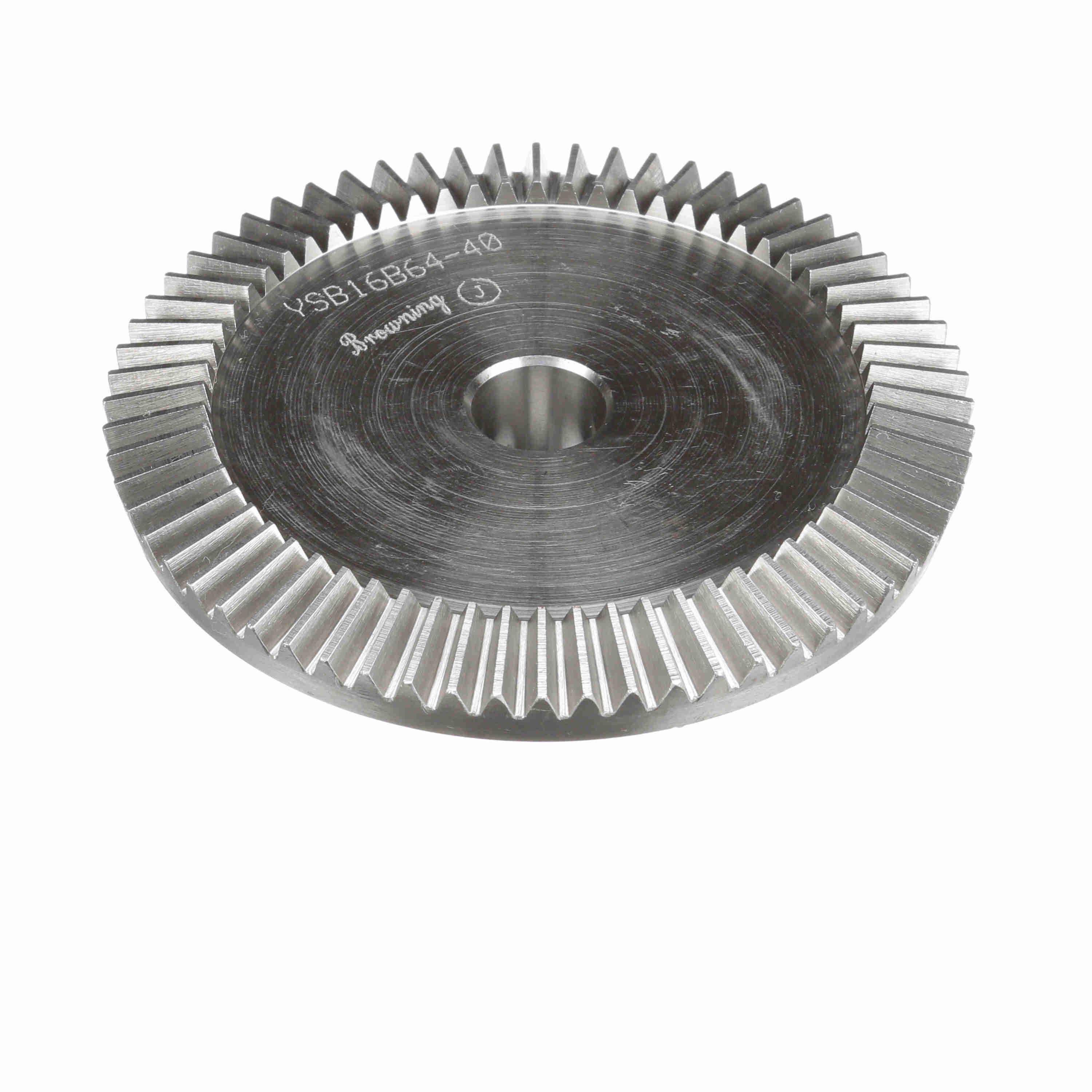

1227966 | 64 | 4" | 12/25" | 2 1/4" | 9/16" | 57/64" | 4:1 | MPB Straight Tooth | €458.46 | |
 |

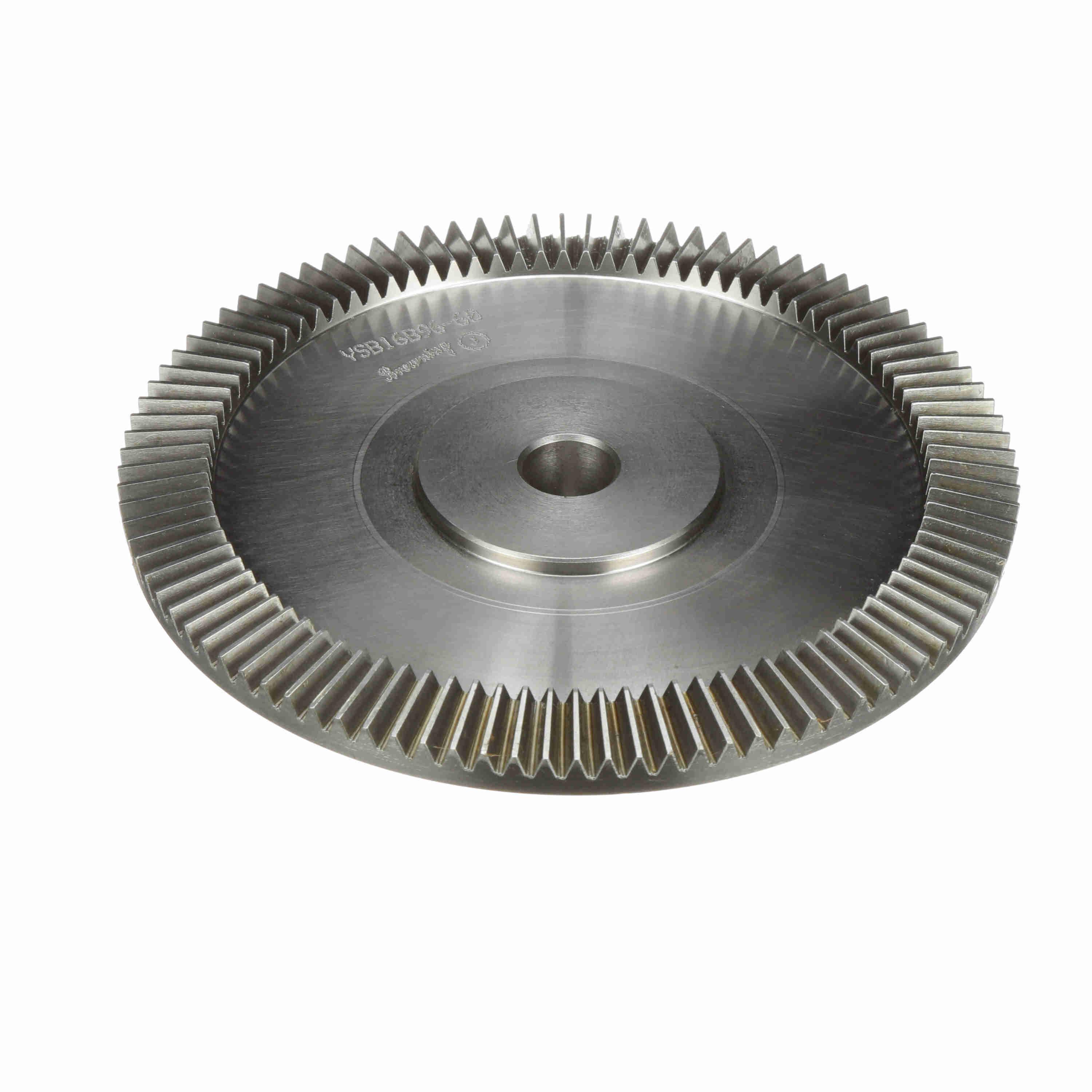

1227982 | 96 | 6" | 0.61" | 1 3/4" | 7/8" | 1 1/4" | 6:1 | MPB Straight Tooth | €649.77 |
