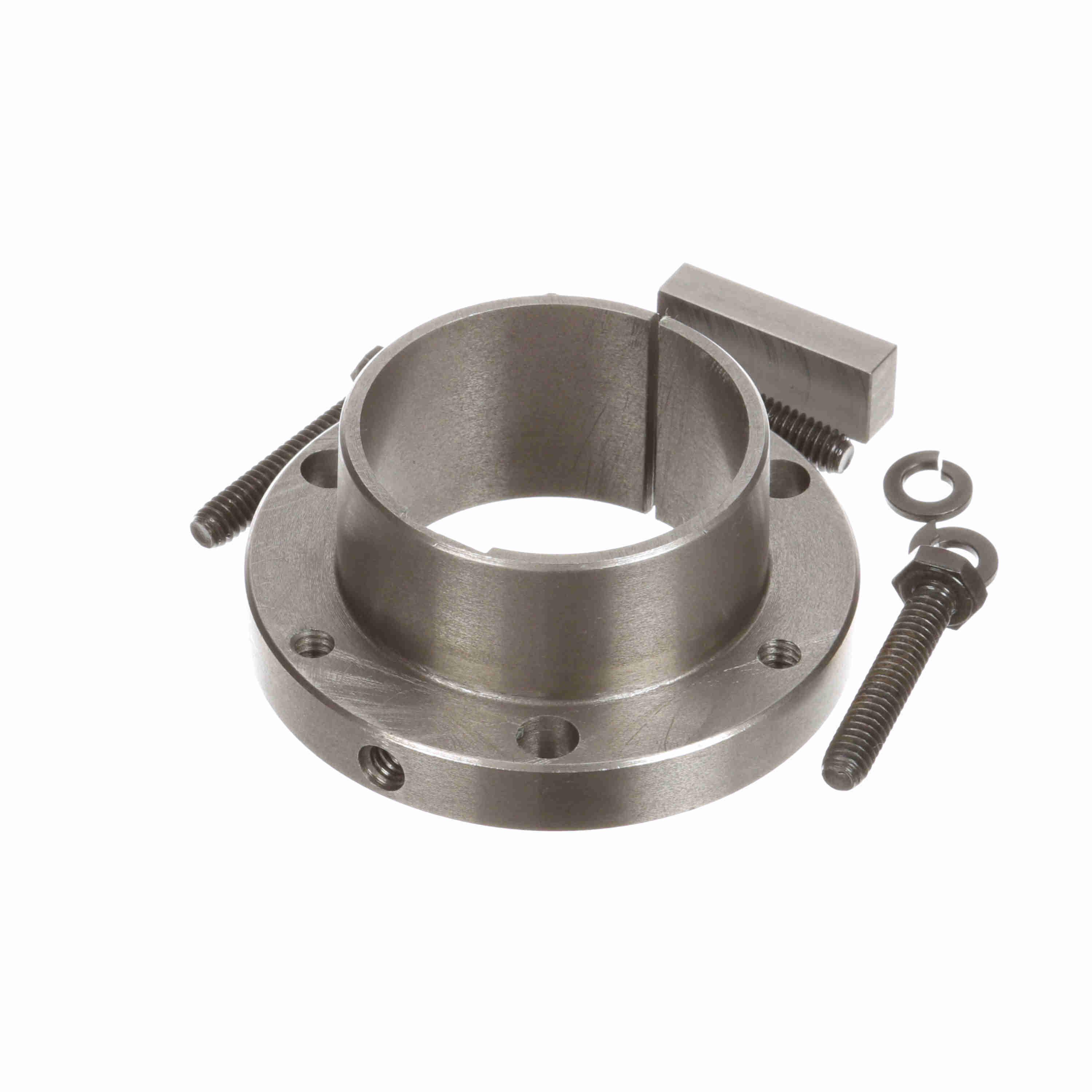

BROWNING 1077080 SDS 1 15/16 Q-D Bushing, 1.9375 Inch Bore Size, 3.125 Inch Outer Dia., SDS Bushing, Ductile Iron
Item: AJ9QCRModel: 1077080Cross Ref: SDS 1 15/16
7 In Stock
1 15/16"
1/4" x 1/8"
Ships within 2 days via
€61.65 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Quick Detachable Bushing |
| Barrel Dia. | 2 3/16" |
| Bolt Circle Dia. | 2 11/16" |
| Bore Size | 1 15/16" |
| Bushing Series | SDS Series |
| Bushing Style | QD |
| Flange Dia. | 3 1/8" |
| Flange Thickness | 7/16" |
| For Use With | Browning Sheaves, Sprockets And Pulleys |
| Keyway | Yes |
| Keyway Size | 1/2" x 1/4" |
| Length Thru Bore | 1 3/8" |
| Material | Ductile Iron |
| No. Of Bolt Holes | 3 |
| Outside Dia. | 2.187" |
| Overall Length | 1.33" |
| Rated Torque | 5000 lbs.-in. |
| Screw Size | 1/4"-20 |
| Screw Thread Length | 1 3/8" |
| System Of Measurement | Imperial |
| Weight | 0.9 lbs. |
Shipping Info:
| Ship weight (kg) | 0.41 |
| Ship height (cm) | 5.56 |
| Ship length (cm) | 3.38 |
| Ship width (cm) | 5.56 |
Product Variants
| Product | Model | Overall Length | Flange Thickness | Bore Size | Keyway Size | Bolt Circle Dia. | Rated Torque | Outside Dia. | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1076835 | 1.33" | 7/16" | 1/2" | 1/8" x 1/16" | 2 11/16" | - | 2.187" | - | €42.98 | RFQ
|
 |
1076876 | 1.33" | 7/16" | 3/4" | 3/16" x 3/32" | 2 11/16" | 5000 lbs.-in. | - | - | €90.37 | |
 |
1076892 | 1.33" | 7/16" | 7/8" | 3/16" x 3/32" | 2 11/16" | 5000 lbs.-in. | 2.187" | - | €61.65 | |
 |
1076900 | 1.33" | 0.45" | 15/16" | 1/4" x 1/8" | 2 11/16" | 5000 lbs.-in. | 2.187" | Type SDS | €42.98 | RFQ
|
 |
1076918 | 1.33" | 7/16" | 1" | 1/4" x 1/8" | 2 11/16" | 5000 lbs.-in. | 2.187" | - | €88.67 | |
 |
1076934 | 1.33" | 7/16" | 1 1/8" | 1/4" x 1/8" | 2 11/16" | 5000 lbs.-in. | 2.187" | - | €61.65 | |
 |
1076942 | 1.33" | 7/16" | 1 3/16" | 1/4" x 1/8" | 2 11/16" | - | - | - | €90.37 |
