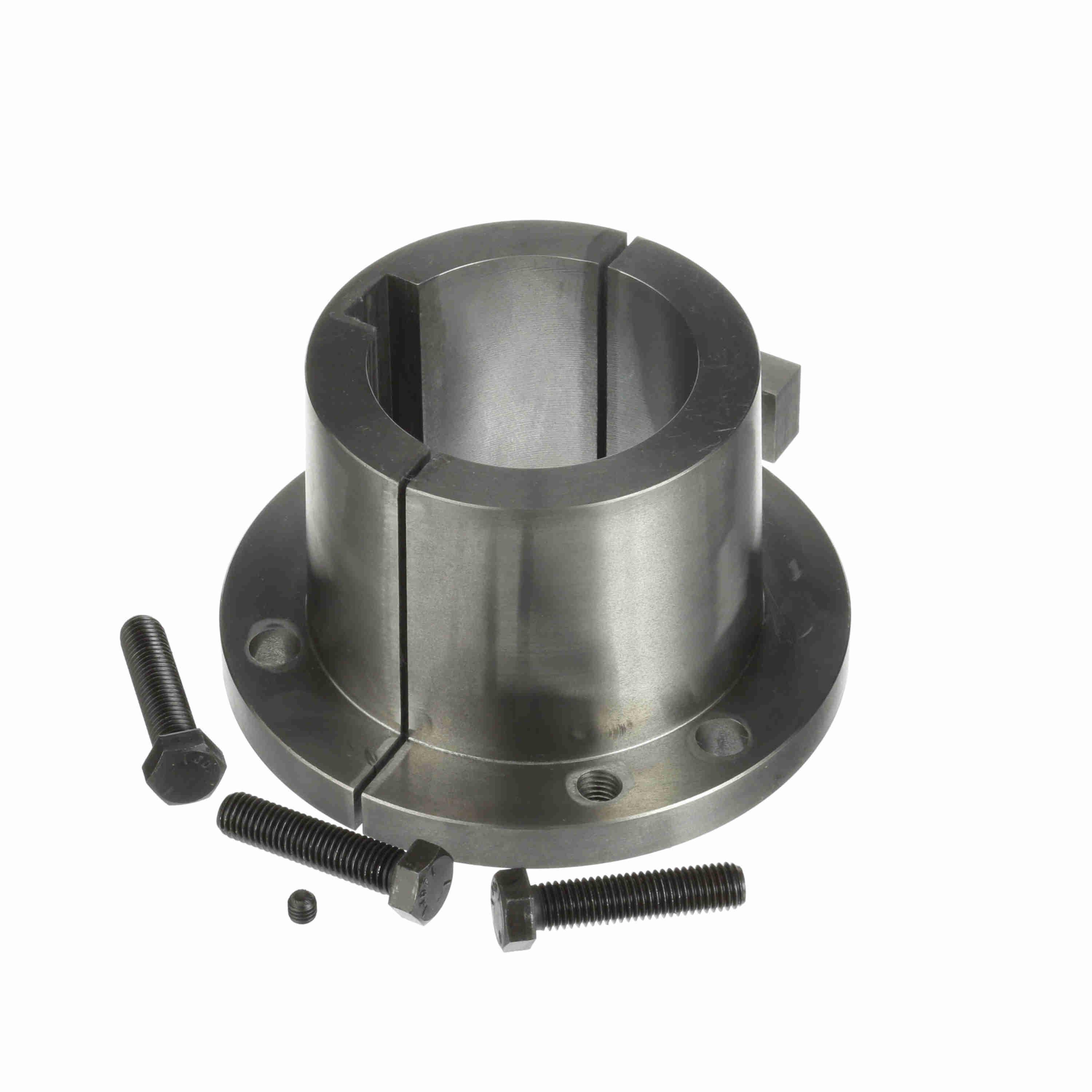

BROWNING 1071463 U0 4 3/16 Split Taper Bushing, Bore Type
4 3/16"
Get it by Friday, Aug 14
€1,182.06 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Split Taper Bushing |
| Bolt Circle Dia. | 7" |
| Bore Size | 4 3/16" |
| Bushing Series | U0 Series |
| Bushing Style | Split Taper |
| Flange Dia. | 8 3/8" |
| Flange Thickness | 3/4" |
| For Use With | Gearbelt Multiple Groove Sheaves |
| Keyway | Yes |
| Length Thru Bore | 4.938" |
| Material | Ductile Iron, Sintered Steel |
| No. Of Bolt Holes | 3 |
| Outside Dia. | 6" |
| Overall Length | 4.938" |
| Screw Size | 5/8" x 2 3/4" |
| System Of Measurement | Imperial |
| Type | Type U0 |
Shipping Info:
| Ship weight (kg) | 10.05 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 12.55 |
| Ship width (cm) | 15.24 |
Product Variants
| Product | Model | Material | Bore Size | Flange Thickness | Length Thru Bore | Bolt Circle Dia. | Type | No. Of Bolt Holes | Screw Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1071240 | Cast Iron | 2 7/16" | 1.063" | 5 1/4" | 7" | Type U0 | 3 | 5/8" x 2 3/4" | €1,870.93 | |
 |
1071315 | Cast Iron | 2 15/16" | 1.063" | - | 7" | Type U0 | 3 | 5/8" x 2 3/4" | €1,983.20 | |
 |
1071323 | Cast Iron | 3" | 1.063" | 5 1/4" | 7" | Type U0 | 3 | 5/8" x 2 3/4" | €1,182.06 | |
 |
1071372 | Sintered Steel | 3 7/16" | 3/4" | 4.938" | 7" | Type U0 | 3 | 5/8" x 2 3/4" | €948.63 | |
 |
1071380 | Sintered Steel | 3 1/2" | 3/4" | 4.938" | 7" | Type U0 | 3 | 5/8" x 2 3/4" | €930.72 | |
 |
1071414 | Sintered Steel | 3 3/4" | 3/4" | 4.938" | 7" | Type U0 | 3 | 5/8" x 2 3/4" | €1,199.35 | |
 |
1071430 | Sintered Steel | 3 15/16" | 3/4" | 4.938" | 7" | Type U0 | 3 | 5/8" x 2 3/4" | €1,182.06 |
