FREE delivery on orders over €150

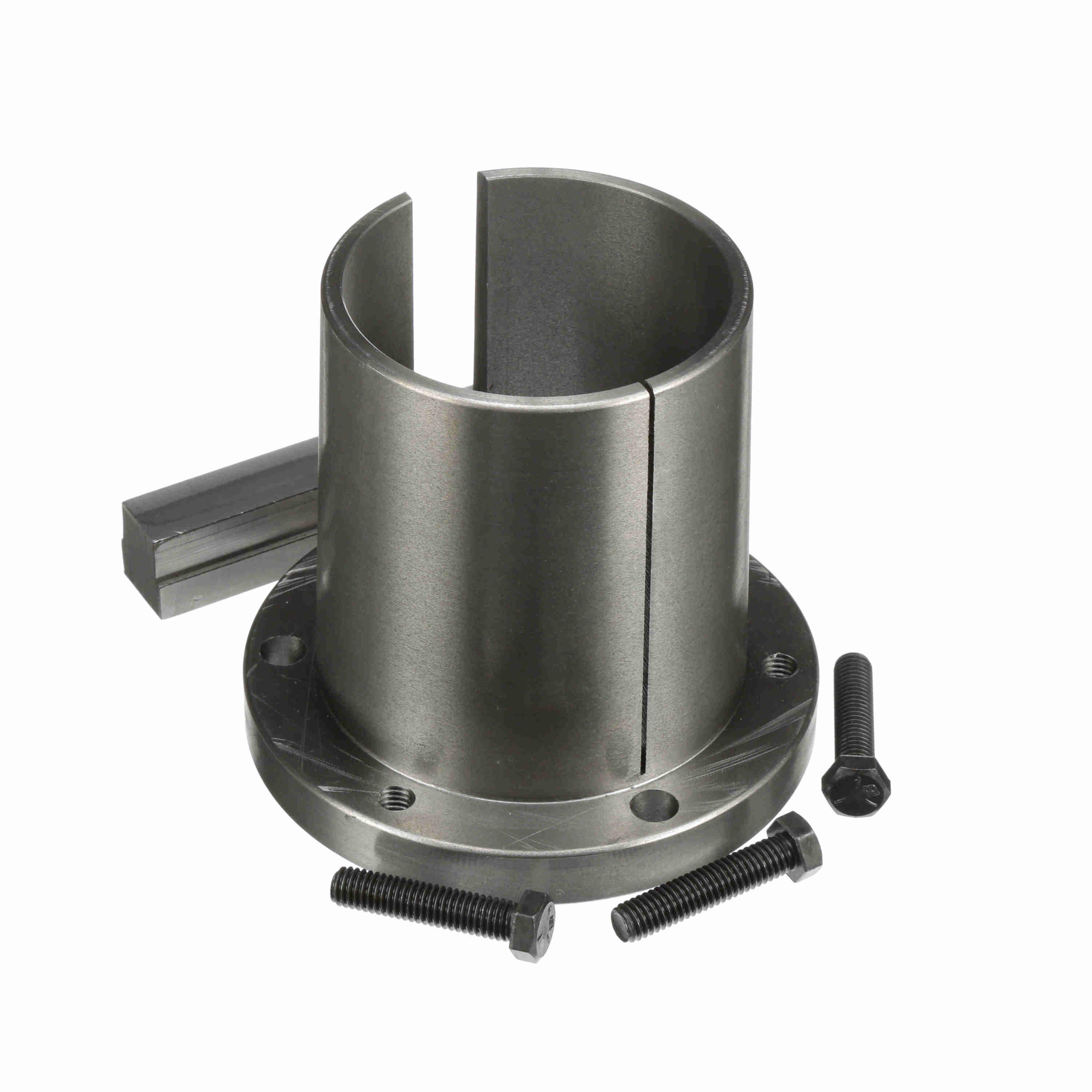

BROWNING 1070788 R2 3 3/8 Split Taper Bushing, 3.375 Inch Bore Size, 5.375 Inch Outer Dia., R2 Split Taper Bushing, Sintered Steel/ Ductile Iron
Item: AJ9XNMModel: 1070788Cross Ref: R2 3 3/8
7 In Stock
Ships within 2 days via
€308.37 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Split Taper Bushing |
| Barrel Dia. | 3 3/4", 4" |
| Bolt Circle Dia. | 4 5/8" |
| Bore Size | 3 3/8" |
| Bushing Series | R2 Series |
| Bushing Style | Split Taper |
| Flange Dia. | 5 3/8" |
| Flange Thickness | 5/8" |
| For Use With | Browning Multiple Groove Sheave |
| Keyway | Yes |
| Keyway Size | 7/8" x 7/16" |
| Length Thru Bore | 4 22/25" |
| Material | Steel |
| No. Of Bolt Holes | 3 |
| Outside Dia. | 4" |
| Overall Length | 4 7/8" |
| Screw Size | 1 3/4" |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 2.9 |
| Ship height (cm) | 12.95 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 15.24 |
Product Variants
| Product | Model | Bore Size | Keyway Size | Bolt Circle Dia. | Overall Length | Flange Thickness | Outside Dia. | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1070812 | 3 5/8" | 7/8" x 7/16" | 4 5/8" | 4 7/8" | 5/8" | 4" | - | €318.88 | |
 |
1070804 | 3 1/2" | 7/8" x 7/16" | 4 5/8" | 4 7/8" | 5/8" | 4" | - | €312.86 | |
 |
1070770 | 3 1/4" | 3/4" x 3/8" | 4 5/8" | 4 7/8" | 5/8" | 4" | - | €408.97 | |
 |
1070747 | 3" | 3/4" x 3/8" | 4 5/8" | 4 7/8" | 5/8" | - | - | €241.98 | |
 |
1070721 | 2 7/8" | 3/4" x 3/8" | 4 5/8" | 4 7/8" | 5/8" | 4" | - | €241.98 | |
 |
1070614 | 2 3/16" | - | 4 5/8" | 4 7/8" | 5/8" | 4" | Type R2 | €264.32 | |
 |
1070572 | 1 15/16" | 1/2" x 1/4" | 4 5/8" | 4 7/8" | 5/8" | 4" | - | €264.32 |
