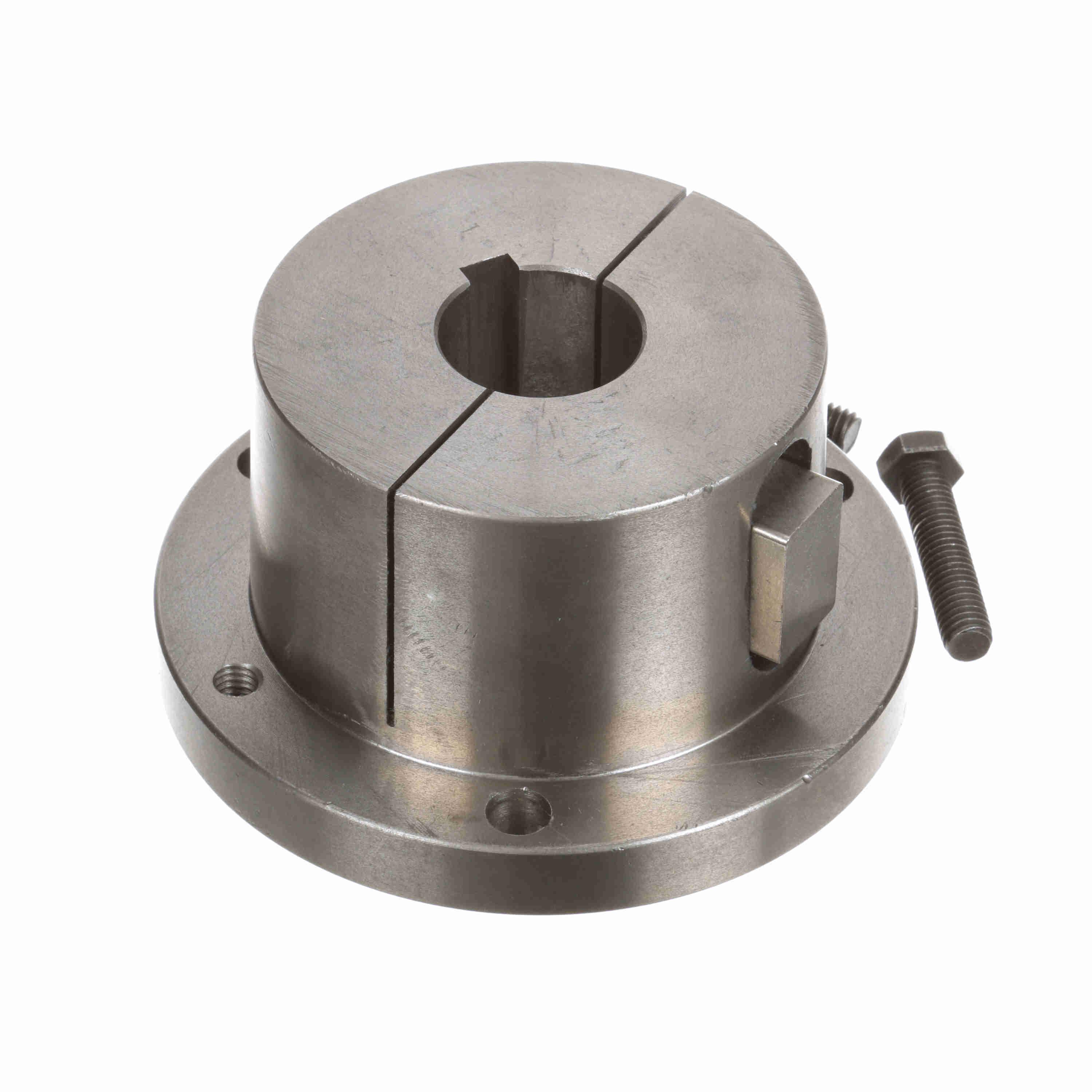

BROWNING 1070101 R1 1 3/8 3/8 Split Taper Bushing, 1.375 Inch Bore Size, 5.375 Inch Outer Dia., R1 Split Taper Bushing, Sintered Steel/ Ductile Iron
Item: AJ9XKKModel: 1070101Cross Ref: R1 1 3/8 3/8
7 In Stock
Ships within 2 days via
€243.78 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Split Taper Bushing |
| Bolt Circle Dia. | 4 5/8" |
| Bore Size | 1 3/8" |
| Bushing Series | R1 Series |
| Bushing Style | Split Taper |
| Flange Dia. | 5 3/8" |
| Flange Thickness | 5/8" |
| For Use With | Gearbelt Multiple Groove Sheaves |
| Keyway | Yes |
| Length Thru Bore | 2 22/25" |
| Material | Sintered Steel |
| No. Of Bolt Holes | 3 |
| Outside Dia. | 4" |
| Overall Length | 2 7/8" |
| Screw Size | 1 3/4" |
| System Of Measurement | Imperial |
| Type | Type R1 |
| Weight | 9.68 lbs. |
Shipping Info:
| Ship weight (kg) | 4.36 |
| Ship height (cm) | 7.87 |
| Ship length (cm) | 14.22 |
| Ship width (cm) | 14.22 |
Product Variants
| Product | Model | Overall Length | Bore Size | Keyway Size | Bolt Circle Dia. | Flange Thickness | Outside Dia. | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1070911 | 2 7/8" | 45 mm | - | 4 5/8" | 5/8" | 4" | Type R1 | €193.72 | RFQ
|
 |
1070853 | 2 7/8" | 35 mm | - | 4 5/8" | 5/8" | 4" | Type R1 | €257.61 | |
 |
1070895 | 2 7/8" | 40 mm | - | 4 5/8" | 5/8" | 4" | Type R1 | €257.61 | |
 |
1070903 | 73.025 mm | 42 mm | - | 4 5/8" | 5/8" | 4" | - | €356.42 | |
 |
1070929 | 2 7/8" | 48 mm | - | 4 5/8" | 5/8" | 4" | Type R1 | €430.75 | |
 |
1070937 | 2 7/8" | 50 mm | - | 4 5/8" | 5/8" | 4" | Type R1 | €291.26 | |
 |
1070945 | 2 7/8" | 55 mm | - | 4 5/8" | 5/8" | 4" | Type R1 | €291.26 |
