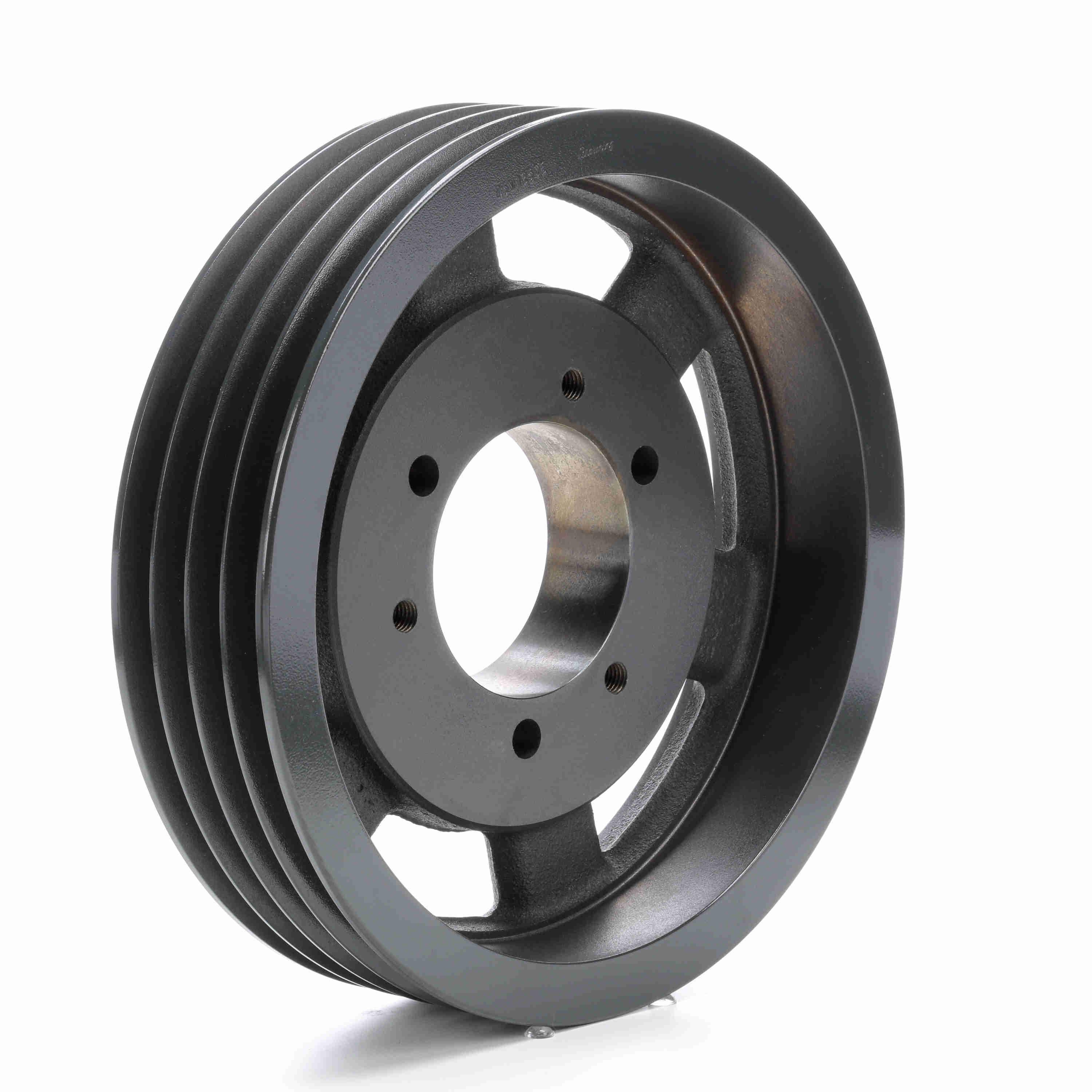

BROWNING 1066026 45V1250E V-Belt Sheave, Multiple, Bushed Bore, 4 Groove, Cast Iron, 12-1/2 in OD, 0.88 to 3.5 in Bore Dia, 12.4 in Pitch Dia
Get it by Friday, Aug 14
€735.88 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 5V Series |
| Bore Dia. | 22/25" to 3 1/2" |
| Bore Type | QD |
| Bushing Bore Range | 7/8" to 3 1/2" |
| Bushing Type | E |
| Face Width | 3 1/16" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 12 2/5" |
| Min. Pitch Dia. | 12 2/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 4 |
| Outside Dia. | 12 1/2" |
| Pitch Dia. | 12 2/5" |
| Suitable For Use With | Gripbelt 5V Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type A Arm |
Shipping Info:
| Ship weight (kg) | 15.8 |
| Ship height (cm) | 31.75 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 31.75 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Bore Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Bushing Type | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3063245 | 5 4/5" | 1/2" to 2" | Type A Solid | - | - | SD | Cast Iron | 3 1/16" | €702.23 | |
|
3050002 | 5.1" | 1/2" to 2" | Type A Solid | - | - | SD | Cast Iron | 3 1/16" | €690.13 | |
 |
3063401 | 18 3/5" | 7/8" to 3 1/2" | Type A Arm | 18 3/5" | 18 3/5" | E | Cast Iron | 3 1/16" | €1,004.85 | |
 |
3063419 | 23 1/2" | 1" to 4" | Type C Arm | 23 1/2" | 23 1/2" | F | Cast Iron | 3 1/16" | €3,151.67 | |
 |
3050085 | 6 1/5" | 1/2" to 2 5/8" | - | - | - | SK | Cast Iron | 3 1/16" | €595.29 | |
|
3049954 | 4 4/5" | 1/2" to 2" | Type A Solid | 4 4/5" | 4 4/5" | SD | Cast Iron | 3 1/16" | €598.62 | |
 |
1065937 | 7 2/5" | 1/2" to 2 15/16" | Type A Solid | - | - | SF | Cast Iron | 3 1/16" | €669.37 |
