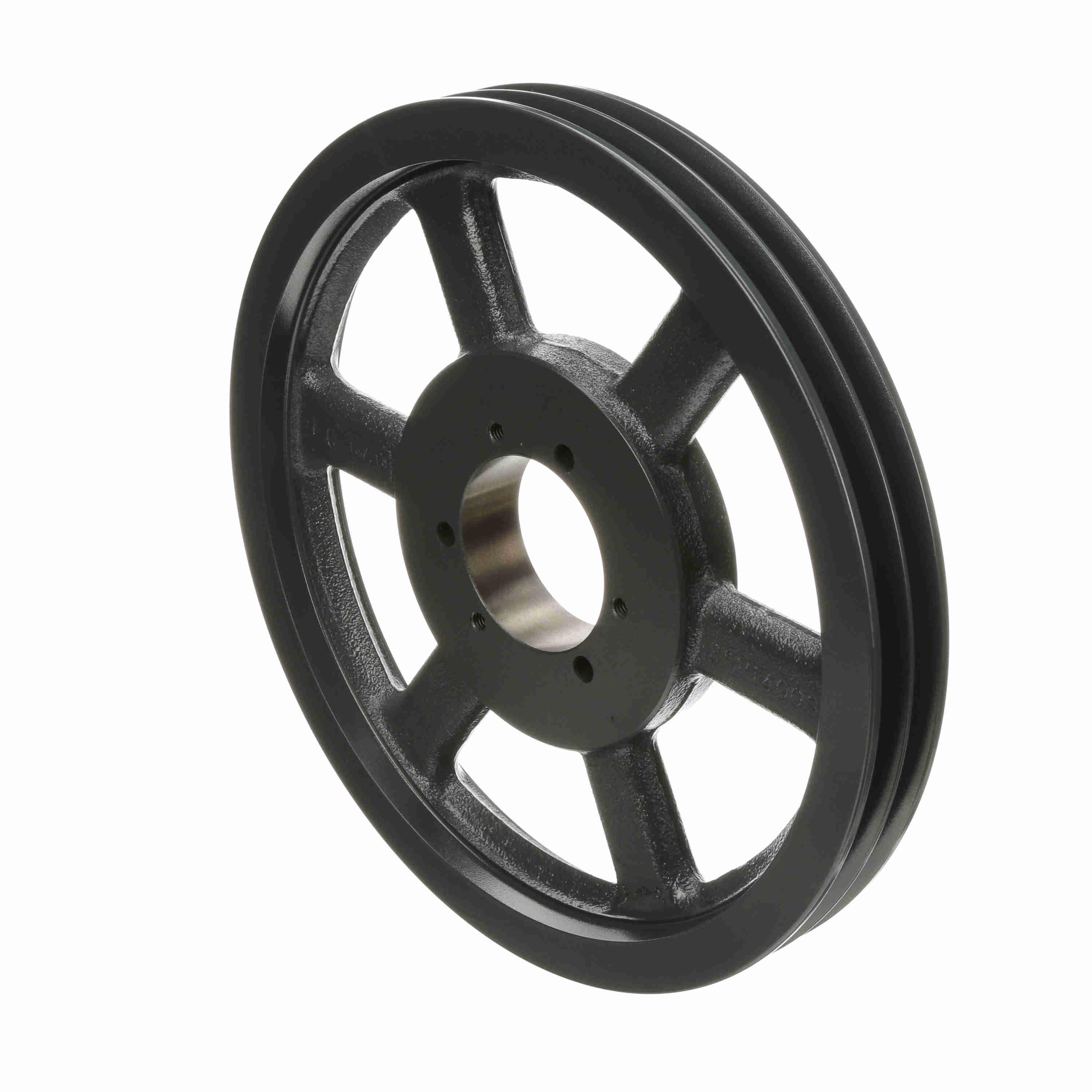

BROWNING 1065705 25V1400SF V-Belt Sheave, Multiple, Bushed Bore, 2 Groove, Cast Iron
Get it by Tuesday, Dec 23
€617.11 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 5V Series |
| Bore Dia. | 1/2" to 2 15/16" |
| Bore Type | QD |
| Bushing Type | SF |
| Face Width | 1 11/16" |
| Hub Projection | 3/64" |
| Keyway | Yes |
| Material | Cast Iron |
| Min. Plain Bore | No |
| No. Of Grooves | 2 |
| Outside Dia. | 14" |
| Overall Length | 2 5/32" |
| Pitch Dia. | 13.9" |
| Suitable For Use With | 5V-Cross Section V-Belts |
| System Of Measurement | Imperial |
| Weight | 11.671 Kg |
Shipping Info:
| Ship weight (kg) | 11.47 |
| Ship height (cm) | 35.56 |
| Ship length (cm) | 5.49 |
| Ship width (cm) | 35.56 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Overall Length | Material | Bore Type | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
1065671 | 11 4/5" | 1/2" to 2 5/8" | 2 5/32" | Cast Iron | QD | 1 11/16" | €871.19 | |
 |
1065721 | 16" | 1/2" to 2 15/16" | 2 5/32" | Cast Iron | QD | 1 11/16" | €777.56 | |
 |
3050077 | 6.3" | 1/2" to 2 5/8" | 2 5/32" | Cast Iron | QD | 1 11/16" | €341.20 | |
 |
1065689 | 12 1/2" | 1/2" to 2 15/16" | 2 5/32" | Cast Iron | QD | 1 11/16" | €800.47 | |
 |
1065713 | 15" | 1/2" to 2 15/16" | 2 5/32" | Cast Iron | QD | 1 11/16" | €1,223.73 | |
 |
3063351 | 11.3" | 1/2" to 2 5/8" | 2 5/32" | Cast Iron | QD | 1 11/16" | €493.68 | |
 |
1065663 | 10.9" | 1/2" to 2 5/8" | 2 5/32" | Cast Iron | QD | 1 11/16" | €426.60 |
