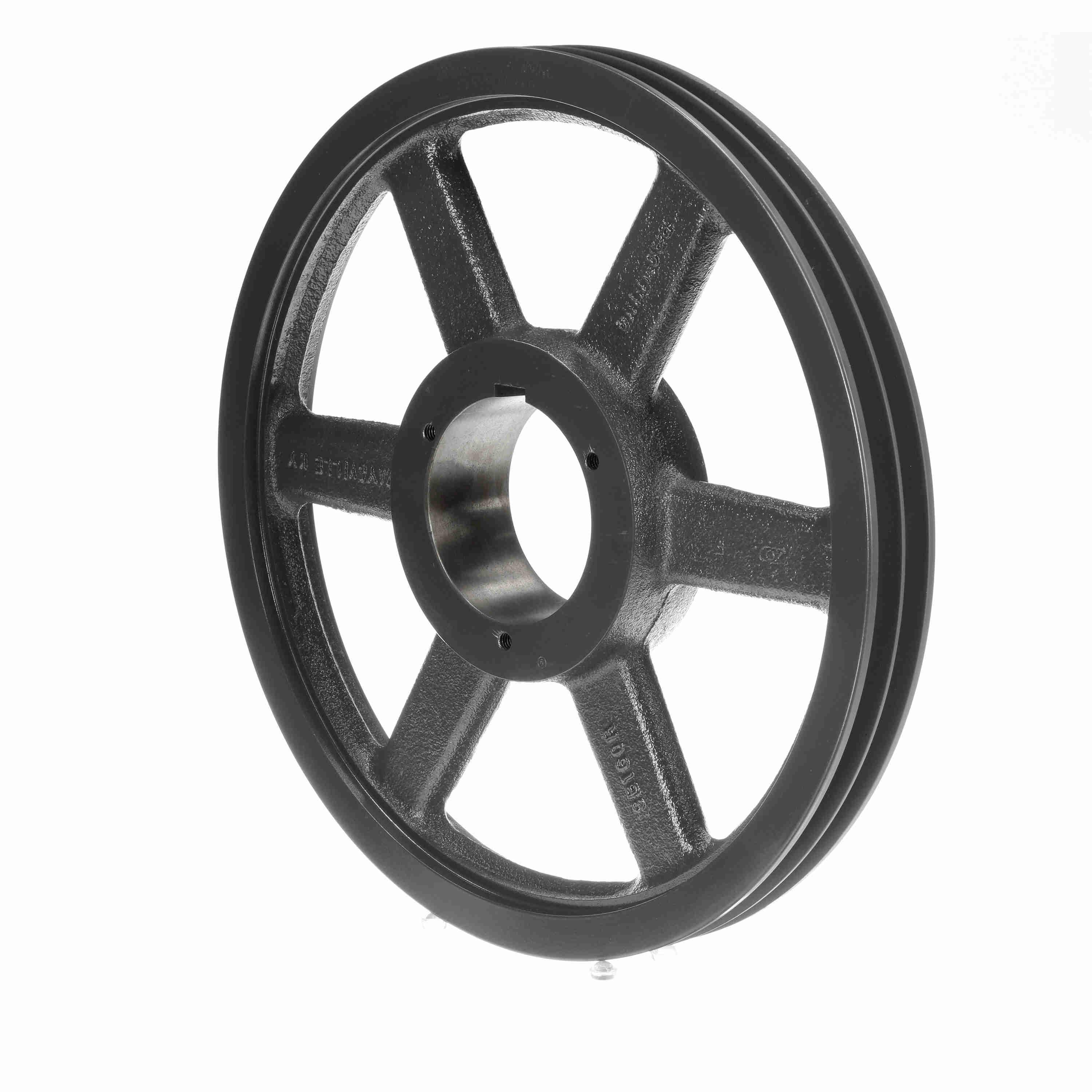

BROWNING 1062462 2R5V160 V-Belt Sheave, Multiple, Bushed Bore, 2 Groove, Cast Iron, 16 in OD, 1.13 to 3.75 in Bore Dia, 15.9 in Pitch Dia, R1 Bushing Type
Get it by Monday, Aug 17
€878.95 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 5V Series |
| Bore Dia. | 1.13" to 3.75" |
| Bore Type | Split Taper |
| Bushing Bore Range | 1 1/8" to 3 3/4" |
| Bushing Type | R1 |
| Face Width | 1 11/16" |
| Hub Projection | 5/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Min. Plain Bore | No |
| No. Of Grooves | 2 |
| Outside Dia. | 16" |
| Overall Length | 3 5/32" |
| Pitch Dia. | 15.9" |
| Suitable For Use With | Gripbelt 5V Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 16 Arm |
Shipping Info:
| Ship weight (kg) | 13.32 |
| Ship height (cm) | 40.64 |
| Ship length (cm) | 8.03 |
| Ship width (cm) | 40.64 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Bore Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Bushing Type | Hub Projection | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1062256 | 13.1" | 3/4" to 2 11/16" | Type 16 Arm | - | - | Q1 | 1/32" | Cast Iron | €730.12 | |
 |
1062538 | 21.1" | 1 1/8" to 3 3/4" | Arm Type 16 | - | - | R1 | 1 3/32" | Cast Iron | €1,514.59 | |
 |
1061498 | 7" | 3/4" to 2 11/16" | Type 16 Solid | - | - | Q1 | 1/32" | Cast Iron | €399.79 | |
 |
1062033 | 10 4/5" | 3/4" to 2 11/16" | Type 16 Arm | 10 4/5" | 10 4/5" | Q1 | 1/32" | Cast Iron | €544.01 | |
 |
1061373 | 5 4/5" | 3/4" to 2 11/16" | Type 16 Solid | 5 4/5" | 5 4/5" | Q1 | 1/32" | Cast Iron | €440.32 | |
 |
1061753 | 8.9" | 3/4" to 2 11/16" | Type 16 Web | - | - | Q1 | 7/8" | Cast Iron | €483.42 | |
 |
1061613 | 7.9" | 3/4" to 2 11/16" | Type 16 Web | - | - | Q1 | 7/8" | Cast Iron | €457.88 |
