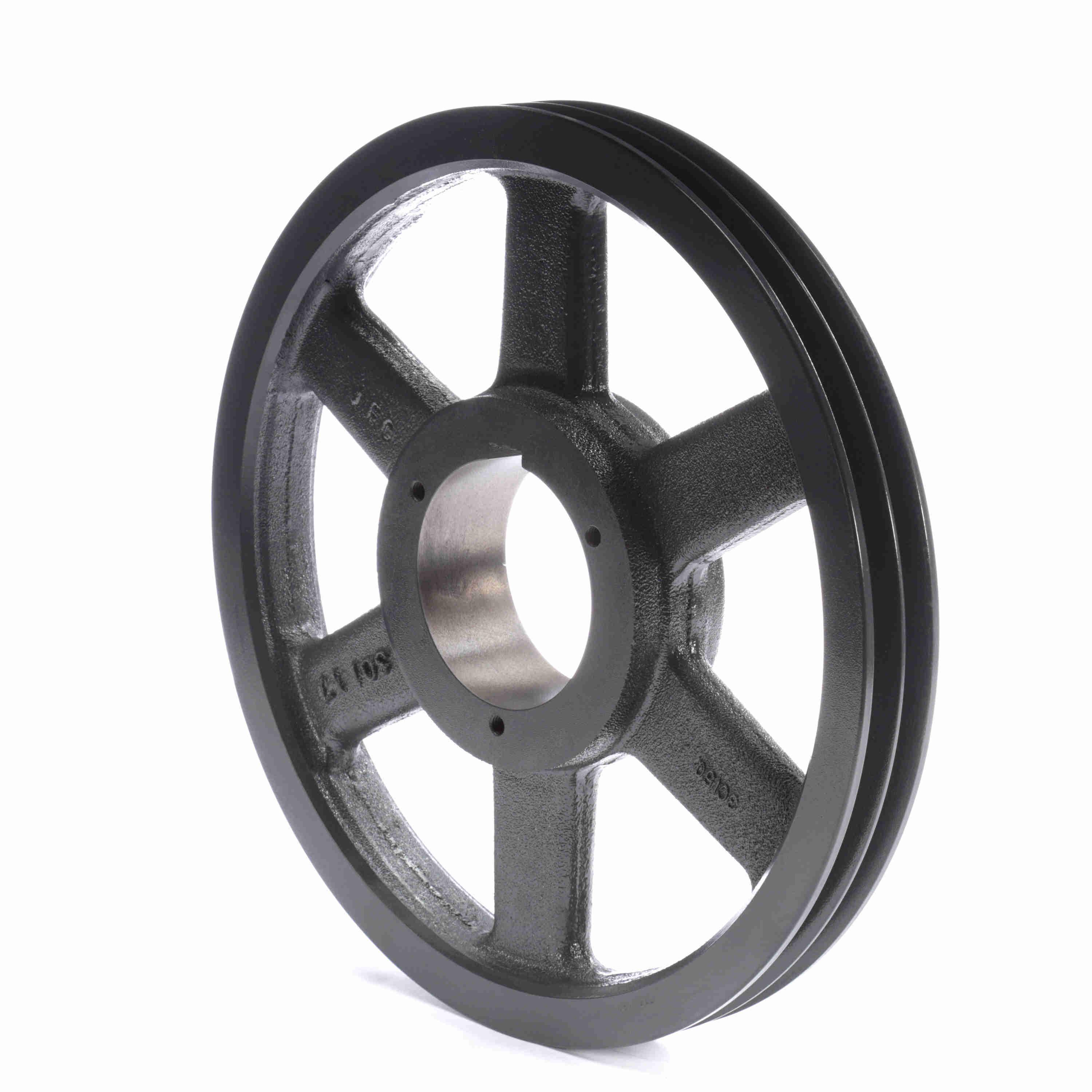

BROWNING 1062397 2R5V150 V-Belt Sheave, Multiple, Bushed Bore, 2 Groove, Cast Iron
Get it by Tuesday, Dec 23
€809.24 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 5V Series |
| Bore Dia. | 1.13" to 3.75" |
| Bore Type | Split Taper |
| Bushing Bore Range | 1 1/8" to 3 3/4" |
| Bushing Type | R1 |
| Face Width | 1 11/16" |
| Hub Projection | 5/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Min. Plain Bore | No |
| No. Of Grooves | 2 |
| Outside Dia. | 15" |
| Overall Length | 3 5/32" |
| Pitch Dia. | 14.9" |
| Suitable For Use With | Gripbelt 5V Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 16 Arm |
| Weight | 13.549 Kg |
Shipping Info:
| Ship weight (kg) | 13.37 |
| Ship height (cm) | 38.1 |
| Ship length (cm) | 8.03 |
| Ship width (cm) | 38.1 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Overall Length | Type | Bore Type | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1062256 | 13 1/5" | 3/4" to 2 11/16" | 2 25/32" | Type 16 Arm | Split Taper | Cast Iron | 1 11/16" | €730.12 | |
 |
1062538 | 21 1/5" | 1 1/8" to 3 3/4" | 3 11/64" | Arm Type 16 | Split Taper | Cast Iron | 1 11/16" | €1,514.59 | |
 |
1061498 | 7.1" | 3/4" to 2 11/16" | 2 25/32" | Type 16 Solid | Split Taper | Cast Iron | 1 11/16" | €399.79 | |
 |
1062033 | 10.9" | 3/4" to 2 11/16" | 2 25/32" | Type 16 Arm | Split Taper | Cast Iron | 1 11/16" | €544.01 | |
 |
1061373 | 5.9" | 3/4" to 2 11/16" | 2 25/32" | Type 16 Solid | Split Taper | Cast Iron | 1 11/16" | €440.32 | |
 |
1061753 | 9" | 3/4" to 2 11/16" | 2 53/64" | Type 16 Web | Split Taper | Cast Iron | 1 11/16" | €483.42 | |
 |
1061613 | 8" | 3/4" to 2 11/16" | 2 53/64" | Type 16 Web | Split Taper | Cast Iron | 1 11/16" | €457.88 |
