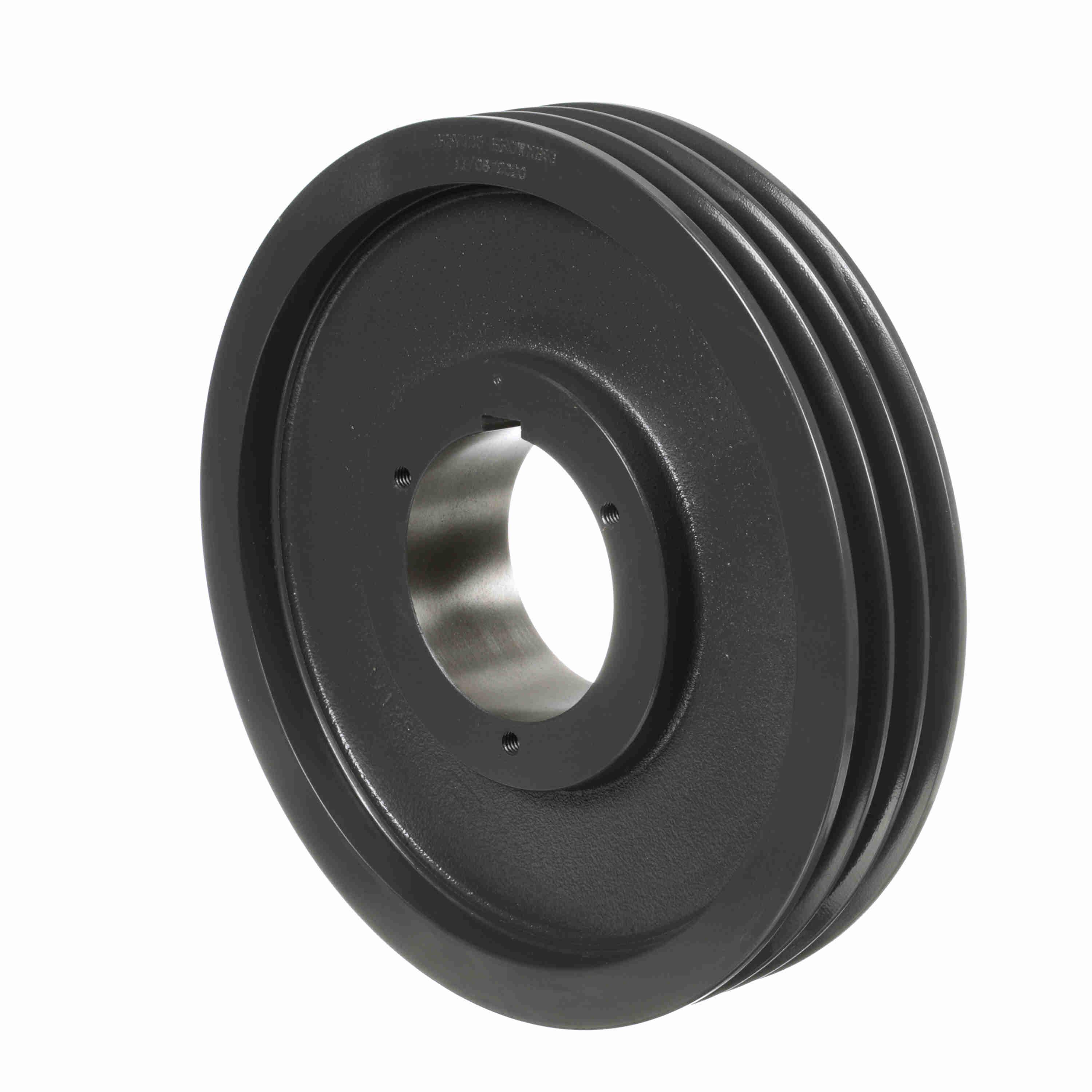

BROWNING 1062181 3R5V125 V-Belt Sheave, Multiple, Bushed Bore, 3 Groove, Cast Iron
Get it by Monday, Dec 22
€694.12 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 5V Series |
| Bore Dia. | 1.13" to 3.75" |
| Bore Type | Split Taper |
| Bushing Bore Range | 1 1/8" to 3 3/4" |
| Bushing Type | R1 |
| Face Width | 2 3/8" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 12 2/5" |
| Min. Pitch Dia. | 12 2/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 3 |
| Outside Dia. | 12 1/2" |
| Overall Length | 3 11/32" |
| Pitch Dia. | 12 2/5" |
| Suitable For Use With | Gripbelt 5V Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 13 Arm |
| Weight | 15.32 Kg |
Shipping Info:
| Ship weight (kg) | 14.94 |
| Ship height (cm) | 31.75 |
| Ship length (cm) | 8.48 |
| Ship width (cm) | 31.75 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Overall Length | Type | Bore Type | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1061761 | 9" | 1.13" to 3.75" | 3 11/32" | Type 13 Web | Split Taper | Cast Iron | 2 3/8" | €420.39 | |
 |
1061506 | 7.1" | 3/4" to 2 11/16" | 2 31/32" | Type 13 Web | Split Taper | Cast Iron | 2 3/8" | €544.10 | |
 |
1061381 | 5.9" | 3/4" to 2 11/16" | 3 1/64" | Solid Type 13 | Split Taper | Cast Iron | 2 3/8" | €467.48 | |
 |
1061621 | 8" | 1.13" to 3.75" | 3 11/32" | Type 13 Web | Split Taper | Cast Iron | 2 3/8" | €393.53 | |
 |
1062116 | 11 4/5" | 1.13" to 3.75" | 3 11/32" | Type 13 Web | Split Taper | Cast Iron | 2 3/8" | €535.45 | |
 |
1062652 | 28" | 1 1/8" to 3 3/4" | 3 23/64" | Arm Type 13 | Split Taper | Cast Iron | 2 3/8" | €1,830.81 | |
 |
1061977 | 10.3" | 1.13" to 3.75" | 3 11/32" | Type 13 Web | Split Taper | Cast Iron | 2 3/8" | €494.64 |
