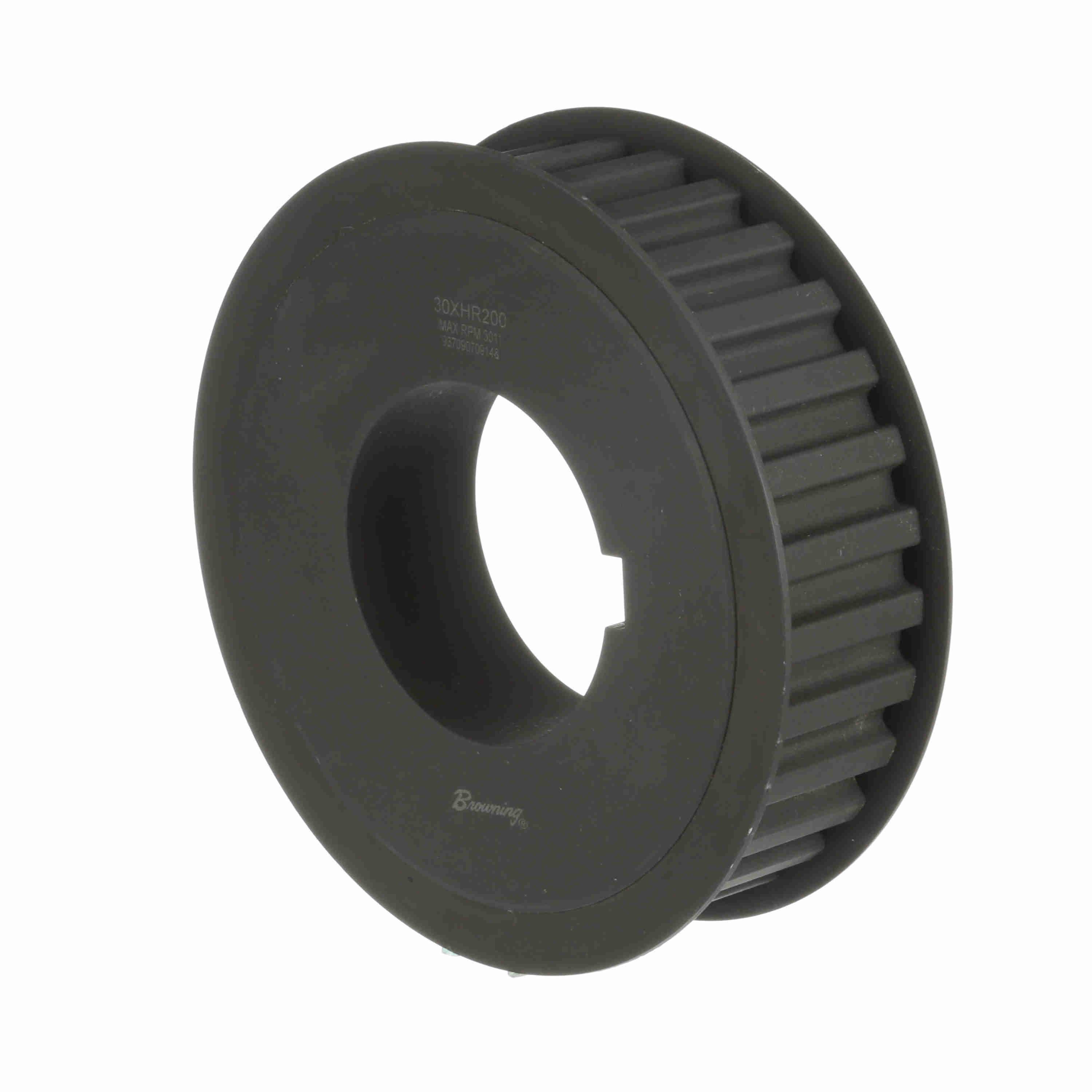

BROWNING 1057637 30XHR200 Gearbelt Pulley, Bushed Bore, Steel, 8.246 in OD, 1-1/8 to 3-3/4 in Bore Dia, 8.356 in Pitch Dia, Type 11, R1 Bushing Type, 2-9/16 in Face Width
Get it by Tuesday, Jun 30
€1,073.30 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Gearbelt Pulley |
| Belt Pitch | 7/8" |
| Belt Style | XH |
| Bore Dia. | 1 1/8" to 3 3/4" |
| Bore Type | Split Taper |
| Bushing Type | R1 |
| Face Width | 2.563" |
| Flange | Yes |
| Flange Dia. | 8 7/8" |
| For Belt Width | 2" |
| For Use With | 2 Inch Width XH200 Type Belt |
| Hub Dia. | 5 3/8" |
| Hub Projection | 5/16" |
| Keyway | Yes |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| No. Of Teeth | 30 |
| Other Features | Extra Heavy, Split Taper Bushing, Type 11 |
| Outside Dia. | 8.246" |
| Overall Length | 3 5/32" |
| Pitch Dia. | 8.356" |
| System Of Measurement | Imperial |
| Type | Type 11 |
Shipping Info:
| Ship weight (kg) | 9.94 |
| Ship height (cm) | 20.96 |
| Ship length (cm) | 8.03 |
| Ship width (cm) | 20.96 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Outside Dia. | Bore Dia. | Type | Hub Dia. | Hub Projection | Flange Dia. | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1057579 | 5.013" | 4.903" | 3/4" to 2 11/16" | Type 9 | 4 1/8" | 3/4" | 5 9/16" | Split Taper | €1,401.42 | |
 |
1057587 | 5.57" | 5.46" | 3/4" to 2 11/16" | Type 10 | 4 1/8" | 1/16" | 6 1/8" | Split Taper | €832.05 | |
 |
1057595 | 6.127" | 6.017" | 3/4" to 2 11/16" | Type 10 | 4 1/8" | 1/16" | 6 11/16" | Split Taper | €1,340.22 | |
 |
1057603 | 6.685" | 6.575" | 3/4" to 2 11/16" | Type 10 | 4 1/8" | 1/16" | 7 1/4" | Split Taper | €890.42 | |
 |
1057611 | 7.241" | 7.131" | 3/4" to 2 11/16" | Type 10 | 4 1/8" | 1/16" | 7 3/4" | Split Taper | €1,048.91 | |
 |
1057629 | 7.799" | 7.689" | 1 1/8" to 3 3/4" | Type 11 | 5 3/8" | 5/16" | 8 3/8" | Split Taper | €985.73 | |
 |
1057645 | 8.913" | 8.803" | 1 1/8" to 3 3/4" | Type 11 | 5 3/8" | 5/16" | 9 7/16" | Split Taper | €2,117.95 |
