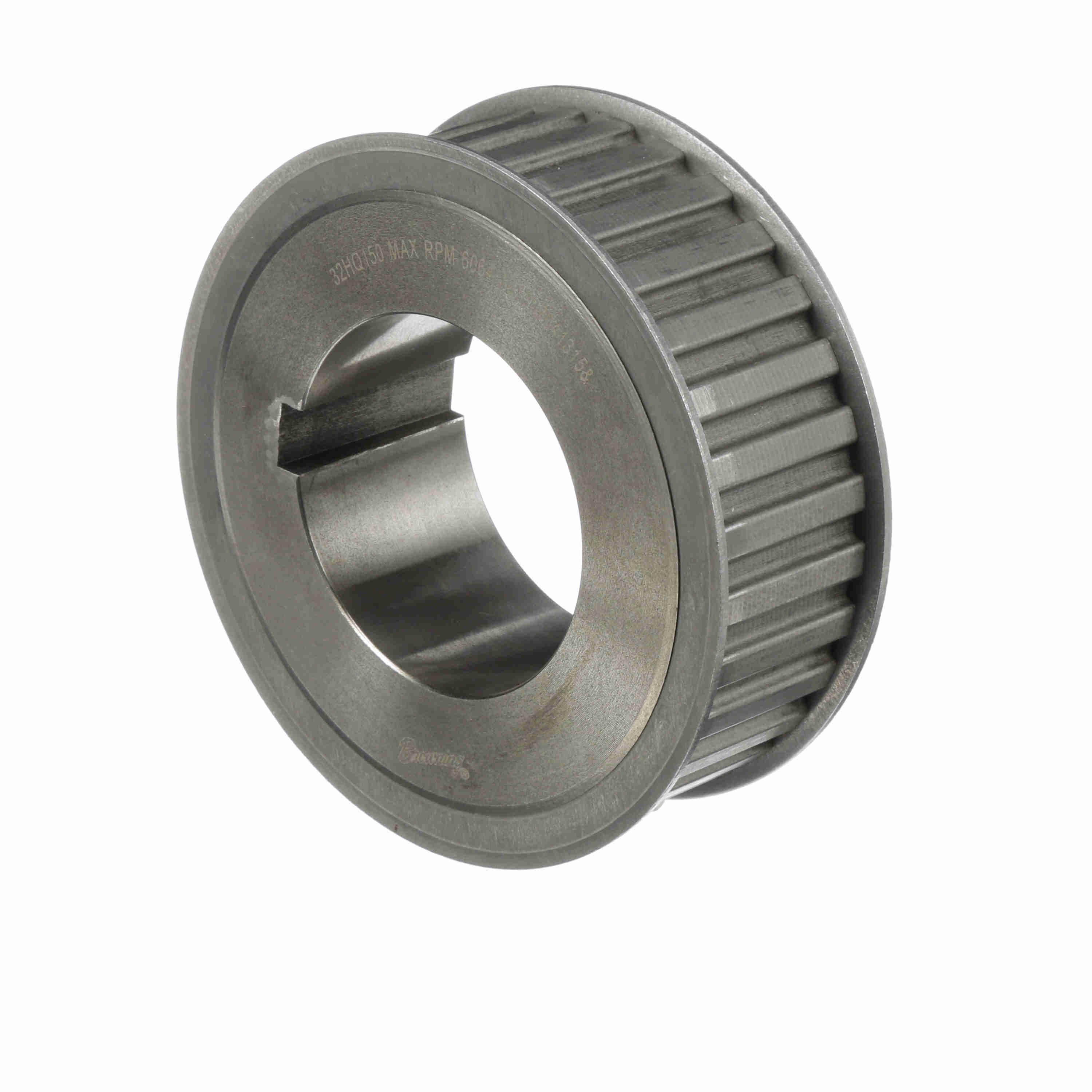

BROWNING 1057199 32HQ150 Gearbelt Pulley, Bushed Bore, Steel, 5.039 in OD, 3/4 to 2-11/16 in Bore Dia, 5.093 in Pitch Dia, Type 9, Q1 Bushing Type, 1-3/4 in Face Width
Item: AK6MYKModel: 1057199Cross Ref: 32HQ150
7 In Stock
32
3/4" to 2 11/16"
Ships within 2 days via
€474.90 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Gearbelt Pulley |
| Belt Pitch | 1/2" |
| Belt Style | H |
| Bore Dia. | 3/4" to 2 11/16" |
| Bore Type | Split Taper |
| Bushing Type | Q1 |
| Face Width | 1.813" |
| Flange | Yes |
| Flange Dia. | 5 5/16" |
| For Belt Width | 1 1/2" |
| For Use With | 1-1/2 Inch Width Type H150 Belt |
| Hub Dia. | 4 1/8" |
| Hub Projection | 3/4" |
| Keyway | Yes |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| Number Of Teeth | 32 |
| Other Features | Heavy, Split Taper Bushing, Type 9 |
| Outside Dia. | 5.039" |
| Overall Length | 2 25/32" |
| Pitch Dia. | 5.093" |
| System Of Measurement | Imperial |
| Type | Type 9 |
Shipping Info:
| Ship weight (kg) | 2.97 |
| Ship height (cm) | 12.8 |
| Ship length (cm) | 7.06 |
| Ship width (cm) | 12.8 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Bore Dia. | Type | Hub Dia. | Hub Projection | Flange Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

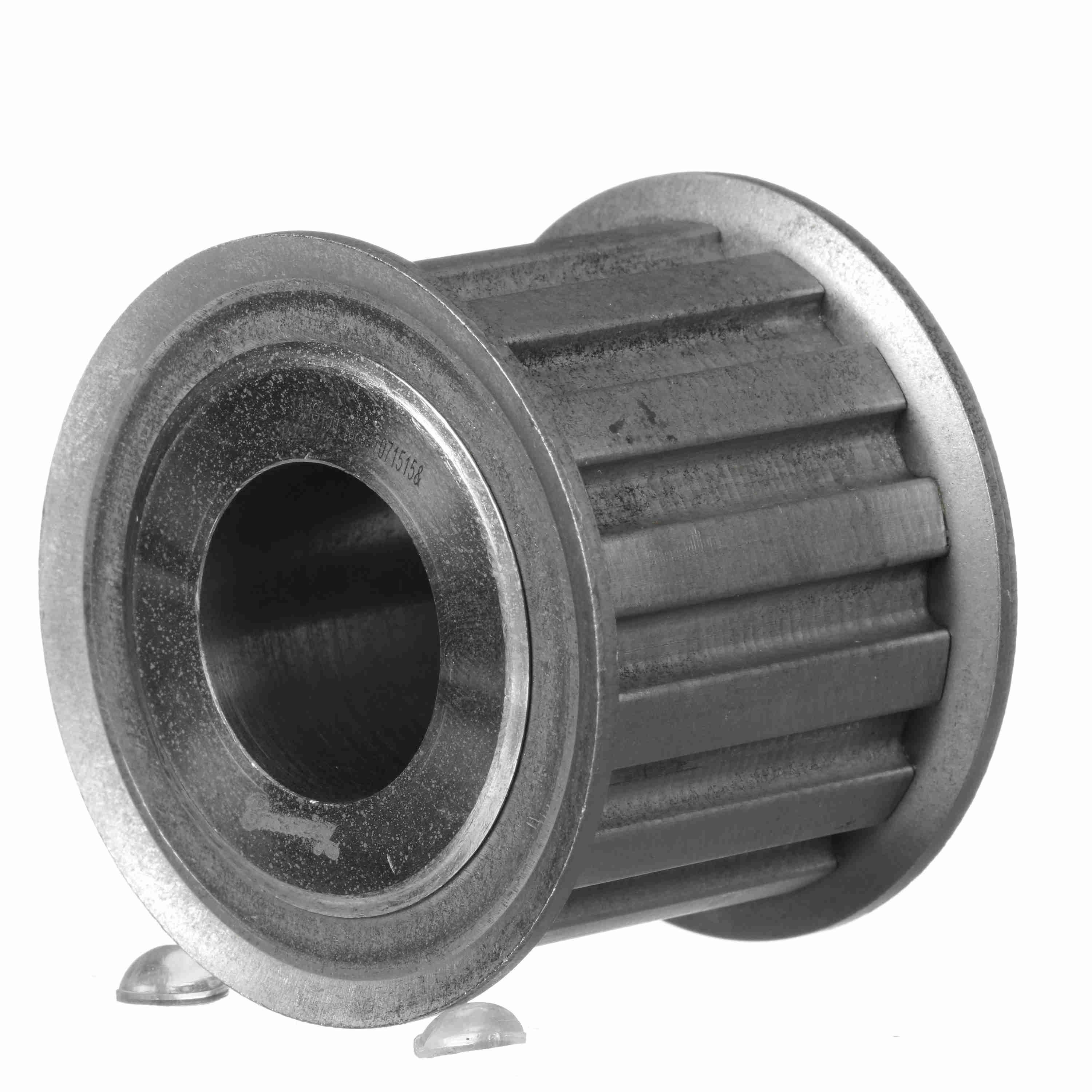

1057058 | 14 | 2.228" | 2.174" | 3/8" to 1" | Type 4 | 2" | 7/16" | 2 7/16" | €377.95 | |
 |

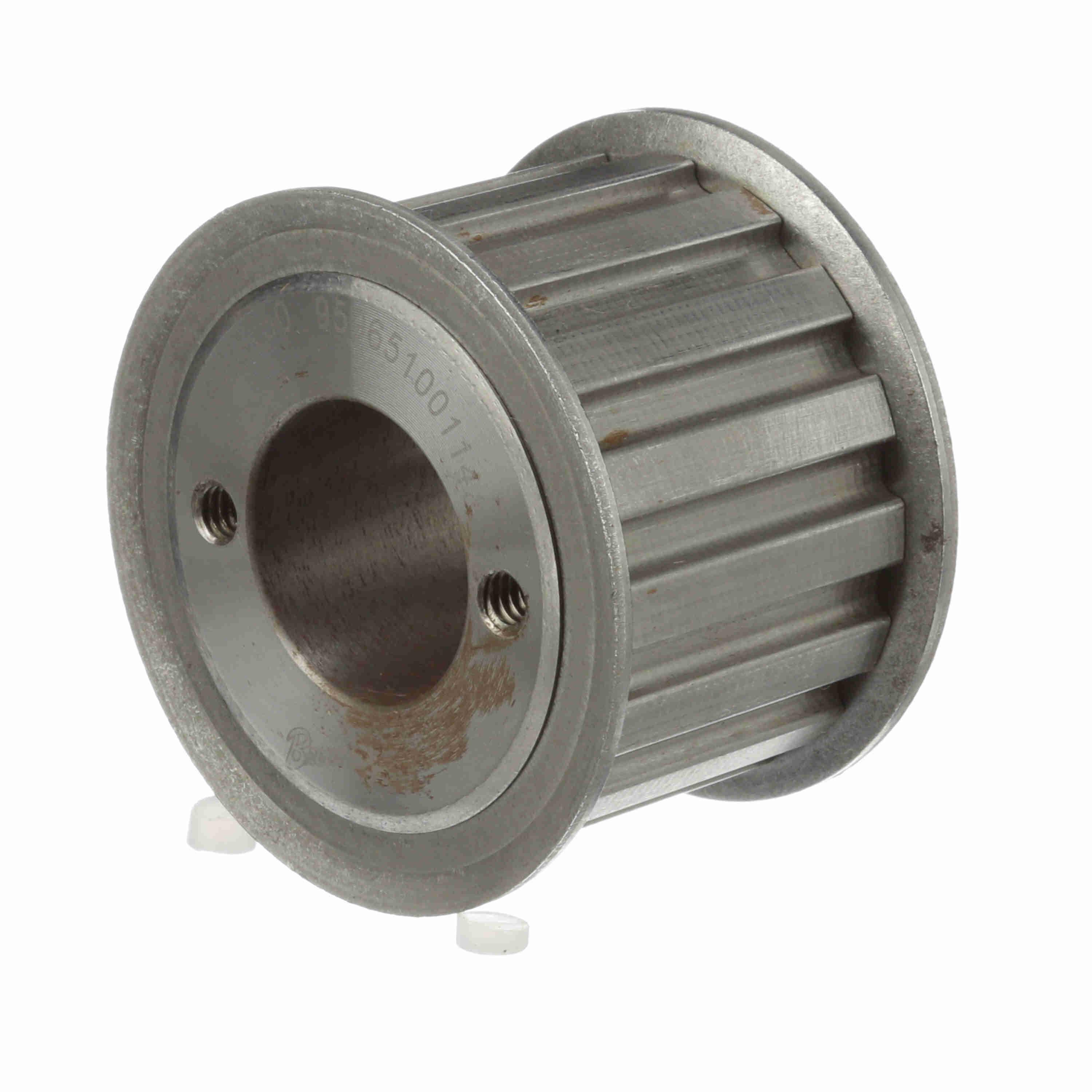

1057066 | 16 | 2.546" | 2.492" | 3/8" to 1" | Type 4 | 2" | 7/16" | 2 7/8" | €278.26 | |
 |

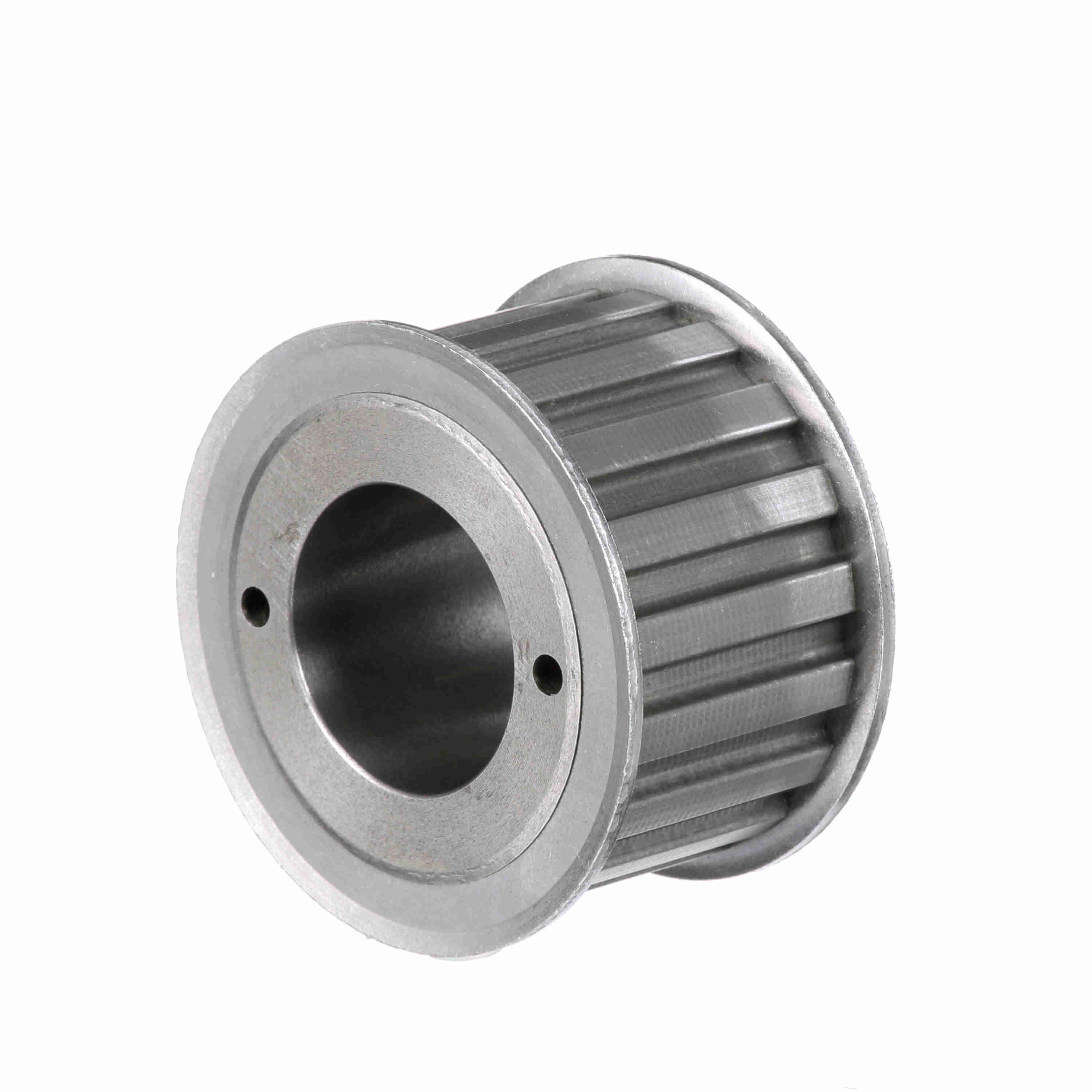

1057074 | 18 | 2.865" | 2.811" | 3/8" to 1 1/2" | Type 4 | 2 1/2" | 7/16" | 3 1/8" | €287.03 | |
 |

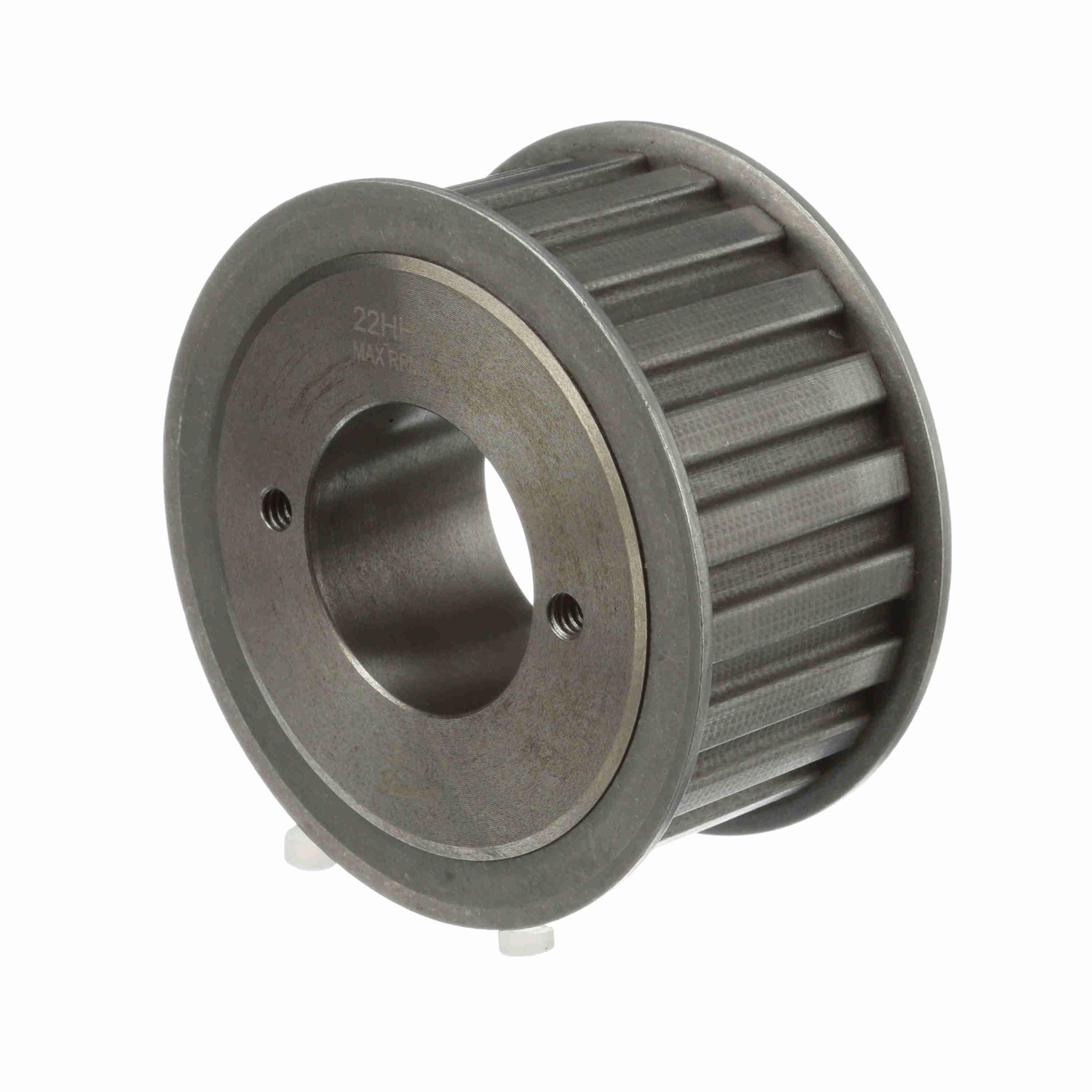

1057090 | 22 | 3.501" | 3.447" | 3/8" to 1 1/2" | Type 16 | 2 1/2" | 1/32" | 3 13/16" | €341.85 | |
 |

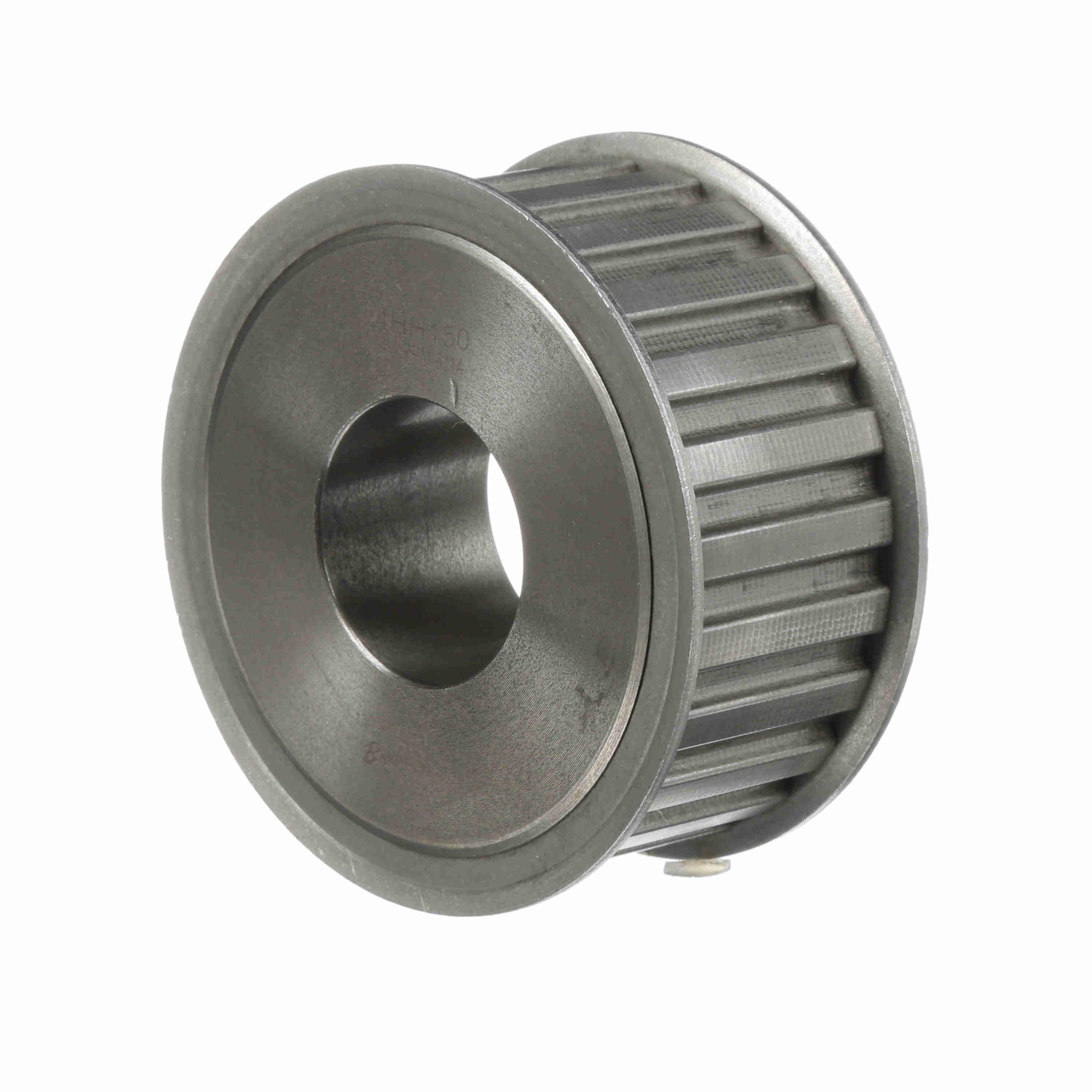

1057116 | 24 | 3.82" | 3.766" | 3/8" to 1 1/2" | Type 16 | 2 1/2" | 1/32" | 4 1/16" | €393.06 | |
 |

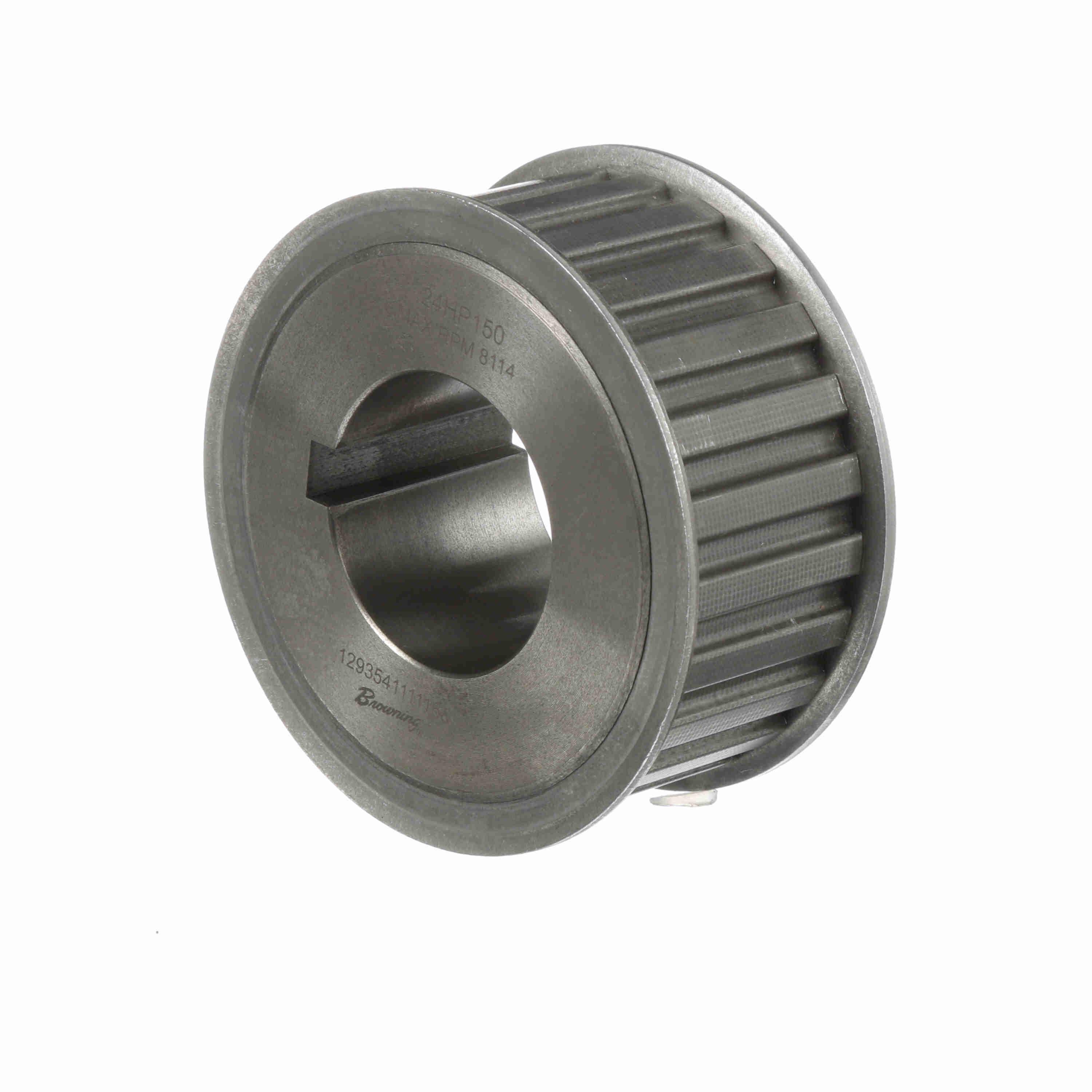

1057124 | 24 | 3.82" | 3.766" | 1/2" to 1 3/4" | Type 9 | 3" | 5/8" | 4 1/16" | €316.60 | |
 |

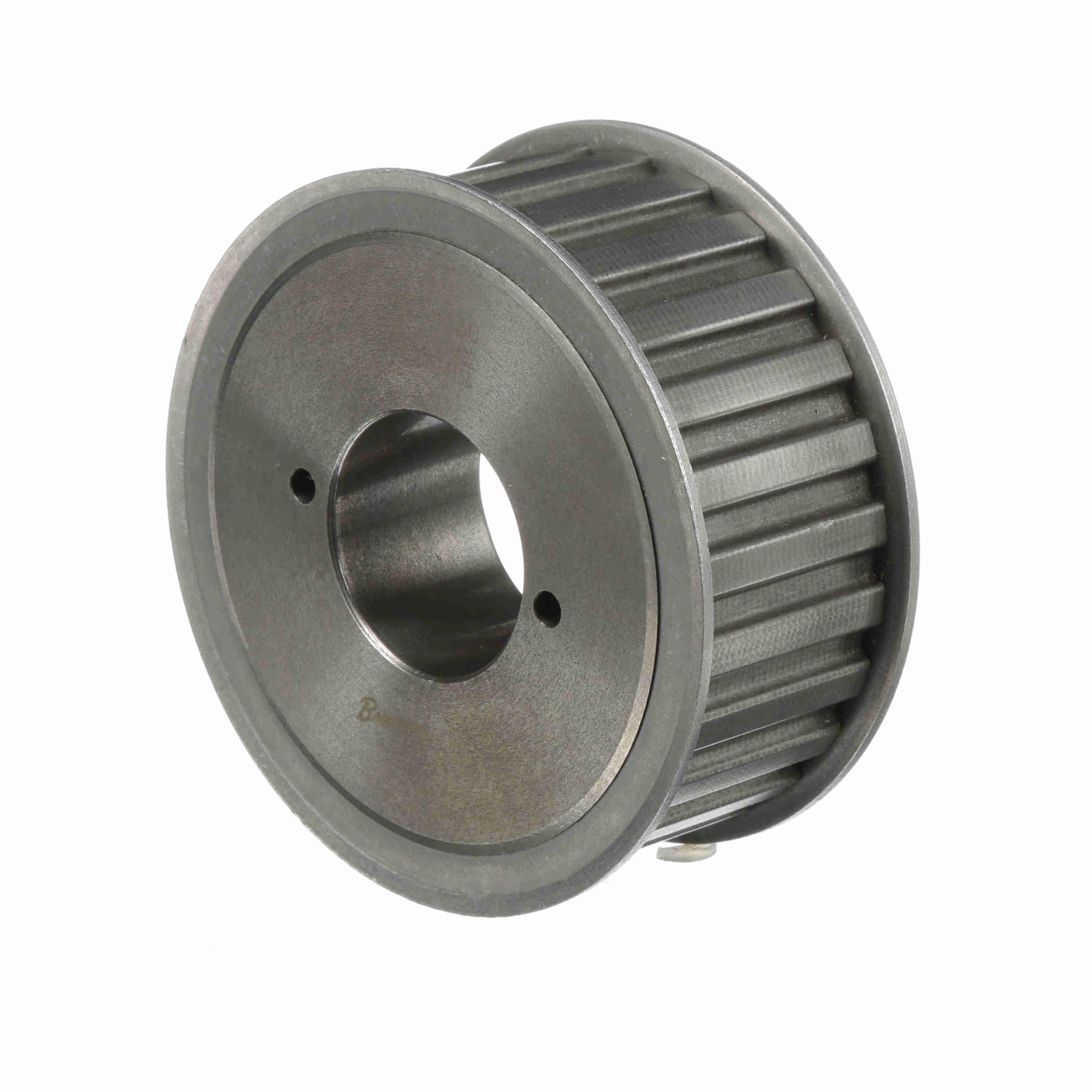

1057132 | 26 | 4.138" | 4.084" | 3/8" to 1 1/2" | Type 16 | 2 1/2" | 1/32" | 4 3/8" | €415.55 |
