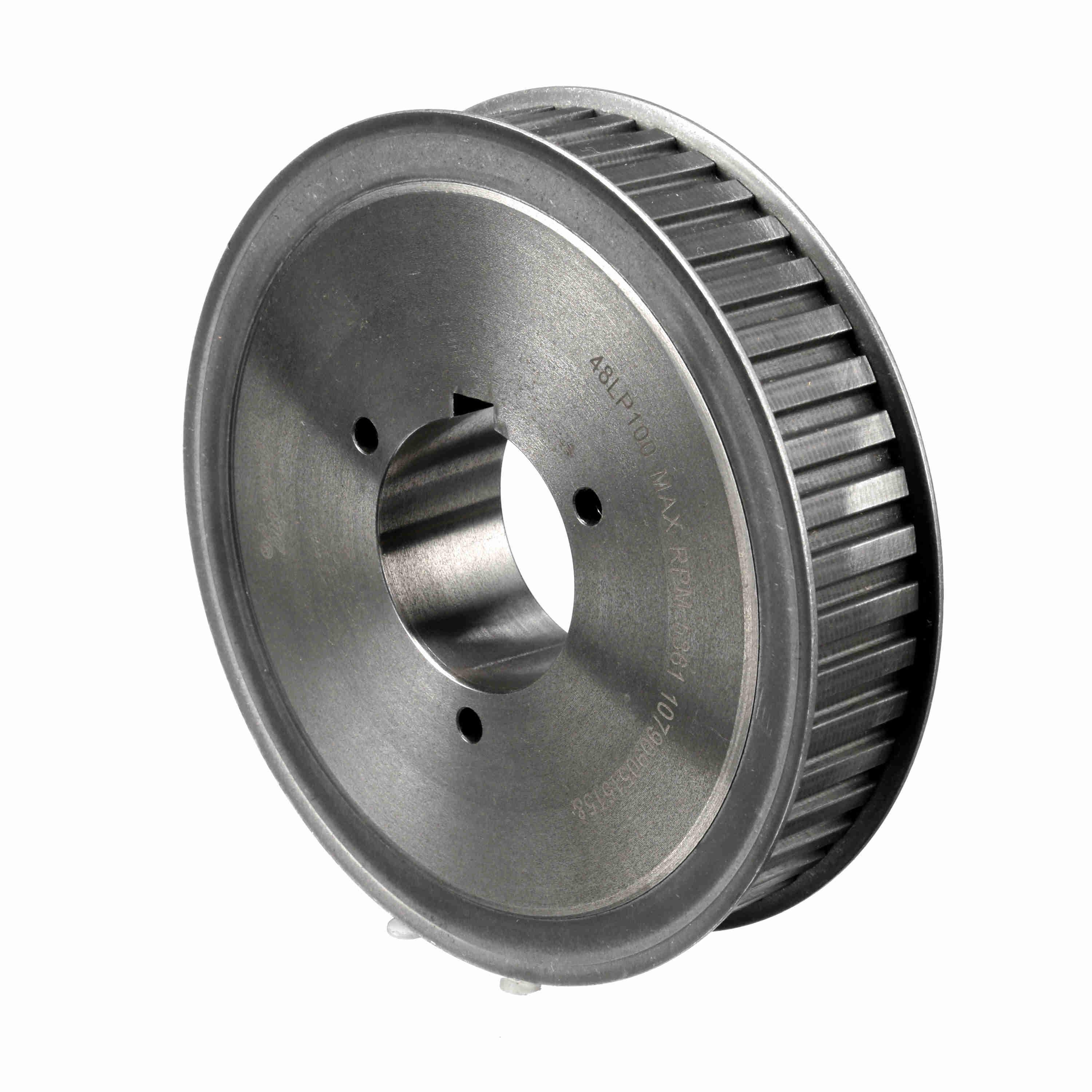

BROWNING 1056696 48LP100 Gearbelt Pulley, Bushed Bore, Steel, 5.7 in OD, 1/2 to 1-3/4 in Bore Dia, 5.73 in Pitch Dia, Type 6, P1 Bushing Type, 2.188 in Face Width
Item: AX3ZXBModel: 1056696Cross Ref: 48LP100
7 In Stock
48
1/2" to 1 3/4"
Ships within 2 days via
€766.11 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Gearbelt Pulley |
| Belt Pitch | 3/8" |
| Belt Style | L |
| Bore Dia. | 1/2" to 1 3/4" |
| Bore Type | Split Taper |
| Bushing Type | P1 |
| Face Width | 1 1/4" |
| Flange | Yes |
| Flange Dia. | 6" |
| For Belt Width | 1" |
| For Use With | 1 Inch Width Type L100 Belt |
| Hub Dia. | 3" |
| Hub Projection | 1.938" |
| Keyway | Yes |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| Number Of Teeth | 48 |
| Other Features | Light, Split Taper Bushing, Type 6 |
| Outside Dia. | 5.7" |
| Overall Length | 2 3/16" |
| Pitch Dia. | 5.73" |
| System Of Measurement | Imperial |
| Type | Type 6 |
Shipping Info:
| Ship weight (kg) | 3.53 |
| Ship height (cm) | 14.48 |
| Ship length (cm) | 5.56 |
| Ship width (cm) | 14.48 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Bore Dia. | Type | Hub Projection | Hub Dia. | Flange Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1056563 | 22 | 2.626" | 2.596" | 3/8" to 1" | Type 4 | 7/16" | 2" | 2 7/8" | €168.81 | |
 |
1056597 | 28 | 3.342" | 3.312" | 3/8" to 1 1/2" | Type 4 | 7/16" | 2 1/2" | 3 5/8" | €204.19 | |
 |
1056613 | 32 | 3.82" | 3.79" | 3/8" to 1 1/2" | Type 16 | 1/32" | 2 1/2" | 4 1/16" | €241.16 | |
 |
1056621 | 36 | 4.297" | 4.267" | 3/8" to 1 1/2" | Type 16 | 1/32" | 2 1/2" | 4 11/16" | €354.69 | |
 |
1056647 | 40 | 4.775" | 4.745" | 3/8" to 1 1/2" | Type 16 | 1/32" | 2 1/2" | 5" | €363.63 | |
 |
1056662 | 44 | 5.252" | 5.222" | 3/8" to 1 1/2" | Type 16 | 1/32" | 2 1/2" | 5 1/2" | €439.64 | |
 |
1056704 | 60 | 7.162" | 7.132" | 3/8" to 1 1/2" | Type 18 | 0.063" | 2 1/2" | - | €462.56 |
